Safety Belt Retractor - Second Row, Center: Notes

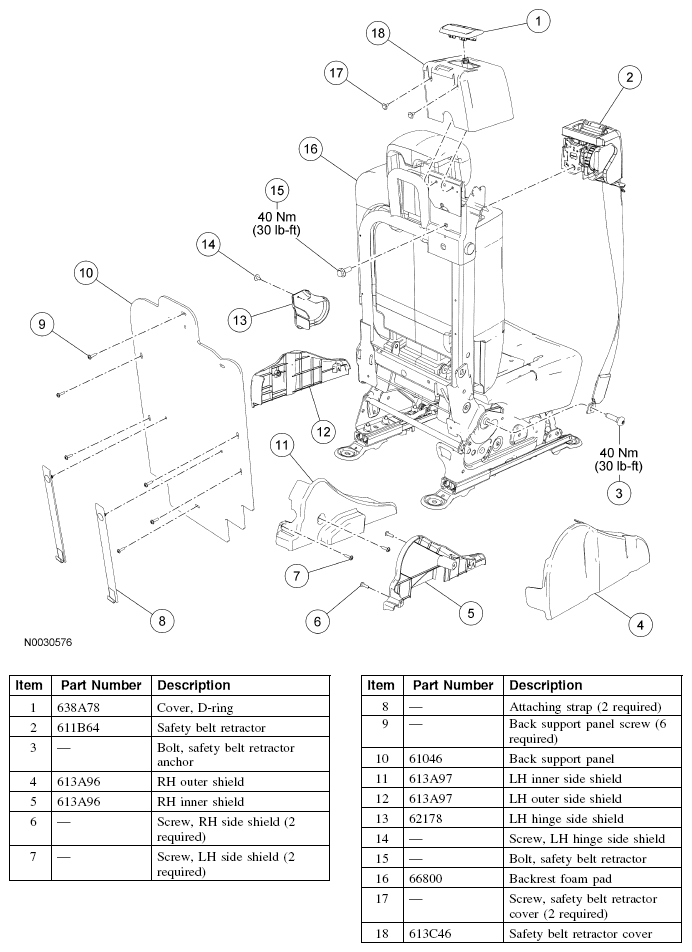

Fig 1: Identifying Safety Belt Retractor Components - Second Row, Center
G04631305Courtesy of FORD MOTOR CO.
