Home › Ford › 2006 › Expedition RWD › Repair and Diagnosis › Restraints › Restraints Control Systems › Safety Belt System › Removal And Installation › Safety Belt Retractor - Third Row, Center › Notes

Safety Belt Retractor - Third Row, Center: Notes

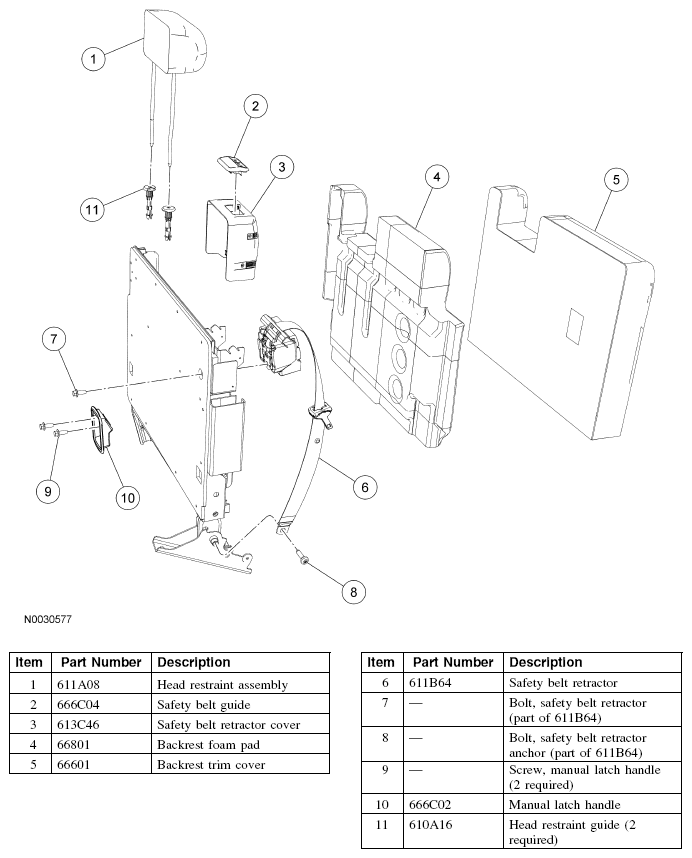

Fig 1: Identifying Safety Belt Retractor Components - Third Row, Center
G04631309Courtesy of FORD MOTOR CO.
