Steering Gear: Notes

MATERIAL SPECIFICATION

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

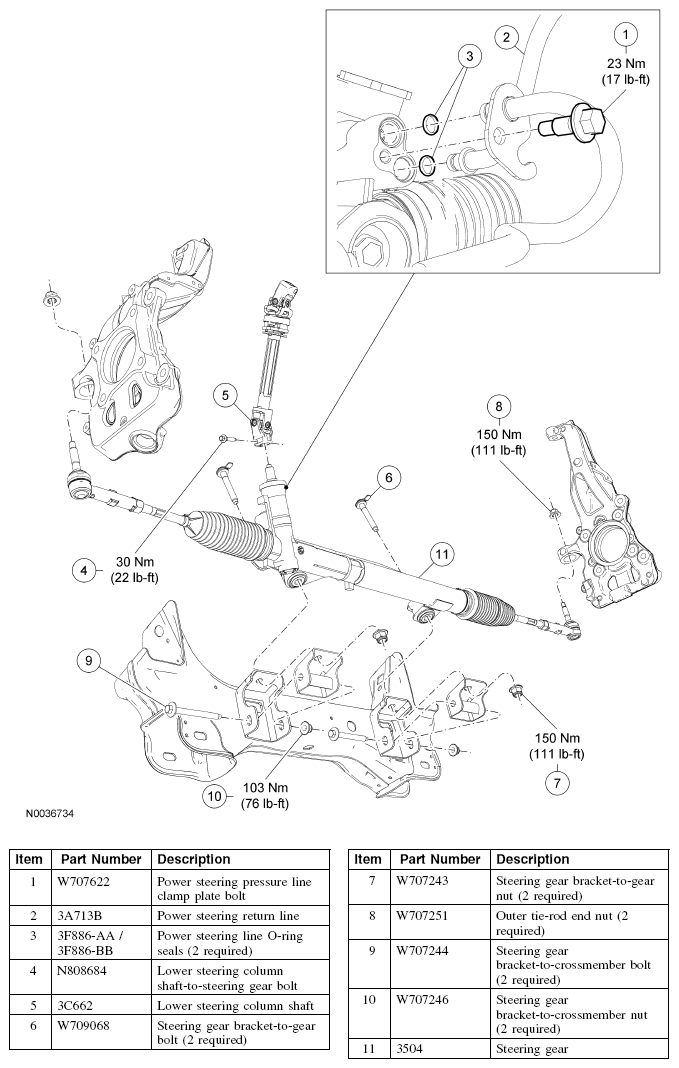

Fig 1: Steering Gear Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
