Pump and Intermediate Clutch Piston: Notes

SPECIAL TOOL TABLE

G04628482Courtesy of FORD MOTOR CO.
 Installer, Front Pump Fluid Seal
307-014 (T63L-77837-A)

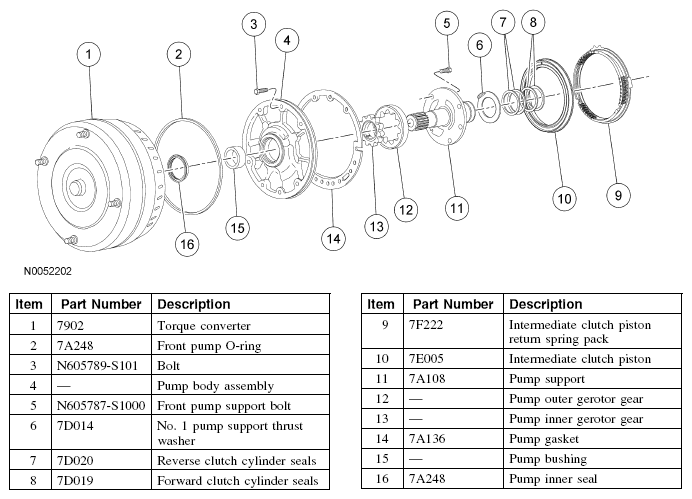

Fig 1: Exploded View Of Pump and Intermediate Clutch Spring and Support
G04628483Courtesy of FORD MOTOR CO.
