Seat Backrest - Front: Notes

SPECIAL TOOL(S) REFERENCE

G04642328Courtesy of FORD MOTOR CO.
 Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

Front Seat Backrest

NOTE: Driver backrest shown, passenger backrest similar.

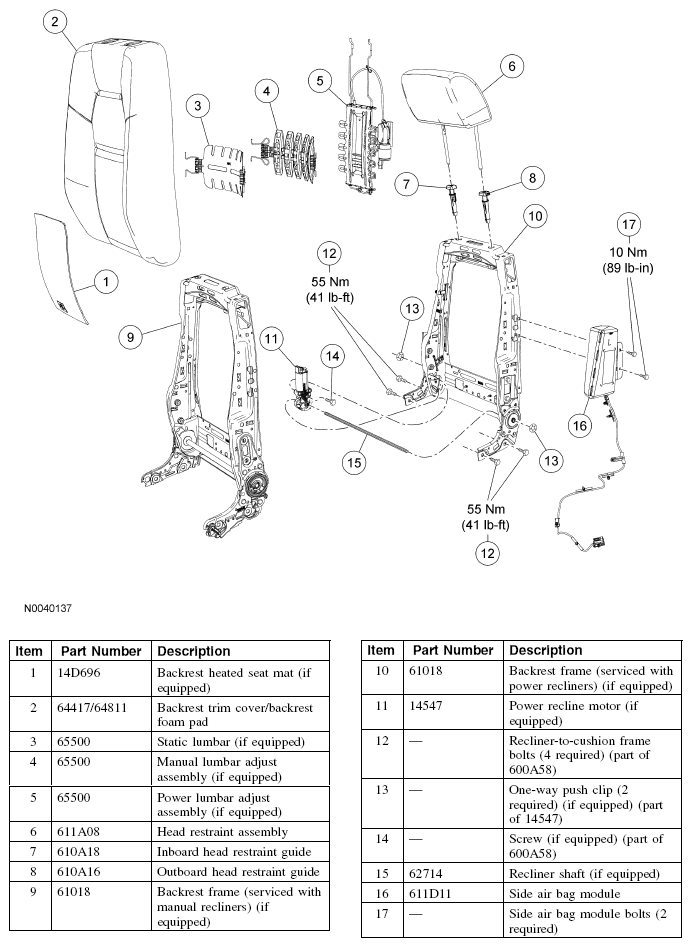

Fig 1: Exploded View Of Front Seat Backrest Components With Torque Specification
G04642329Courtesy of FORD MOTOR CO.
