Inner Tie Rod: Notes

SPECIAL TOOLS REFERENCE

Courtesy of FORD MOTOR CO.	Inner Tie-Rod Socket Tool 211-D029 or equivalent
Courtesy of FORD MOTOR CO.	C-Frame and Screw 211-023 (T74P-3044-A1)
Courtesy of FORD MOTOR CO.	Boot Clamp Pliers 205-D067 (D87P-1098-A) or equivalent

MATERIAL SPECIFICATIONS

Item	Specification
Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada)	ESA-M1C75-B

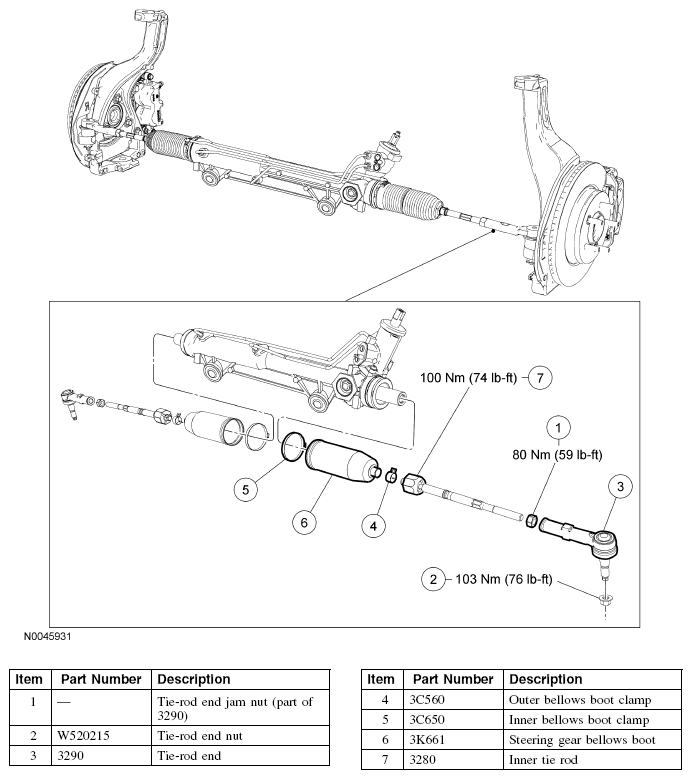

Fig 1: Power Steering Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
