Connector Views

Fig 1: Crankshaft Position Sensor Connector End View (C101)

G04596534

Courtesy of FORD MOTOR CO.

Fig 2: Generator Connector End View (C102A)

G04596535

Courtesy of FORD MOTOR CO.

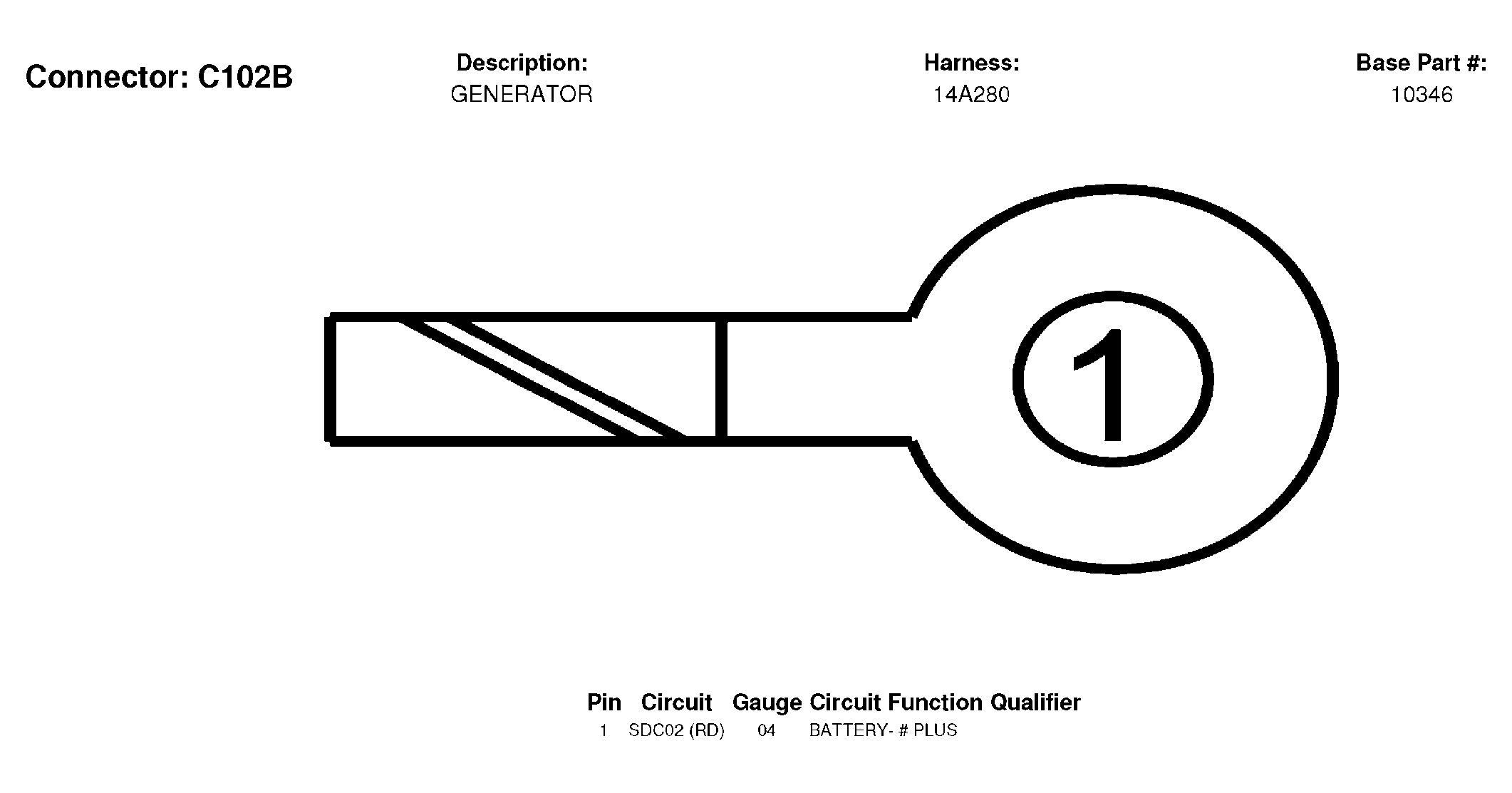

Fig 3: Generator Connector End View (C102B)

G04596536

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102C)

G04596537

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G04596538

Courtesy of FORD MOTOR CO.

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G04596539

Courtesy of FORD MOTOR CO.

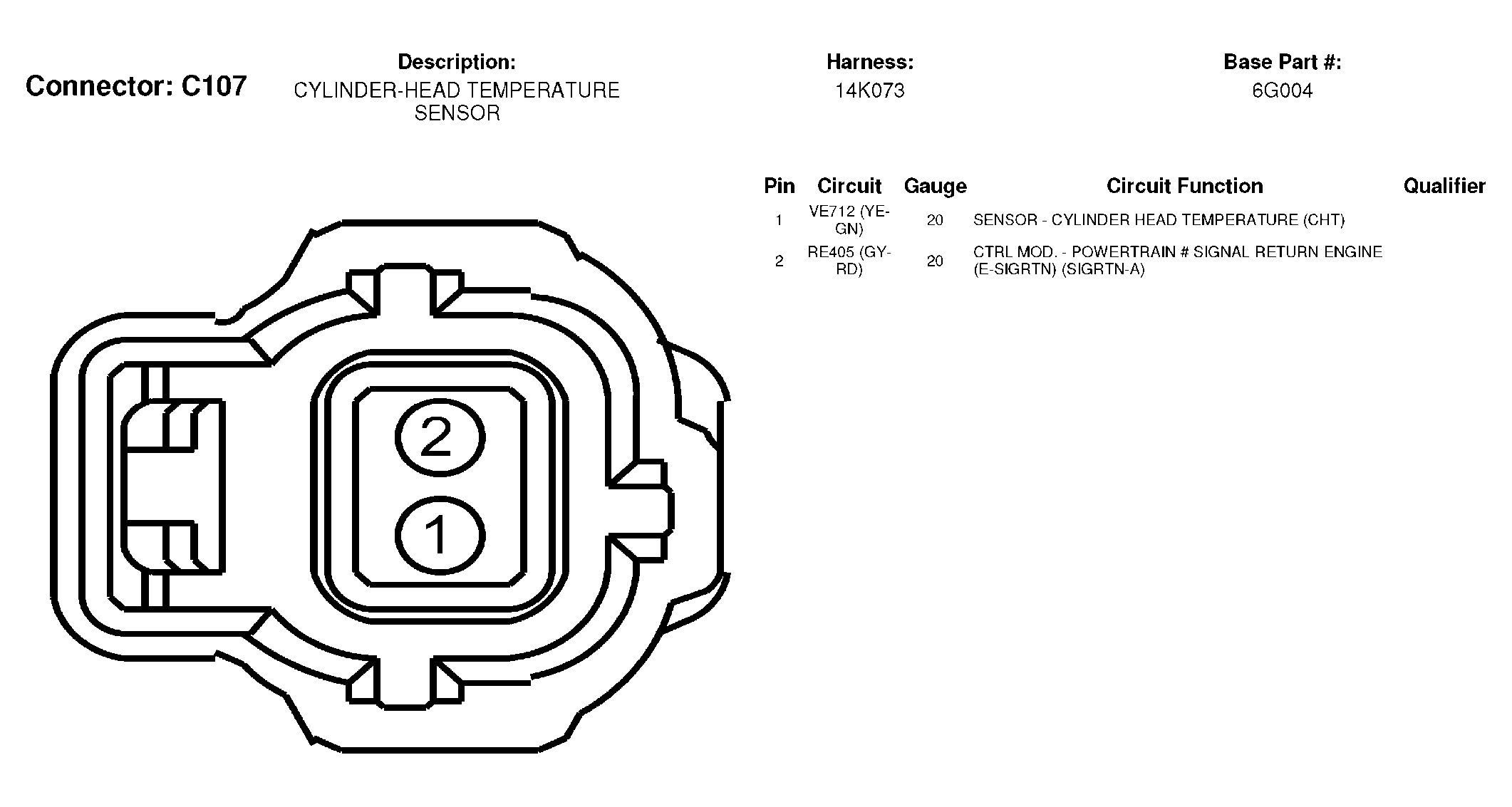

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)

G04596540

Courtesy of FORD MOTOR CO.

Fig 8: Knock Sensor Connector End View (C108)

G04596541

Courtesy of FORD MOTOR CO.

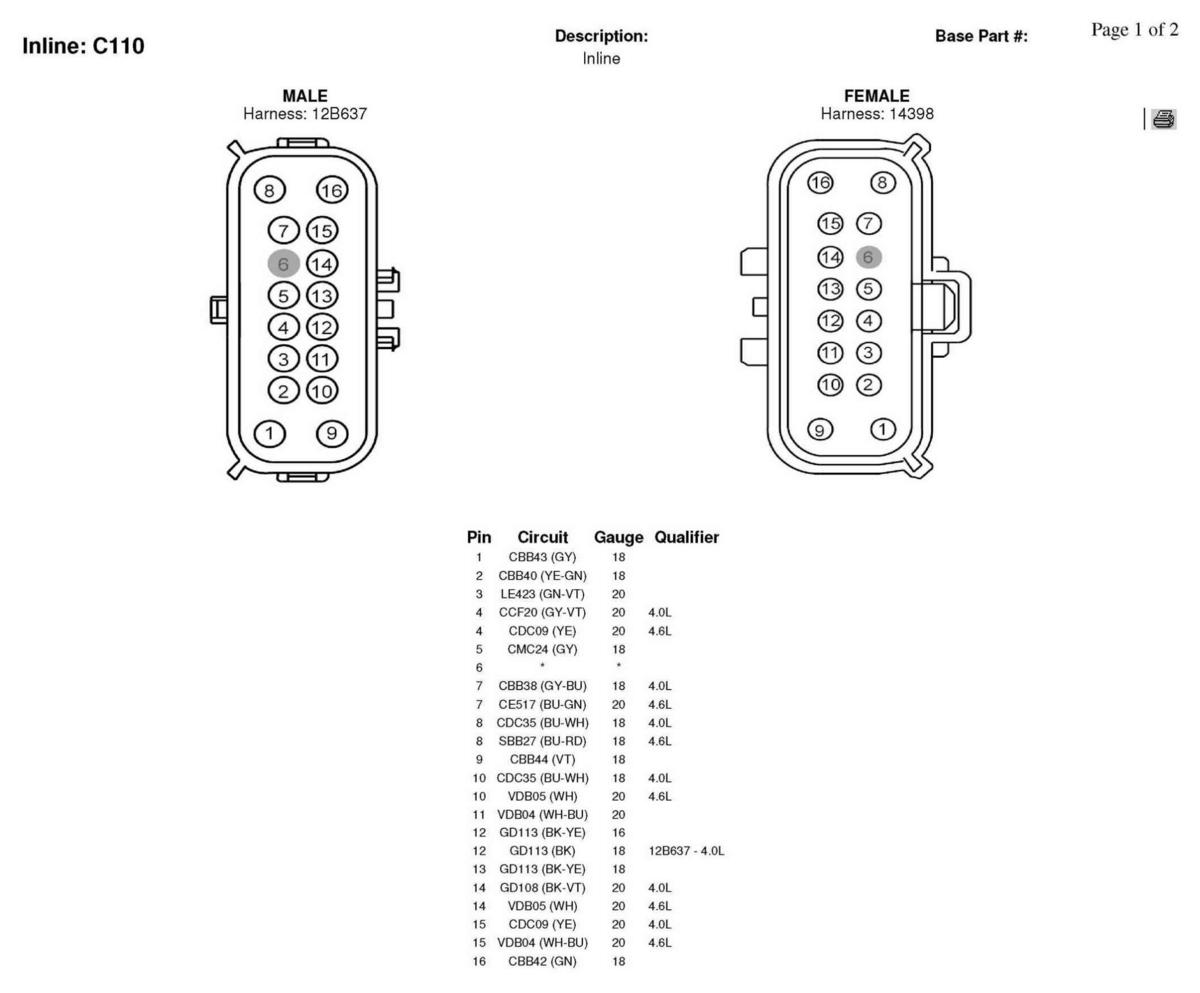

Fig 9: Inline Connector End View (C110)

G04596542

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 1 Connector End View (C111)

G04596543

Courtesy of FORD MOTOR CO.

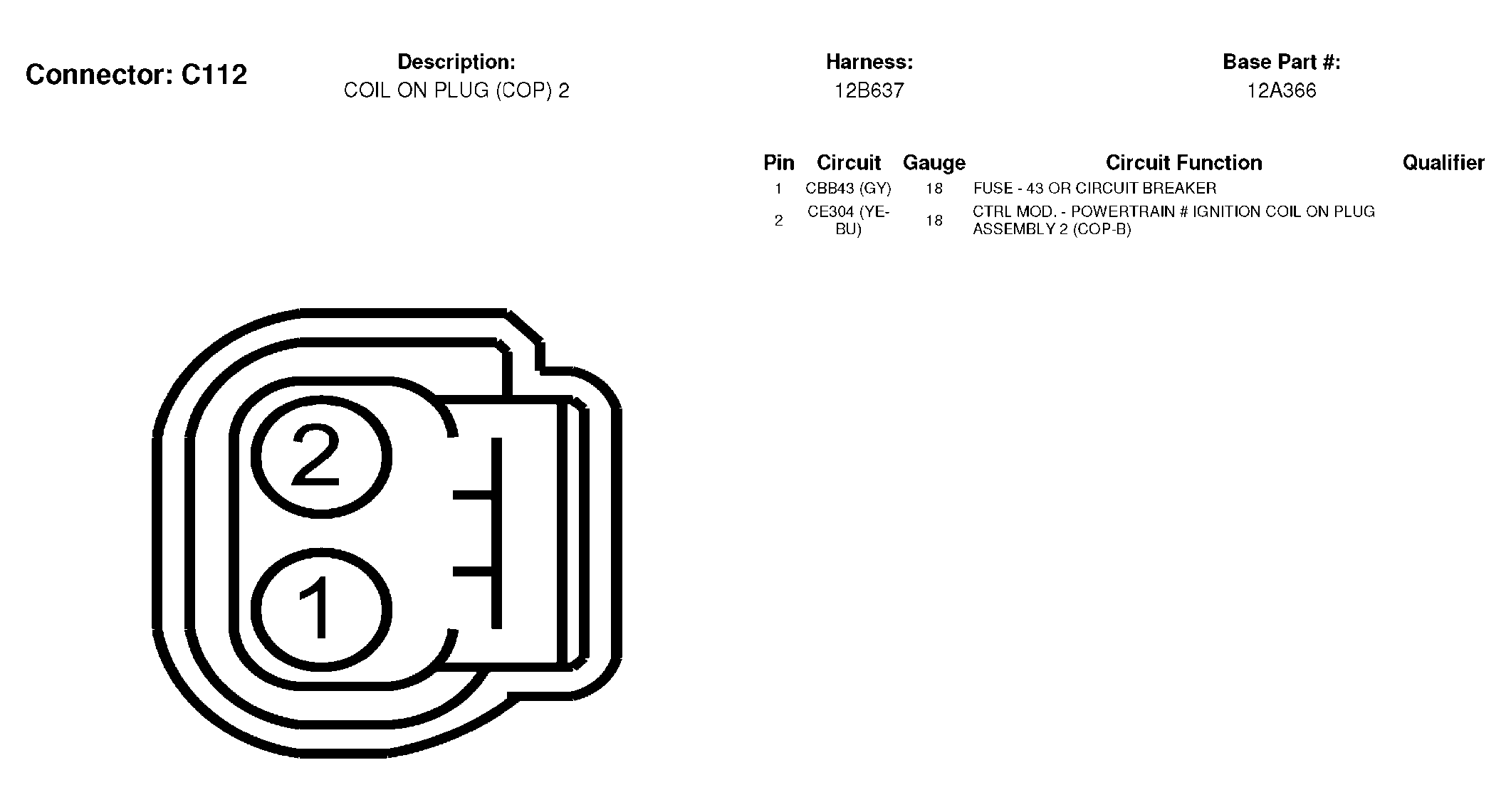

Fig 11: Coil On Plug (COP) 2 Connector End View (C112)

G04596544

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 3 Connector End View (C113)

G04596545

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 4 Connector End View (C114)

G04596546

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 5 Connector End View (C115)

G04596547

Courtesy of FORD MOTOR CO.

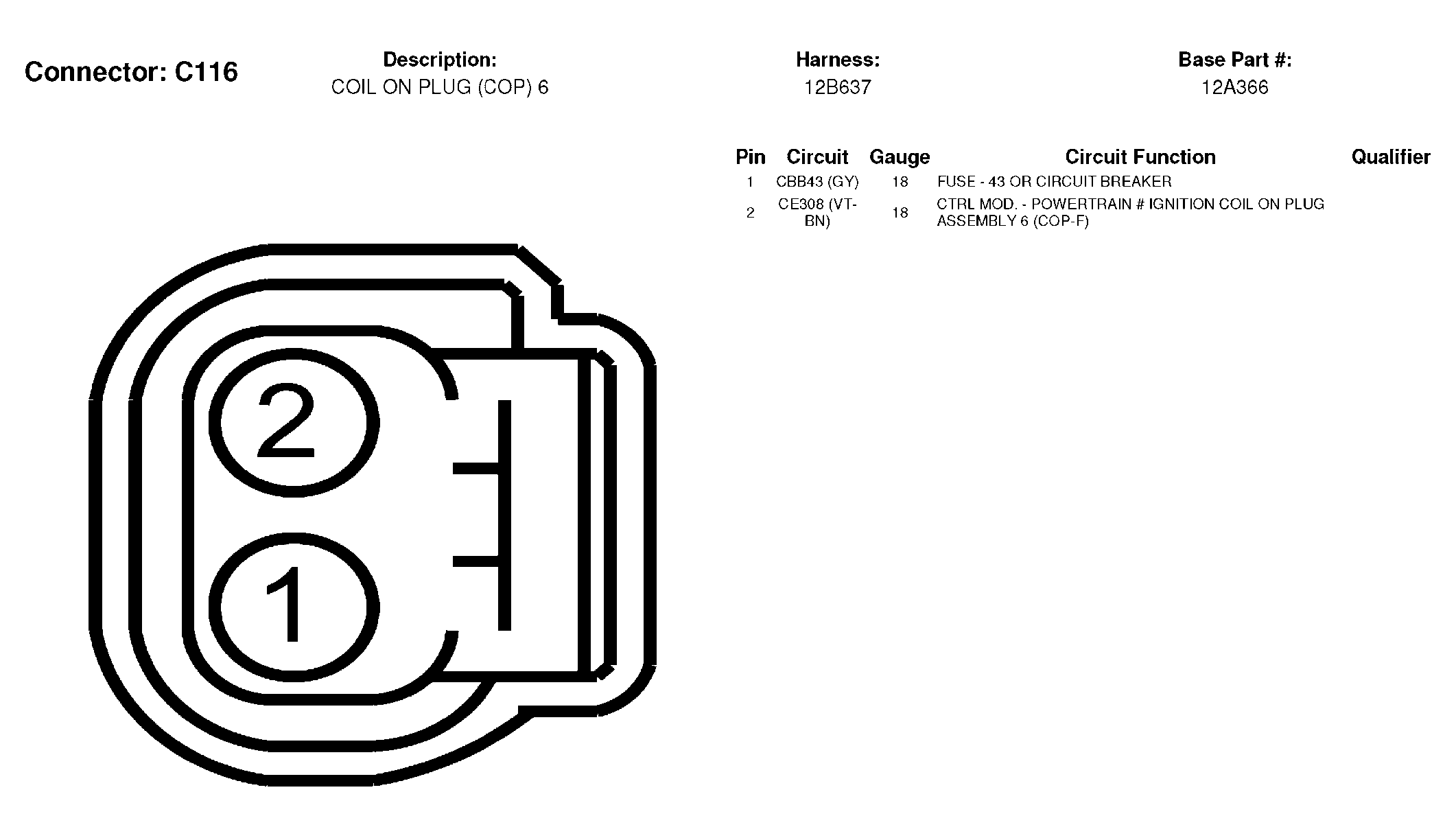

Fig 15: Coil On Plug (COP) 6 Connector End View (C116)

G04596548

Courtesy of FORD MOTOR CO.

Fig 16: Coil On Plug (COP) 7 Connector End View (C117)

G04596549

Courtesy of FORD MOTOR CO.

Fig 17: Coil On Plug (COP) 8 Connector End View (C118)

G04596550

Courtesy of FORD MOTOR CO.

Fig 18: Power Steering Pressure Switch Connector End View (C121)

G04596551

Courtesy of FORD MOTOR CO.

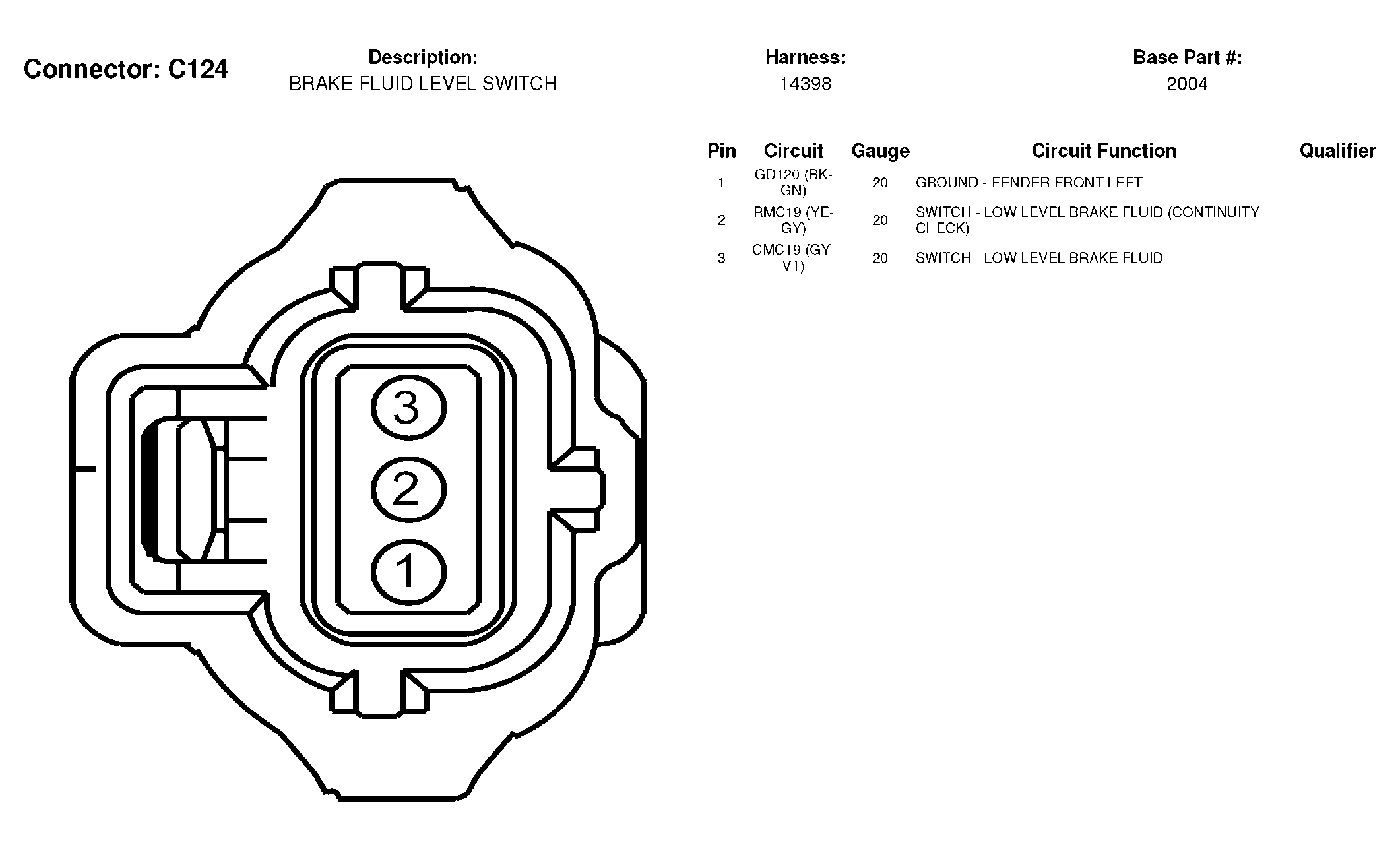

Fig 19: Brake Fluid Level Switch Connector End View (C124)

G04596552

Courtesy of FORD MOTOR CO.

Fig 20: Windshield Wiper Motor Connector End View (C125)

G04596553

Courtesy of FORD MOTOR CO.

Fig 21: ABS Test Connector, Connector End View (C126)

G04596554

Courtesy of FORD MOTOR CO.

Fig 22: Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector End View (C128)

G04596555

Courtesy of FORD MOTOR CO.

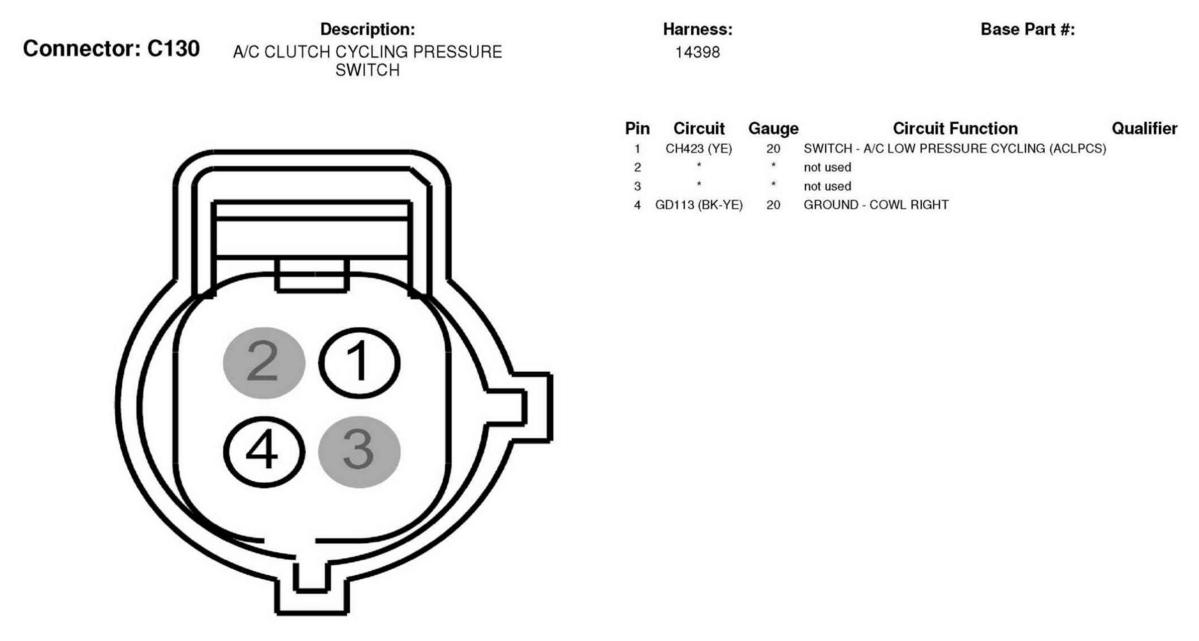

Fig 23: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G04596556

Courtesy of FORD MOTOR CO.

Fig 24: Ambient Air Temperature Sensor Connector End View (C132)

G04596557

Courtesy of FORD MOTOR CO.

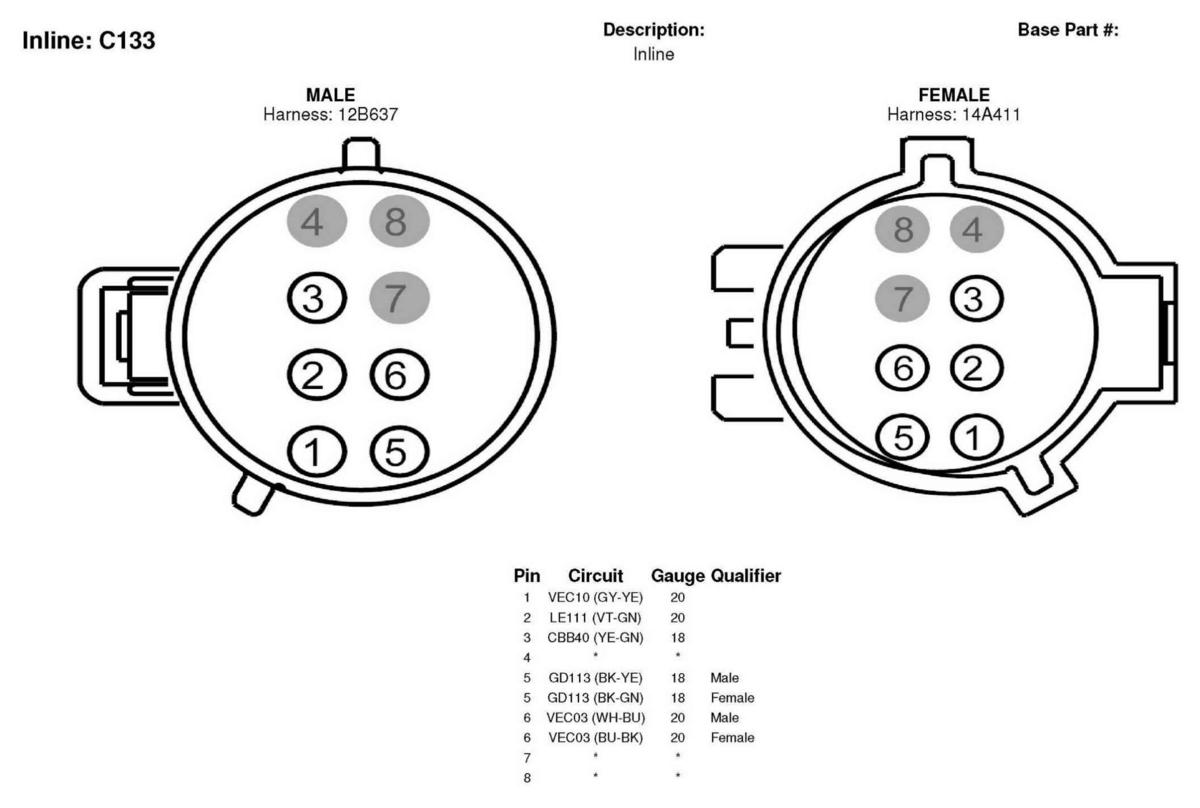

Fig 25: Inline Connector End View (C133)

G04596558

Courtesy of FORD MOTOR CO.

Fig 26: Inline Connector End View (C134)

G04596559

Courtesy of FORD MOTOR CO.

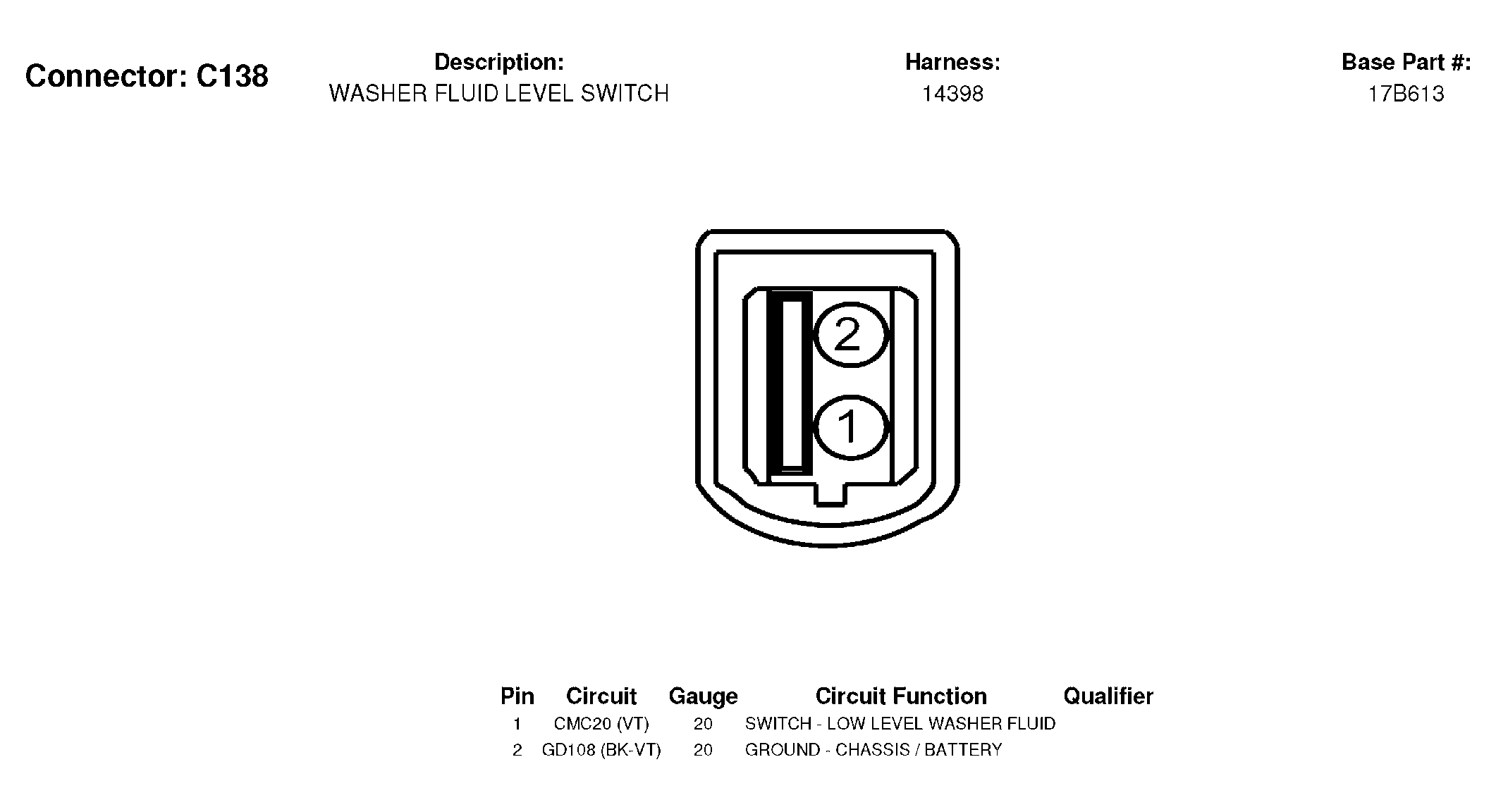

Fig 27: Washer Fluid Level Switch Connector End View (C138)

G04596560

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C139)

G04596561

Courtesy of FORD MOTOR CO.

Fig 29: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G04596562

Courtesy of FORD MOTOR CO.

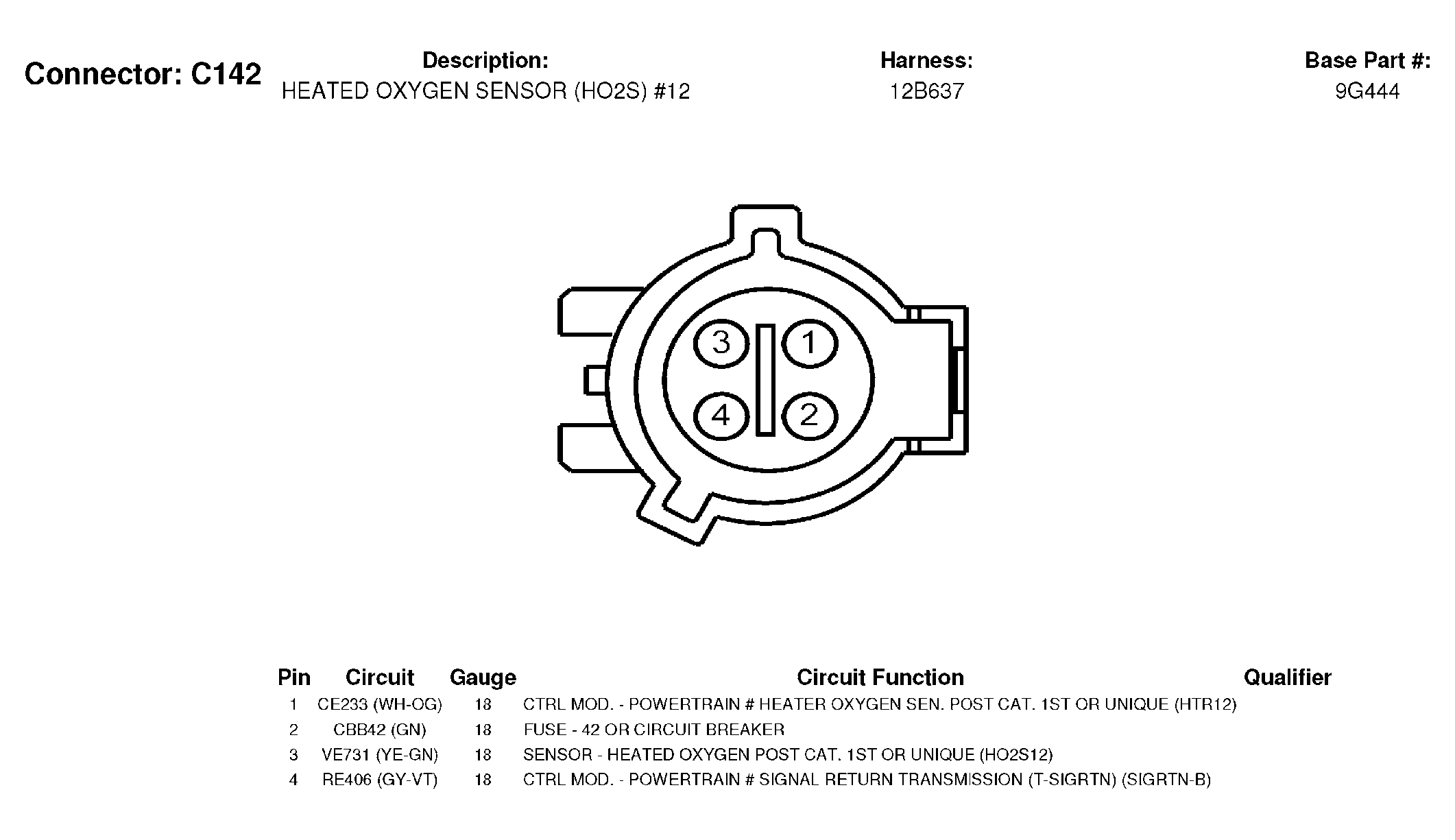

Fig 30: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G04596563

Courtesy of FORD MOTOR CO.

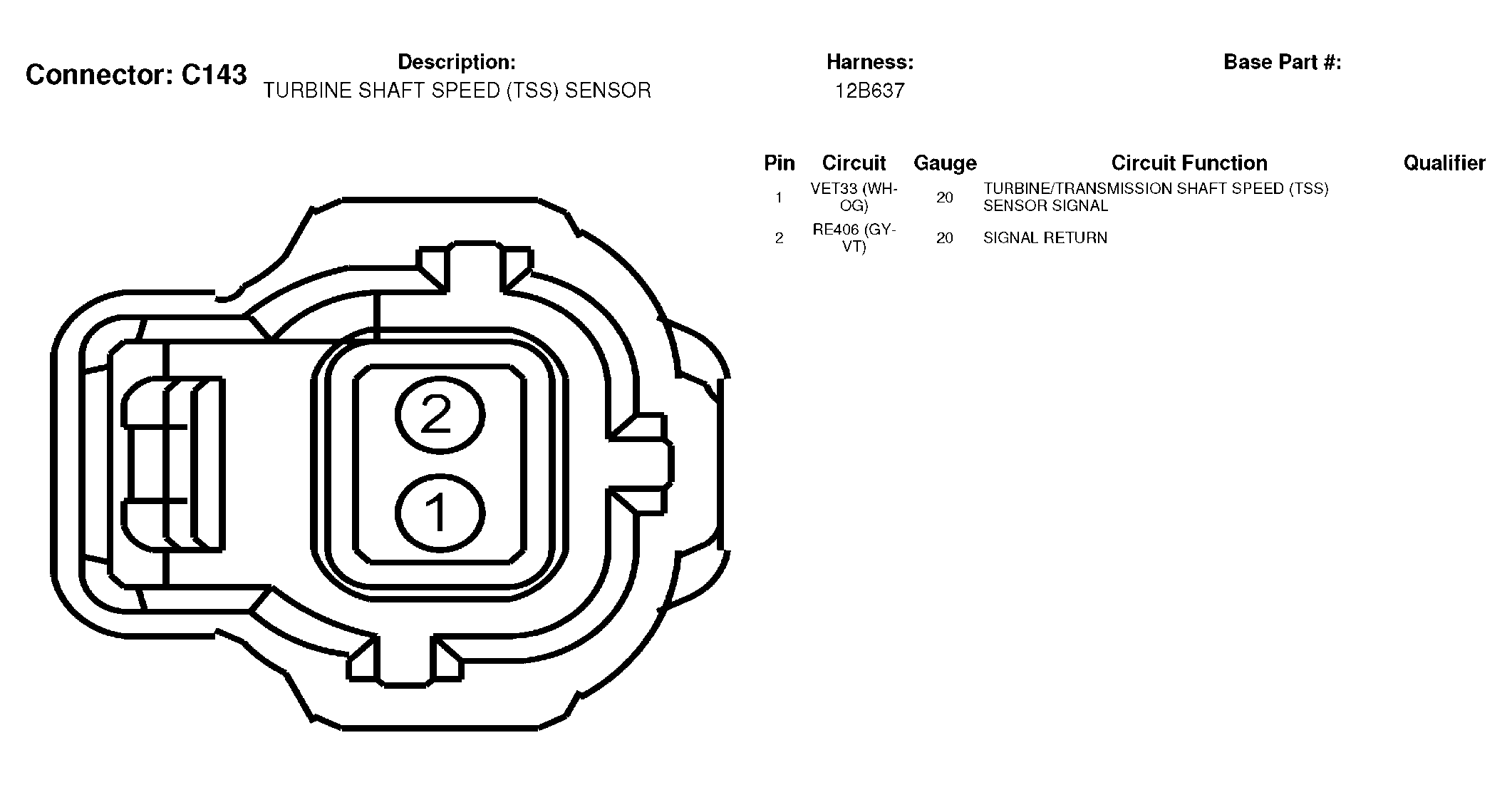

Fig 31: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G04596564

Courtesy of FORD MOTOR CO.

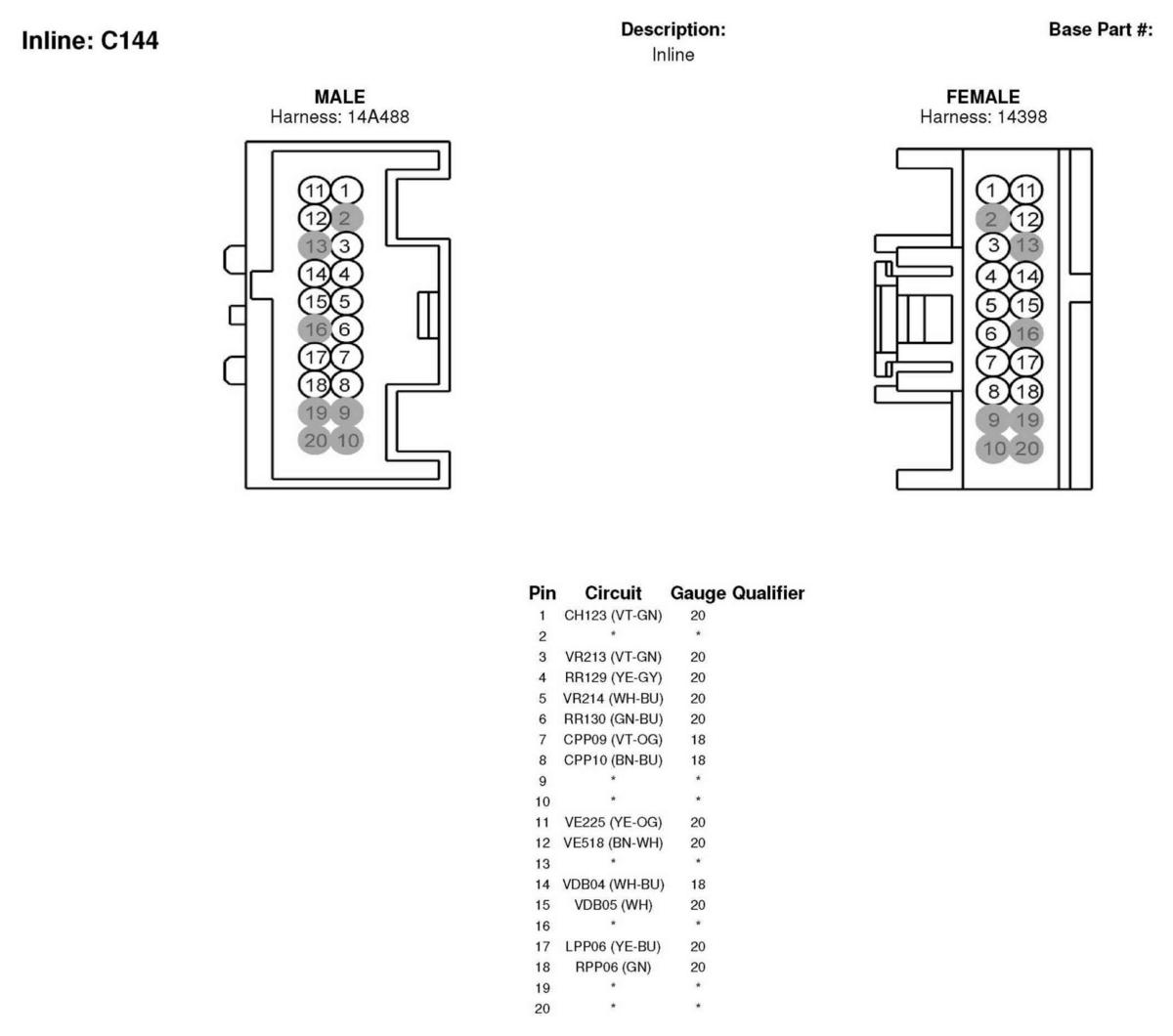

Fig 32: Inline Connector End View (C144)

G04596565

Courtesy of FORD MOTOR CO.

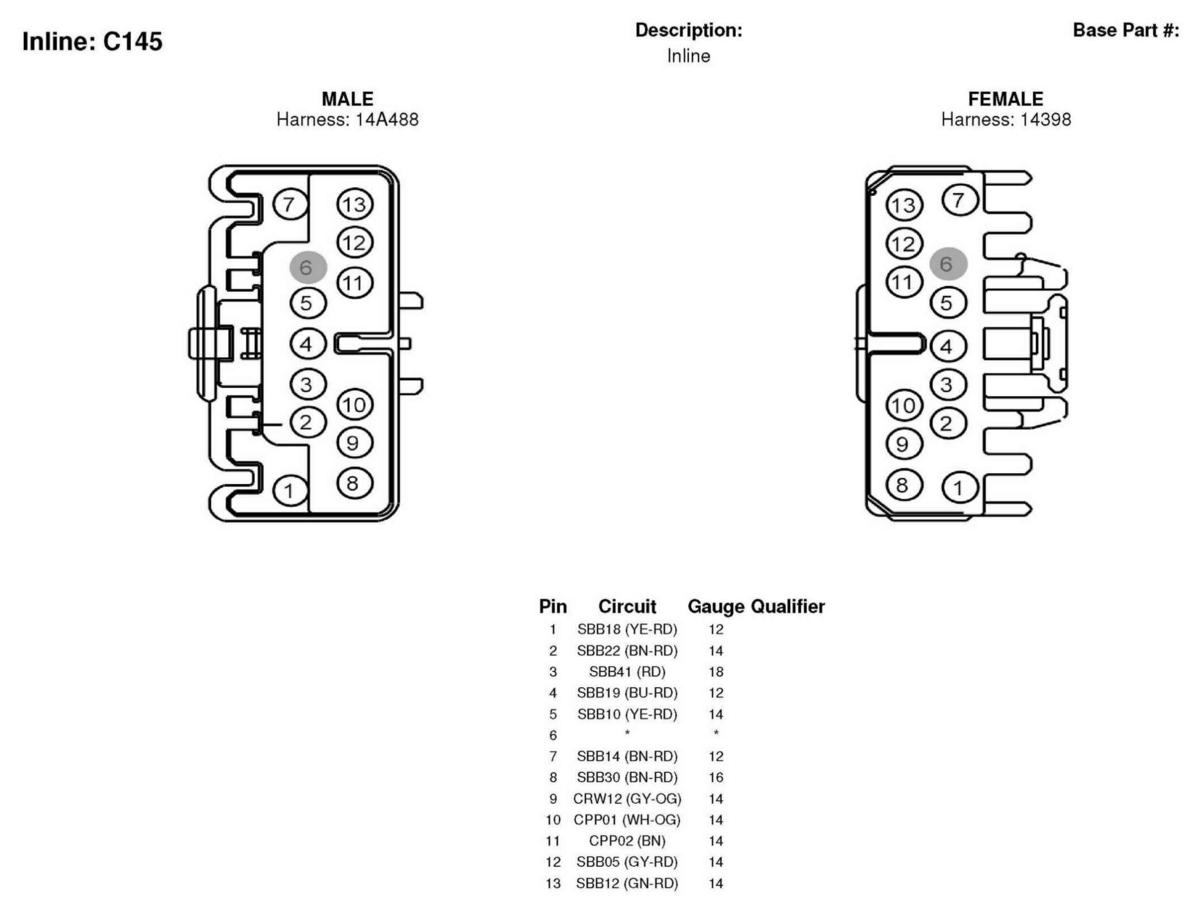

Fig 33: Inline Connector End View (C145)

G04596566

Courtesy of FORD MOTOR CO.

Fig 34: Inline Connector End View (C146)

G04596567

Courtesy of FORD MOTOR CO.

Fig 35: Brake Booster Sensor Connector End View (C149)

G04596568

Courtesy of FORD MOTOR CO.

Fig 36: Wheel Speed Sensor, Left Front Connector End View (C150)

G04596569

Courtesy of FORD MOTOR CO.

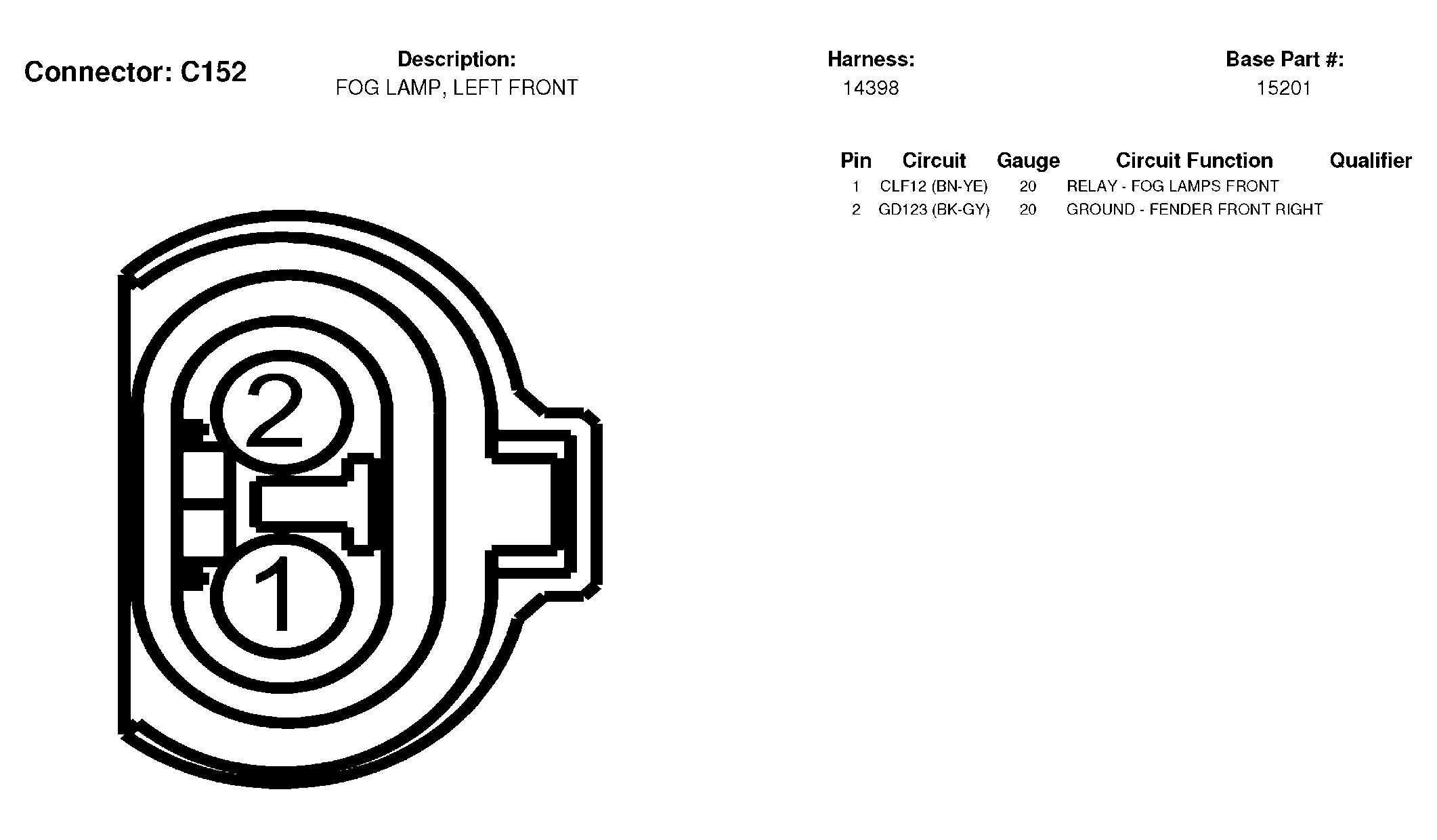

Fig 37: Fog Lamp, Left Front Connector End View (C152)

G04596570

Courtesy of FORD MOTOR CO.

Fig 38: ABS Control Module Connector End View (C155) (1 Of 2)

G04596571

Courtesy of FORD MOTOR CO.

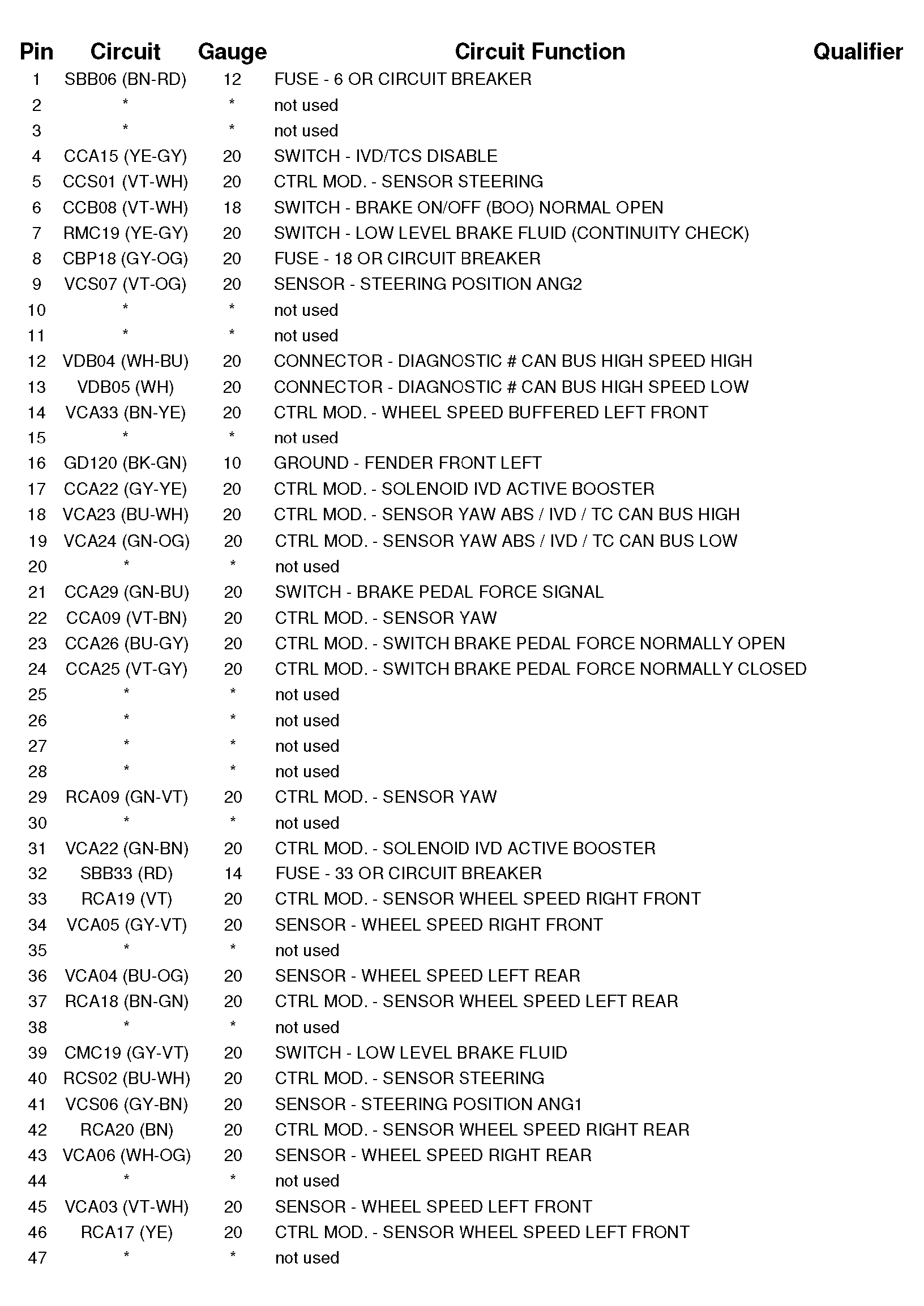

Fig 39: ABS Control Module Connector End View (C155) (2 Of 2)

G04596572

Courtesy of FORD MOTOR CO.

Fig 40: Wheel Speed Sensor, Right Front Connector End View (C160)

G04596573

Courtesy of FORD MOTOR CO.

Fig 41: Fog Lamp, Right Front Connector End View (C162)

G04596574

Courtesy of FORD MOTOR CO.

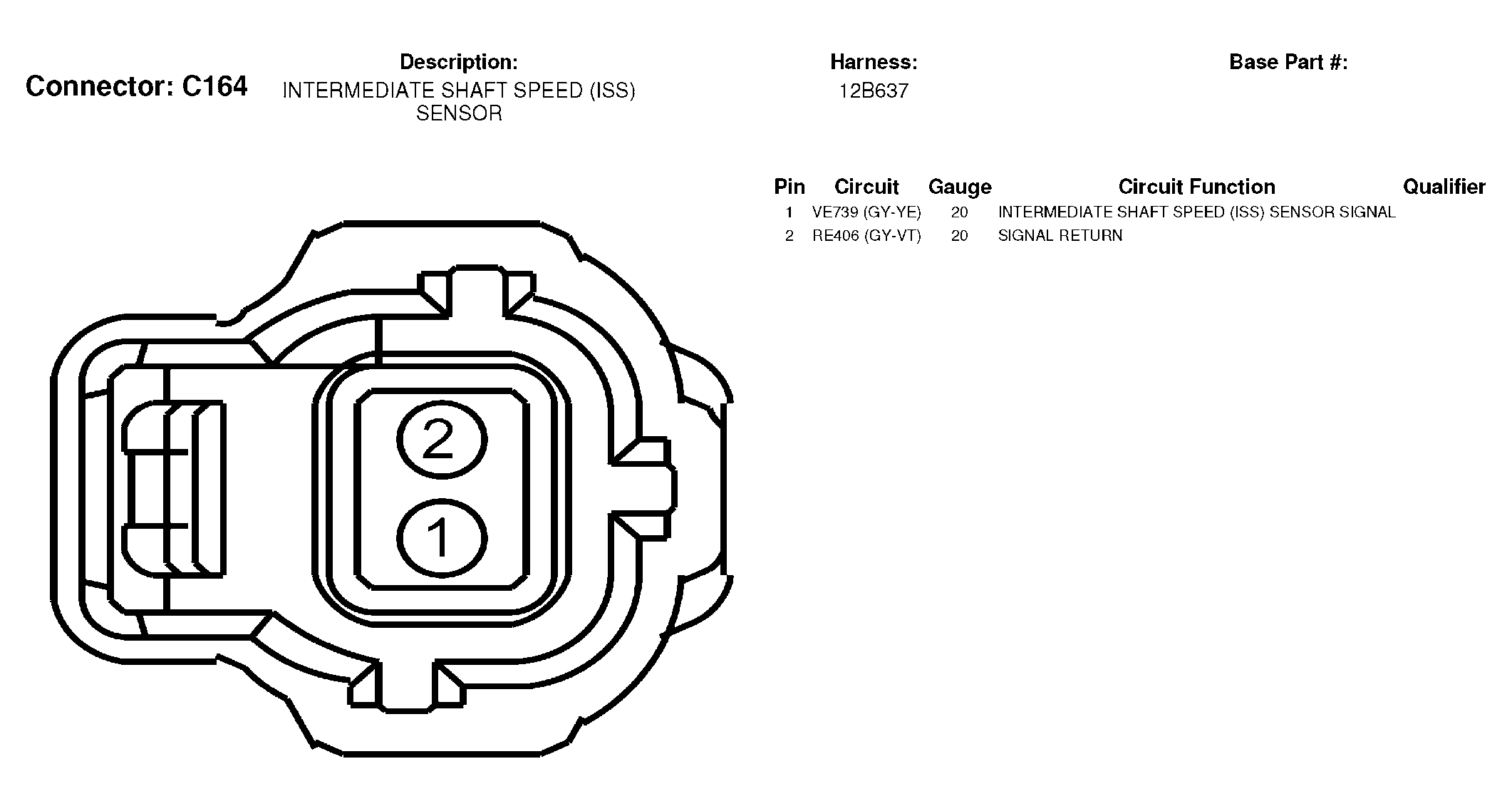

Fig 42: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)

G04596575

Courtesy of FORD MOTOR CO.

Fig 43: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G04596576

Courtesy of FORD MOTOR CO.

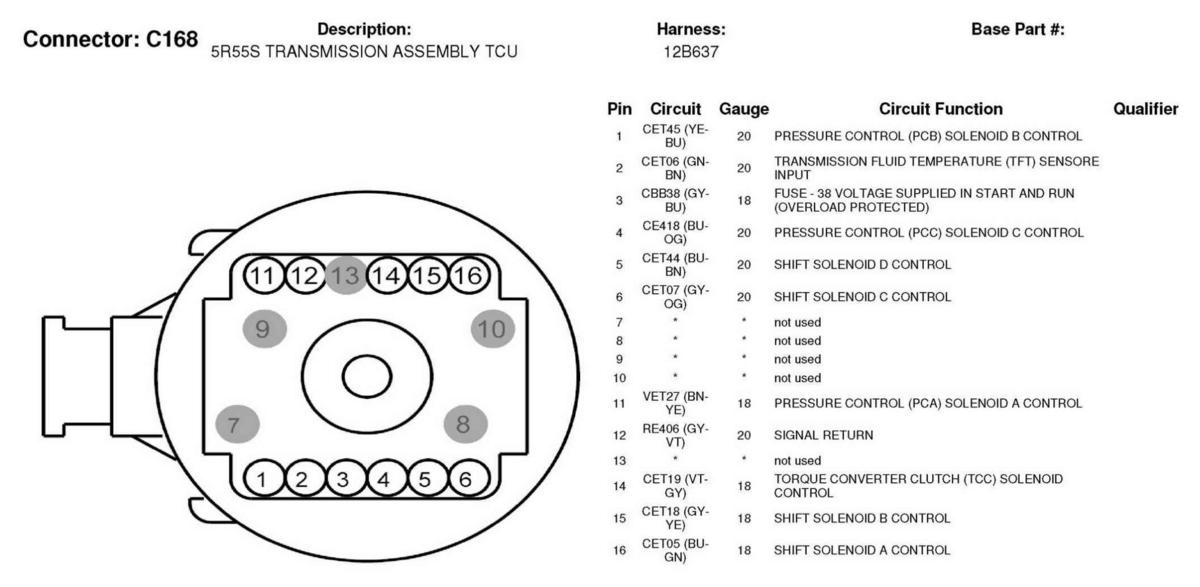

Fig 44: 5R55S Transmission Assembly TCU Connector End View (C168)

G04596577

Courtesy of FORD MOTOR CO.

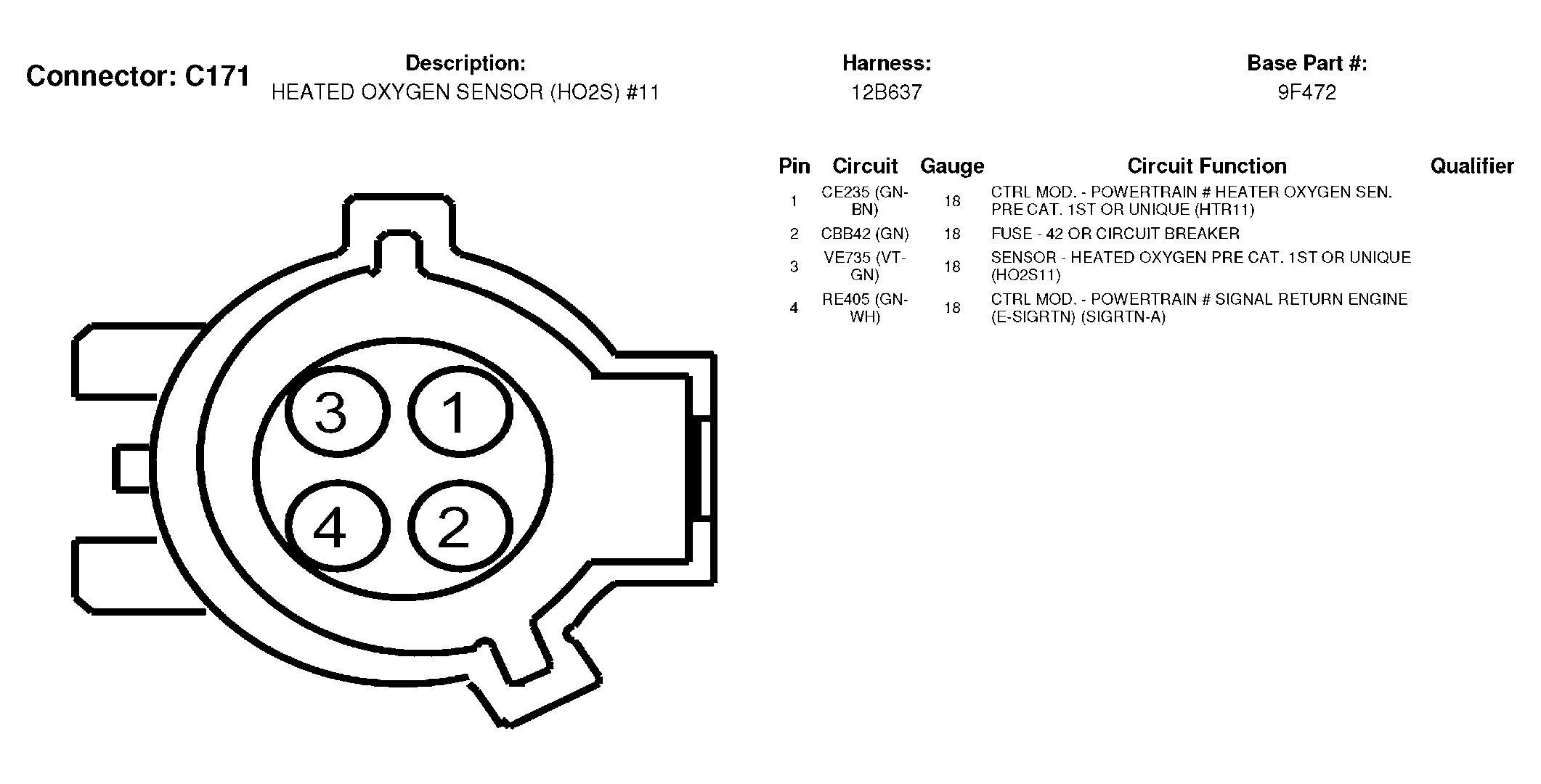

Fig 45: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G04596578

Courtesy of FORD MOTOR CO.

Fig 46: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G04596579

Courtesy of FORD MOTOR CO.

Fig 47: Fuel Rail Pressure/Temperature Sensor Connector End View (C173)

G04596580

Courtesy of FORD MOTOR CO.

Fig 48: Ignition Transformer Capacitor 1 Connector End View (C174)

G04596581

Courtesy of FORD MOTOR CO.

Fig 49: Powertrain Control Module (PCM) Connector End View (C175B) (1 Of 2)

G04596582

Courtesy of FORD MOTOR CO.

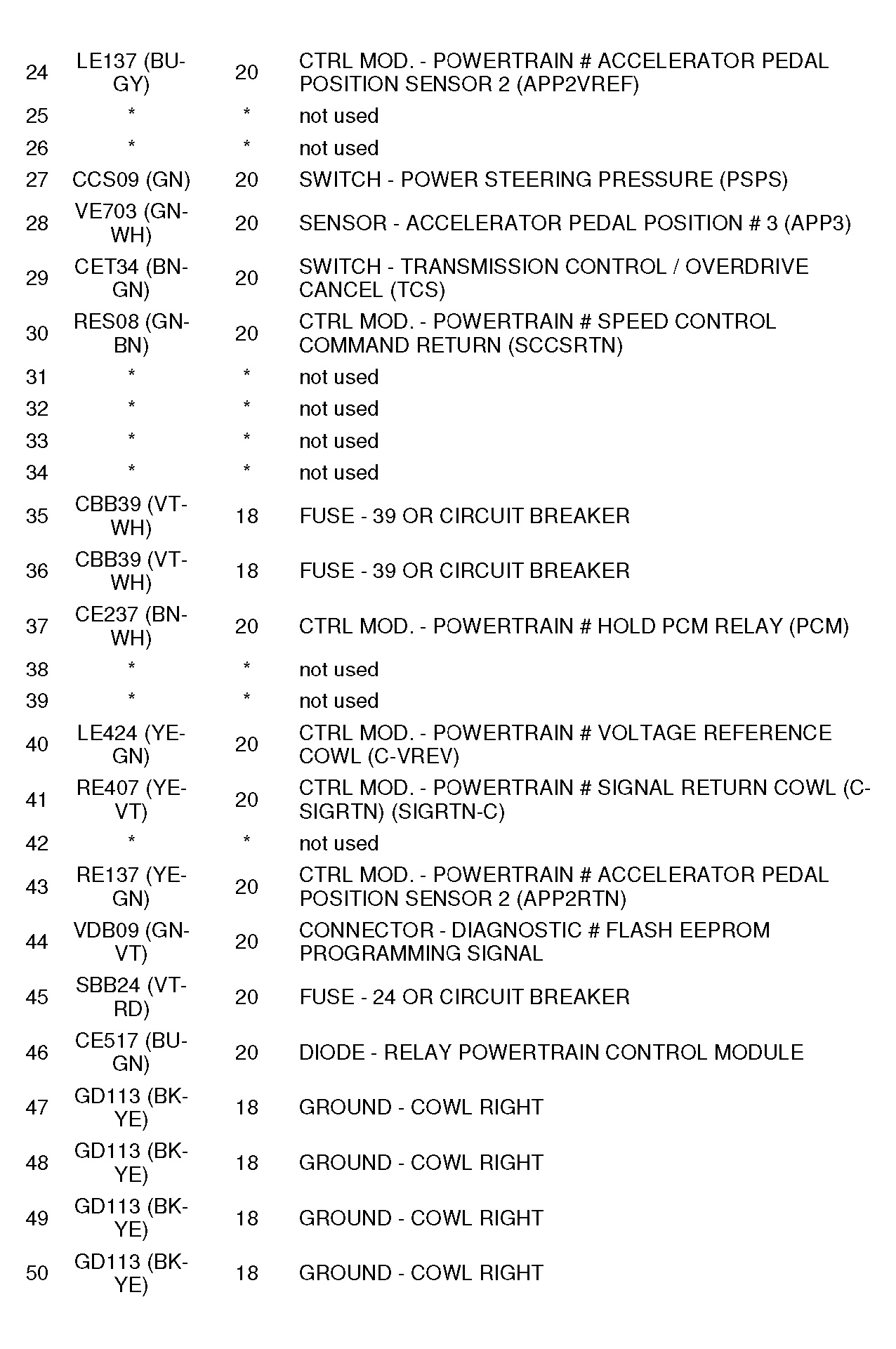

Fig 50: Powertrain Control Module (PCM) Connector End View (C175B) (2 Of 2)

G04596583

Courtesy of FORD MOTOR CO.

Fig 51: Powertrain Control Module (PCM) Connector End View (C175E) (1 Of 2)

G04596584

Courtesy of FORD MOTOR CO.

Fig 52: Powertrain Control Module (PCM) Connector End View (C175E) (2 Of 2)

G04596585

Courtesy of FORD MOTOR CO.

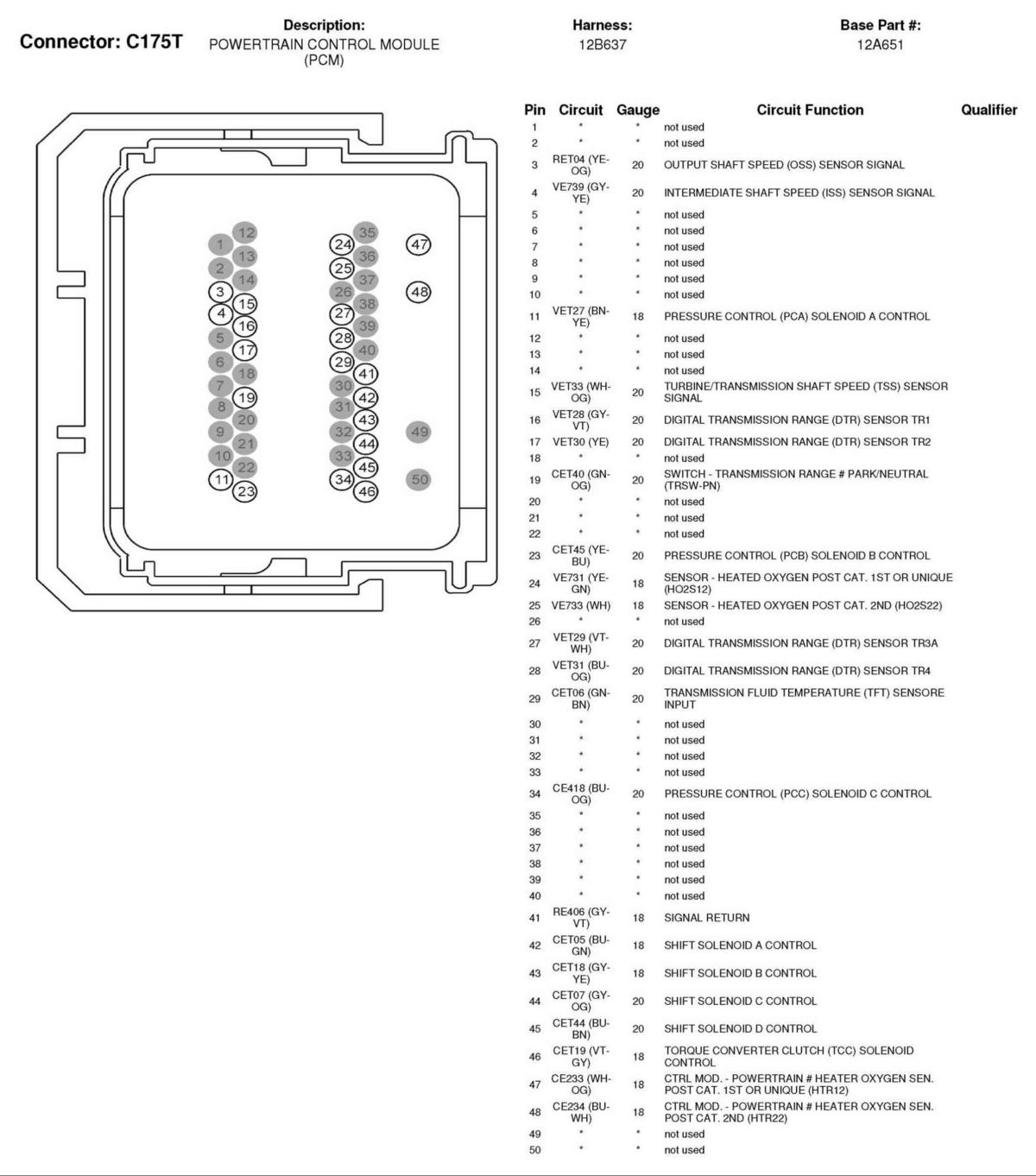

Fig 53: Powertrain Control Module (PCM) Connector End View (C175T)

G04596586

Courtesy of FORD MOTOR CO.

Fig 54: Camshaft Position Sensor Connector End View (C180)

G04596587

Courtesy of FORD MOTOR CO.

Fig 55: Fuel Injector 1 Connector End View (C181)

G04596588

Courtesy of FORD MOTOR CO.

Fig 56: Fuel Injector 2 Connector End View (C182)

G04596589

Courtesy of FORD MOTOR CO.

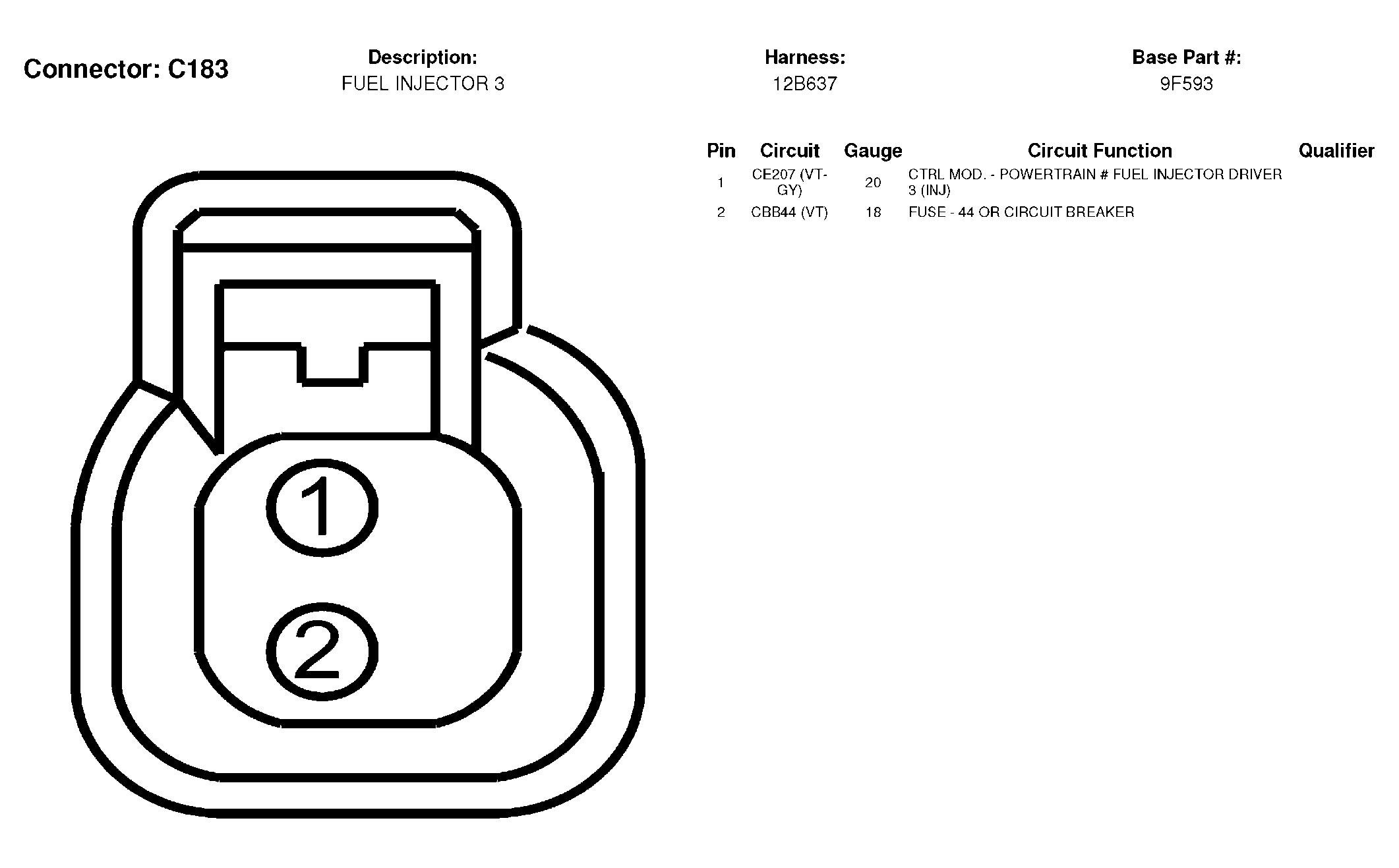

Fig 57: Fuel Injector 3 Connector End View (C183)

G04596590

Courtesy of FORD MOTOR CO.

Fig 58: Fuel Injector 4 Connector End View (C184)

G04596591

Courtesy of FORD MOTOR CO.

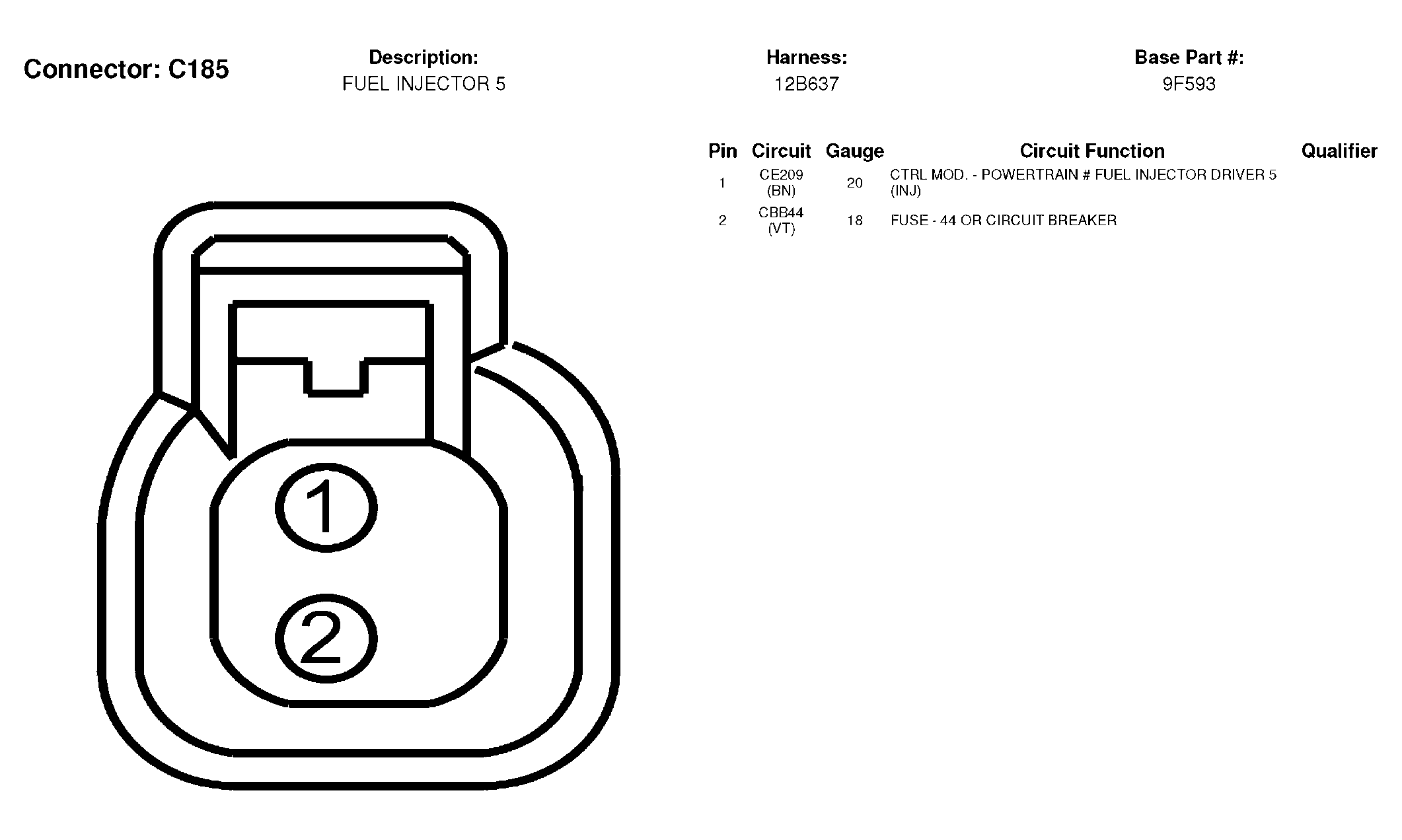

Fig 59: Fuel Injector 5 Connector End View (C185)

G04596592

Courtesy of FORD MOTOR CO.

Fig 60: Fuel Injector 6 Connector End View (C186)

G04596593

Courtesy of FORD MOTOR CO.

Fig 61: Fuel Injector 7 Connector End View (C187)

G04596594

Courtesy of FORD MOTOR CO.

Fig 62: Fuel Injector 8 Connector End View (C188)

G04596595

Courtesy of FORD MOTOR CO.

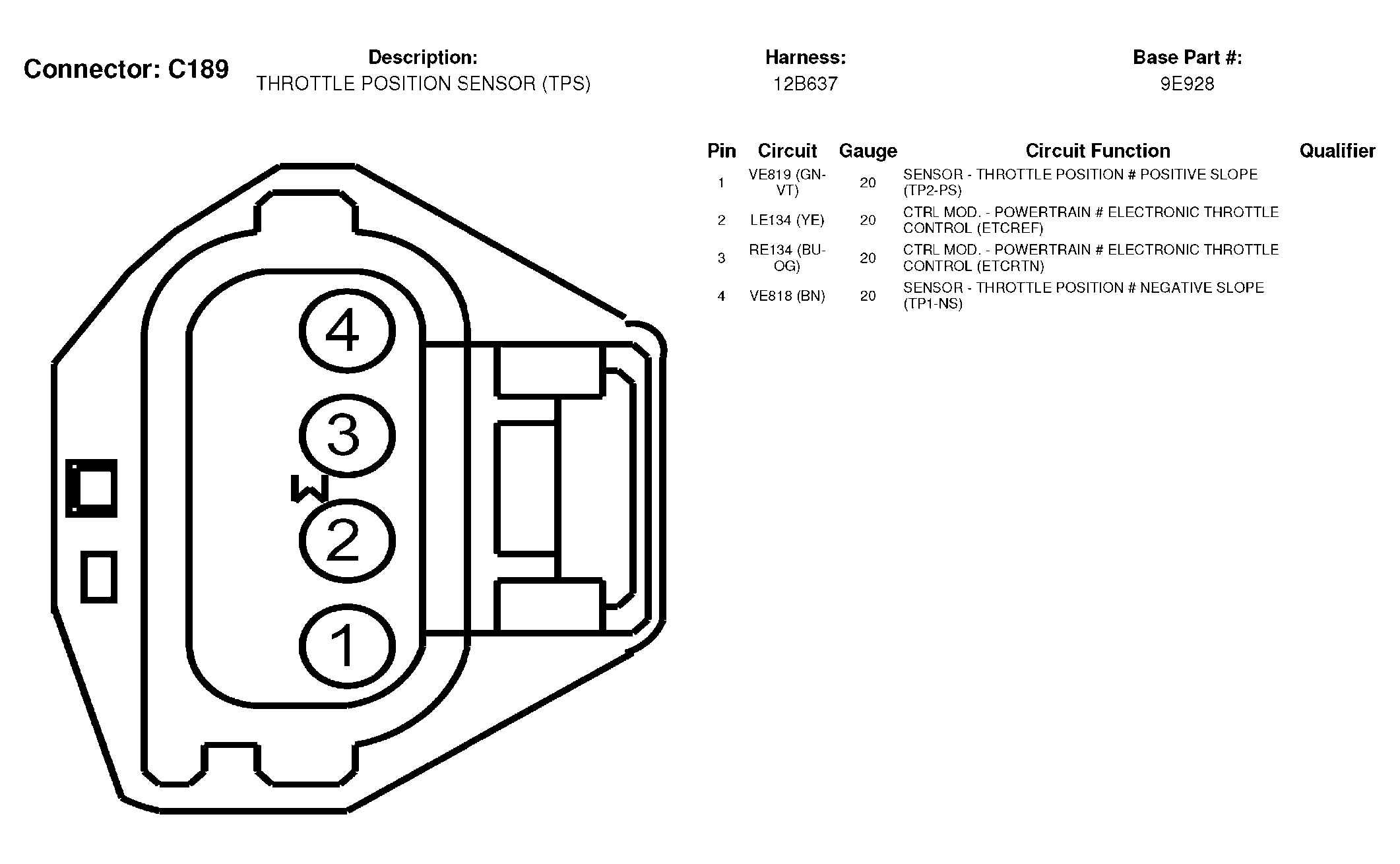

Fig 63: Throttle Position Sensor (TPS) Connector End View (C189)

G04596596

Courtesy of FORD MOTOR CO.

Fig 64: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G04596597

Courtesy of FORD MOTOR CO.

Fig 65: Inline Connector End View (C192)

G04596598

Courtesy of FORD MOTOR CO.

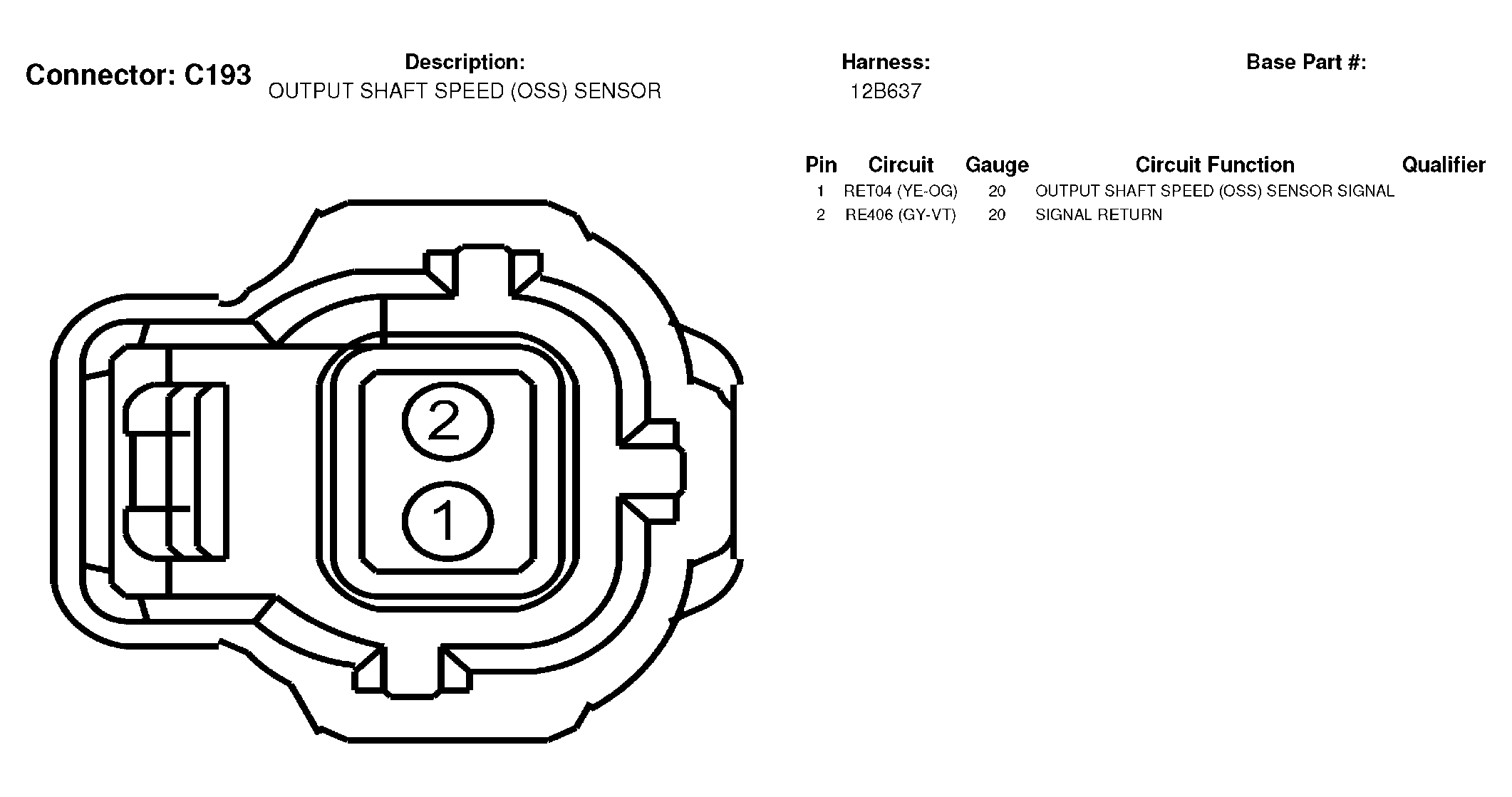

Fig 66: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G04596599

Courtesy of FORD MOTOR CO.

Fig 67: Ignition Transformer Capacitor 2 Connector End View (C194)

G04596600

Courtesy of FORD MOTOR CO.

Fig 68: Starter Motor Connector End View (C197A)

G04596601

Courtesy of FORD MOTOR CO.

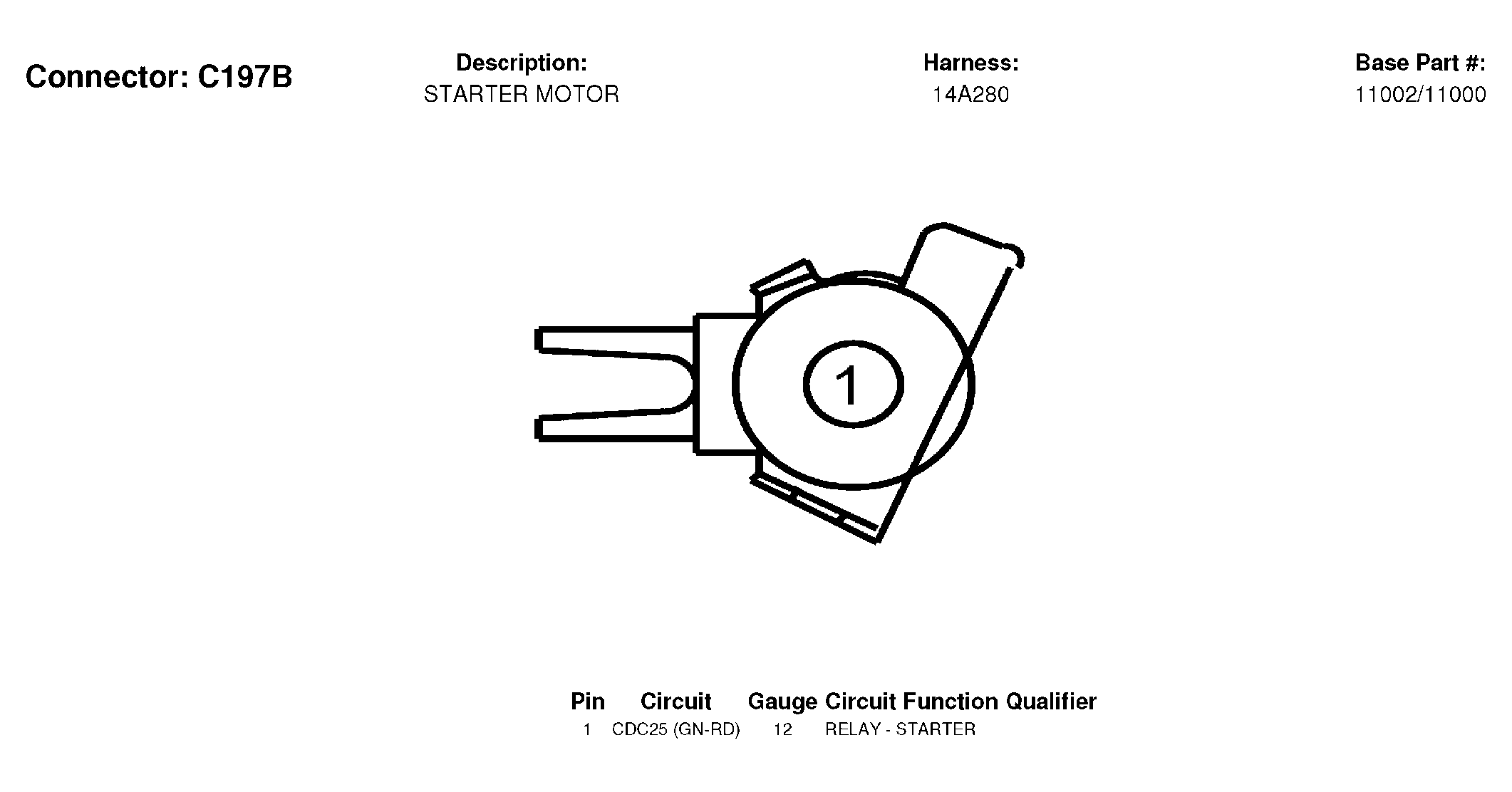

Fig 69: Starter Motor Connector End View (C197B)

G04596602

Courtesy of FORD MOTOR CO.

Fig 70: 6R60 Transmission Assembly Connector End View (C199)

G04596603

Courtesy of FORD MOTOR CO.

Fig 71: Multifunction Switch Connector End View (C202)

G04596604

Courtesy of FORD MOTOR CO.

Fig 72: Steering Wheel/Speed Control Switch Connector End View (C203)

G04596605

Courtesy of FORD MOTOR CO.

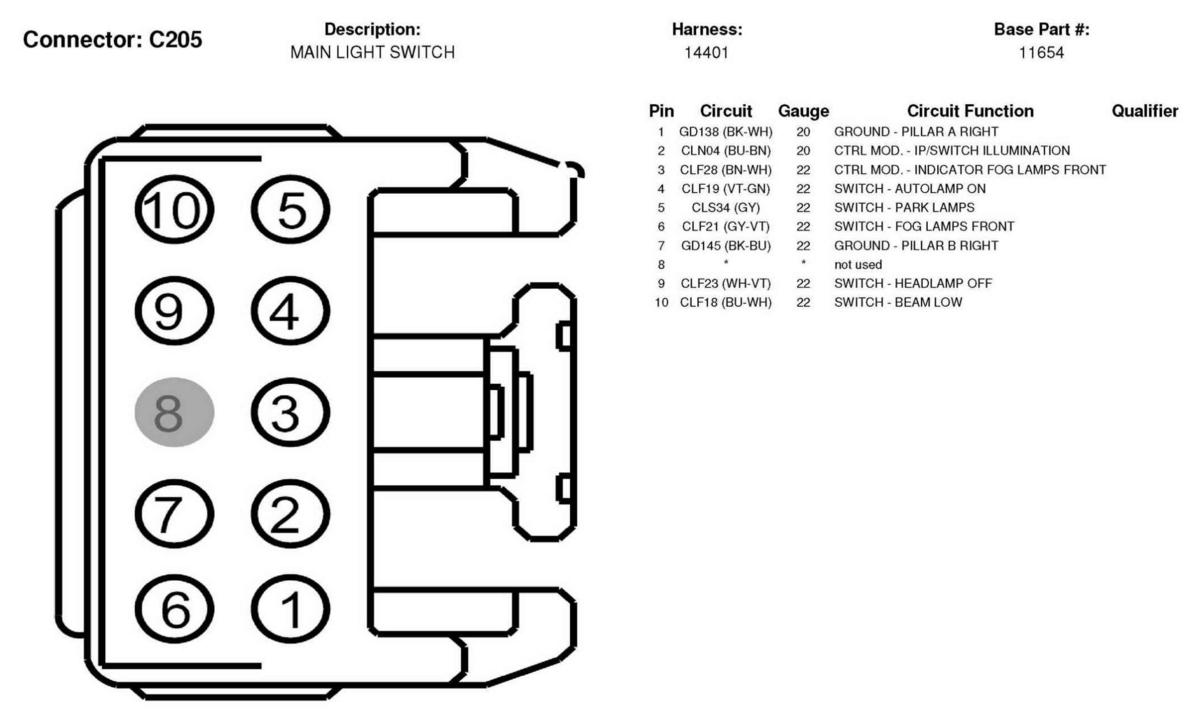

Fig 73: Main Light Switch Connector End View (C205)

G04596606

Courtesy of FORD MOTOR CO.

Fig 74: Inline Connector End View (C210) (1 Of 2)

G04596607

Courtesy of FORD MOTOR CO.

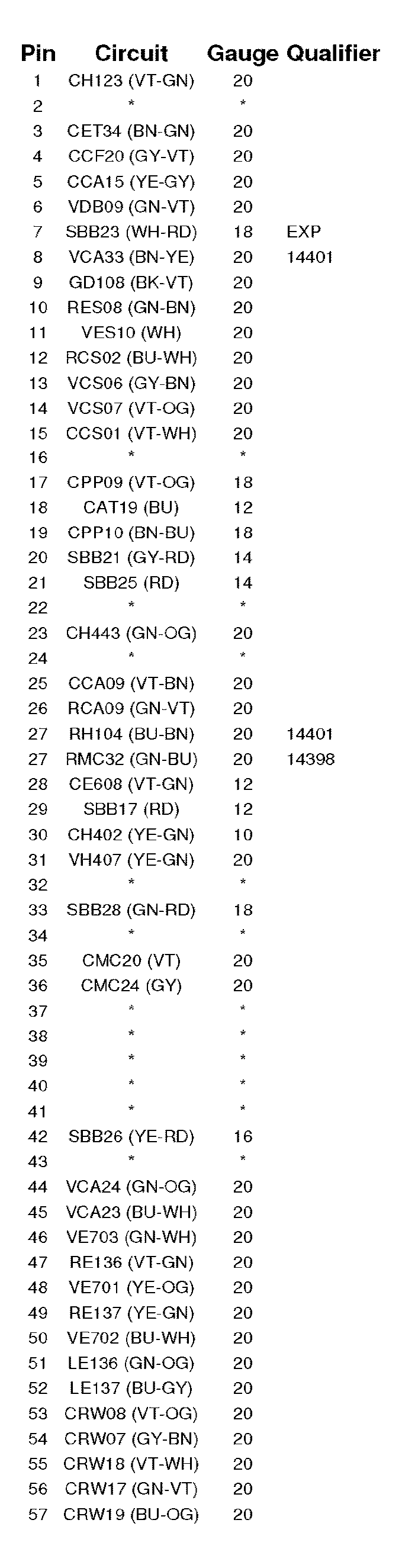

Fig 75: Inline Connector End View (C210) (2 Of 2)

G04596608

Courtesy of FORD MOTOR CO.

Fig 76: Inline Connector End View (C211)

G04596609

Courtesy of FORD MOTOR CO.

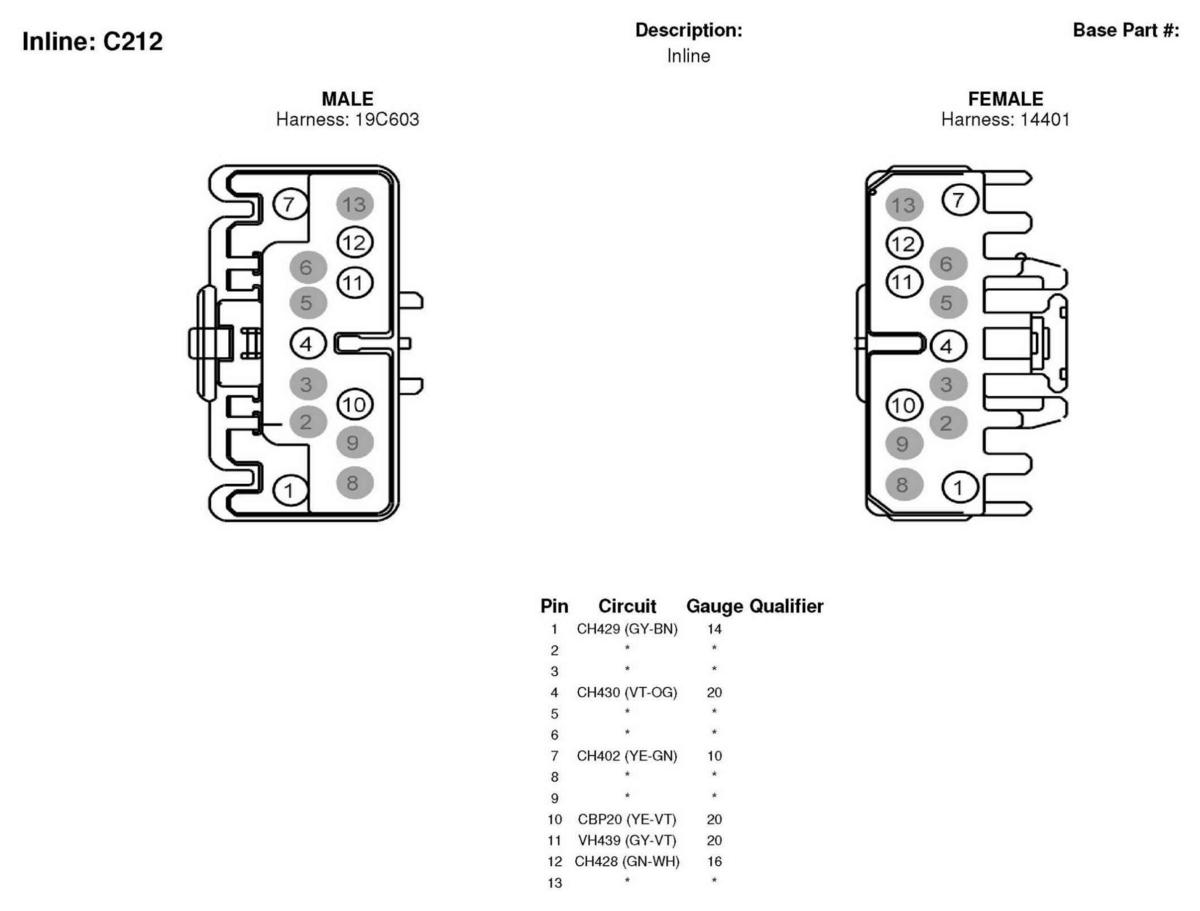

Fig 77: Inline Connector End View (C212)

G04596610

Courtesy of FORD MOTOR CO.

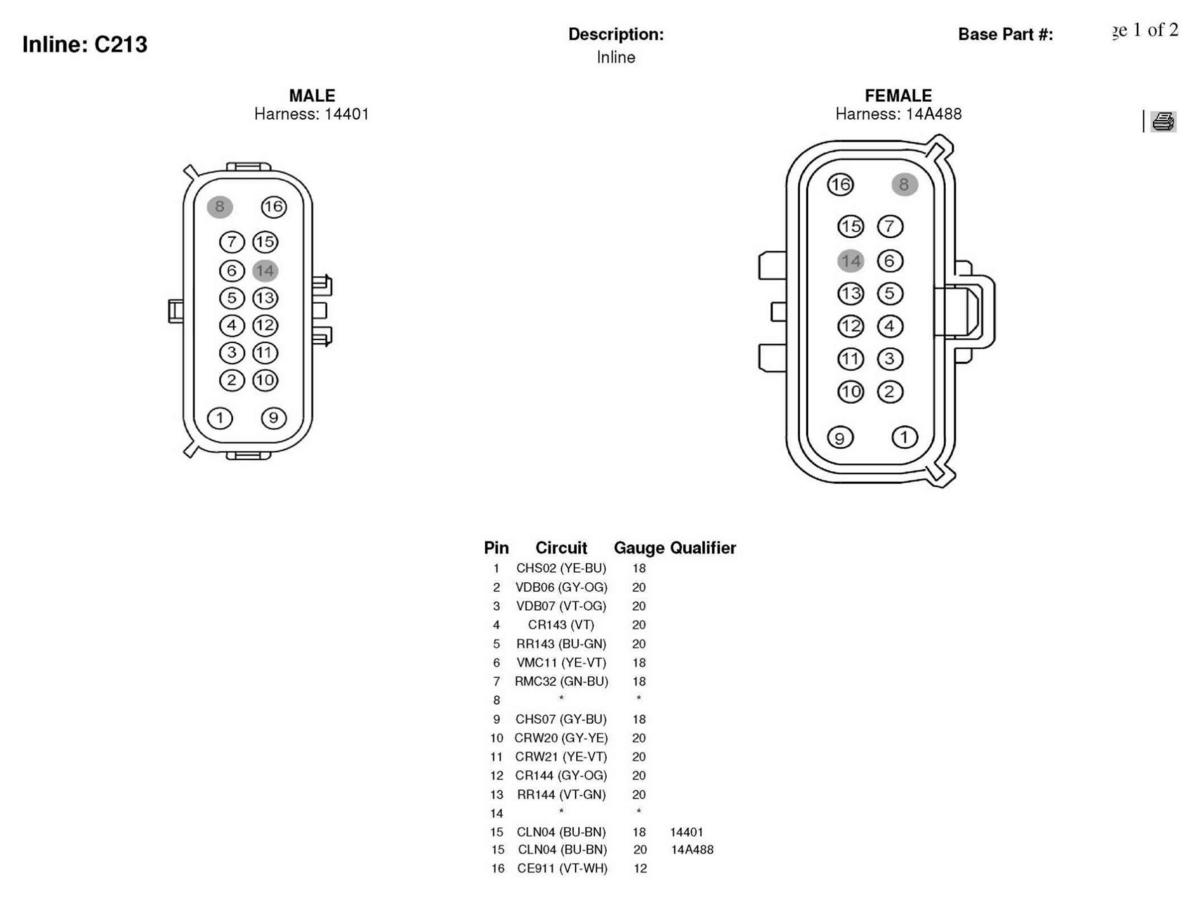

Fig 78: Inline Connector End View (C213)

G04596611

Courtesy of FORD MOTOR CO.

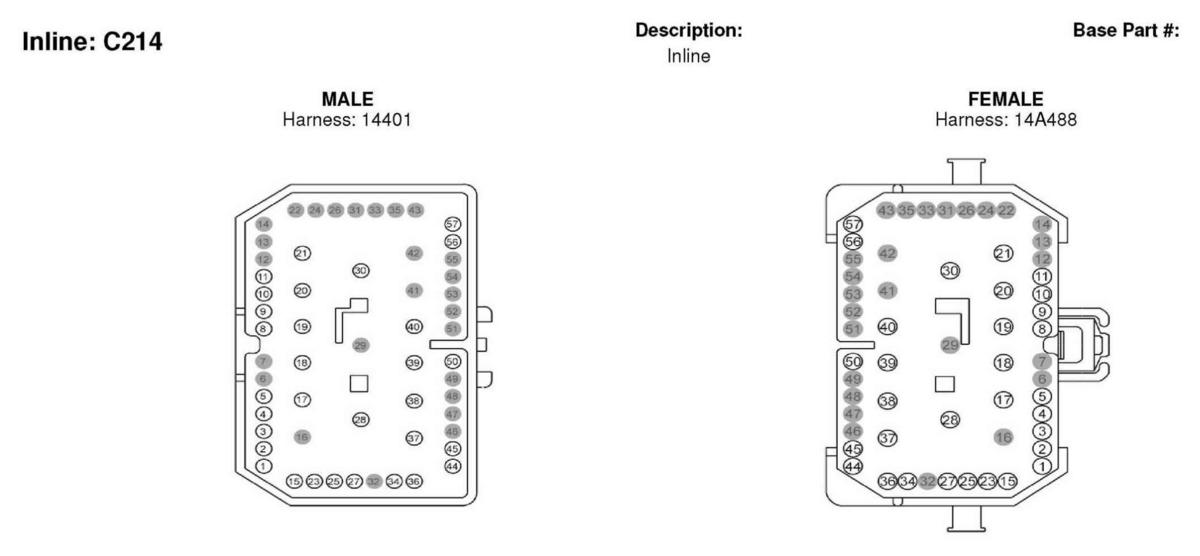

Fig 79: Inline Connector End View (C214) (1 Of 2)

G04596612

Courtesy of FORD MOTOR CO.

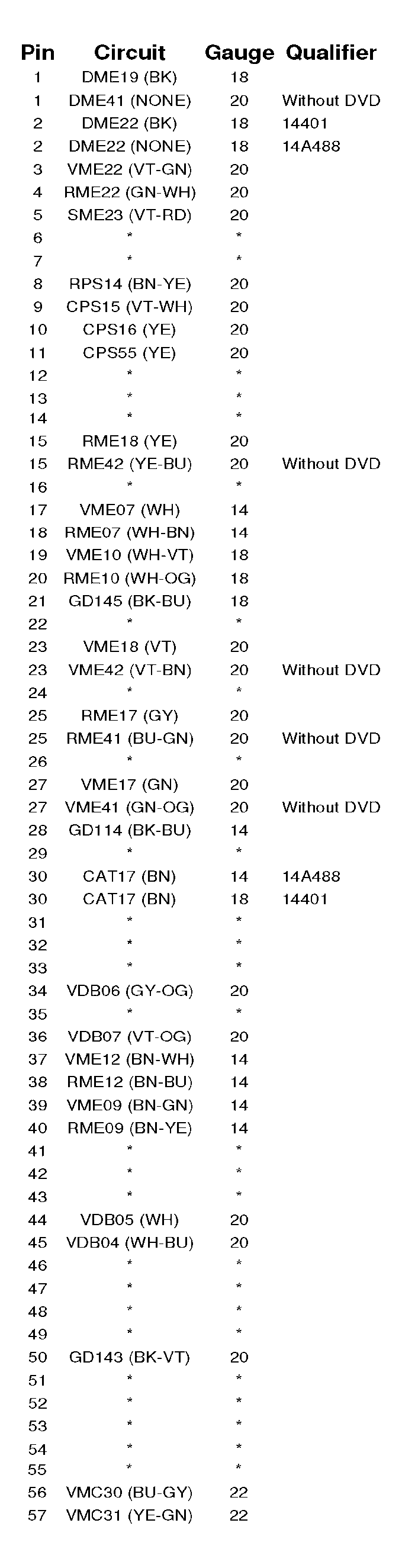

Fig 80: Inline Connector End View (C214) (2 Of 2)

G04596613

Courtesy of FORD MOTOR CO.

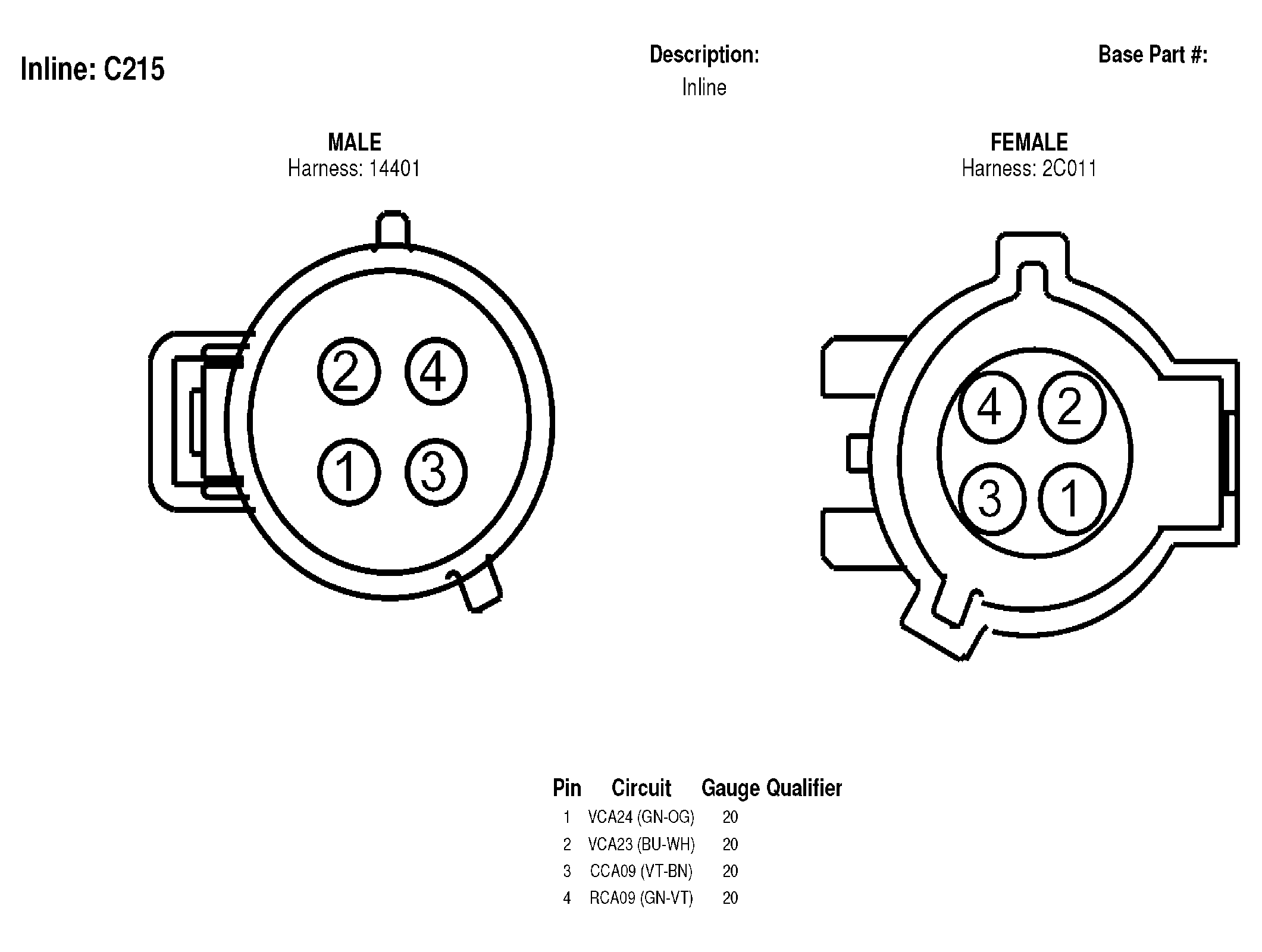

Fig 81: Inline Connector End View (C215)

G04596614

Courtesy of FORD MOTOR CO.

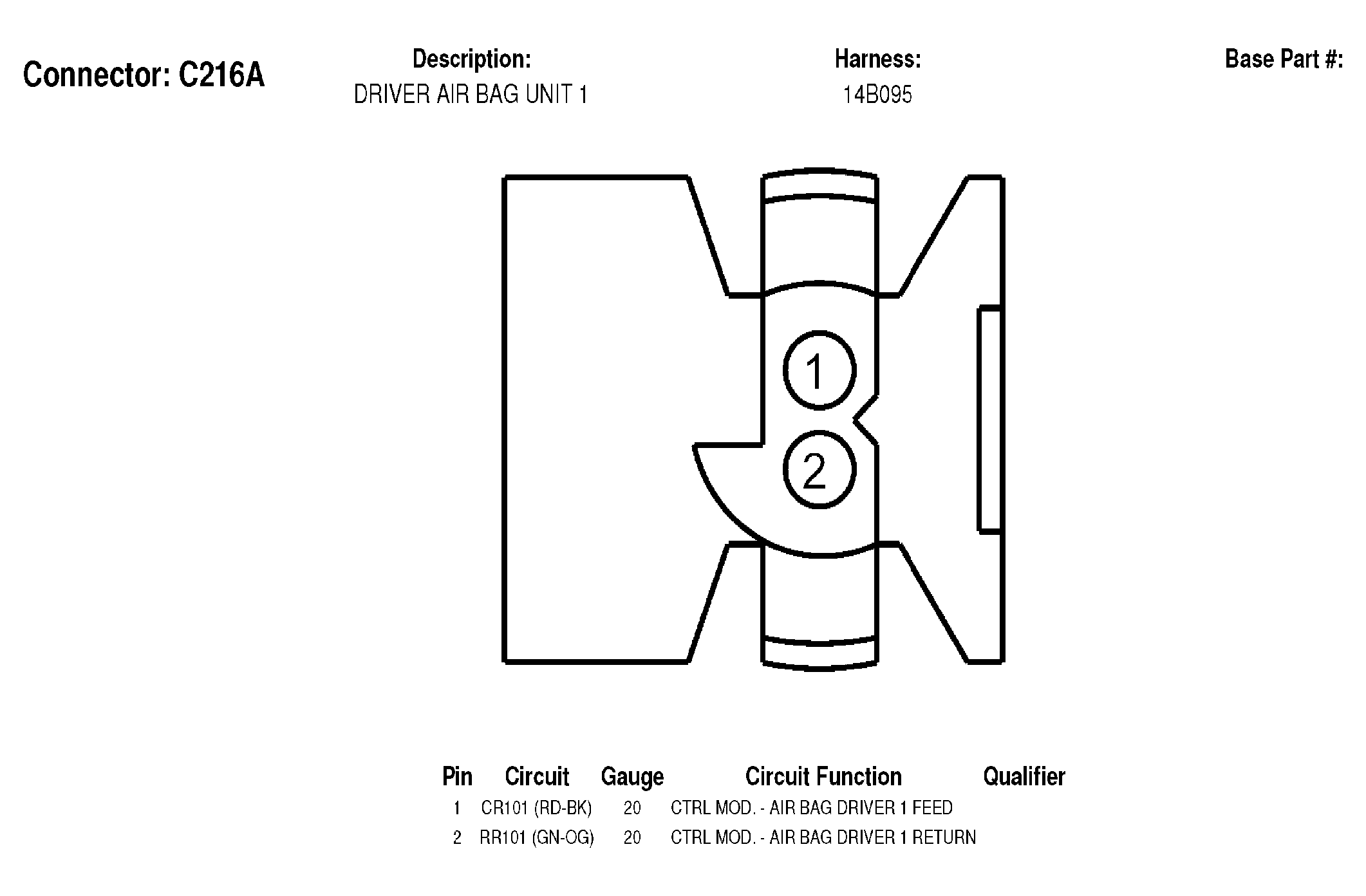

Fig 82: Driver Air Bag Unit 1 Connector End View (C216A)

G04596615

Courtesy of FORD MOTOR CO.

Fig 83: Driver Air Bag Unit 2 Connector End View (C216B)

G04596616

Courtesy of FORD MOTOR CO.

Fig 84: Driver Can Vent Unit Connector End View (C216C)

G04596617

Courtesy of FORD MOTOR CO.

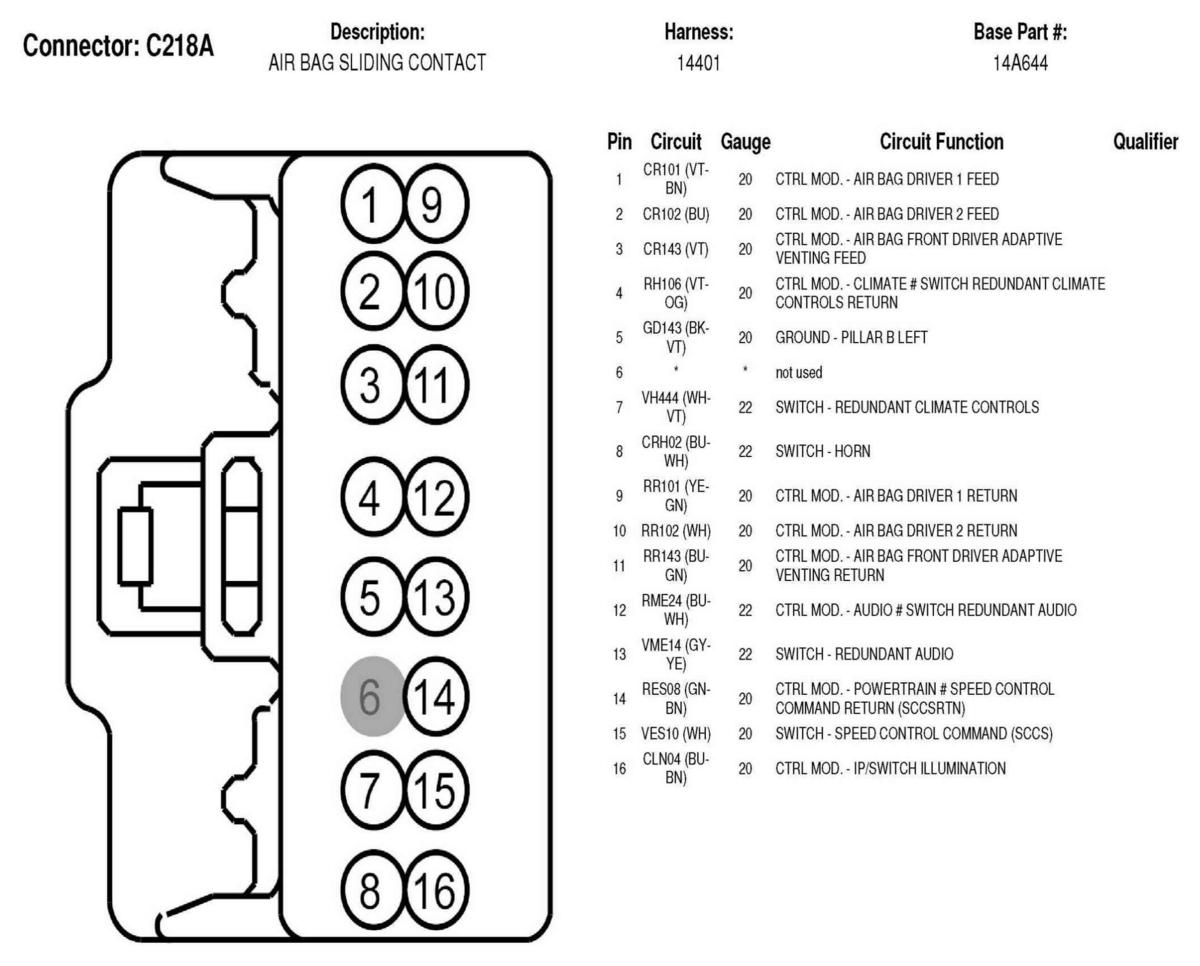

Fig 85: Air Bag Sliding Contact Connector End View (C218A)

G04596618

Courtesy of FORD MOTOR CO.

Fig 86: Air Bag Sliding Contact Connector End View (C218B)

G04596619

Courtesy of FORD MOTOR CO.

Fig 87: Inline Connector End View (C219)

G04596620

Courtesy of FORD MOTOR CO.

Fig 88: Instrument Cluster Connector End View (C220)

G04596621

Courtesy of FORD MOTOR CO.

Fig 89: Steering Position Sensor Connector End View (C226)

G04596622

Courtesy of FORD MOTOR CO.

Fig 90: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228A)

G04596623

Courtesy of FORD MOTOR CO.

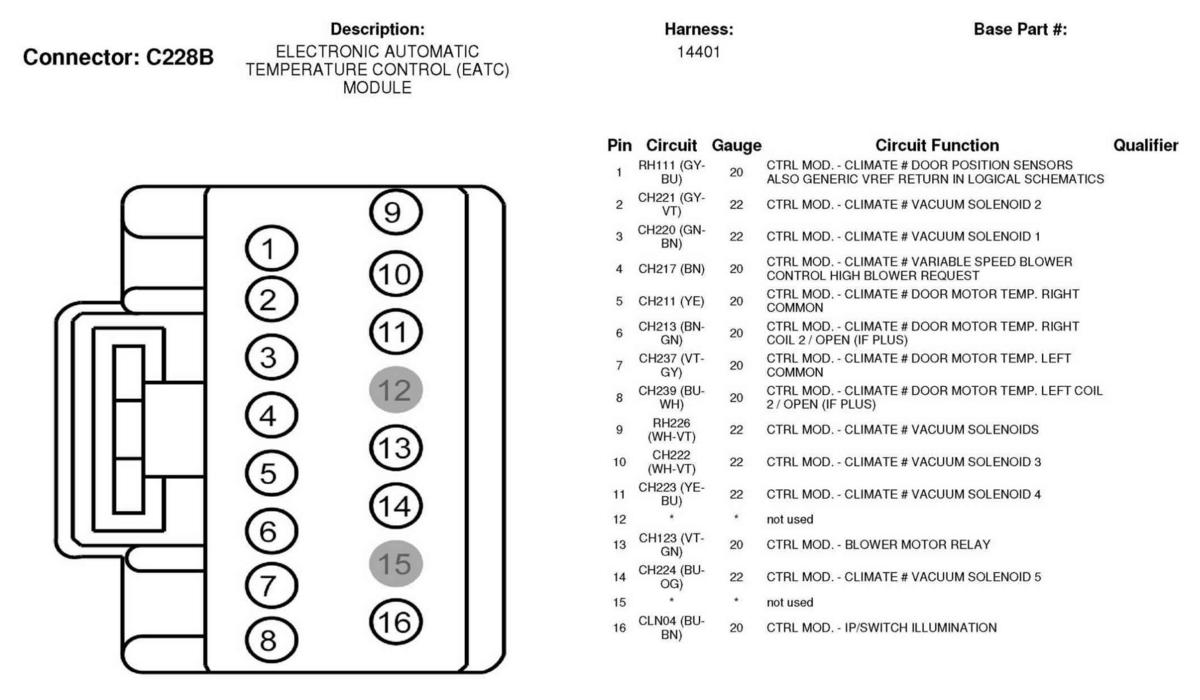

Fig 91: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228B)

G04596624

Courtesy of FORD MOTOR CO.

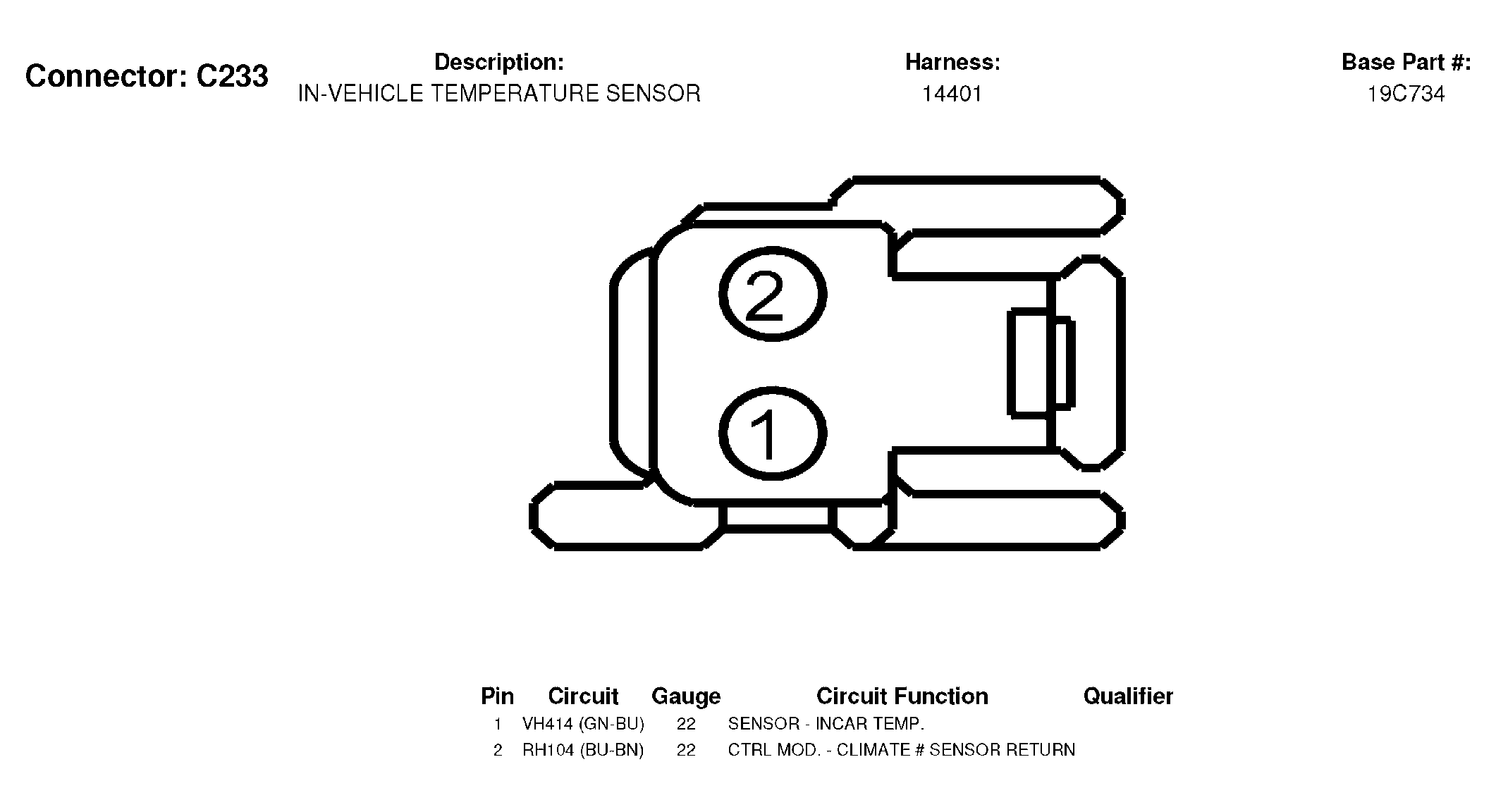

Fig 92: In-Vehicle Temperature Sensor Connector End View (C233)

G04596625

Courtesy of FORD MOTOR CO.

Fig 93: Inline Connector End View (C237)

G04596626

Courtesy of FORD MOTOR CO.

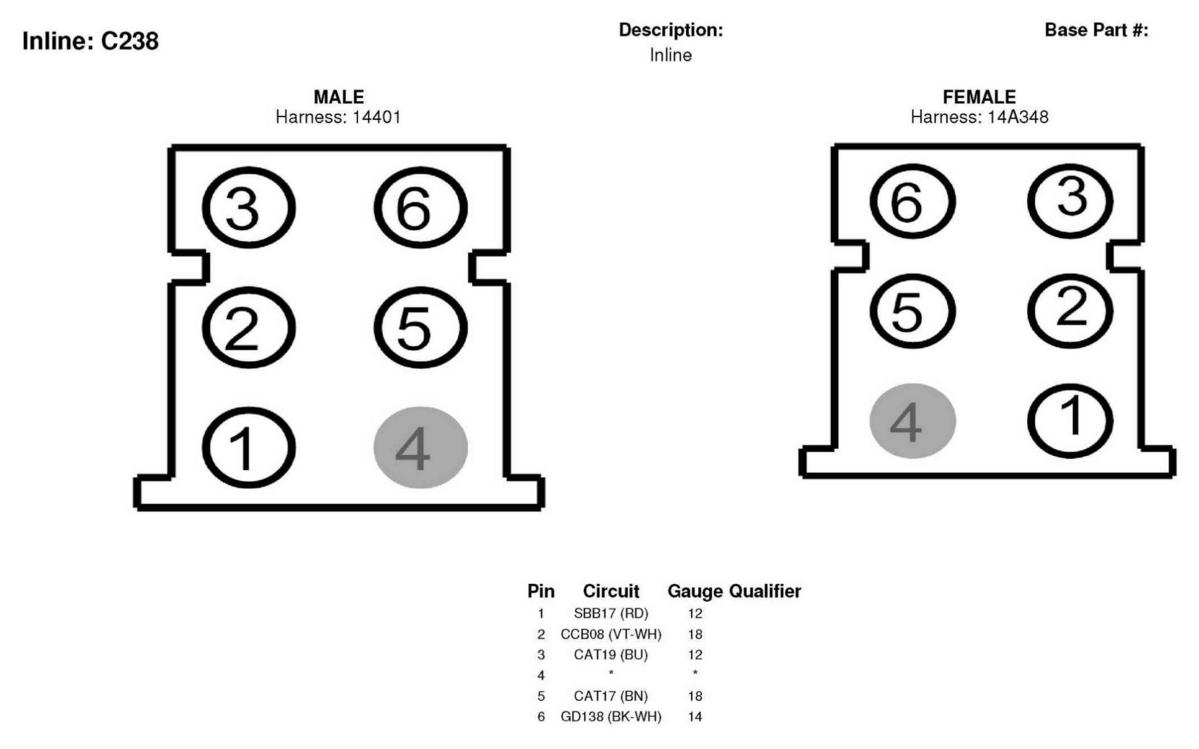

Fig 94: Inline Connector End View (C238)

G04596627

Courtesy of FORD MOTOR CO.

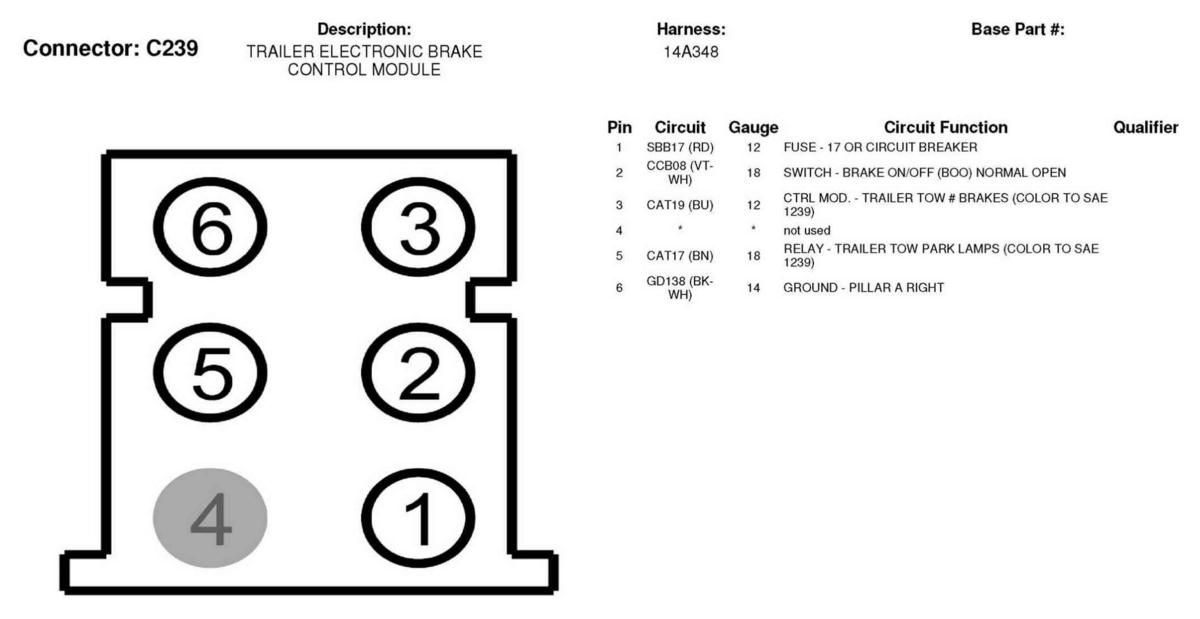

Fig 95: Trailer Electronic Brake Control Module Connector End View (C239)

G04596628

Courtesy of FORD MOTOR CO.

Fig 96: Inline Connector End View (C248)

G04596629

Courtesy of FORD MOTOR CO.

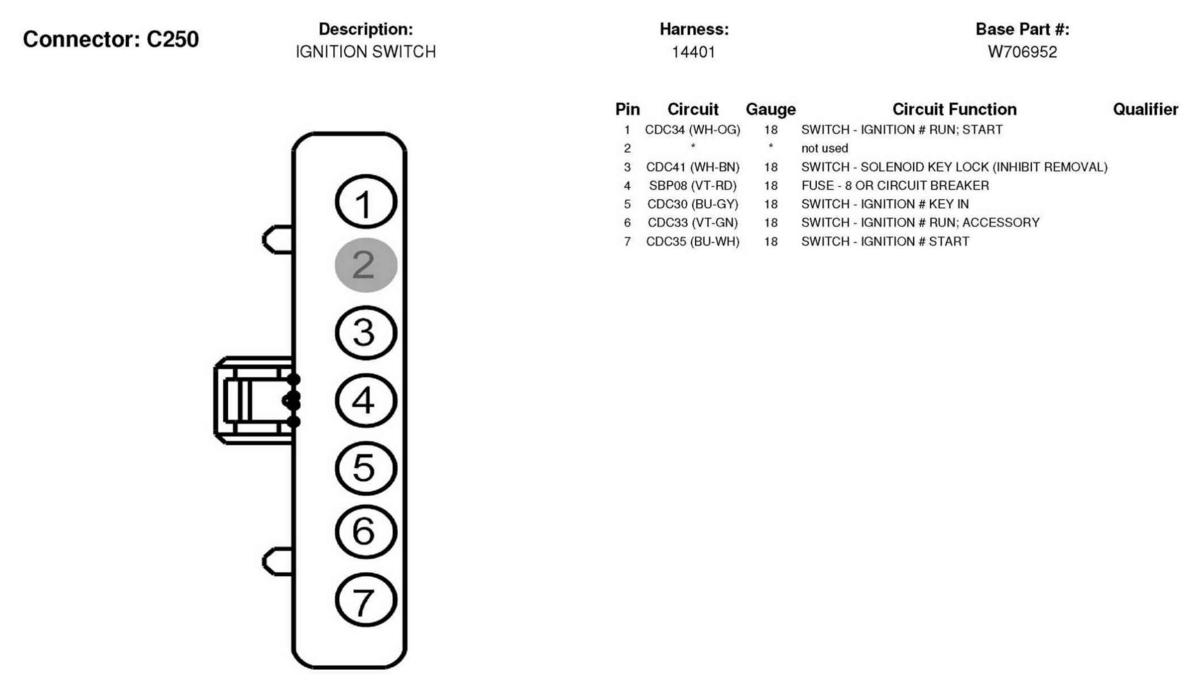

Fig 97: Ignition Switch Connector End View (C250)

G04596630

Courtesy of FORD MOTOR CO.

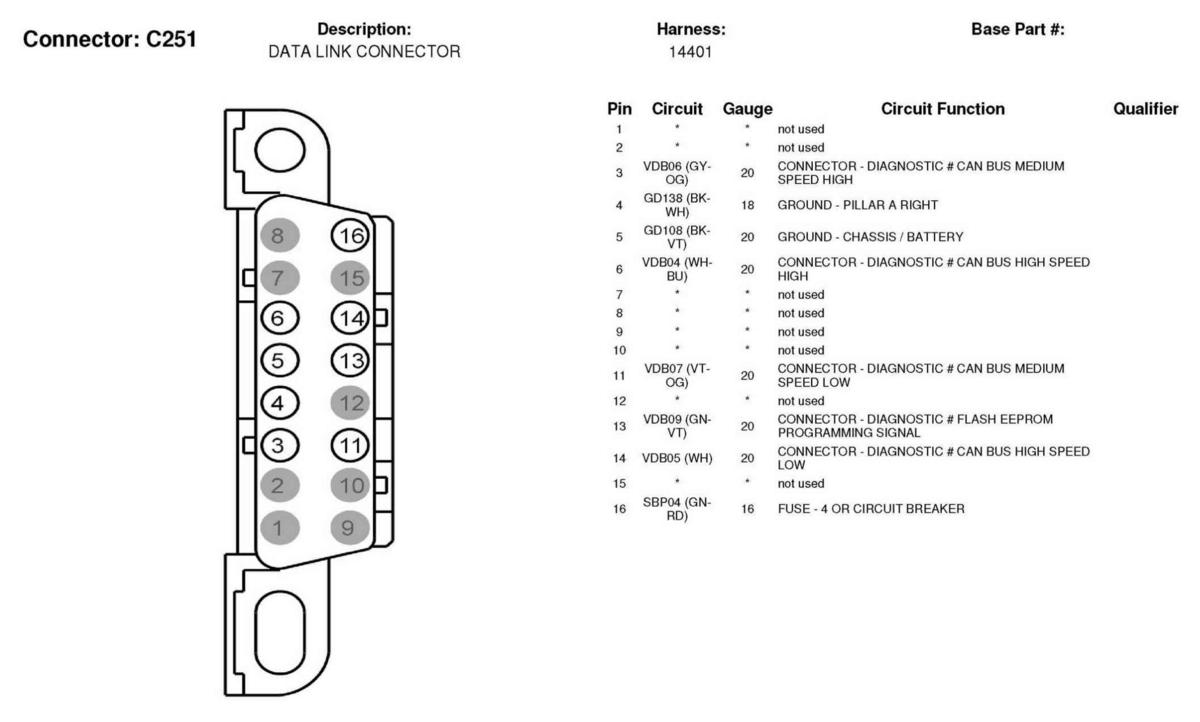

Fig 98: Data Link Connector, Connector End View (C251)

G04596631

Courtesy of FORD MOTOR CO.

Fig 99: Message Center Switch Connector End View (C253)

G04596632

Courtesy of FORD MOTOR CO.

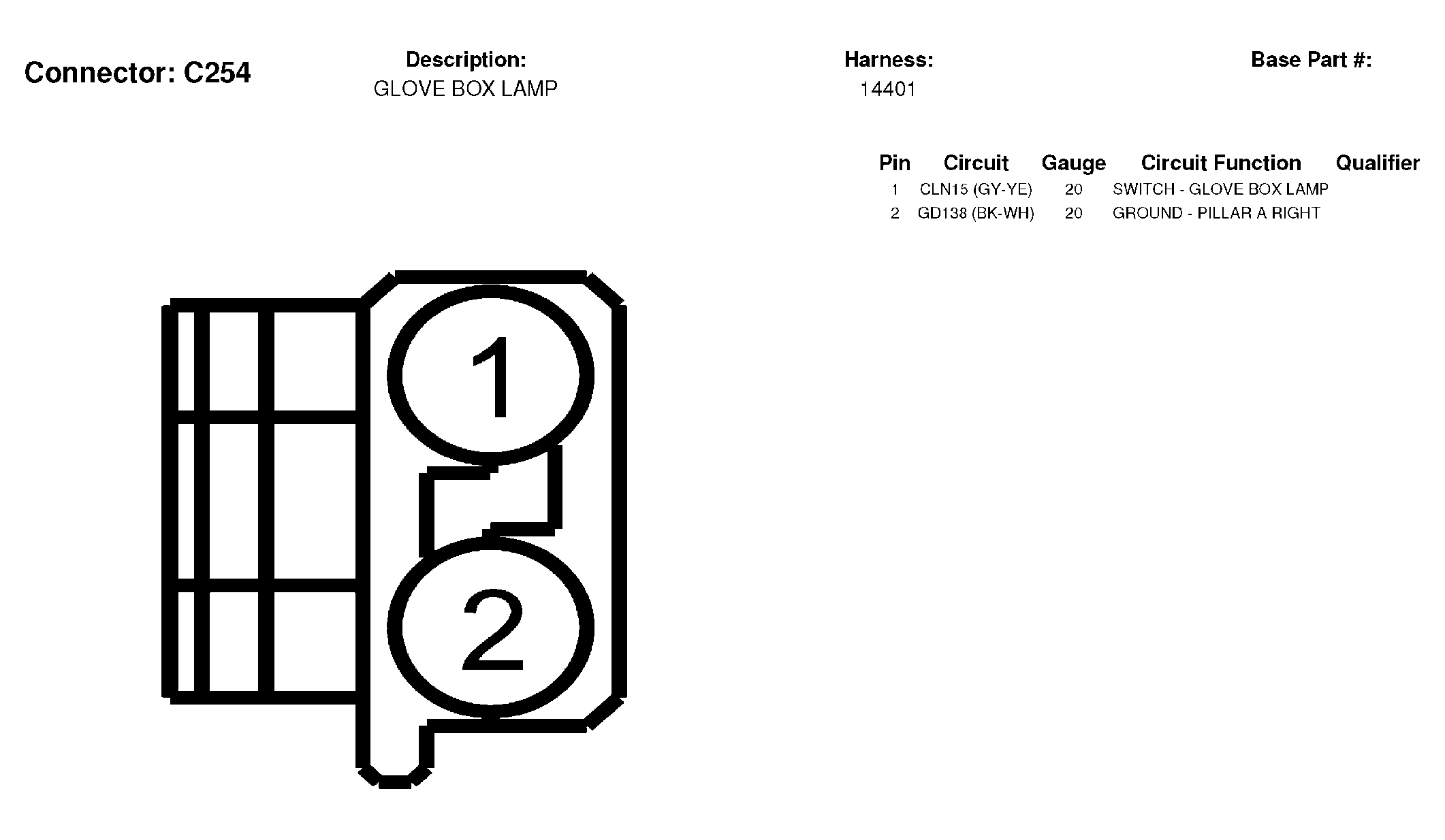

Fig 100: Glove Box Lamp Connector End View (C254)

G04596633

Courtesy of FORD MOTOR CO.

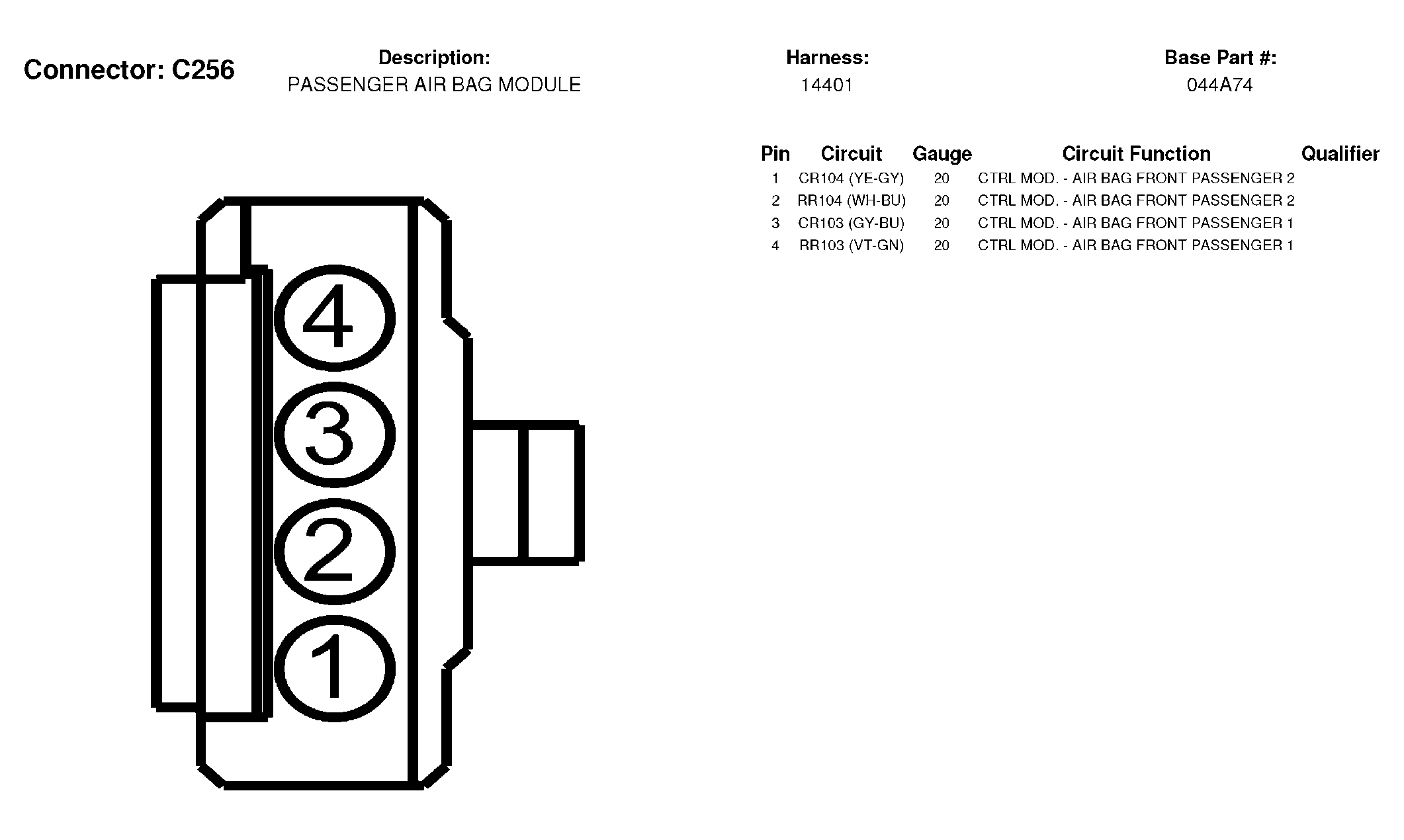

Fig 101: Passenger Air Bag Module Connector End View (C256)

G04596634

Courtesy of FORD MOTOR CO.

Fig 102: Front Blower Motor Speed Controller Connector End View (C271)

G04596635

Courtesy of FORD MOTOR CO.

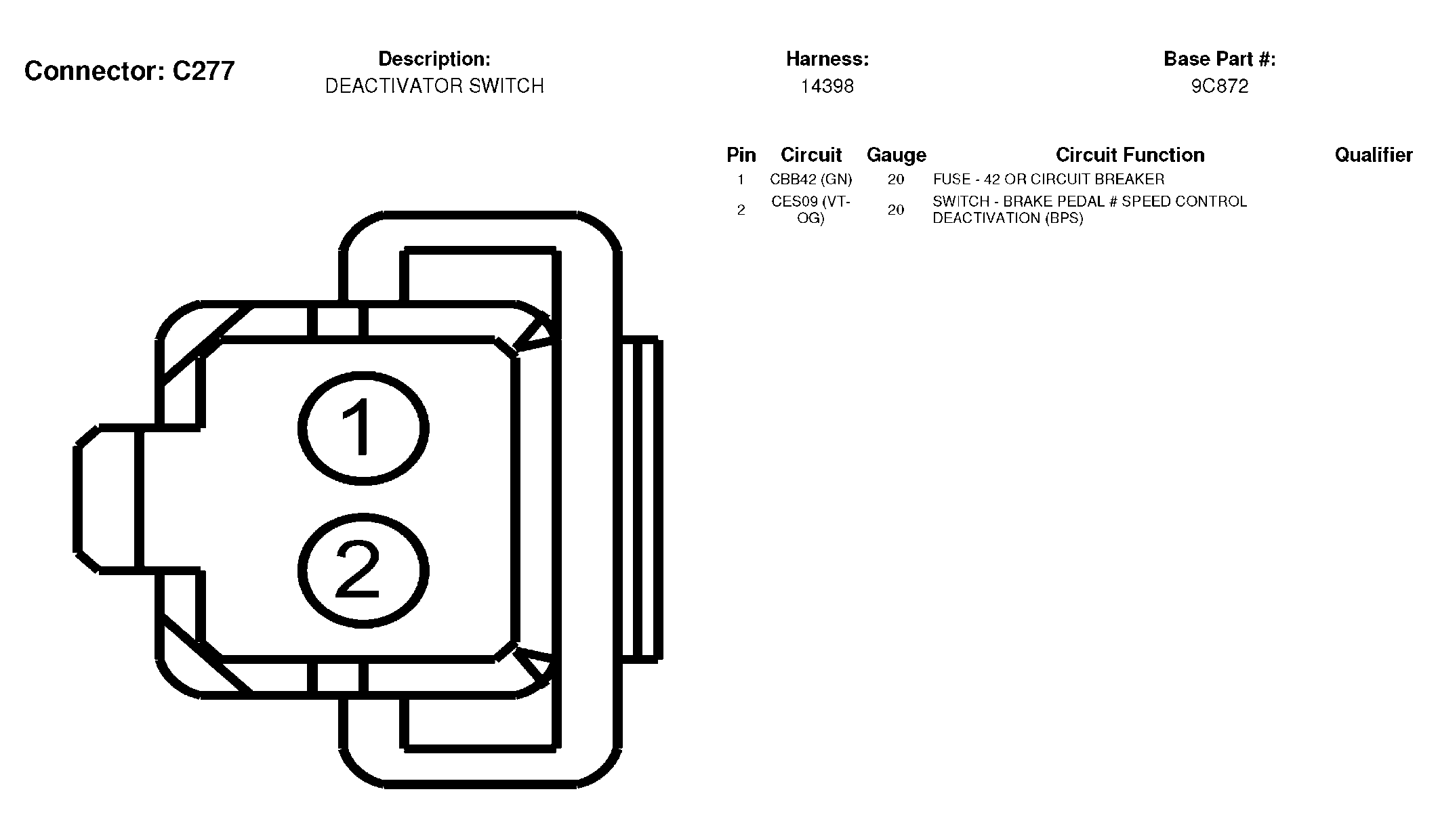

Fig 103: Deactivator Switch Connector End View (C277)

G04596636

Courtesy of FORD MOTOR CO.

Fig 104: Brake Pedal Position Switch Connector End View (C278)

G04596637

Courtesy of FORD MOTOR CO.

Fig 105: Traction Control Switch Connector End View (C280)

G04596638

Courtesy of FORD MOTOR CO.

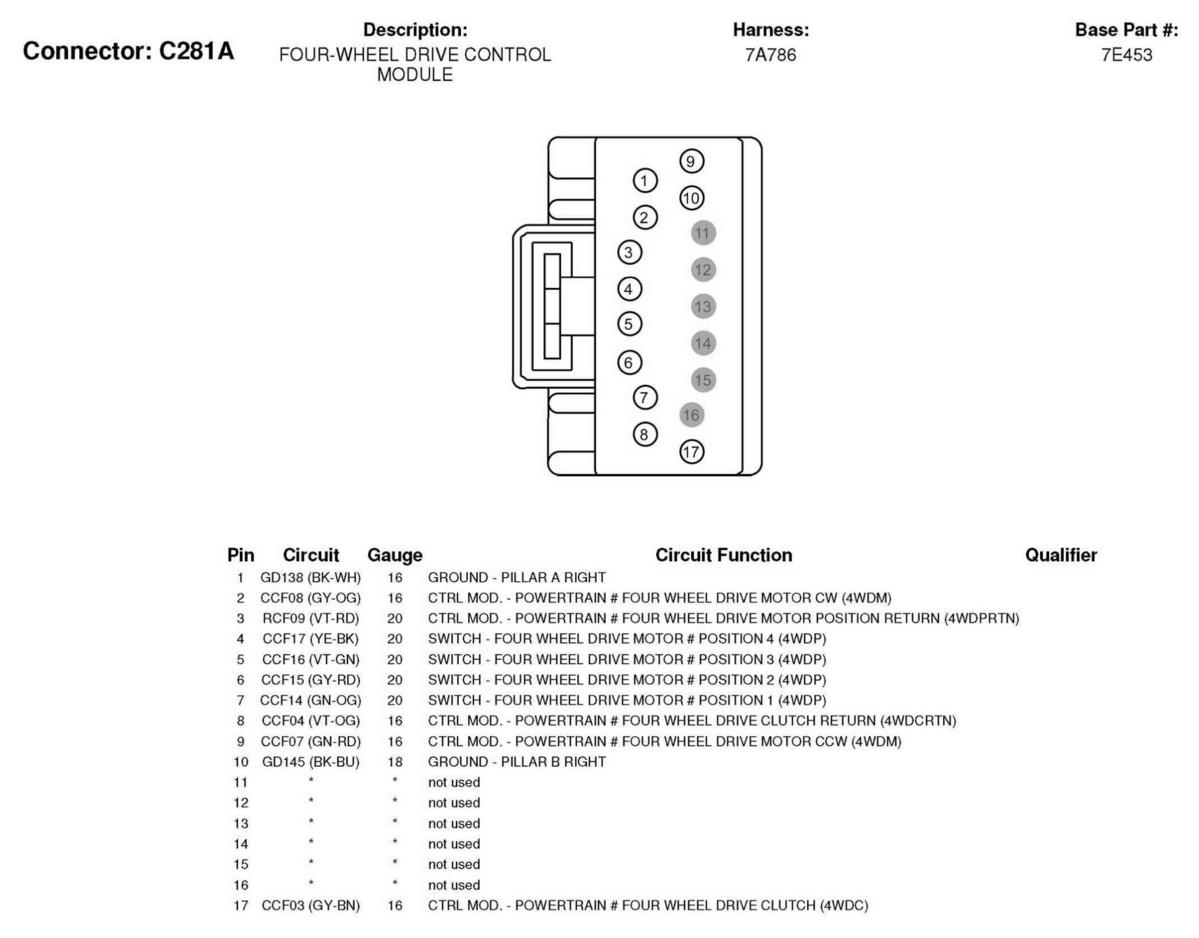

Fig 106: Four-Wheel Driver Control Module Connector End View (C281A)

G04596639

Courtesy of FORD MOTOR CO.

Fig 107: Four-Wheel Driver Control Module Connector End View (C281B)

G04596640

Courtesy of FORD MOTOR CO.

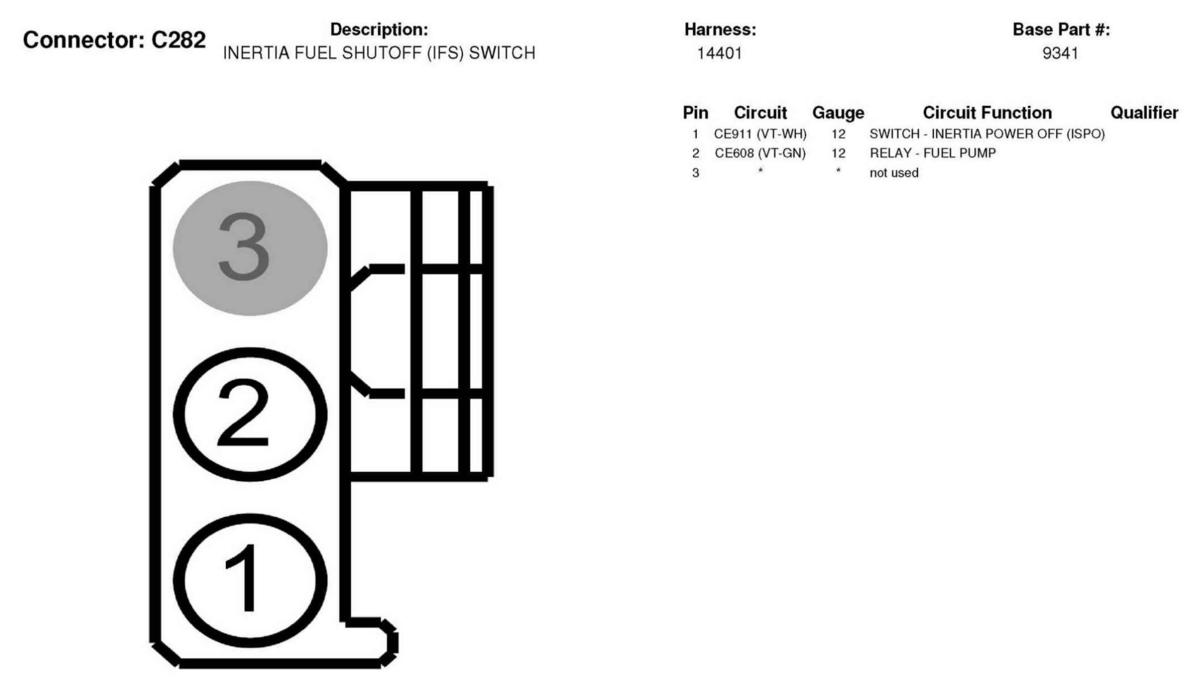

Fig 108: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G04596641

Courtesy of FORD MOTOR CO.

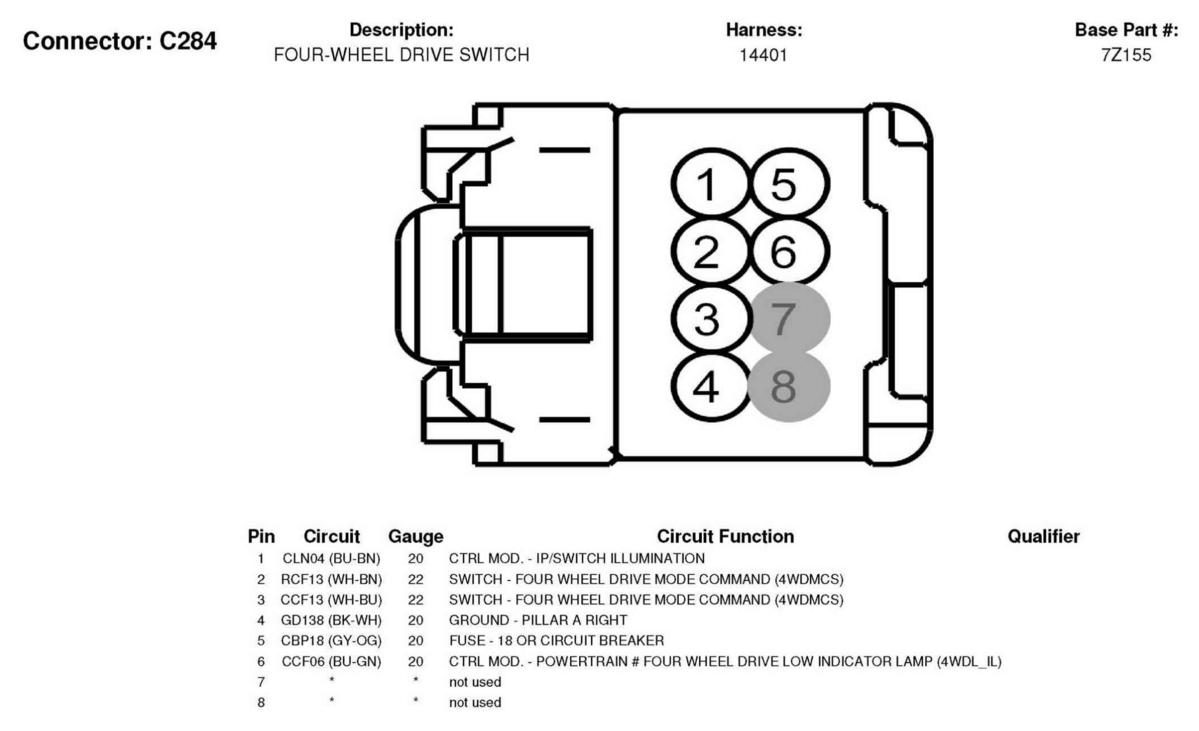

Fig 109: Four-Wheel Driver Switch Connector End View (C284)

G04596642

Courtesy of FORD MOTOR CO.

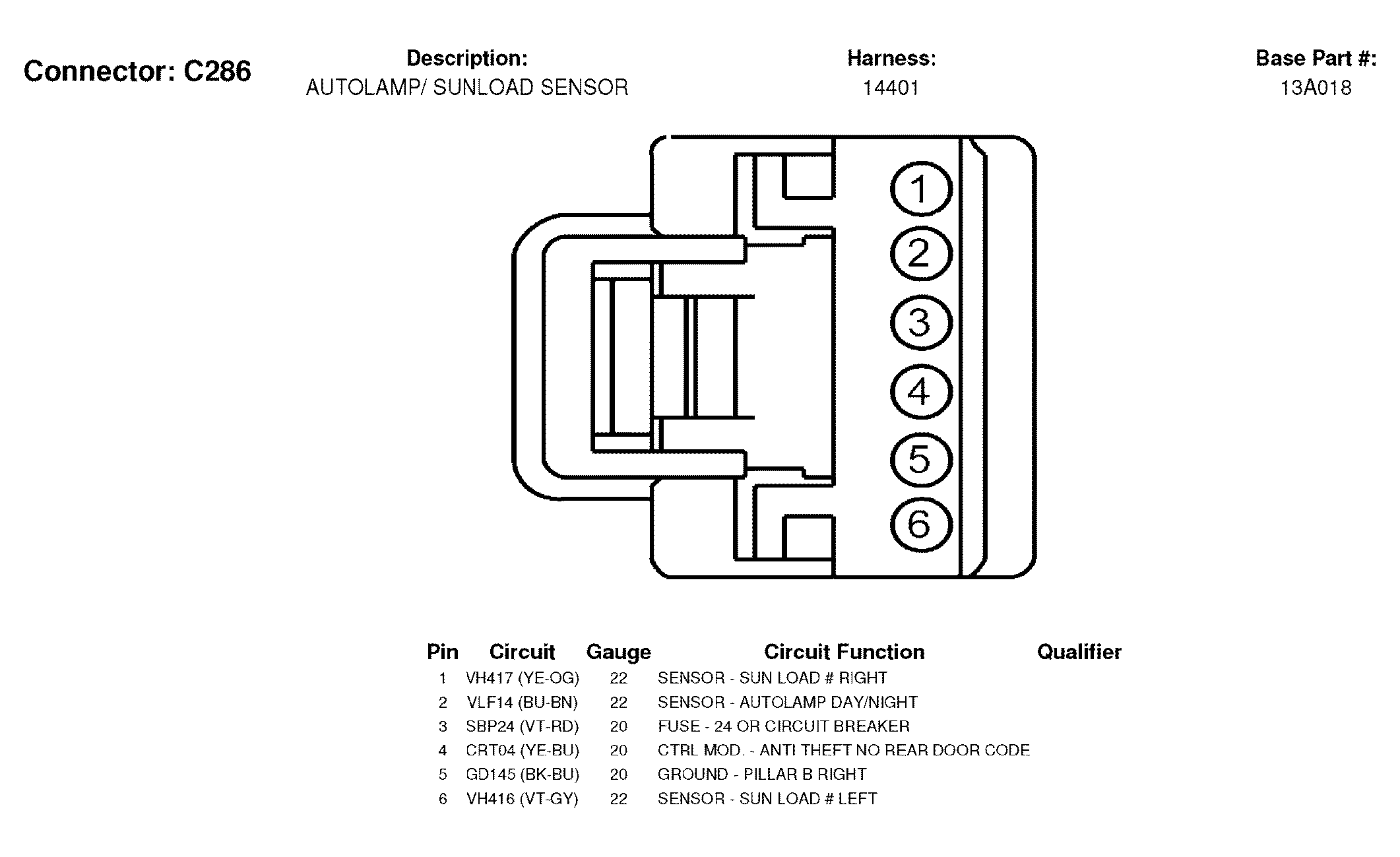

Fig 110: Autolamp/Sunload Sensor Connector End View (C286)

G04596643

Courtesy of FORD MOTOR CO.

Fig 111: Audio Unit Connector End View (C290A)

G04596644

Courtesy of FORD MOTOR CO.

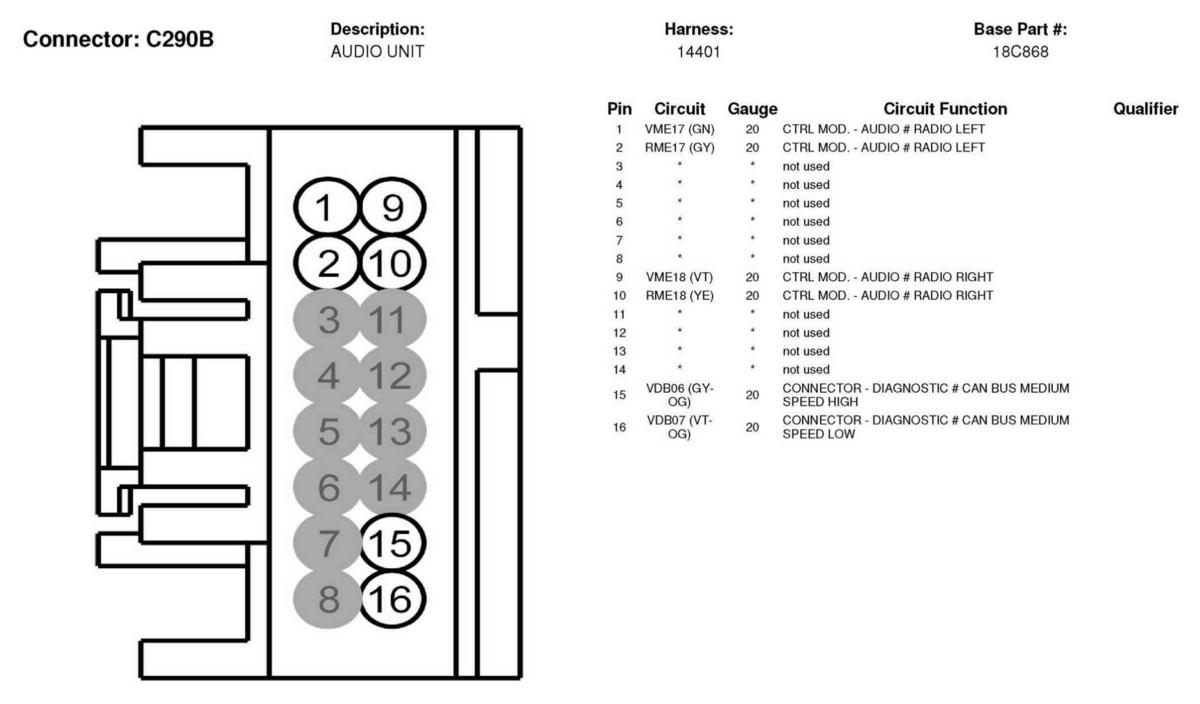

Fig 112: Audio Unit Connector End View (C290B)

G04596645

Courtesy of FORD MOTOR CO.

Fig 113: Audio Unit Connector End View (C290C)

G04596646

Courtesy of FORD MOTOR CO.

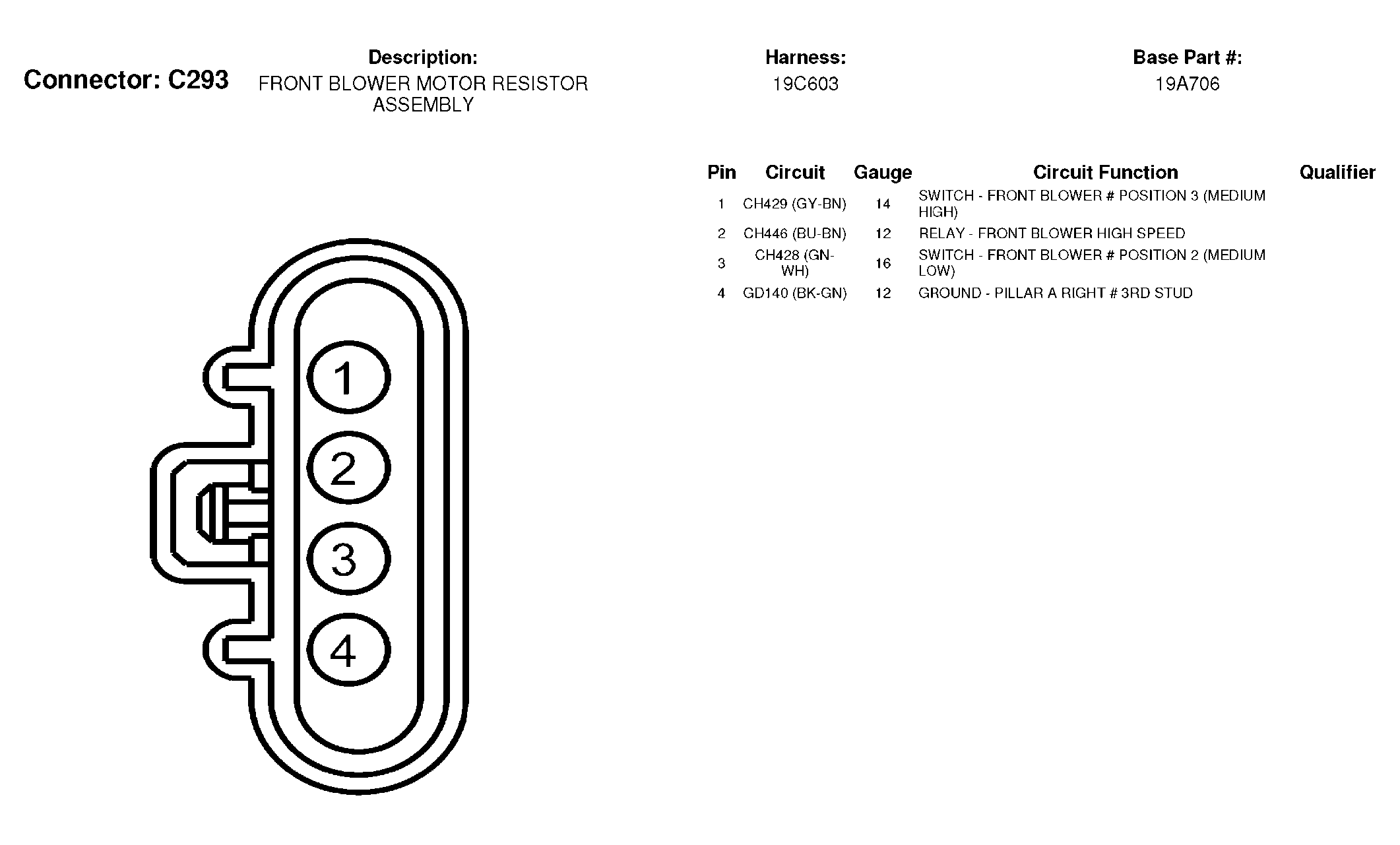

Fig 114: Front Blower Motor Resistor Assembly Connector End View (C293)

G04596647

Courtesy of FORD MOTOR CO.

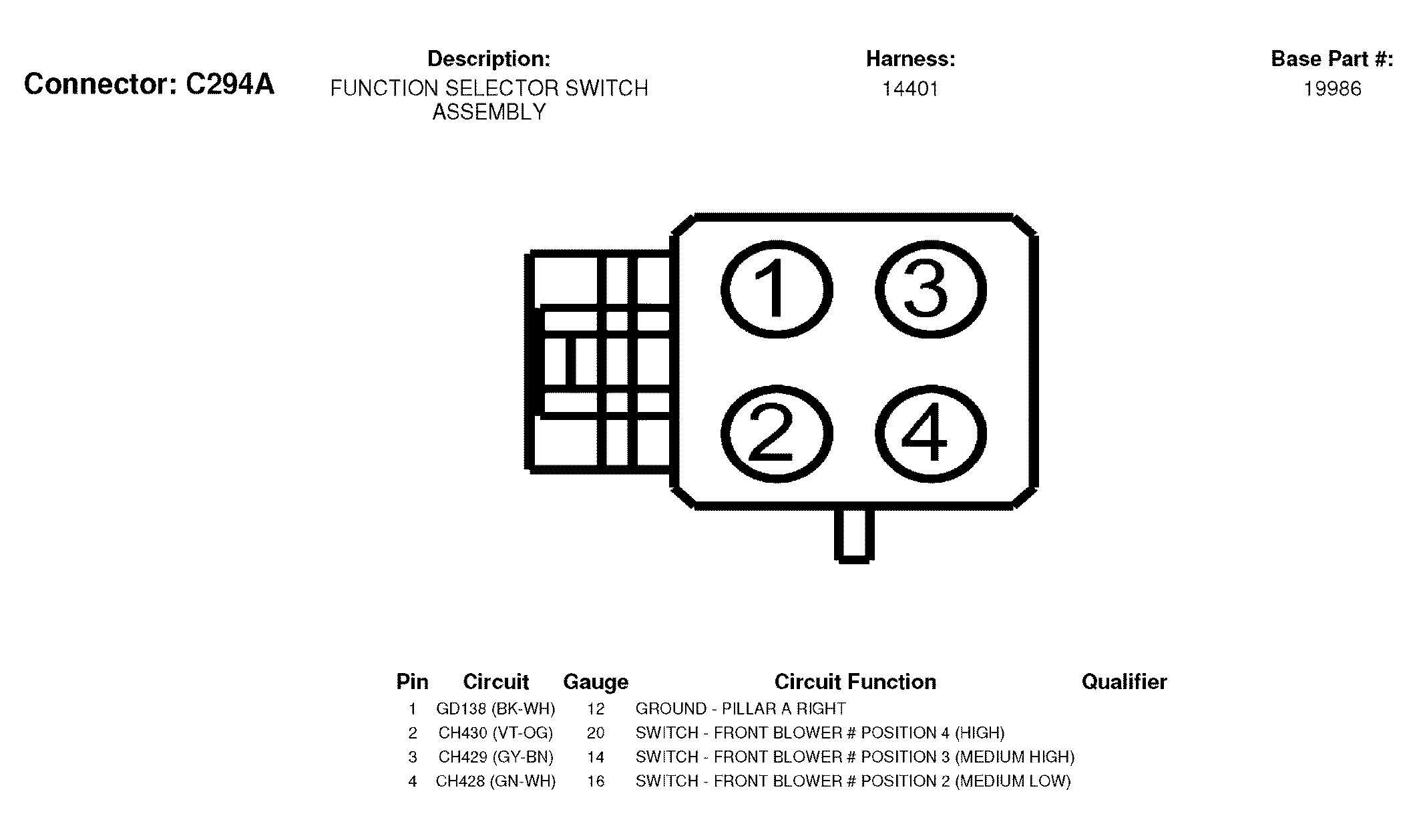

Fig 115: Function Selector Switch Assembly Connector End View (C294A)

G04596648

Courtesy of FORD MOTOR CO.

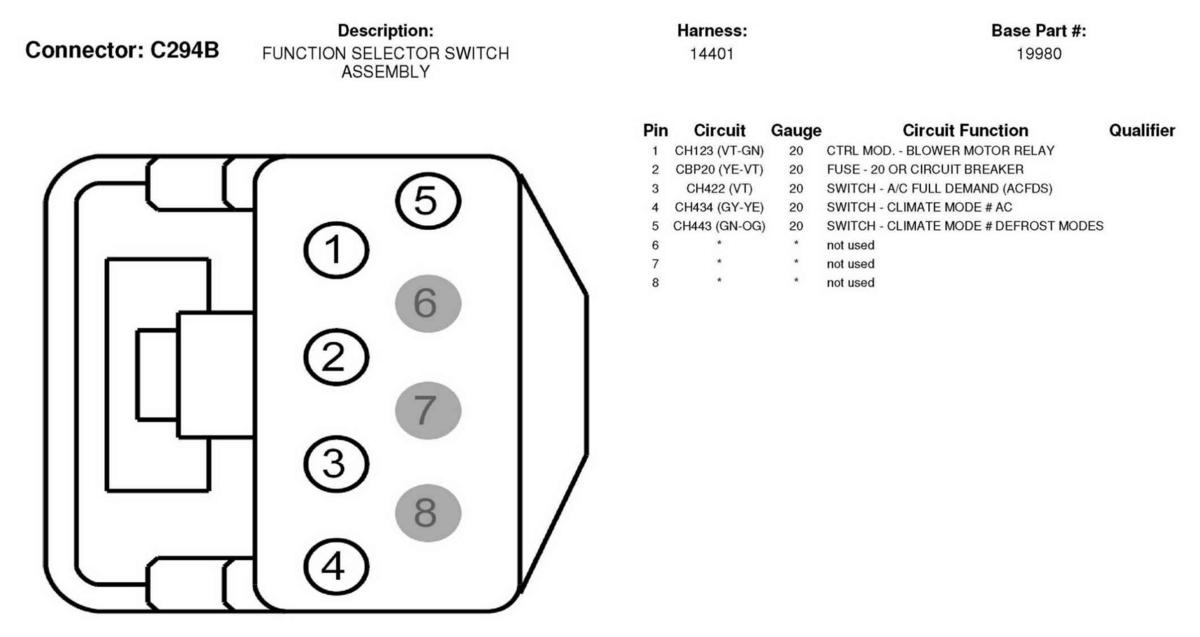

Fig 116: Function Selector Switch Assembly Connector End View (C294B)

G04596649

Courtesy of FORD MOTOR CO.

Fig 117: Function Selector Switch Assembly Connector End View (C294C)

G04596650

Courtesy of FORD MOTOR CO.

Fig 118: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G04596651

Courtesy of FORD MOTOR CO.

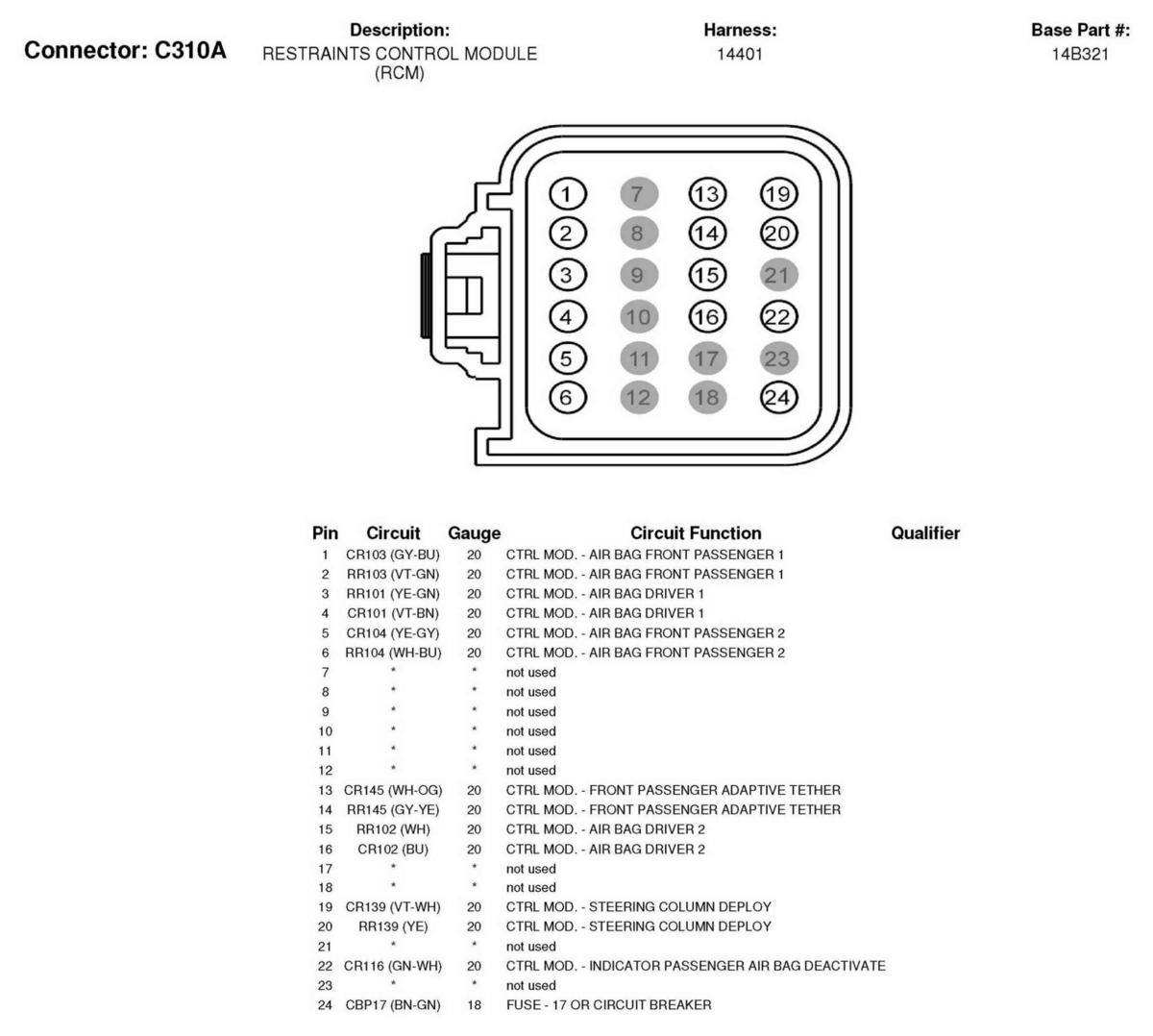

Fig 119: Restraints Control Module (RCM) Connector End View (C310A)

G04596652

Courtesy of FORD MOTOR CO.

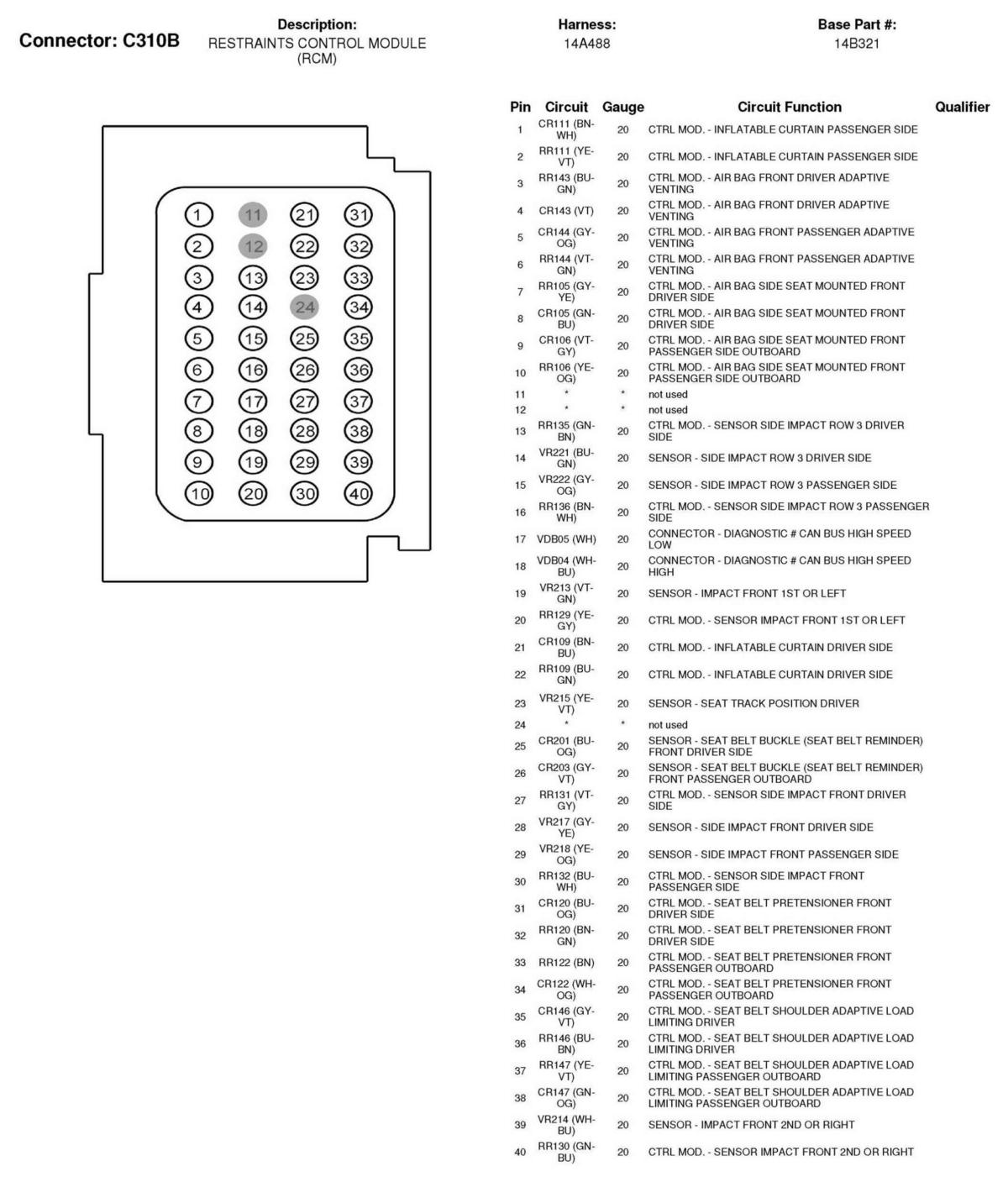

Fig 120: Restraints Control Module (RCM) Connector End View (C310B)

G04596653

Courtesy of FORD MOTOR CO.

Fig 121: Inline Connector End View (C311) (1 Of 2)

G04596654

Courtesy of FORD MOTOR CO.

Fig 122: Inline Connector End View (C311) (2 Of 2)

G04596655

Courtesy of FORD MOTOR CO.

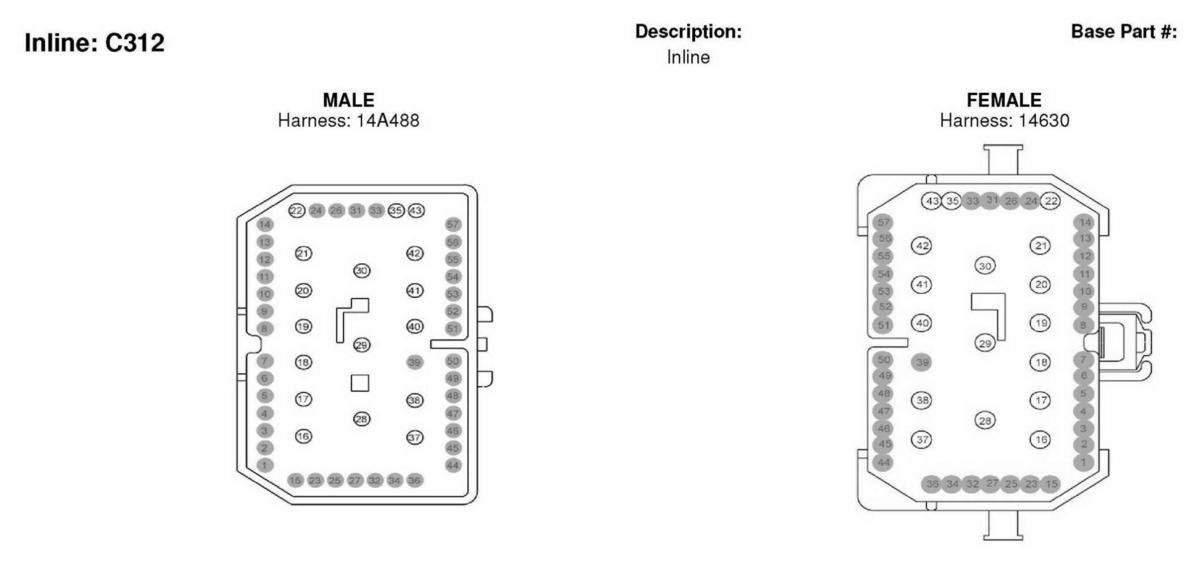

Fig 123: Inline Connector End View (C312) (1 Of 2)

G04596656

Courtesy of FORD MOTOR CO.

Fig 124: Inline Connector End View (C312) (2 Of 2)

G04596657

Courtesy of FORD MOTOR CO.

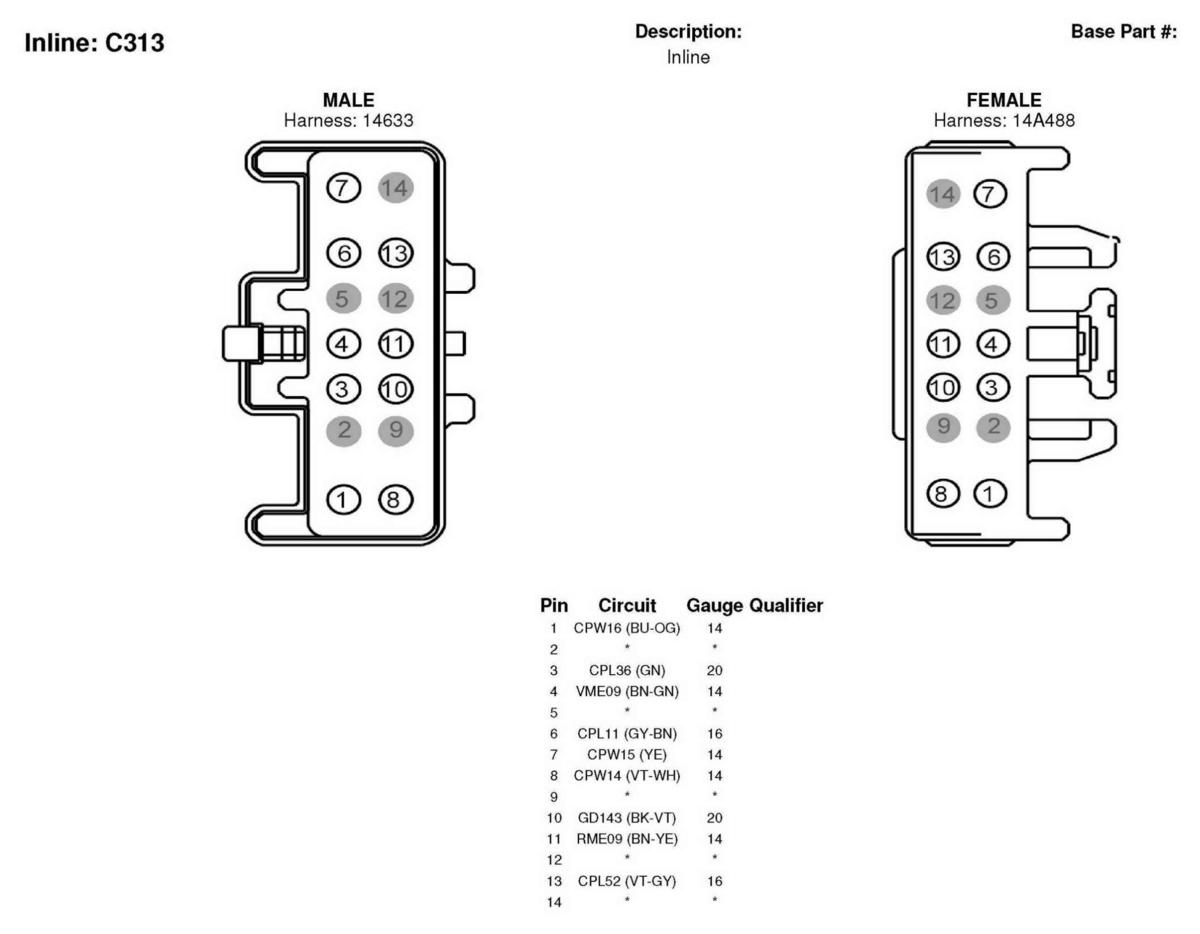

Fig 125: Inline Connector End View (C313)

G04596658

Courtesy of FORD MOTOR CO.

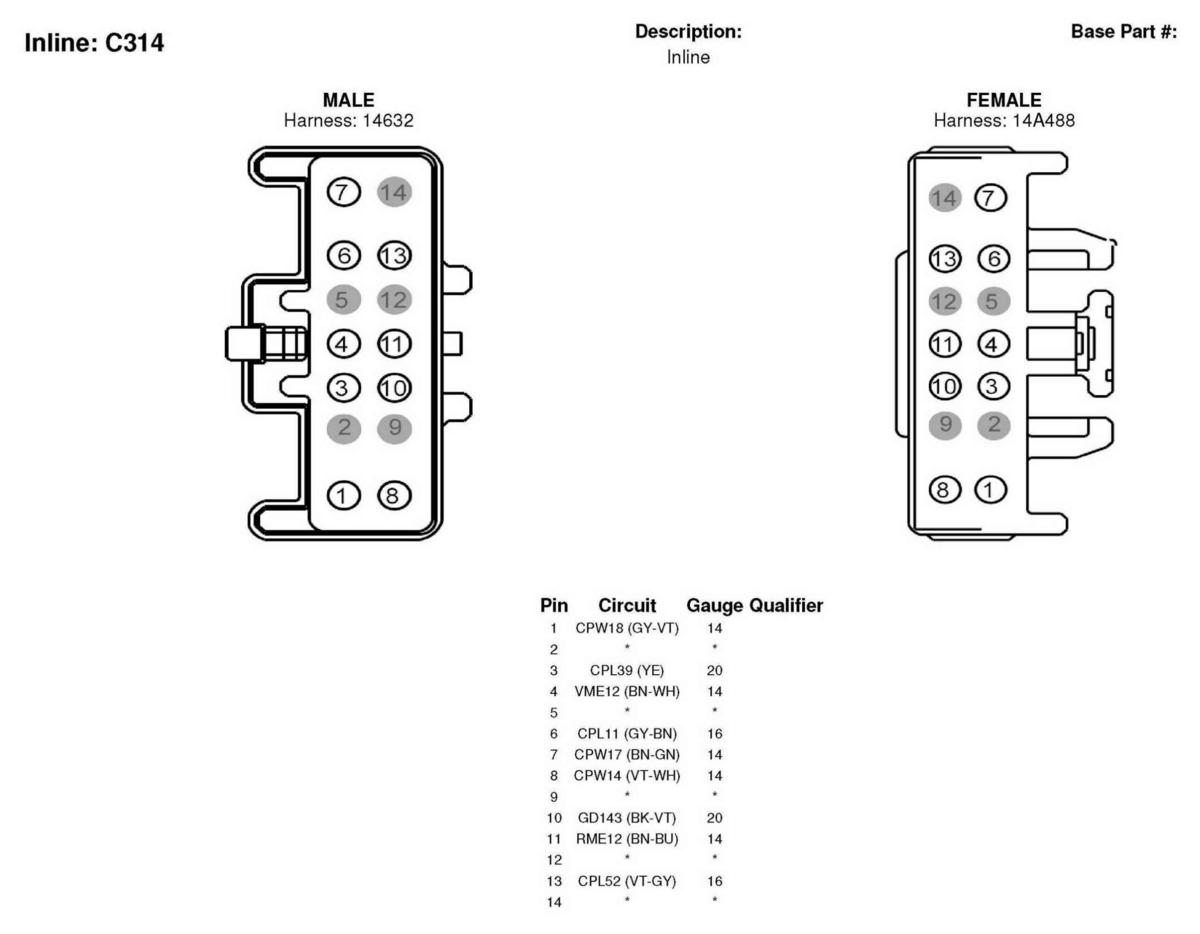

Fig 126: Inline Connector End View (C314)

G04596659

Courtesy of FORD MOTOR CO.

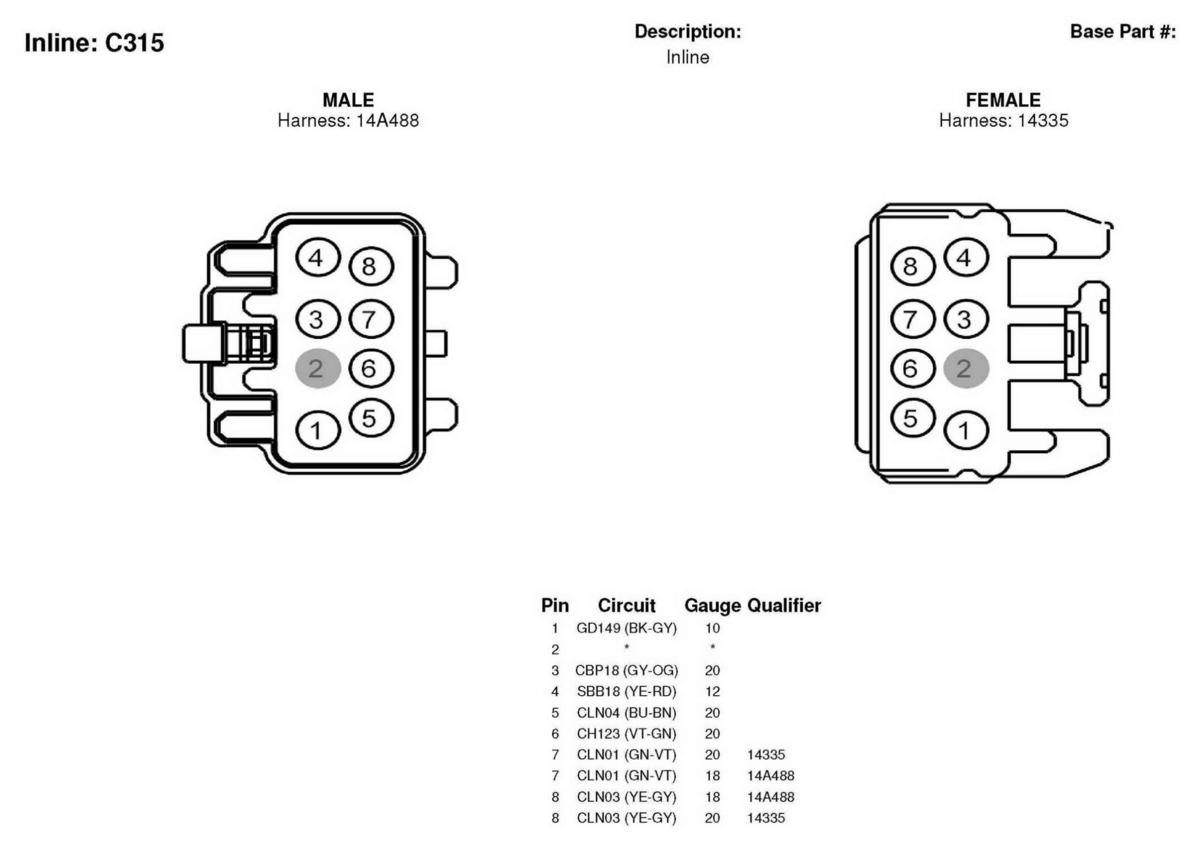

Fig 127: Inline Connector End View (C315)

G04596660

Courtesy of FORD MOTOR CO.

Fig 128: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

G04596661

Courtesy of FORD MOTOR CO.

Fig 129: Inline Connector End View (C327)

G04596662

Courtesy of FORD MOTOR CO.

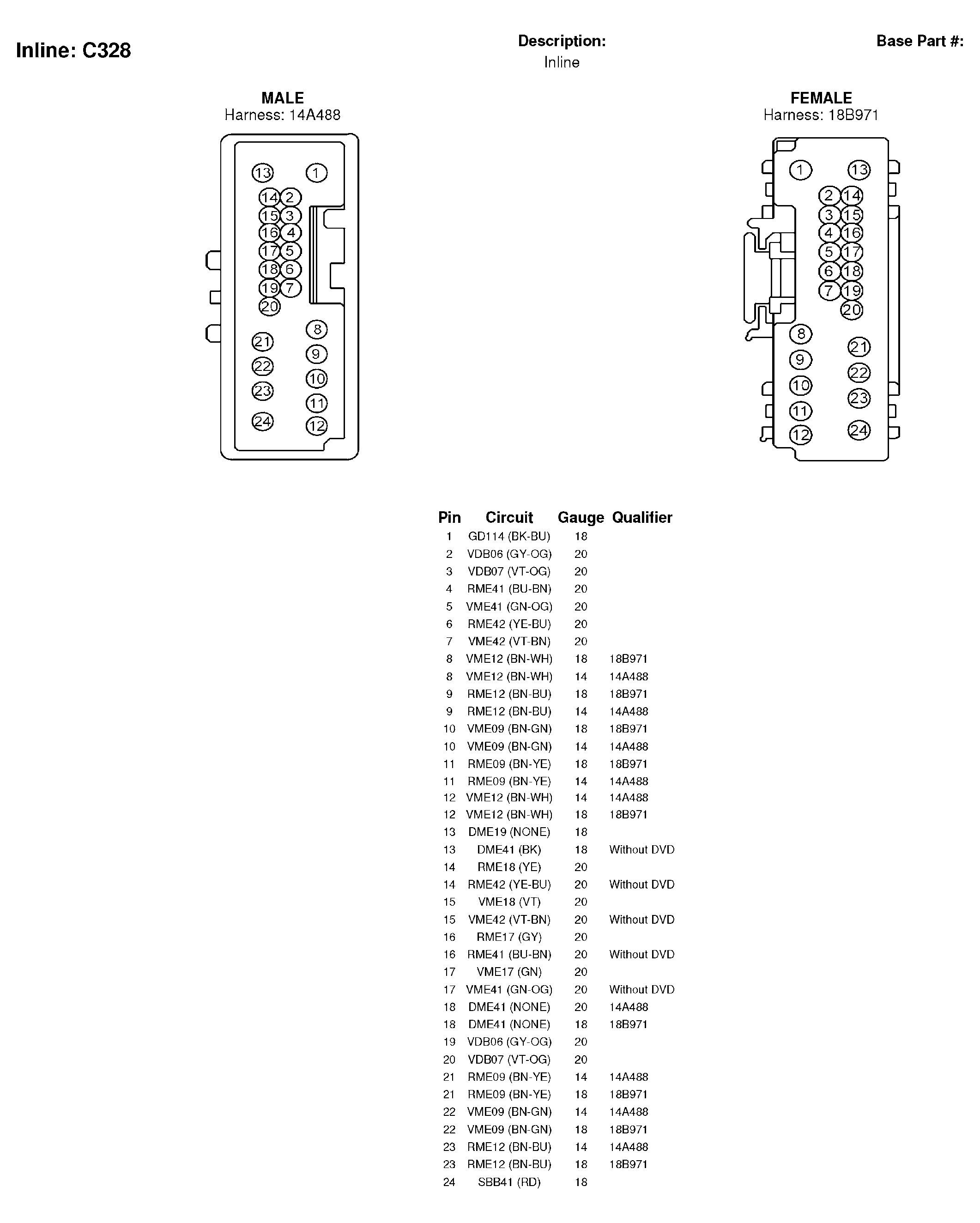

Fig 130: Inline Connector End View (C328)

G04596663

Courtesy of FORD MOTOR CO.

Fig 131: Seat Cushion Heater, Right Front Connector End View (C334)

G04596664

Courtesy of FORD MOTOR CO.

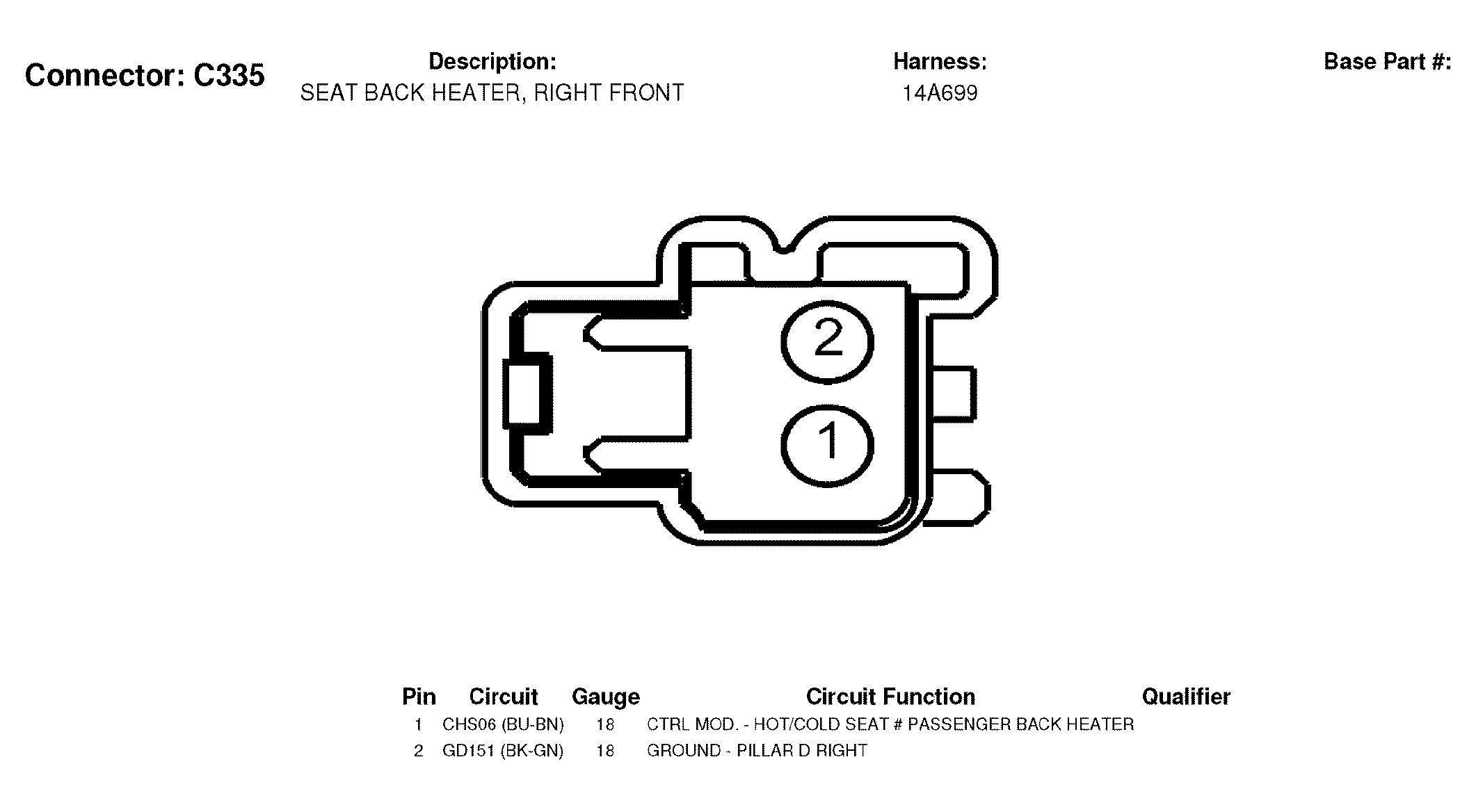

Fig 132: Seat Back Heater, Right Front Connector End View (C335)

G04596665

Courtesy of FORD MOTOR CO.

Fig 133: Side Air Bag Module, Right Connector End View (C337)

G04596666

Courtesy of FORD MOTOR CO.

Fig 134: Inline Connector End View (C339)

G04596667

Courtesy of FORD MOTOR CO.

Fig 135: Inline Connector End View (C340)

G04596668

Courtesy of FORD MOTOR CO.

Fig 136: Driver Seat Module Connector End View (C341A)

G04596669

Courtesy of FORD MOTOR CO.

Fig 137: Driver Seat Module Connector End View (C341B)

G04596670

Courtesy of FORD MOTOR CO.

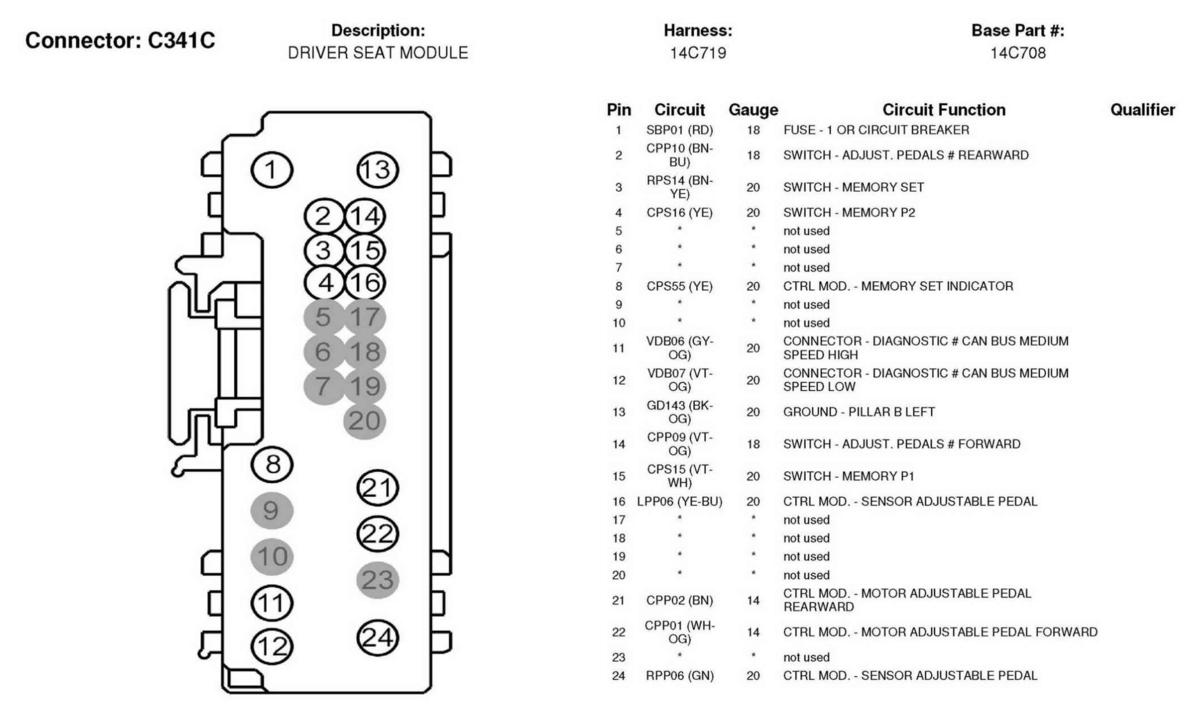

Fig 138: Driver Seat Module Connector End View (C341C)

G04596671

Courtesy of FORD MOTOR CO.

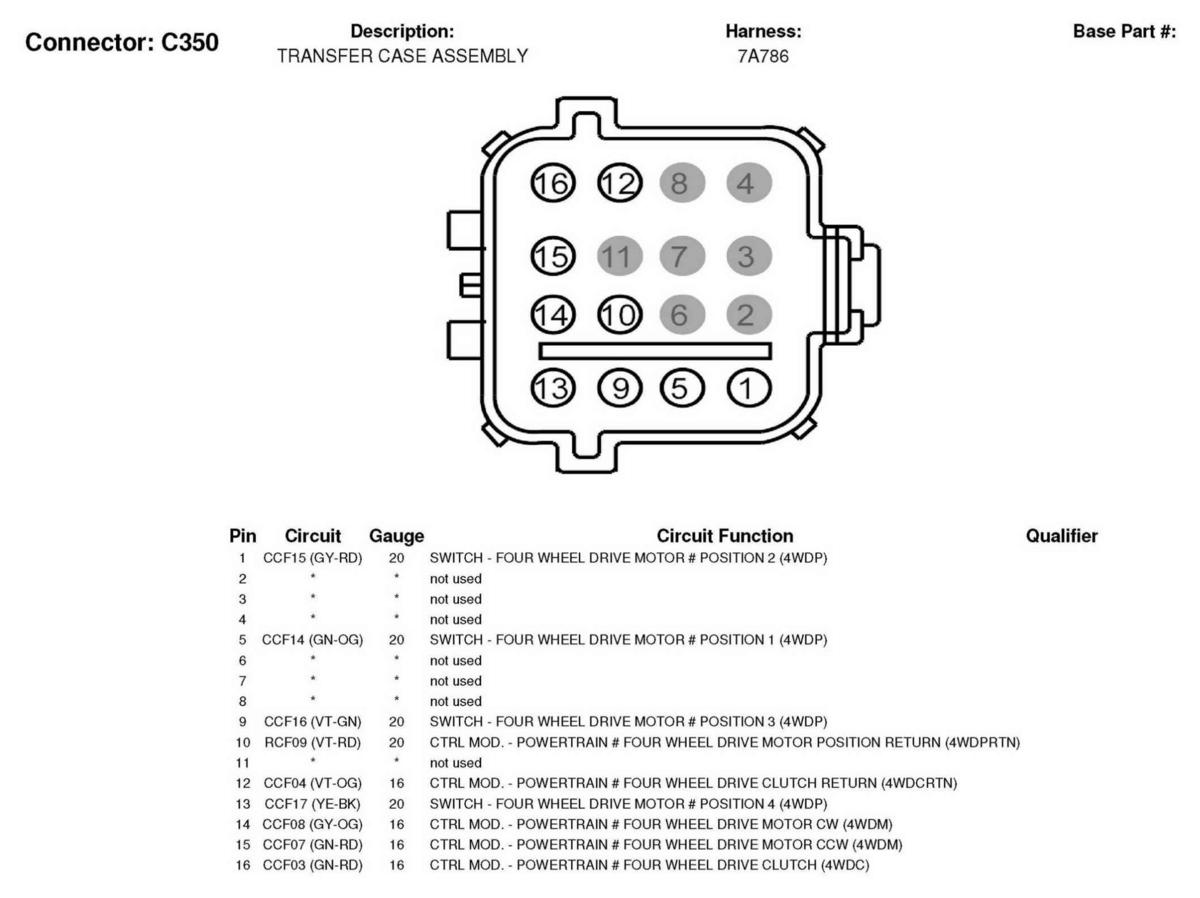

Fig 139: Transfer Case Assembly Connector End View (C350)

G04596672

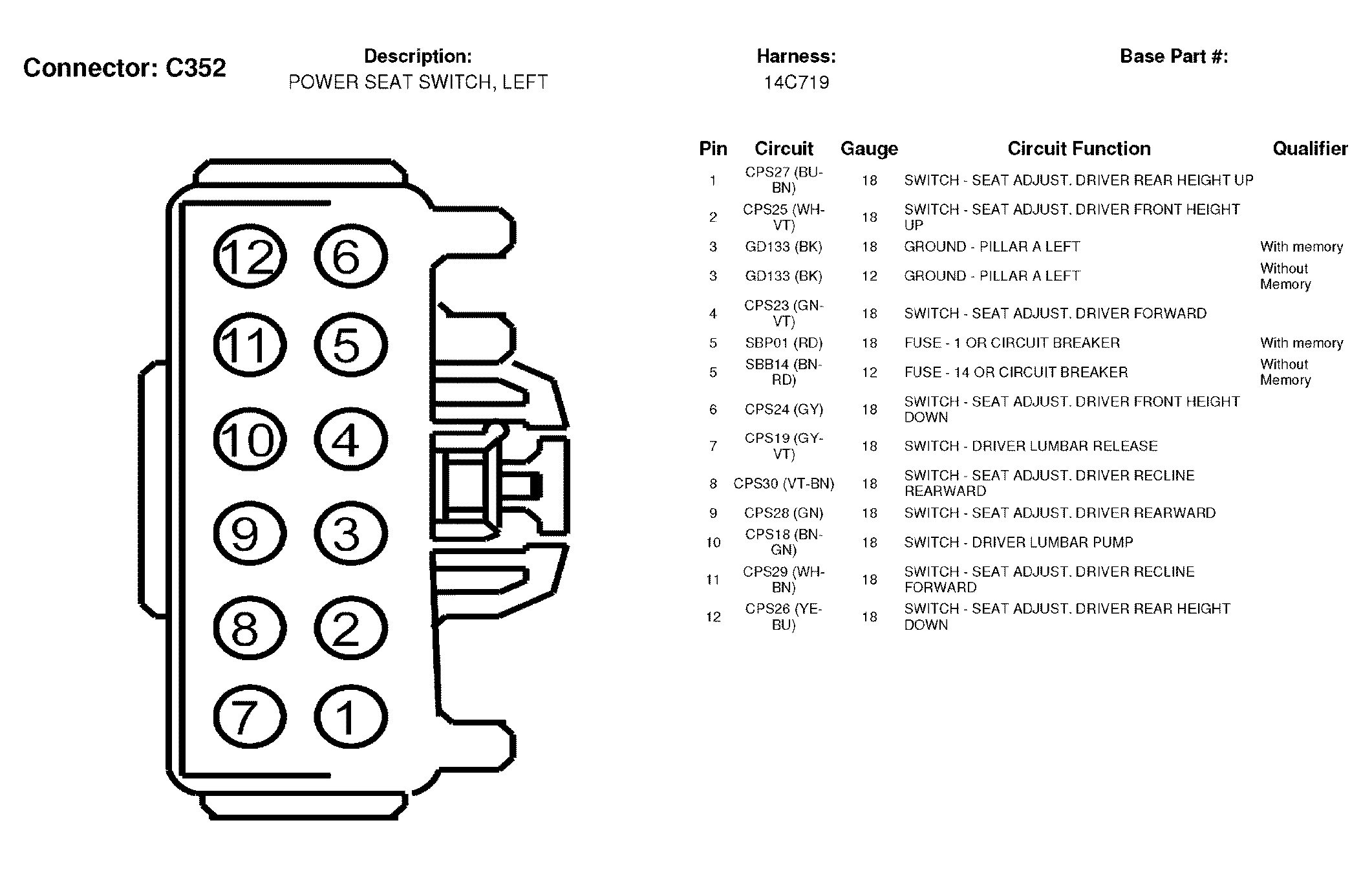

Courtesy of FORD MOTOR CO.

Fig 140: Power Seat Switch, Left Connector End View (C352)

G04596673

Courtesy of FORD MOTOR CO.

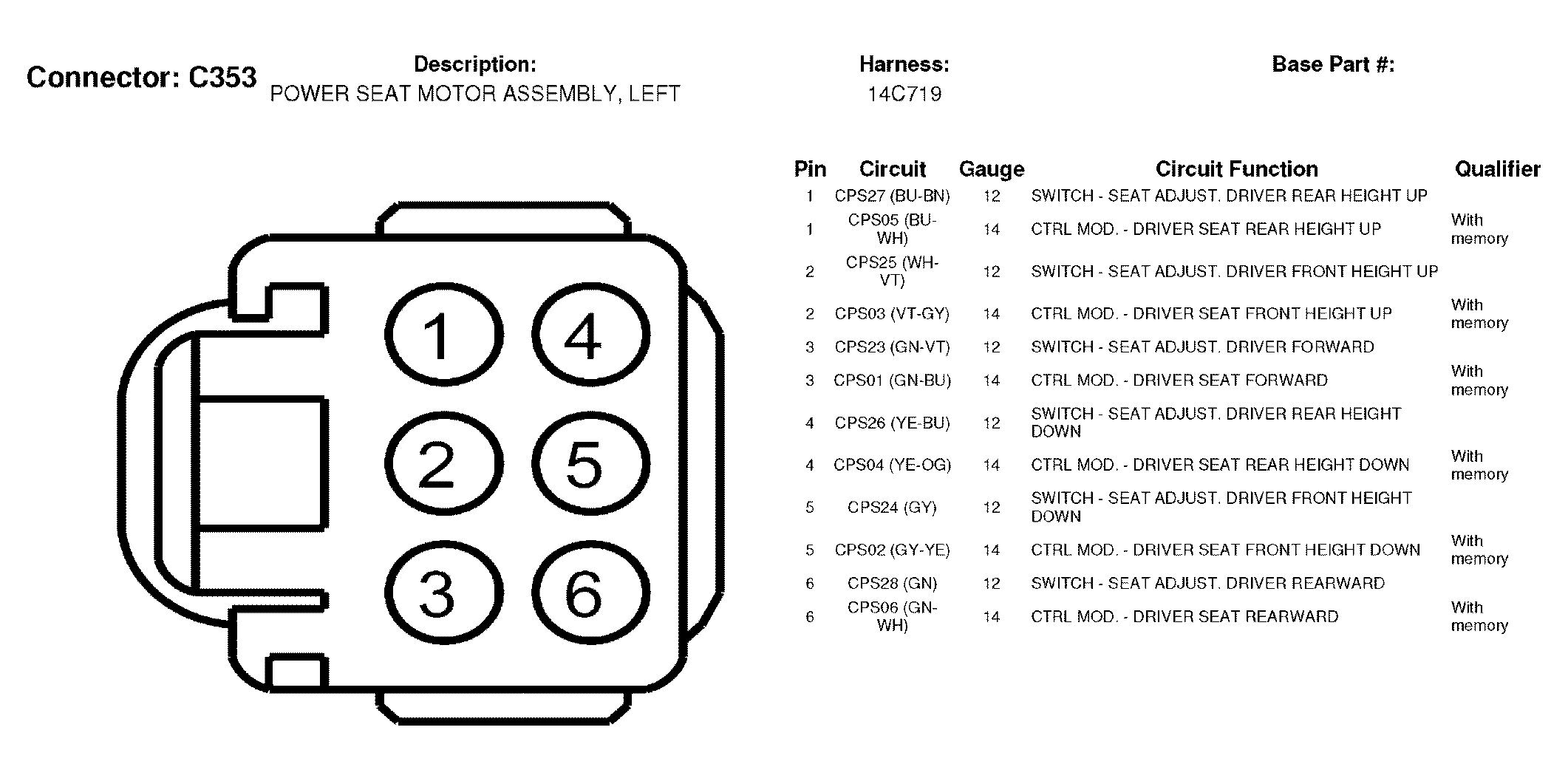

Fig 141: Power Seat Motor Assembly, Left Connector End View (C353)

G04596674

Courtesy of FORD MOTOR CO.

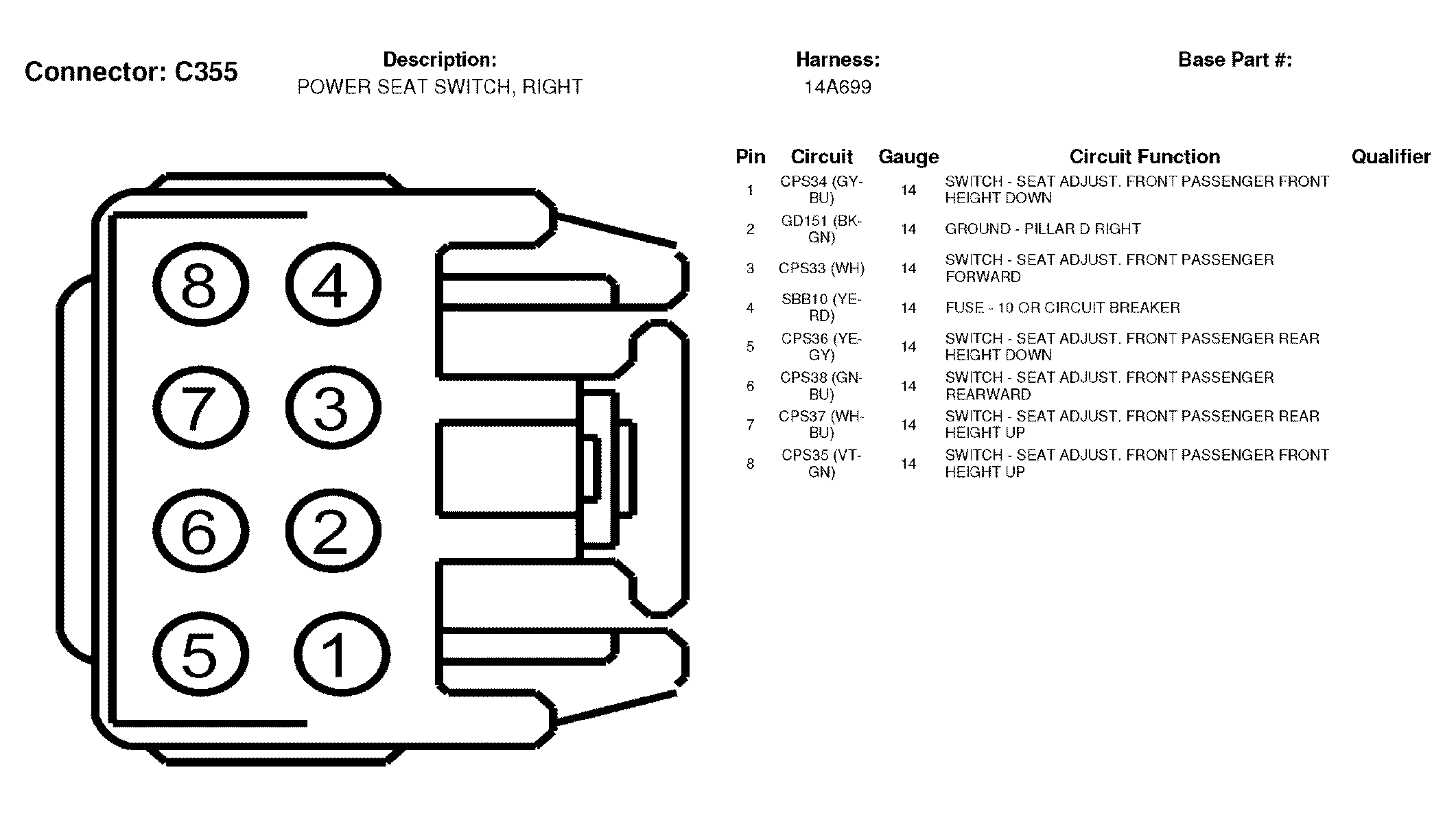

Fig 142: Power Seat Switch, Right Connector End View (C355)

G04596675

Courtesy of FORD MOTOR CO.

Fig 143: Seat Track Position Sensor, Left Connector End View (C356)

G04596676

Courtesy of FORD MOTOR CO.

Fig 144: Power Seat Motor Assembly, Left Connector End View (C357)

G04596677

Courtesy of FORD MOTOR CO.

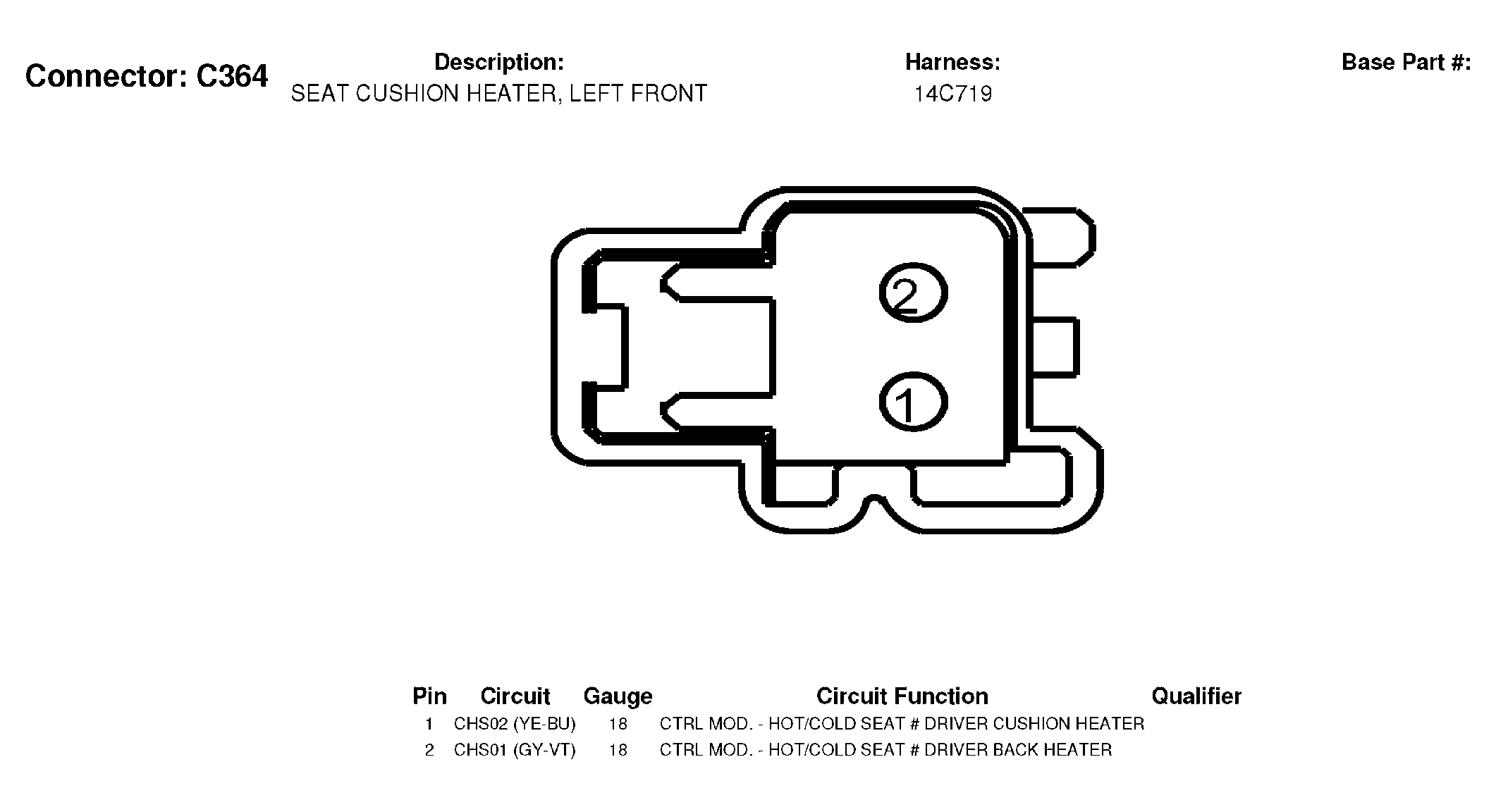

Fig 145: Seat Cushion Heater, Left Front Connector End View (C364)

G04596678

Courtesy of FORD MOTOR CO.

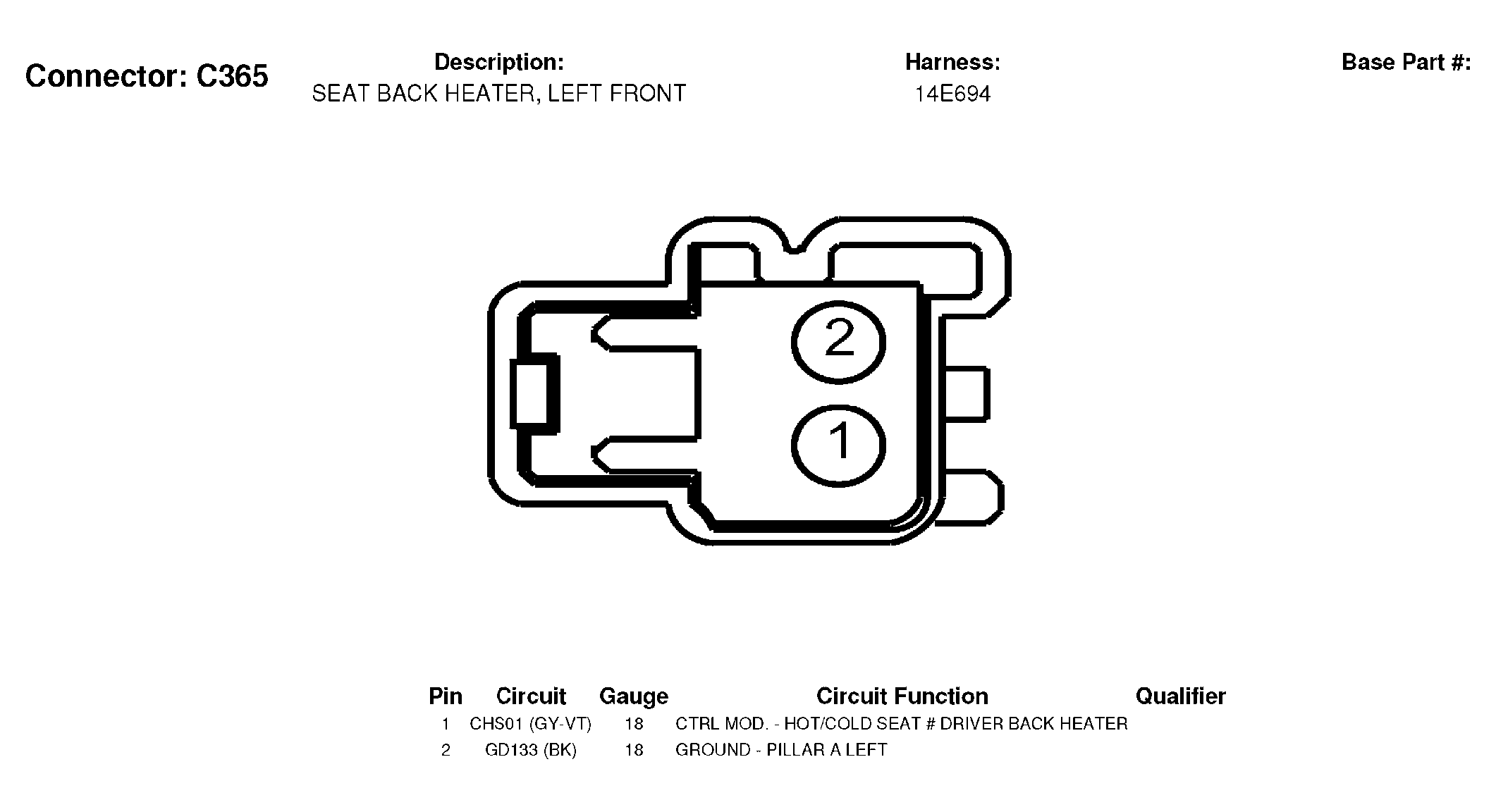

Fig 146: Seat Back Heater, Left Front Connector End View (C365)

G04596679

Courtesy of FORD MOTOR CO.

Fig 147: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G04596680

Courtesy of FORD MOTOR CO.

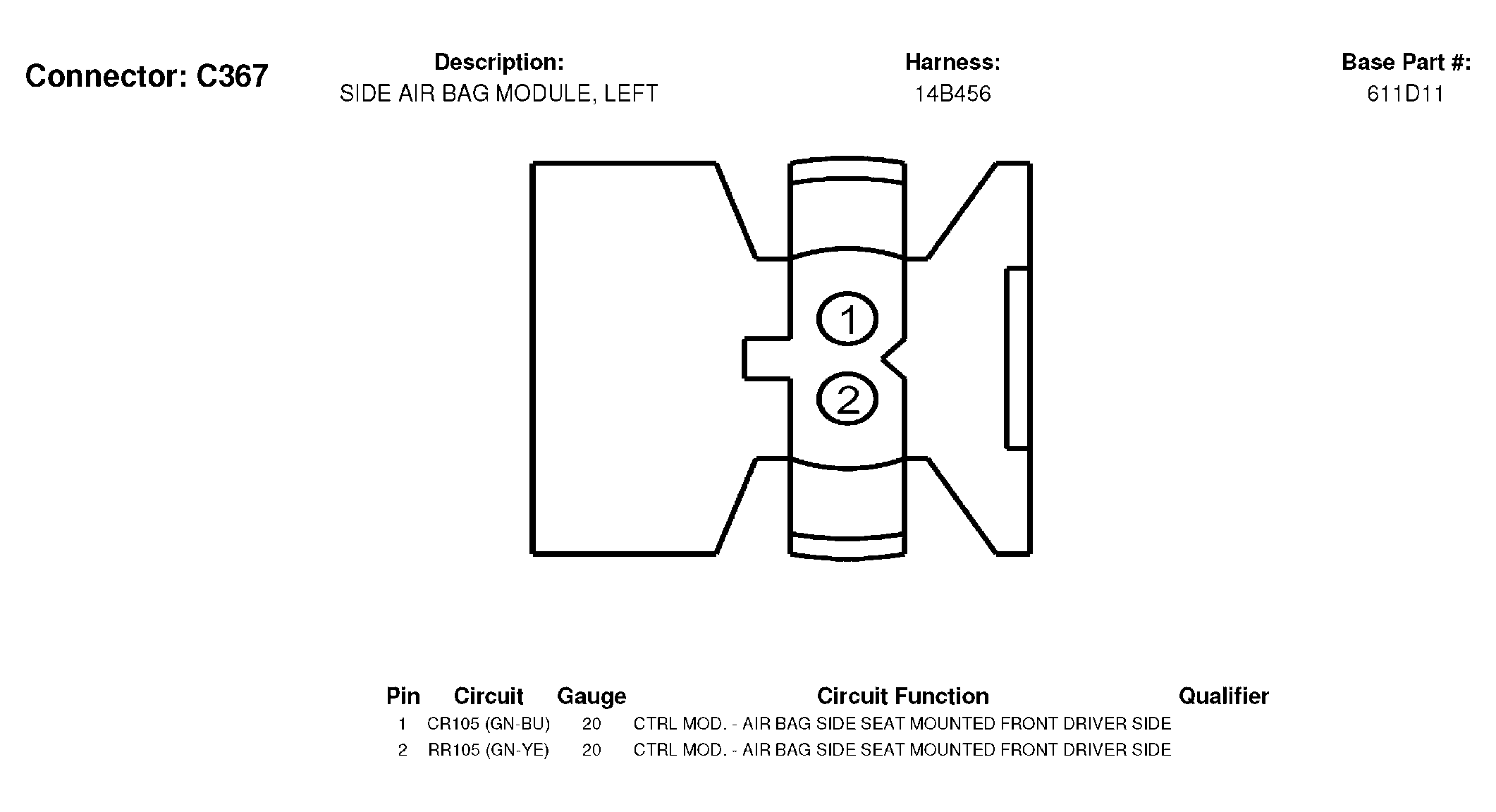

Fig 148: Side Air Bag Module, Left Connector End View (C367)

G04596681

Courtesy of FORD MOTOR CO.

Fig 149: Rear Window Defrost Grid Connector End View (C402A)

G04596682

Courtesy of FORD MOTOR CO.

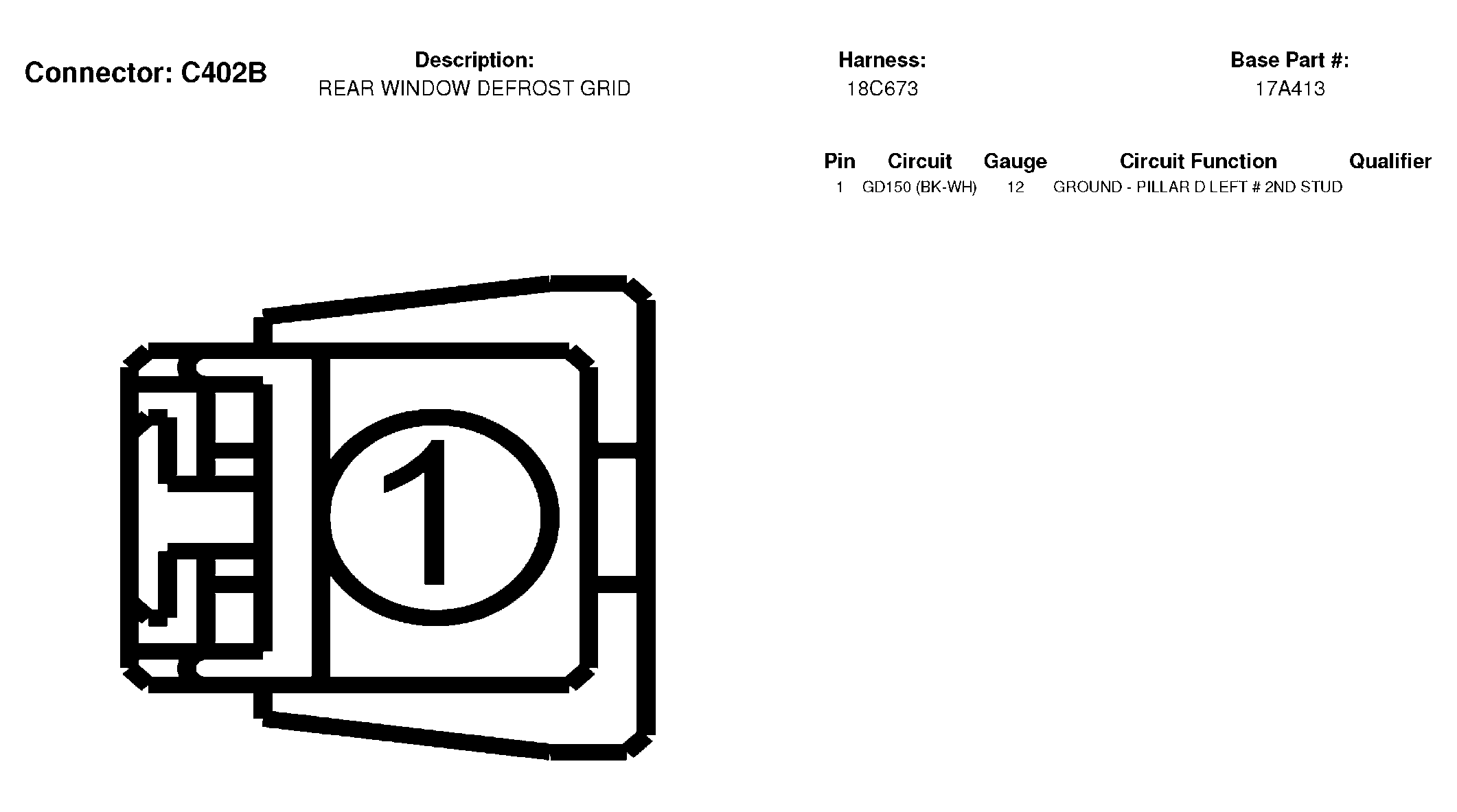

Fig 150: Rear Window Defrost Grid Connector End View (C402B)

G04596683

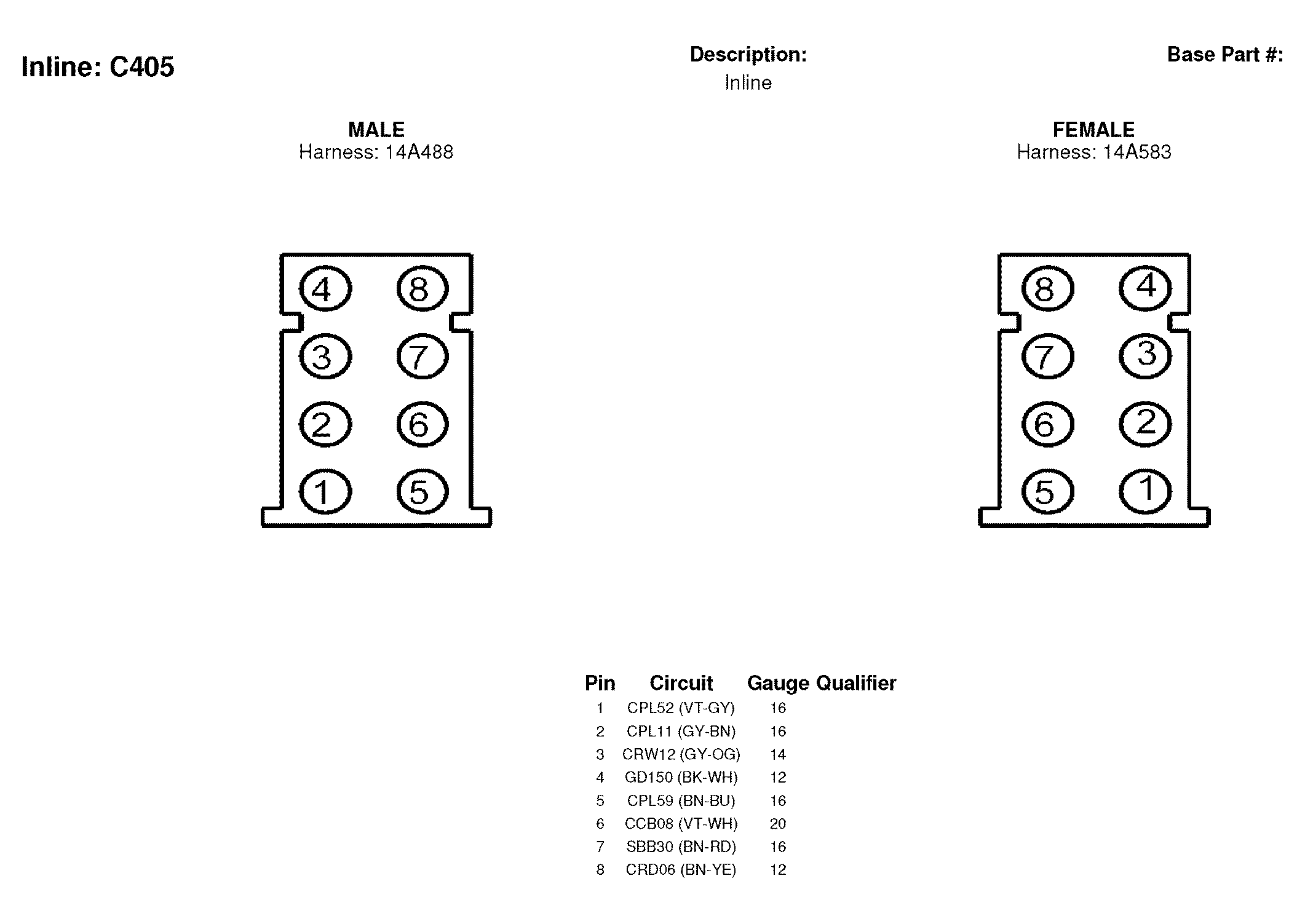

Courtesy of FORD MOTOR CO.

Fig 151: Inline Connector End View (C405)

G04596684

Courtesy of FORD MOTOR CO.

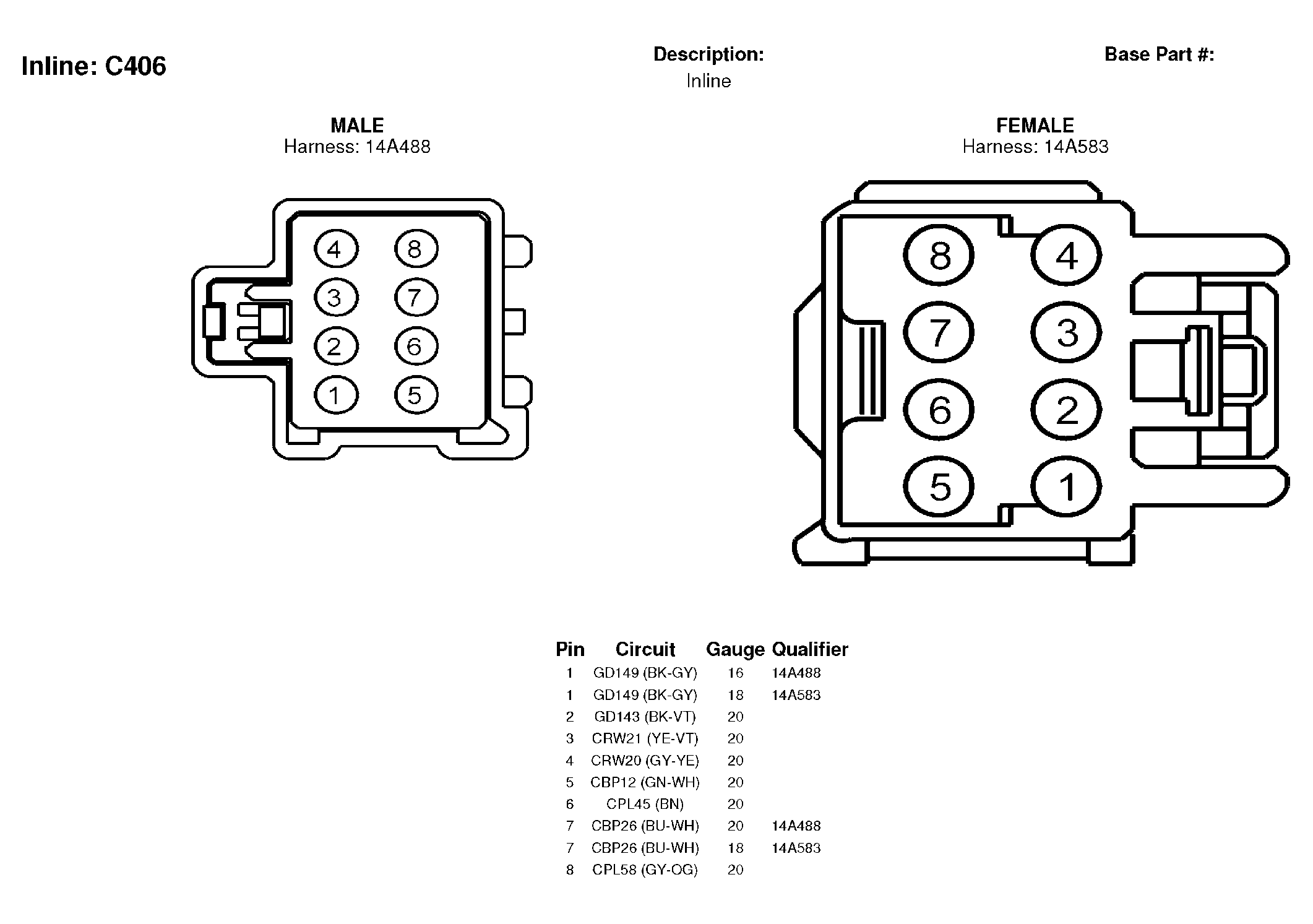

Fig 152: Inline Connector End View (C406)

G04596685

Courtesy of FORD MOTOR CO.

Fig 153: Inline Connector End View (C408)

G04596686

Courtesy of FORD MOTOR CO.

Fig 154: Inline Connector End View (C410)

G04596687

Courtesy of FORD MOTOR CO.

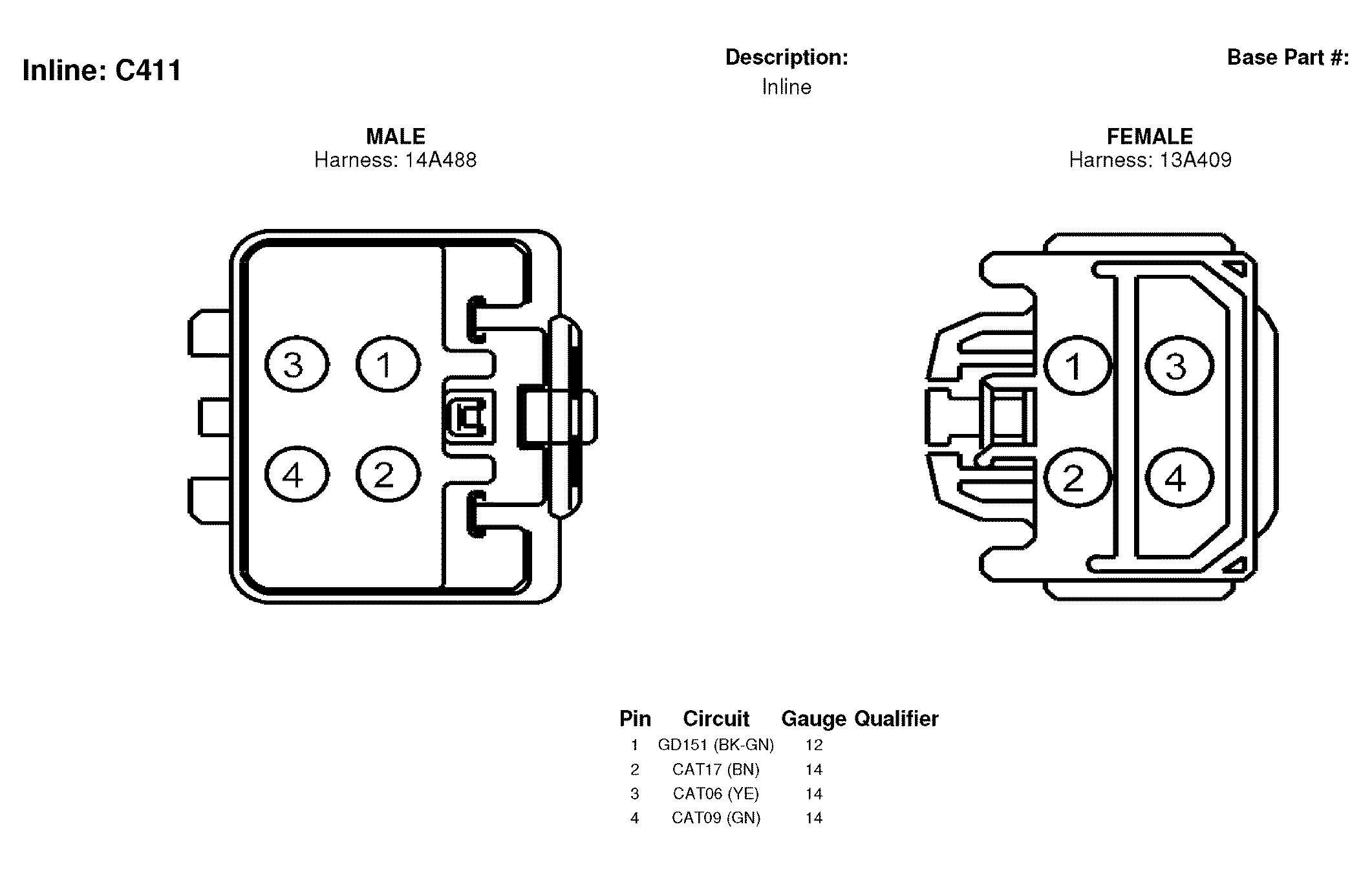

Fig 155: Inline Connector End View (C411)

G04596688

Courtesy of FORD MOTOR CO.

Fig 156: Tail Lamp, Left Connector End View (C412)

G04596689

Courtesy of FORD MOTOR CO.

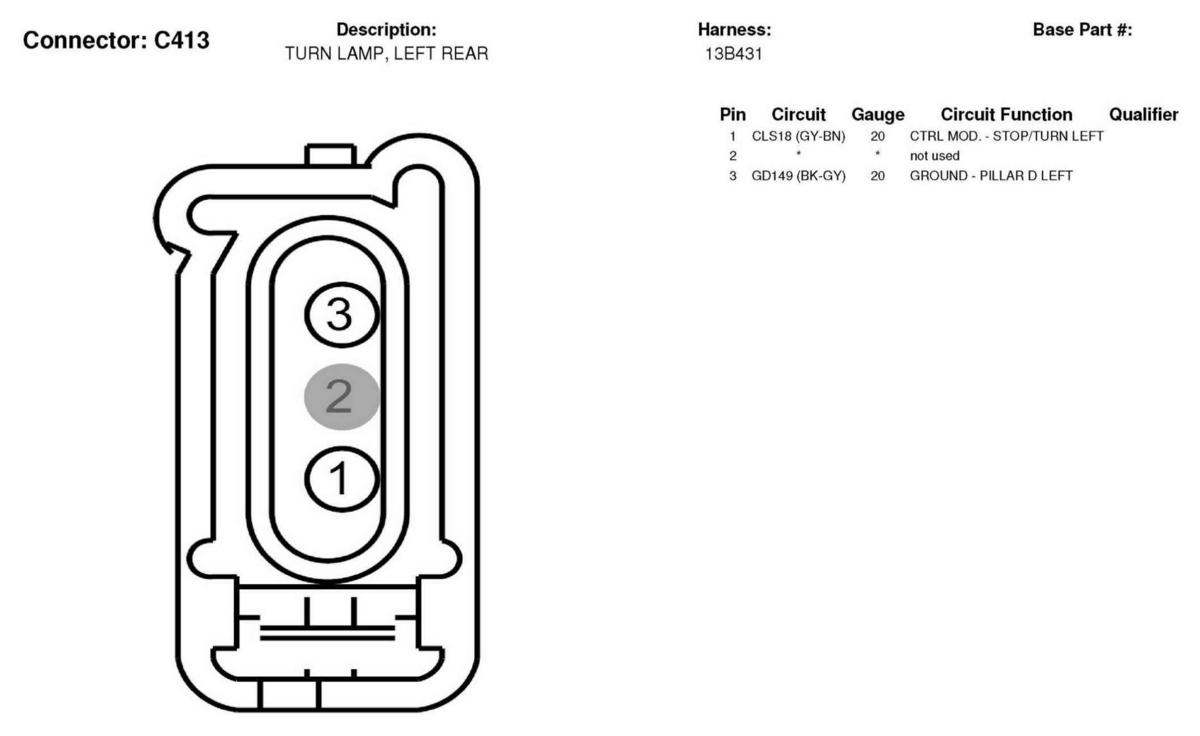

Fig 157: Turn Lamp, Left Rear Connector End View (C413)

G04596690

Courtesy of FORD MOTOR CO.

Fig 158: Tail Lamp, Right Connector End View (C415)

G04596691

Courtesy of FORD MOTOR CO.

Fig 159: Turn Lamp, Right Rear Connector End View (C416)

G04596692

Courtesy of FORD MOTOR CO.

Fig 160: Park/Stop Lamp, Right Rear Connector End View (C418)

G04596693

Courtesy of FORD MOTOR CO.

Fig 161: Park/Stop Lamp, Left Rear Connector End View (C419)

G04596694

Courtesy of FORD MOTOR CO.

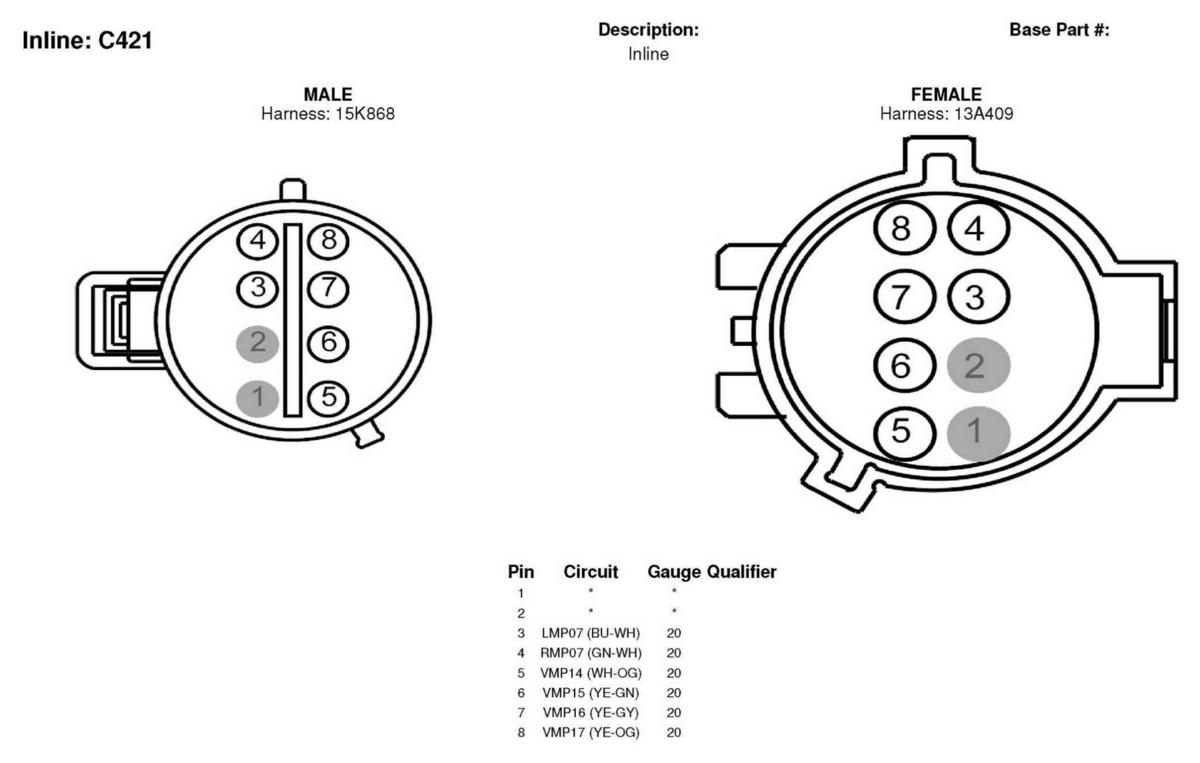

Fig 162: Inline Connector End View (C421)

G04596695

Courtesy of FORD MOTOR CO.

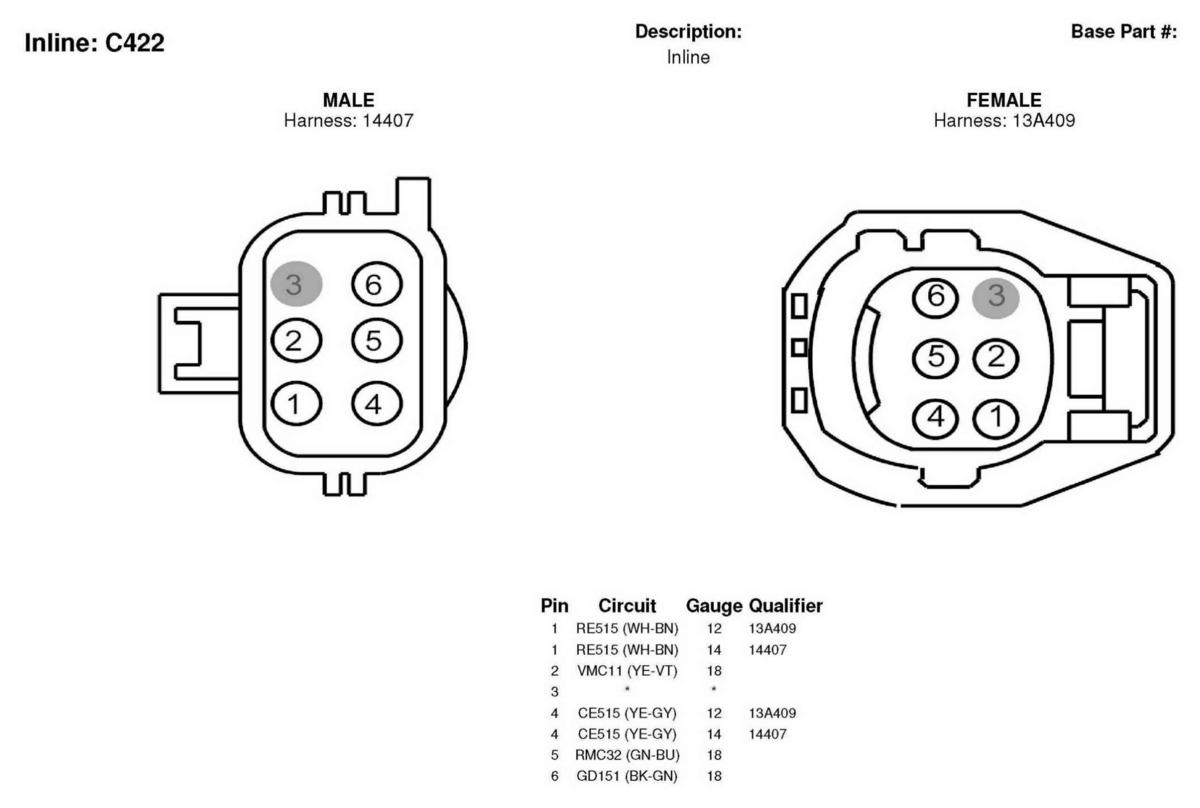

Fig 163: Inline Connector End View (C422)

G04596696

Courtesy of FORD MOTOR CO.

Fig 164: Inline Connector End View (C423)

G04596697

Courtesy of FORD MOTOR CO.

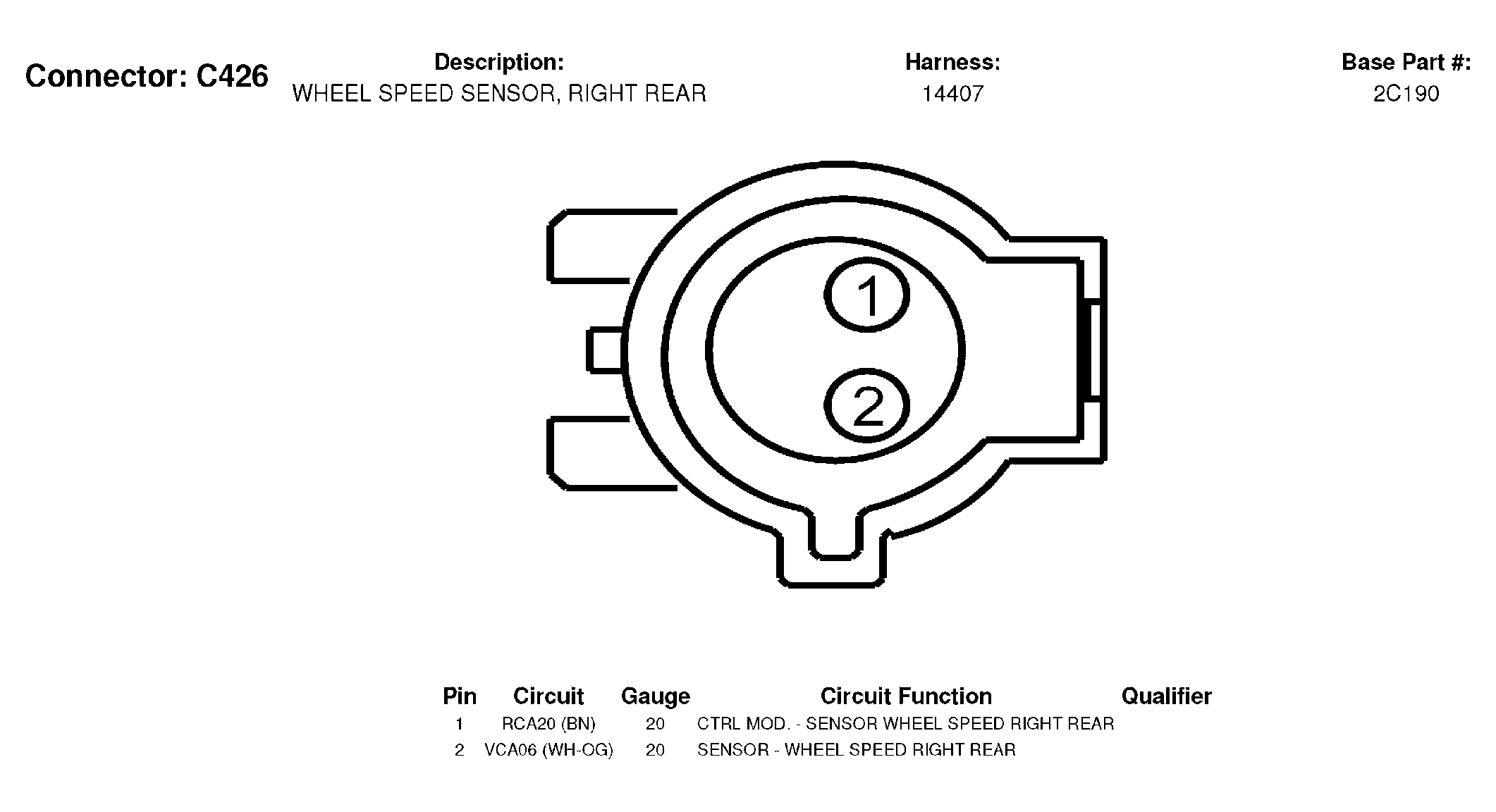

Fig 165: Wheel Speed Sensor, Right Rear Connector End View (C426)

G04596698

Courtesy of FORD MOTOR CO.

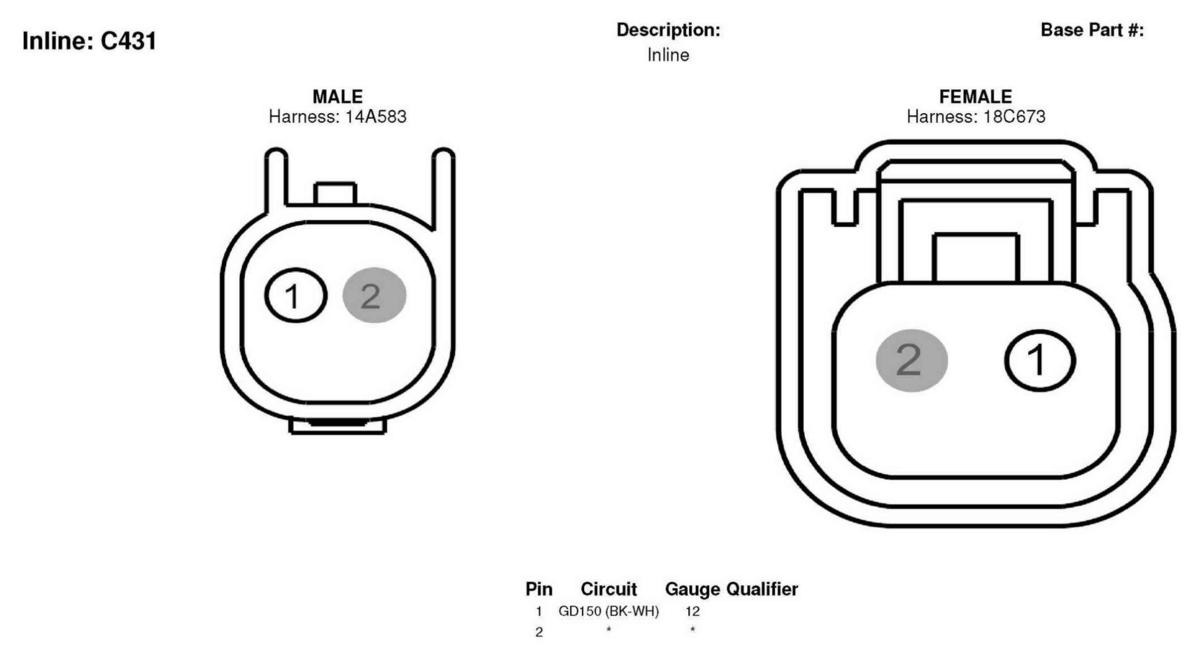

Fig 166: Inline Connector End View (C431)

G04596699

Courtesy of FORD MOTOR CO.

Fig 167: Inline Connector End View (C432)

G04596700

Courtesy of FORD MOTOR CO.

Fig 168: Fuel Tank Level Sensor Connector End View (C434A)

G04596701

Courtesy of FORD MOTOR CO.

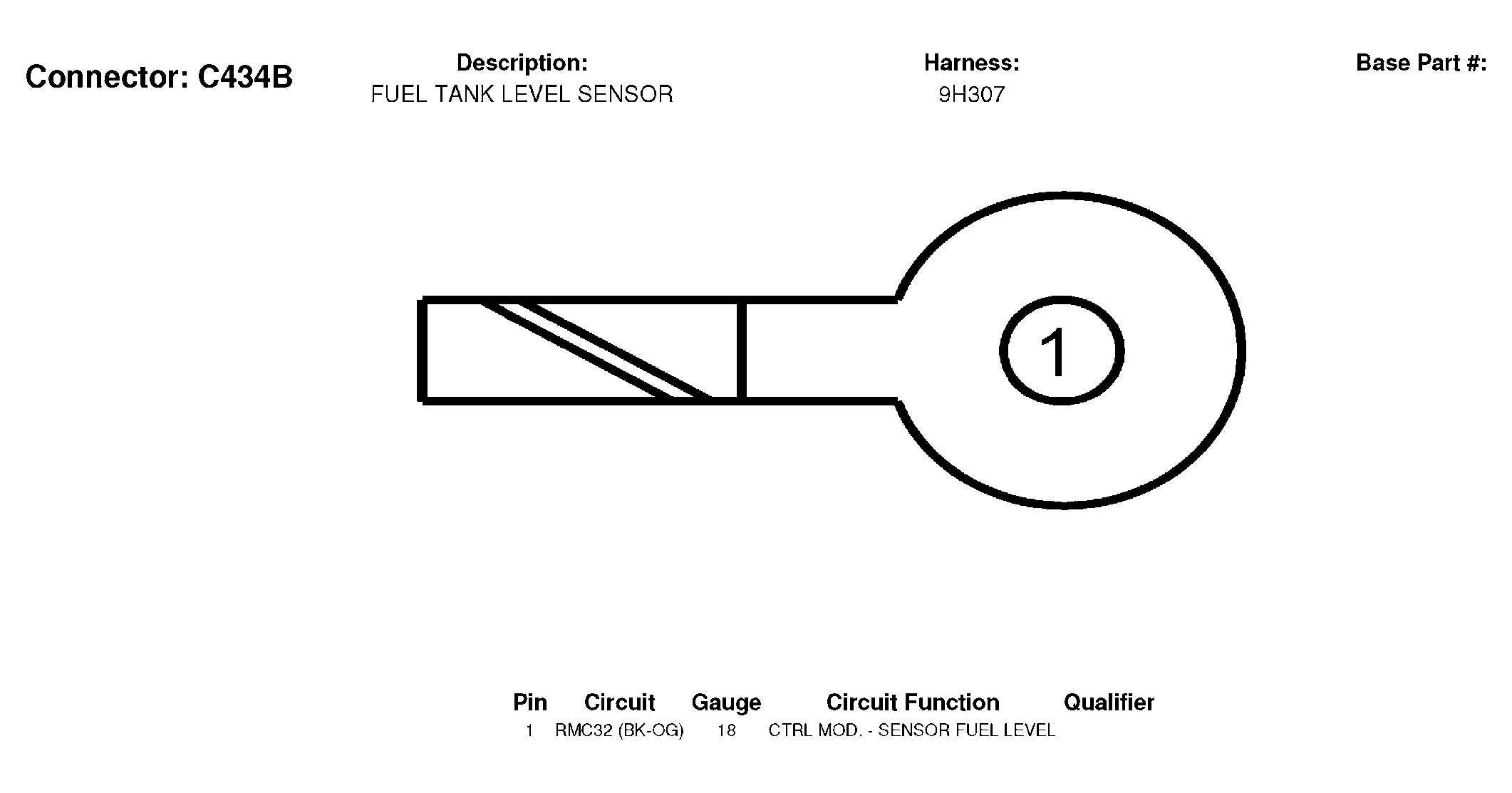

Fig 169: Fuel Tank Level Sensor Connector End View (C434B)

G04596702

Courtesy of FORD MOTOR CO.

Fig 170: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G04596703

Courtesy of FORD MOTOR CO.

Fig 171: Inline Connector End View (C438)

G04596704

Courtesy of FORD MOTOR CO.

Fig 172: Trailer Two Connector, Connector End View (C439)

G04596705

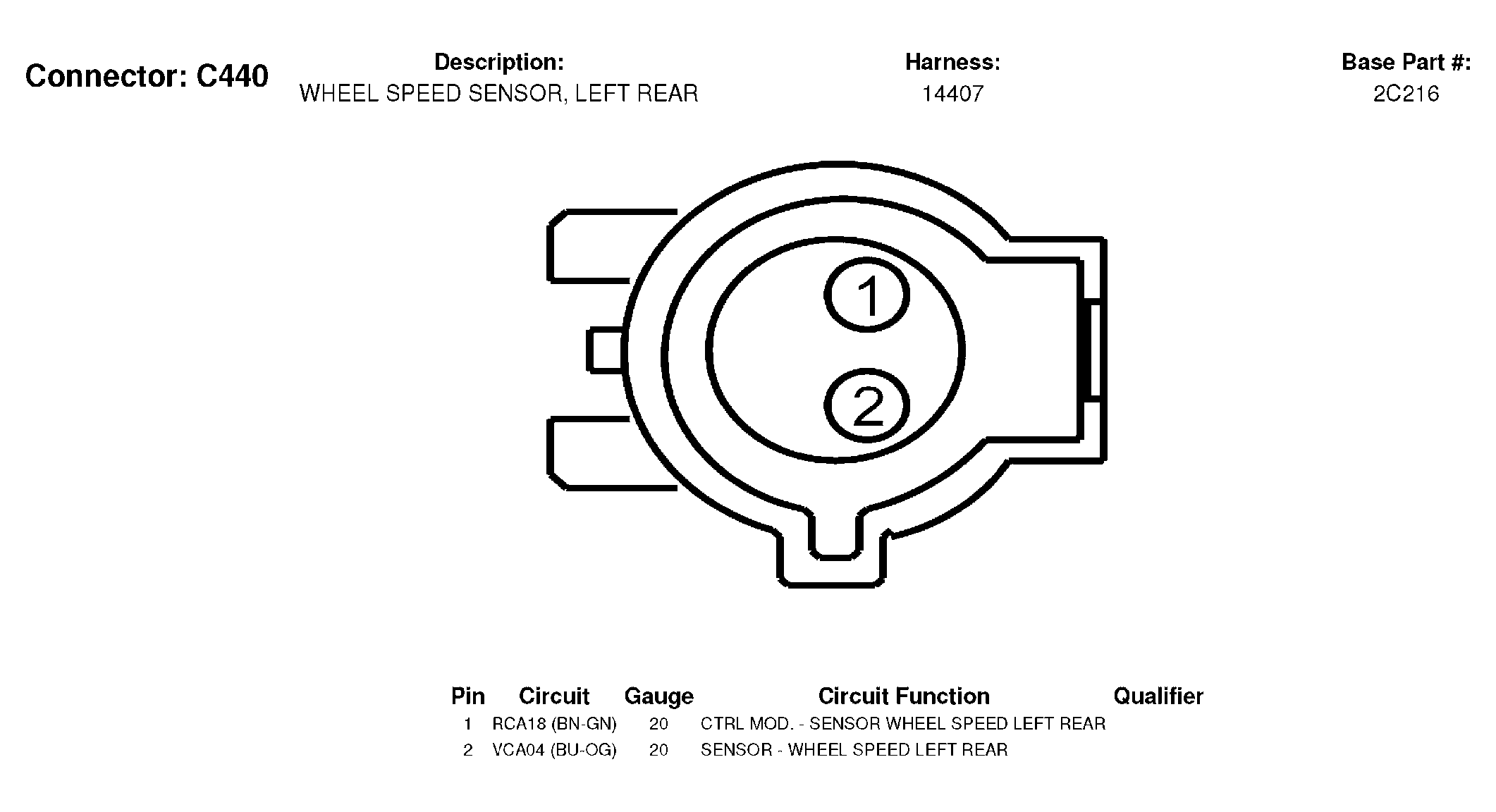

Courtesy of FORD MOTOR CO.

Fig 173: Wheel Speed Sensor, Left Rear Connector End View (C440)

G04596706

Courtesy of FORD MOTOR CO.

Fig 174: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G04596707

Courtesy of FORD MOTOR CO.

Fig 175: Reversing Lamp, Left Connector End View (C451)

G04596708

Courtesy of FORD MOTOR CO.

Fig 176: License Plate Lamp, Left Connector End View (C452)

G04596709

Courtesy of FORD MOTOR CO.

Fig 177: Liftgate Door Lock Switch Connector End View (C465)

G04596710

Courtesy of FORD MOTOR CO.

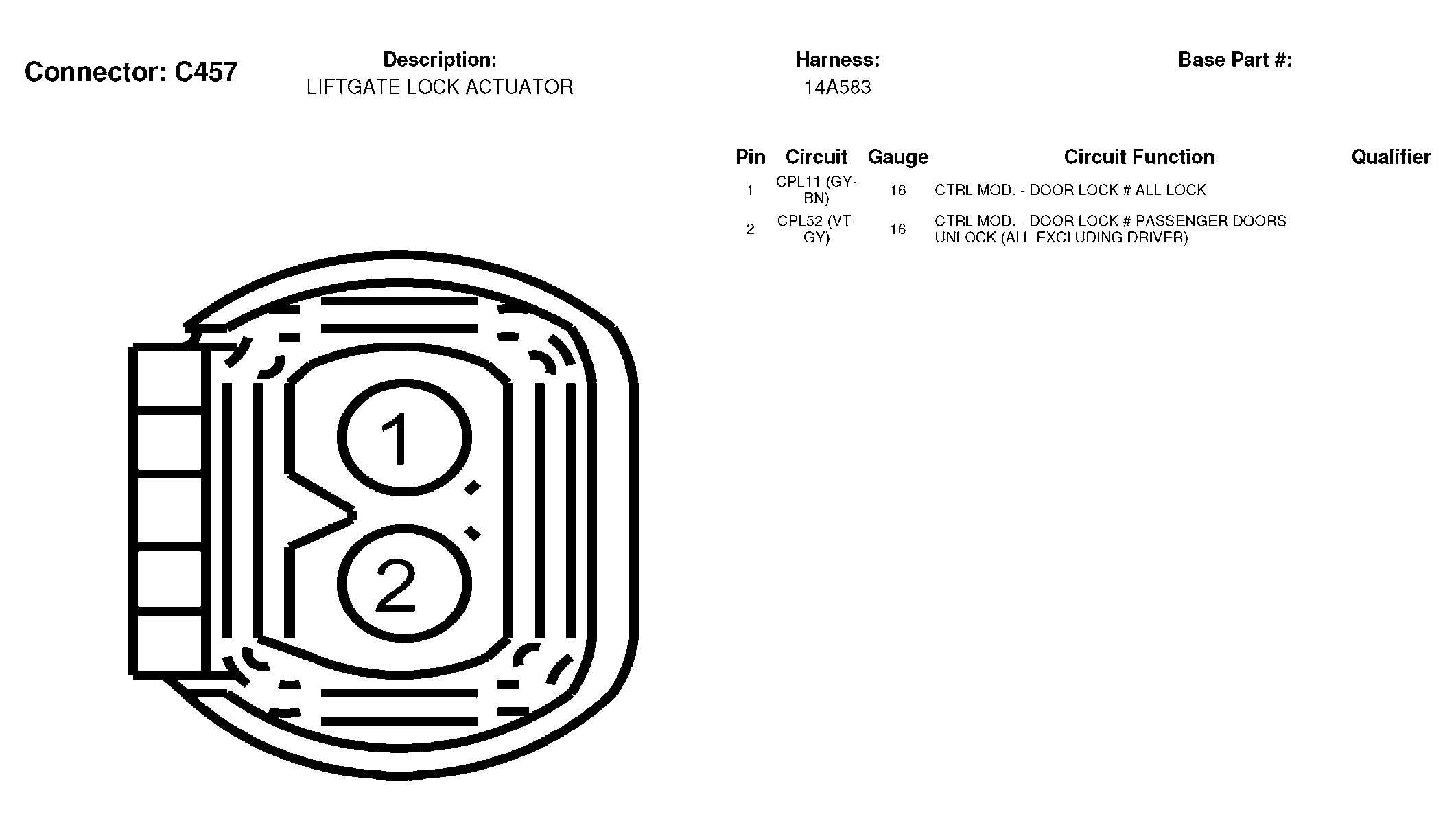

Fig 178: Liftgate Lock Actuator Connector End View (C457)

G04596711

Courtesy of FORD MOTOR CO.

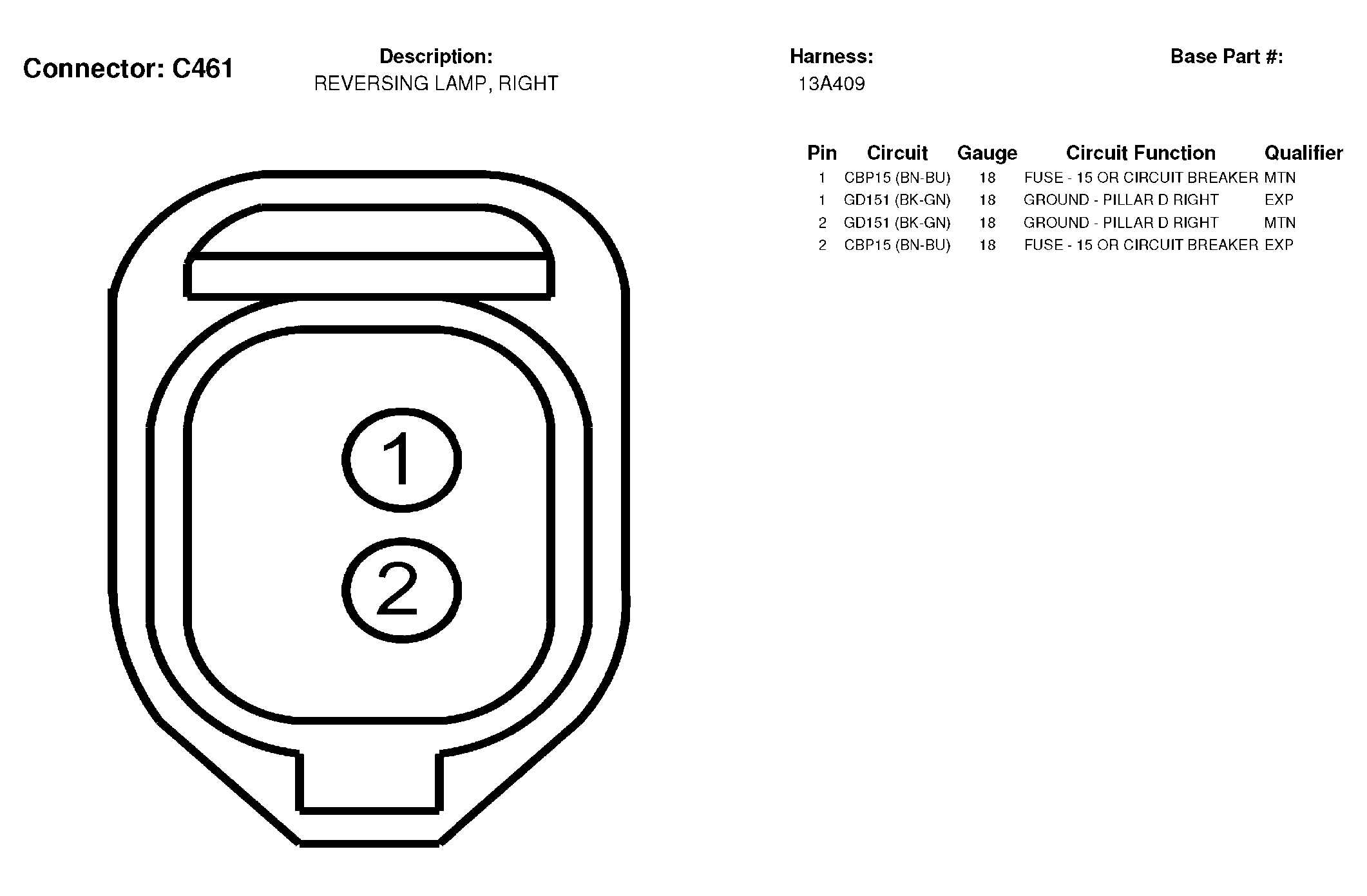

Fig 179: Reversing Lamp, Right Connector End View (C461)

G04596712

Courtesy of FORD MOTOR CO.

Fig 180: License Plate Lamp, Right Connector End View (C462)

G04596713

Courtesy of FORD MOTOR CO.

Fig 181: Fuel Pump Motor Connector End View (C463)

G04596714

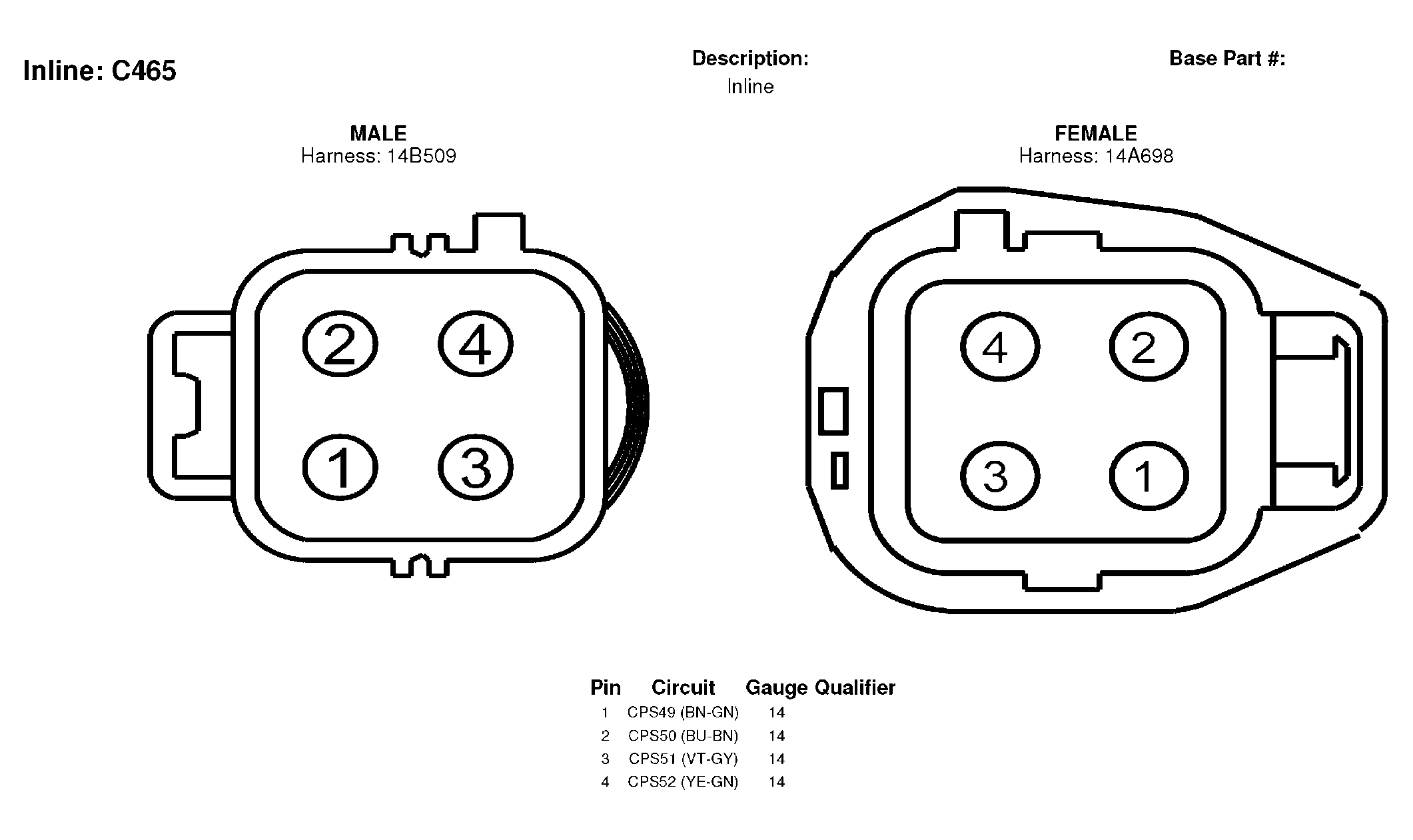

Courtesy of FORD MOTOR CO.

Fig 182: Inline Connector End View (C465)

G04596715

Courtesy of FORD MOTOR CO.

Fig 183: Subwoofer Amplifier Connector End View (C466)

G04596716

Courtesy of FORD MOTOR CO.

Fig 184: Trailer Two Connector, Connector End View (C473)

G04596717

Courtesy of FORD MOTOR CO.

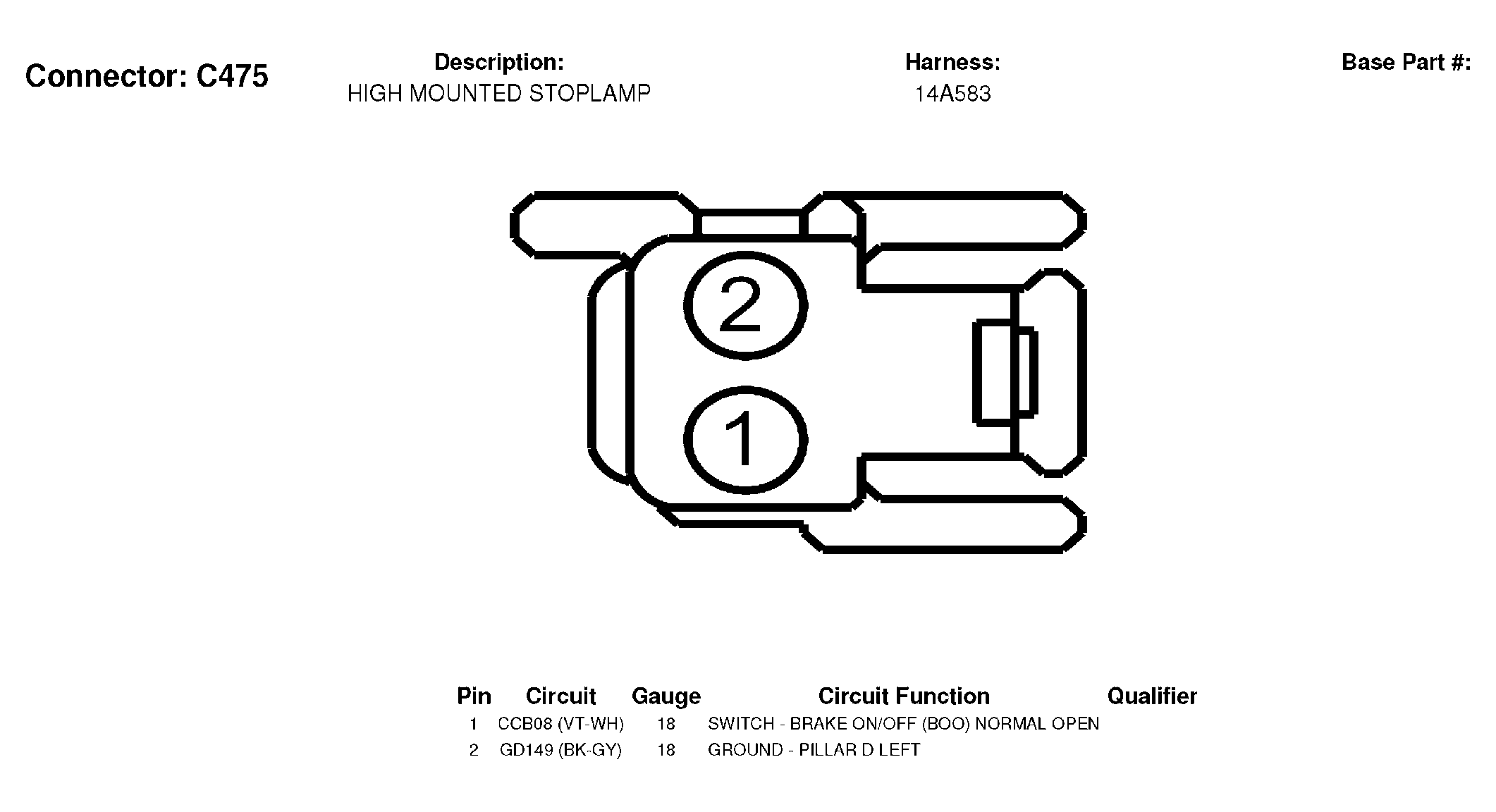

Fig 185: High Mounted Stoplamp Connector End View (C475)

G04596718

Courtesy of FORD MOTOR CO.

Fig 186: Liftgate Glass Ajar Switch Connector End View (C478)

G04596719

Courtesy of FORD MOTOR CO.

Fig 187: Liftgate Ajar Switch Connector End View (C479)

G04596720

Courtesy of FORD MOTOR CO.

Fig 188: Side Lamp, Left Rear Connector End View (C481)

G04596721

Courtesy of FORD MOTOR CO.

Fig 189: Side Lamp, Right Rear Connector End View (C482)

G04596722

Courtesy of FORD MOTOR CO.

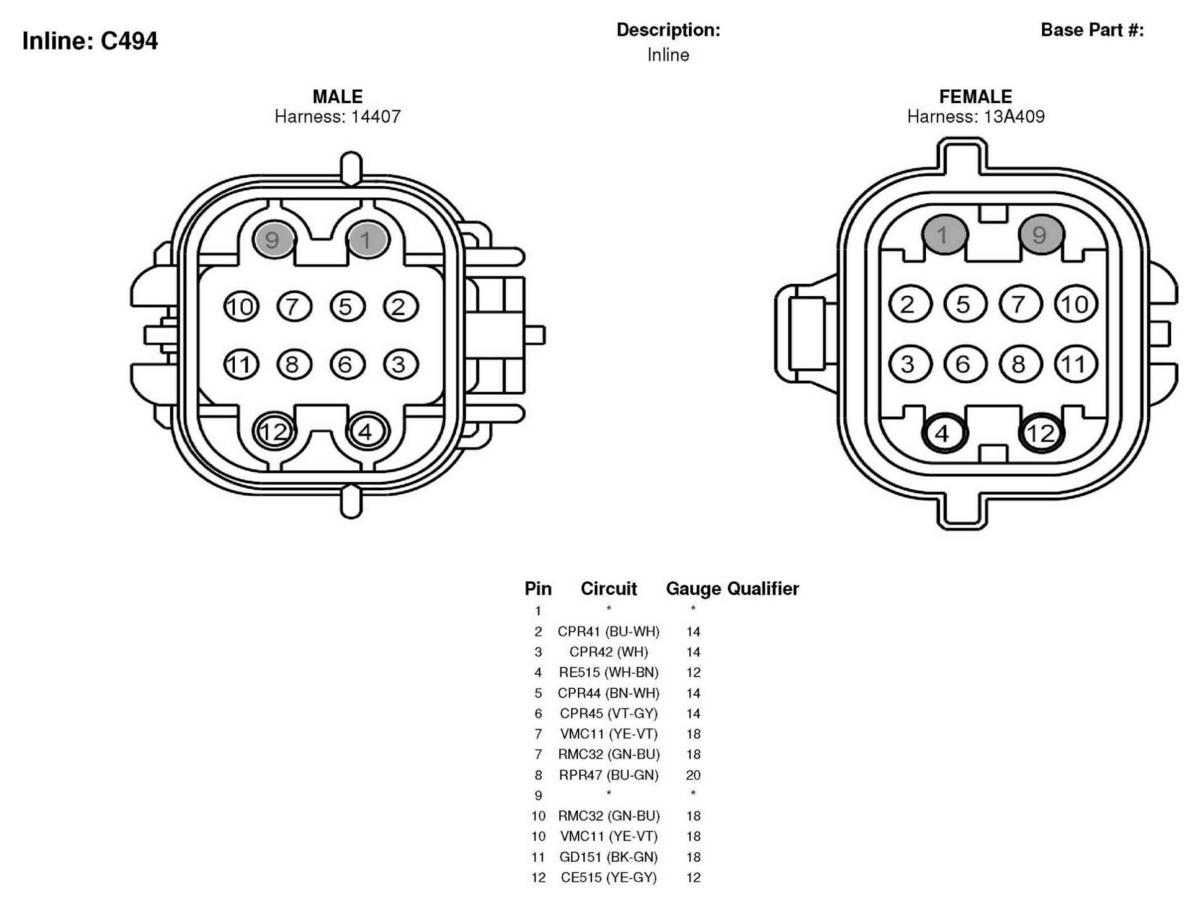

Fig 190: Inline Connector End View (C494)

G04596723

Courtesy of FORD MOTOR CO.

Fig 191: Inline Connector End View (C495)

G04596724

Courtesy of FORD MOTOR CO.

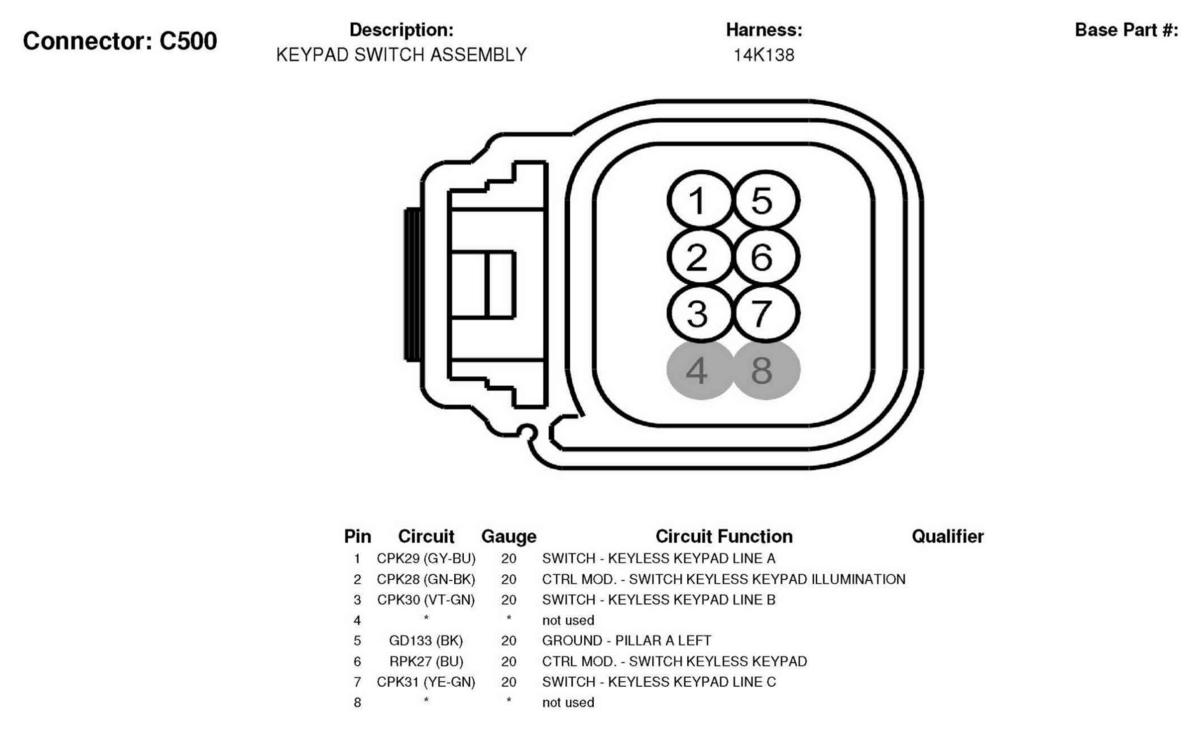

Fig 192: Keypad Switch Assembly Connector End View (C500)

G04596725

Courtesy of FORD MOTOR CO.

Fig 193: Master Window Adjust Switch Connector End View (C504A)

G04596726

Courtesy of FORD MOTOR CO.

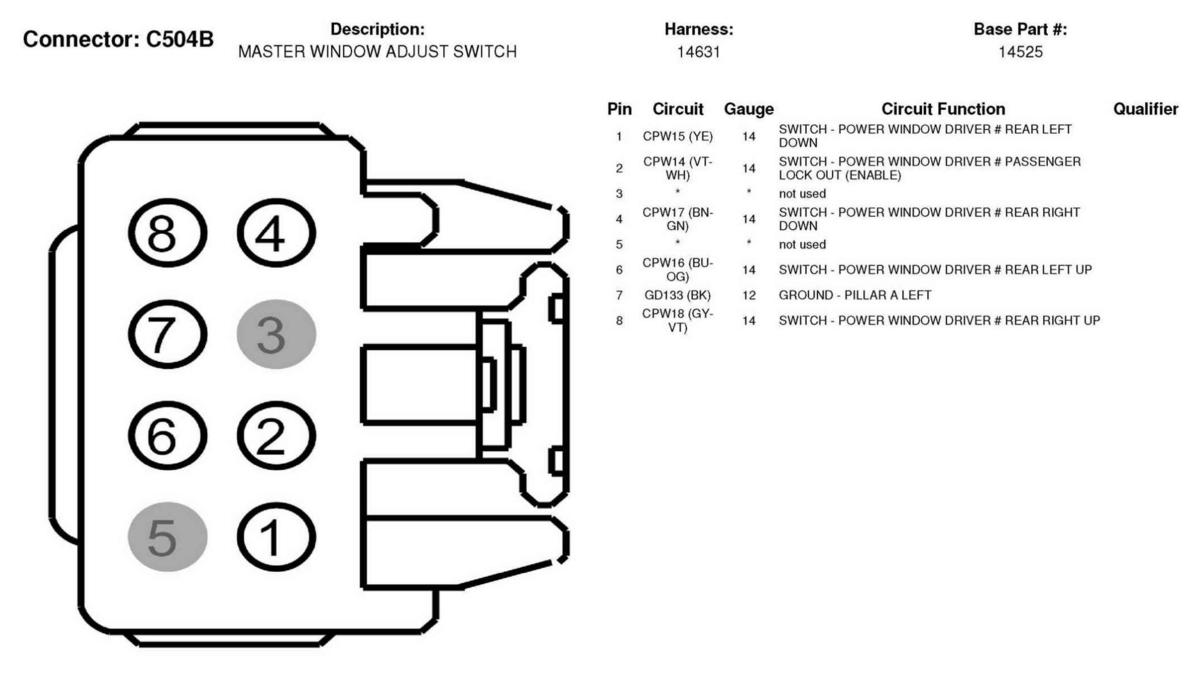

Fig 194: Master Window Adjust Switch Connector End View (C504B)

G04596727

Courtesy of FORD MOTOR CO.

Fig 195: Door Lock Switch, Driver Side Connector End View (C505)

G04596728

Courtesy of FORD MOTOR CO.

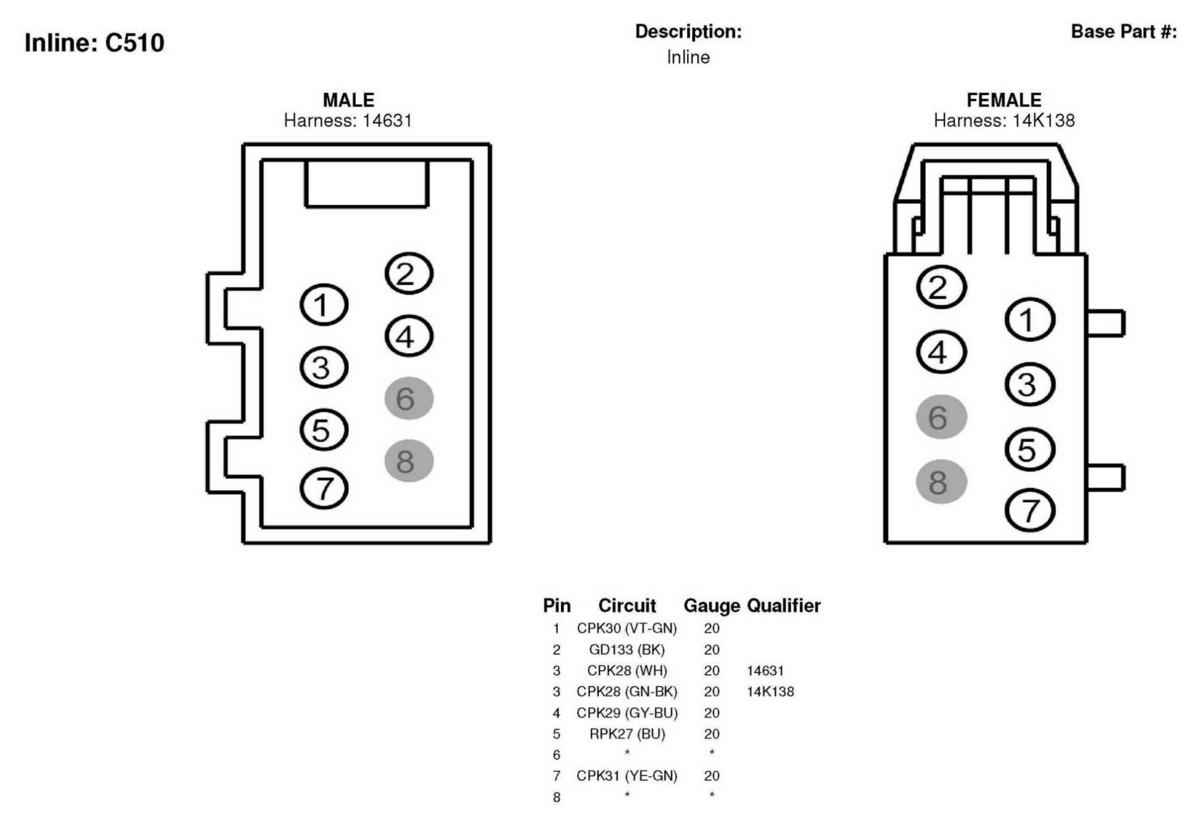

Fig 196: Inline Connector End View (C510)

G04596729

Courtesy of FORD MOTOR CO.

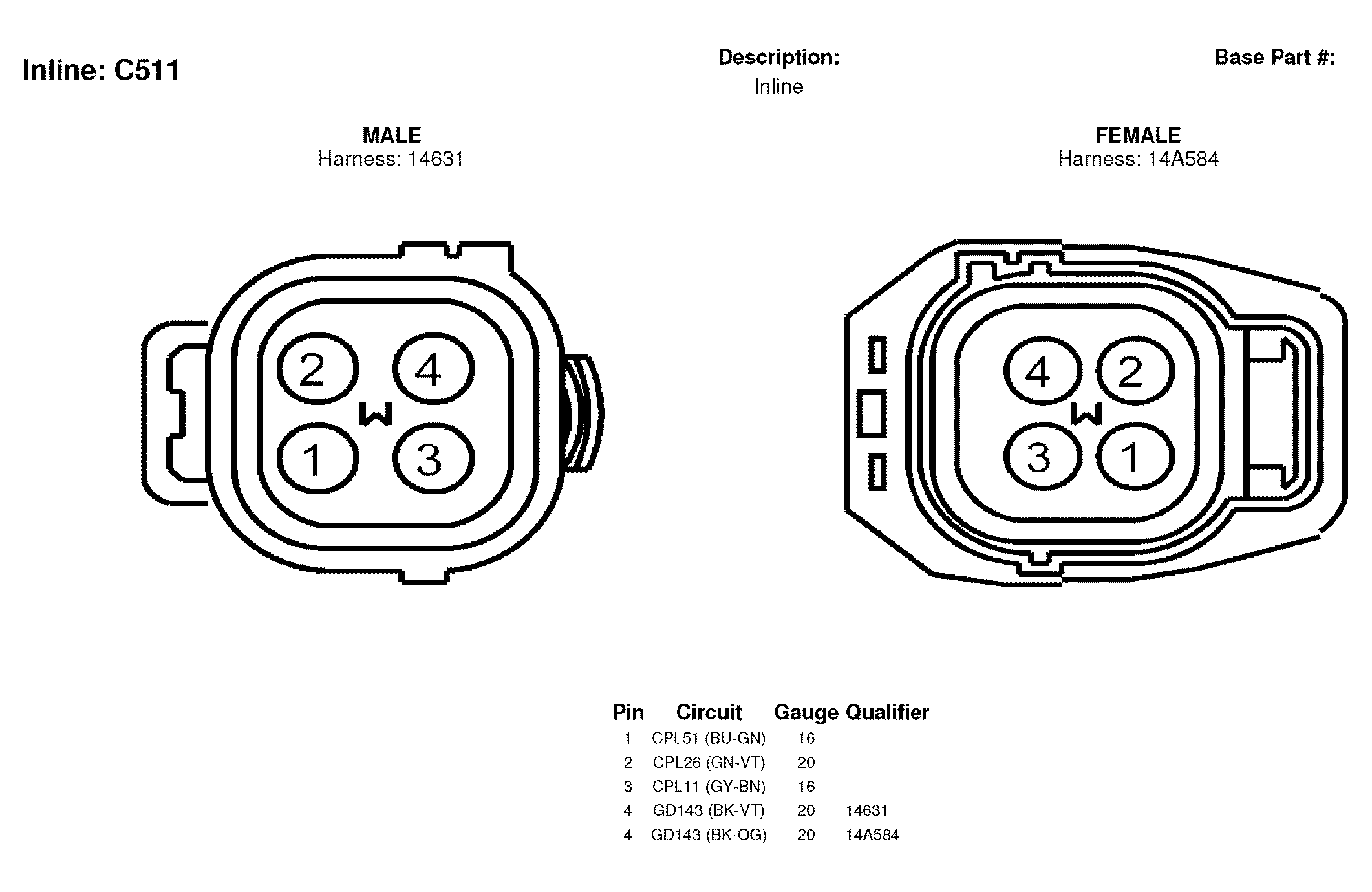

Fig 197: Inline Connector End View (C511)

G04596730

Courtesy of FORD MOTOR CO.

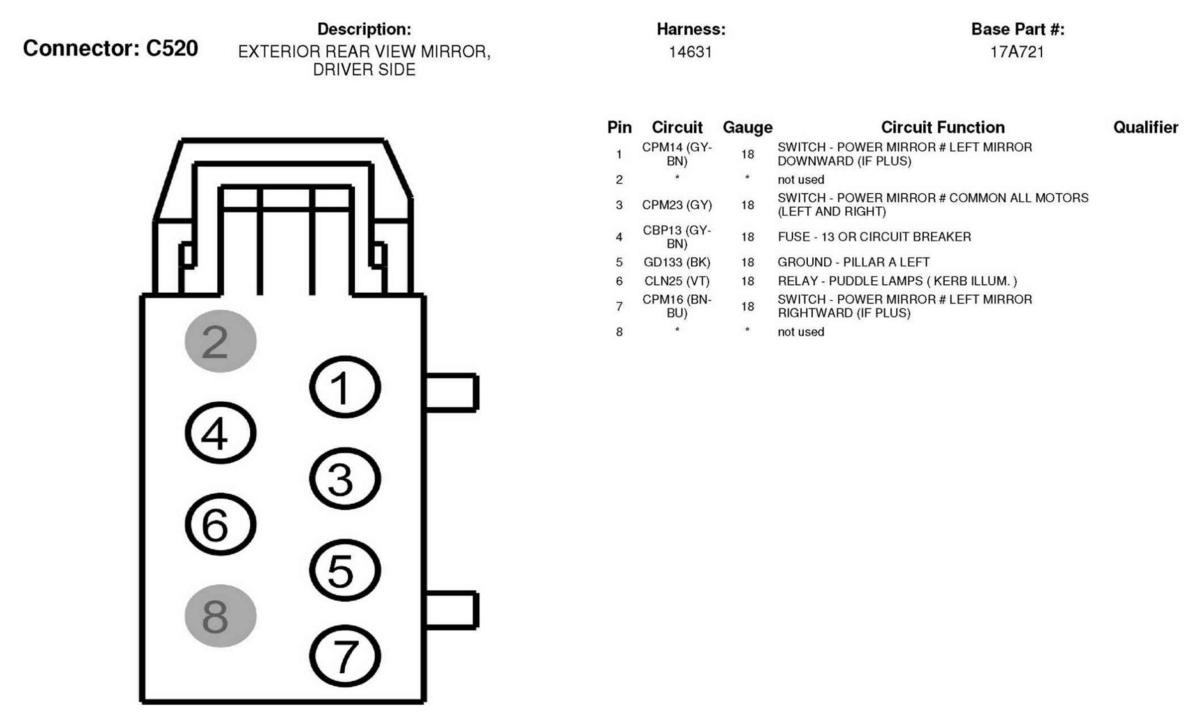

Fig 198: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G04596731

Courtesy of FORD MOTOR CO.

Fig 199: Speaker, Left Front Connector End View (C523)

G04596732

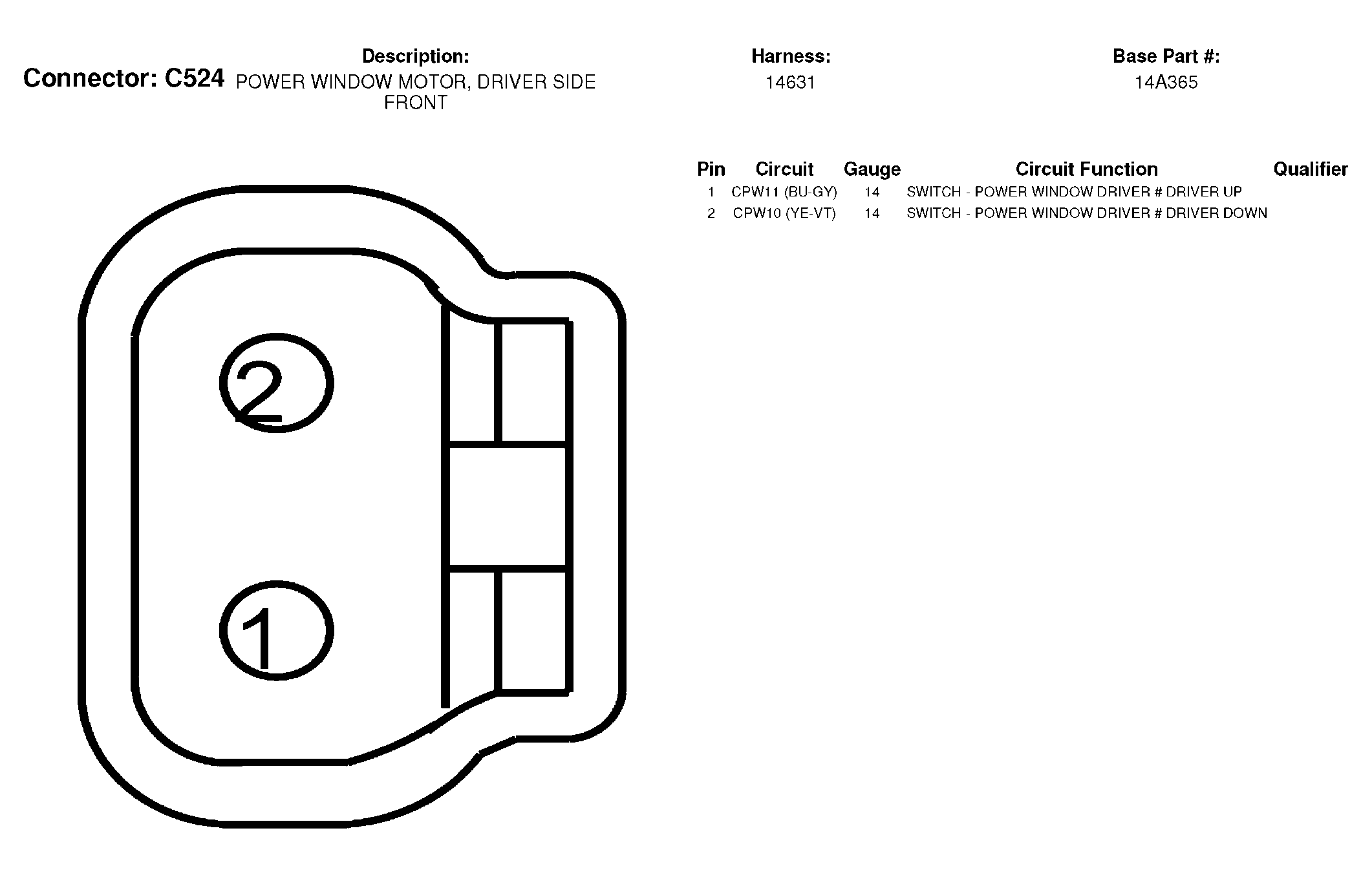

Courtesy of FORD MOTOR CO.

Fig 200: Power Window Motor, Driver Side Front Connector End View (C524)

G04596733

Courtesy of FORD MOTOR CO.

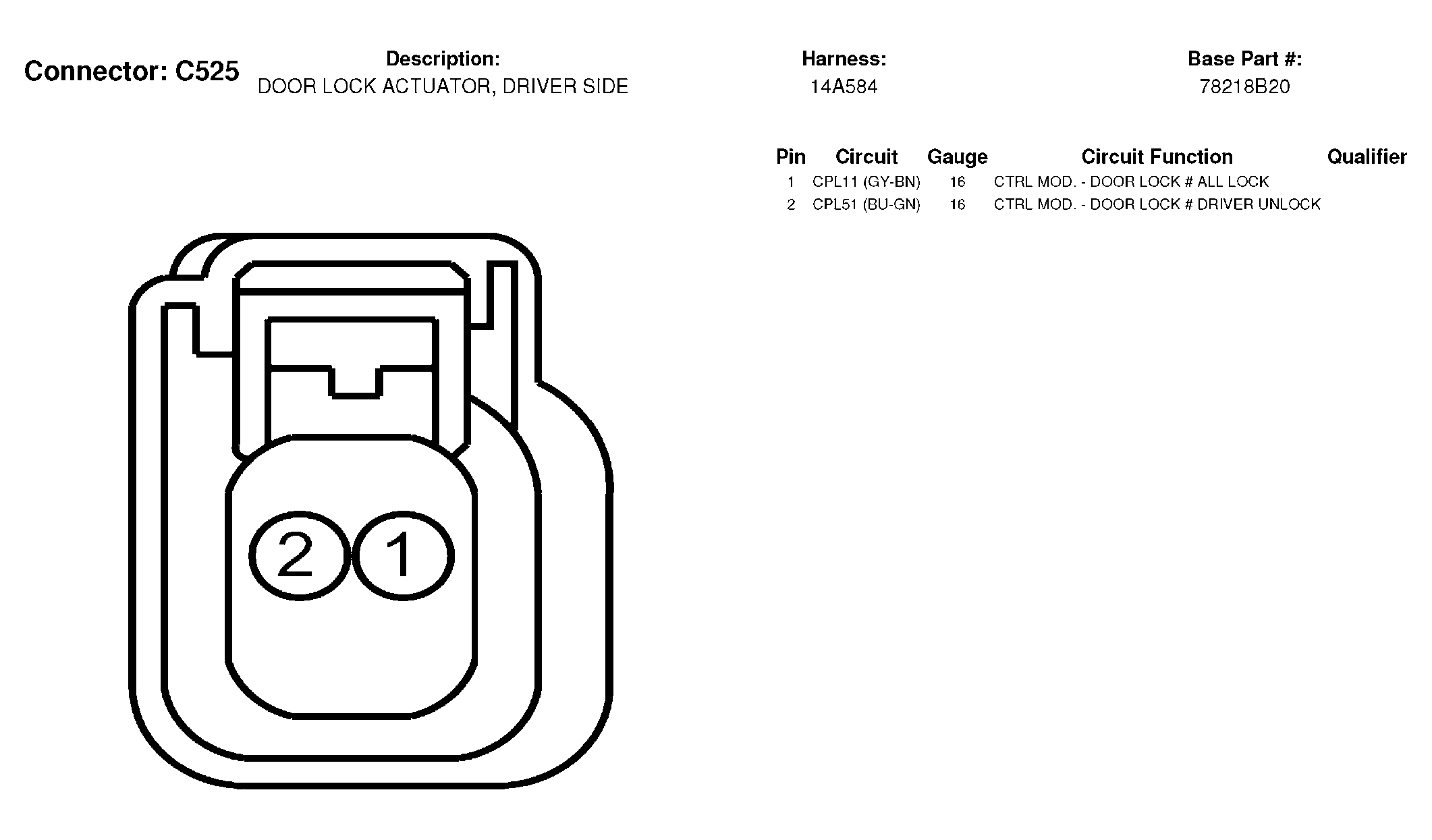

Fig 201: Door Lock Switch, Driver Side Connector End View (C525)

G04596734

Courtesy of FORD MOTOR CO.

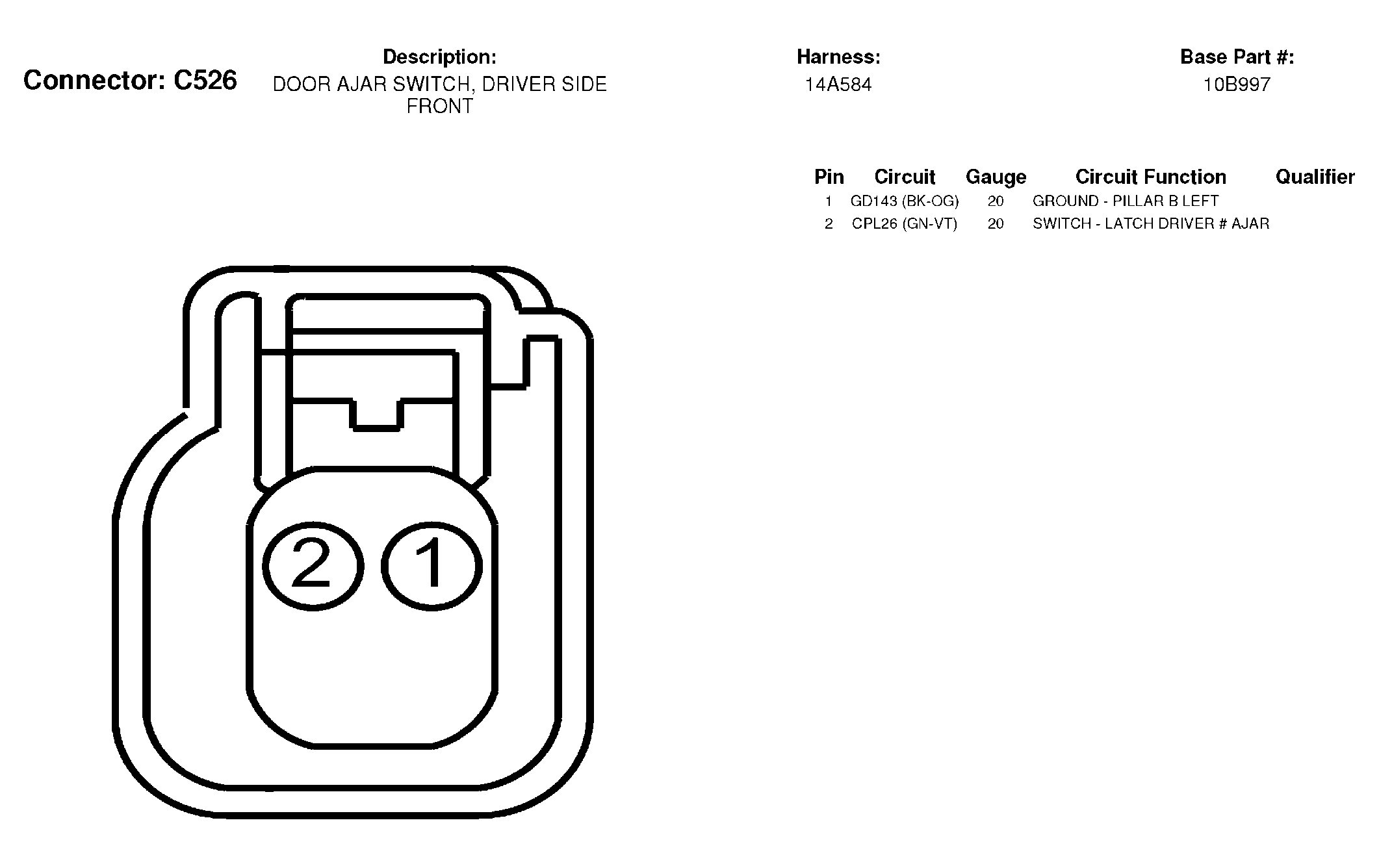

Fig 202: Door Ajar Switch, Driver Side Front Connector End View (C526)

G04596735

Courtesy of FORD MOTOR CO.

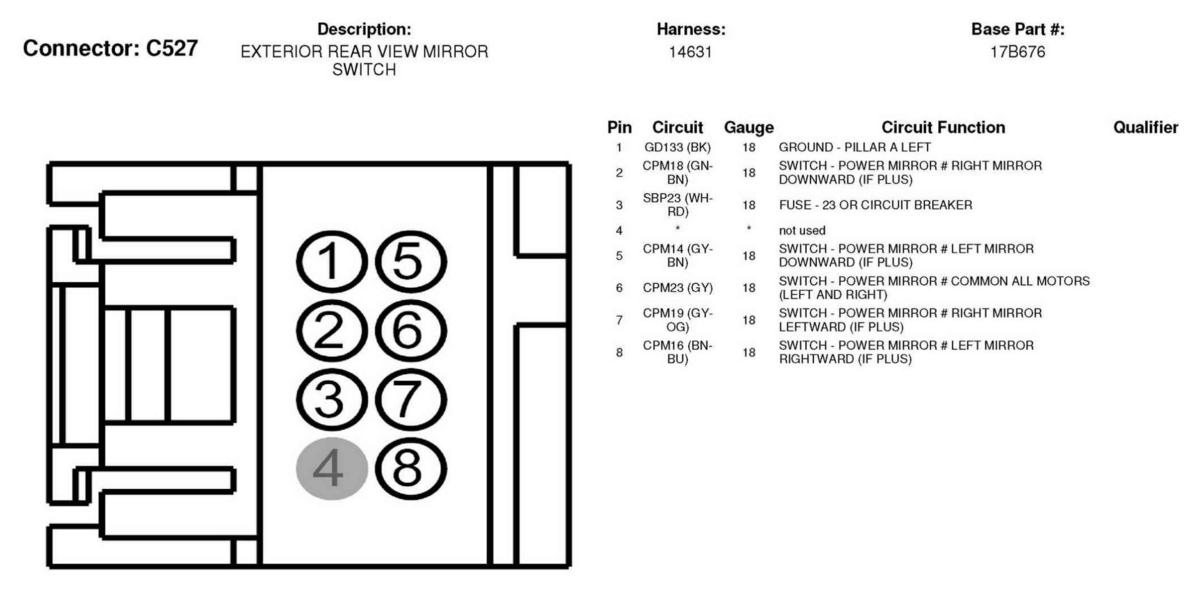

Fig 203: Exterior Rear View Mirror Switch Connector End View (C527)

G04596736

Courtesy of FORD MOTOR CO.

Fig 204: Side Impact Sensor, Driver Side Connector End View (C567A)

G04596737

Courtesy of FORD MOTOR CO.

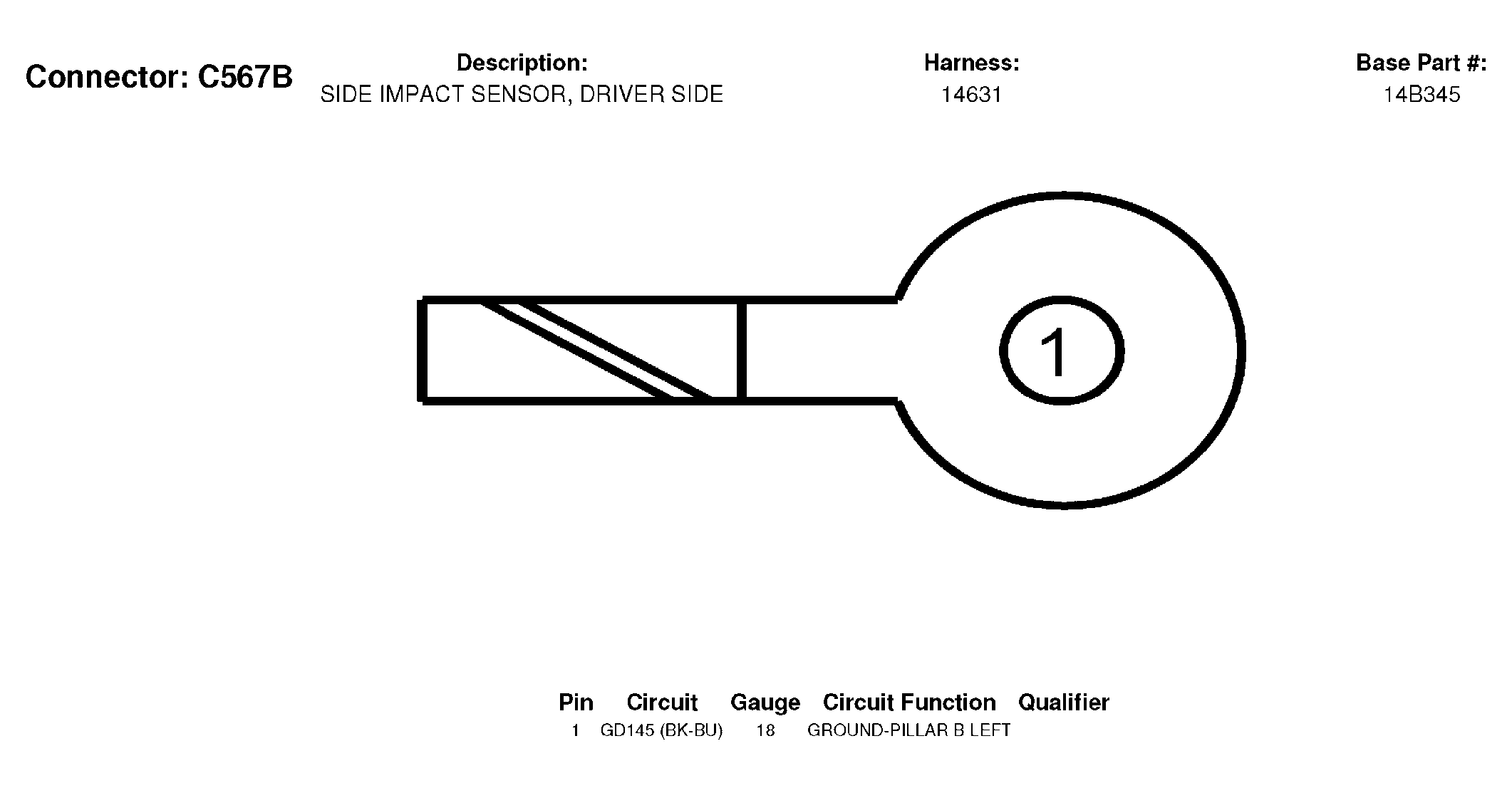

Fig 205: Side Impact Sensor, Driver Side Connector End View (C567B)

G04596738

Courtesy of FORD MOTOR CO.

Fig 206: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G04596739

Courtesy of FORD MOTOR CO.

Fig 207: Door Ajar Switch, Passenger Side Front Connector End View (C602)

G04596740

Courtesy of FORD MOTOR CO.

Fig 208: Door Lock Actuator, Passenger Side Connector End View (C603)

G04596741

Courtesy of FORD MOTOR CO.

Fig 209: Window Adjust Switch, Passenger Side Connector End View (C604)

G04596742

Courtesy of FORD MOTOR CO.

Fig 210: Door Lock Switch, Passenger Side Connector End View (C605)

G04596743

Courtesy of FORD MOTOR CO.

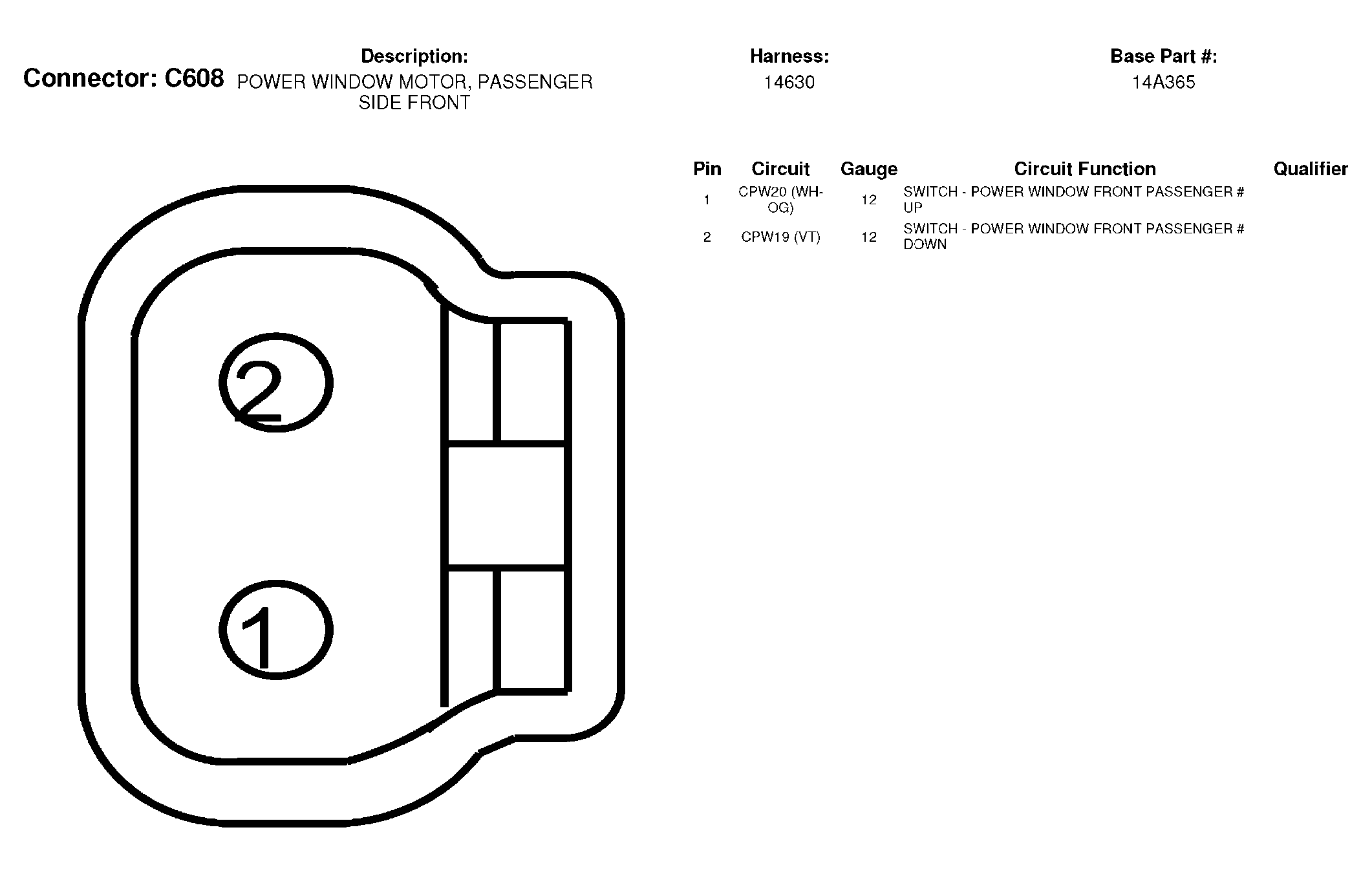

Fig 211: Power Window Motor, Passenger Side Front Connector End View (C608)

G04596744

Courtesy of FORD MOTOR CO.

Fig 212: Inline Connector End View (C610)

G04596745

Courtesy of FORD MOTOR CO.

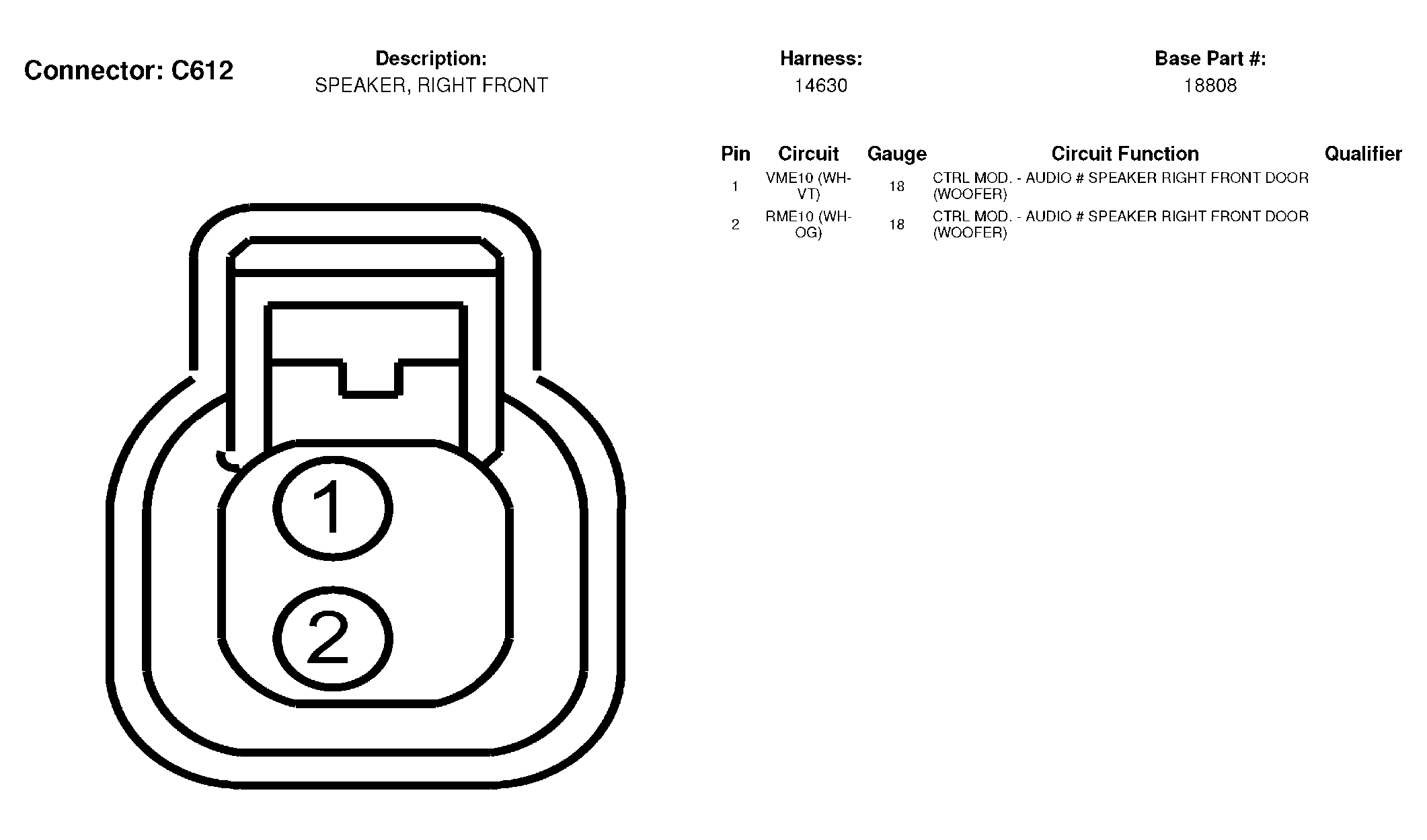

Fig 213: Speaker, Right Front Connector End View (C612)

G04596746

Courtesy of FORD MOTOR CO.

Fig 214: Side Impact Sensor, Passenger Side Connector End View (C644A)

G04596747

Courtesy of FORD MOTOR CO.

Fig 215: Side Impact Sensor, Passenger Side Connector End View (C644B)

G04596748

Courtesy of FORD MOTOR CO.

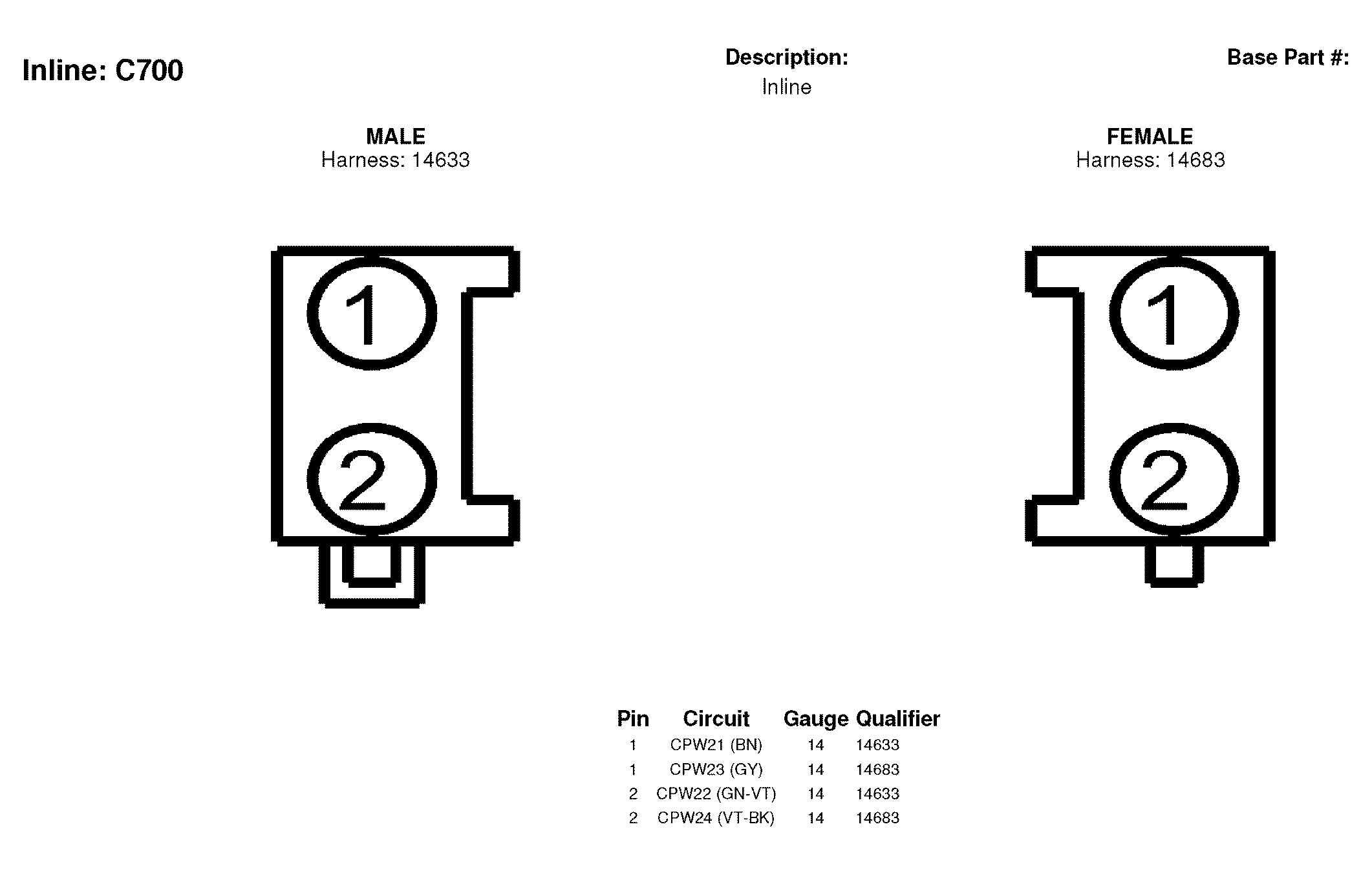

Fig 216: Inline Connector End View (C700)

G04596749

Courtesy of FORD MOTOR CO.

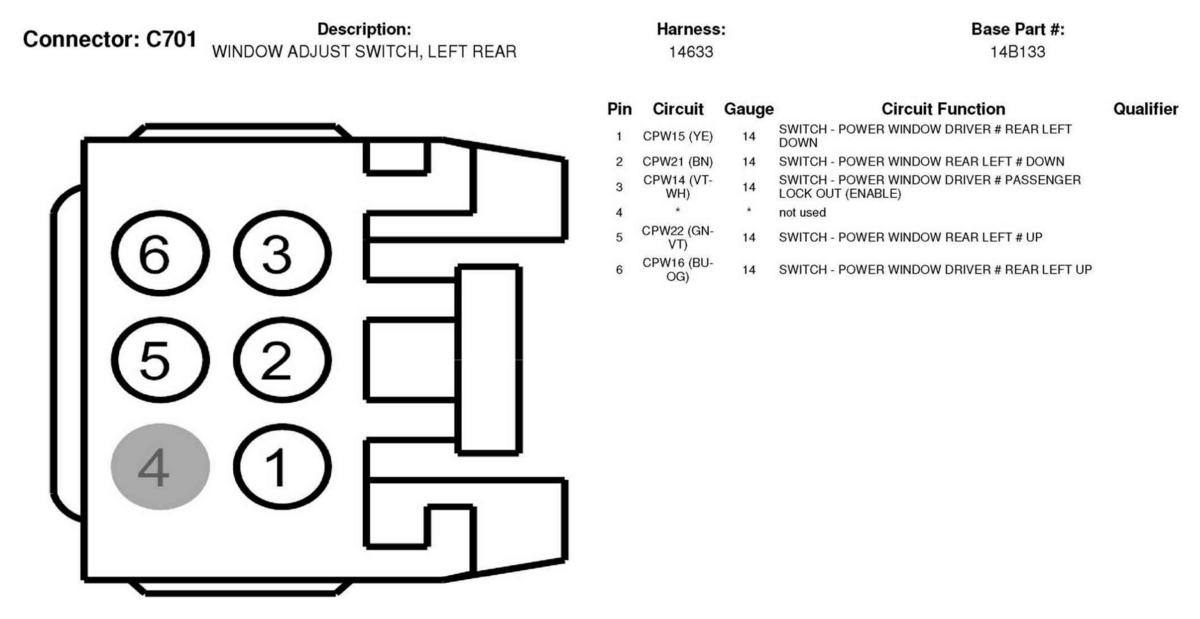

Fig 217: Window Adjust Switch, Left Rear Connector End View (C701)

G04596750

Courtesy of FORD MOTOR CO.

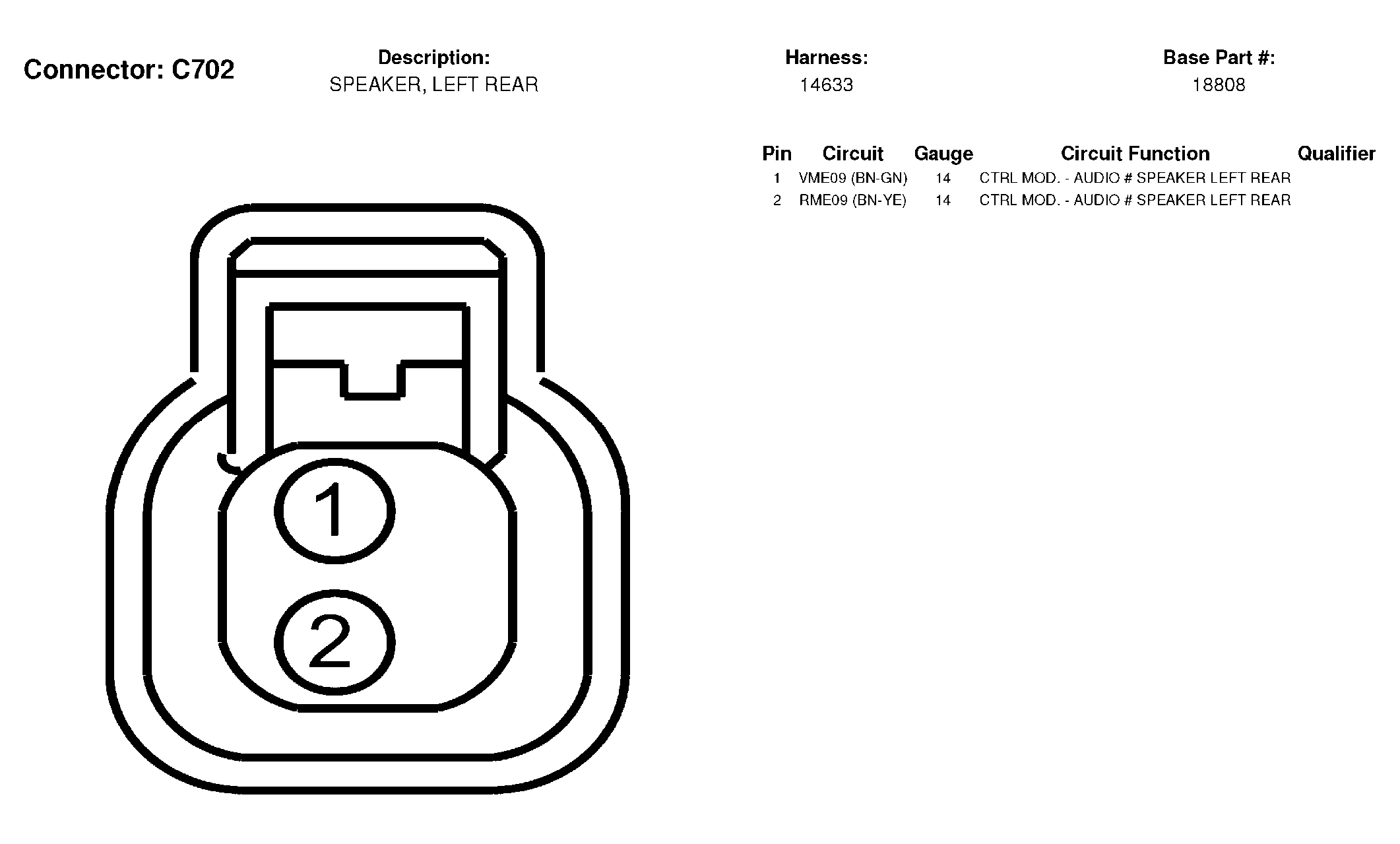

Fig 218: Speaker, Left Rear Connector End View (C702)

G04596751

Courtesy of FORD MOTOR CO.

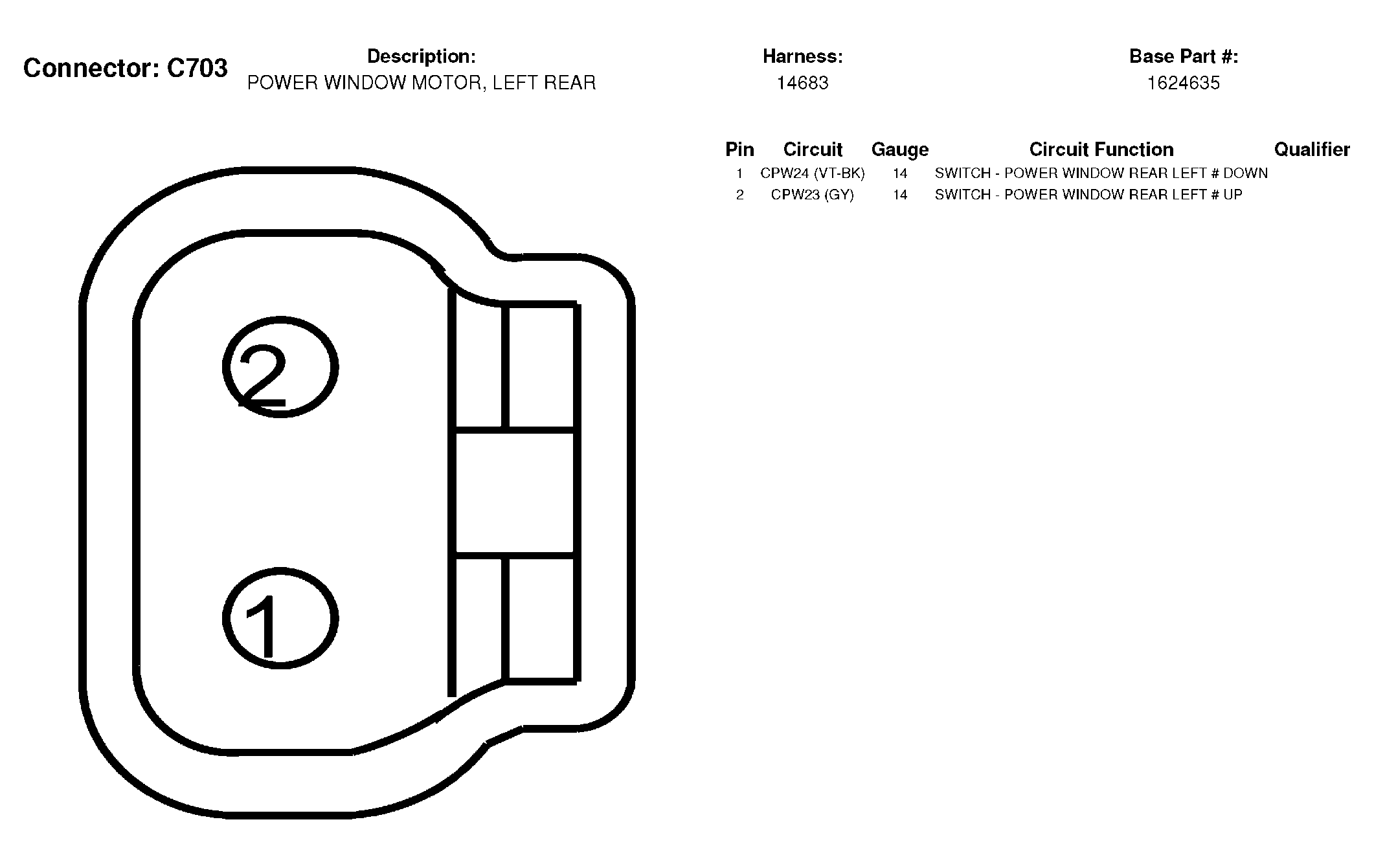

Fig 219: Power Window Motor, Left Rear Connector End View (C703)

G04596752

Courtesy of FORD MOTOR CO.

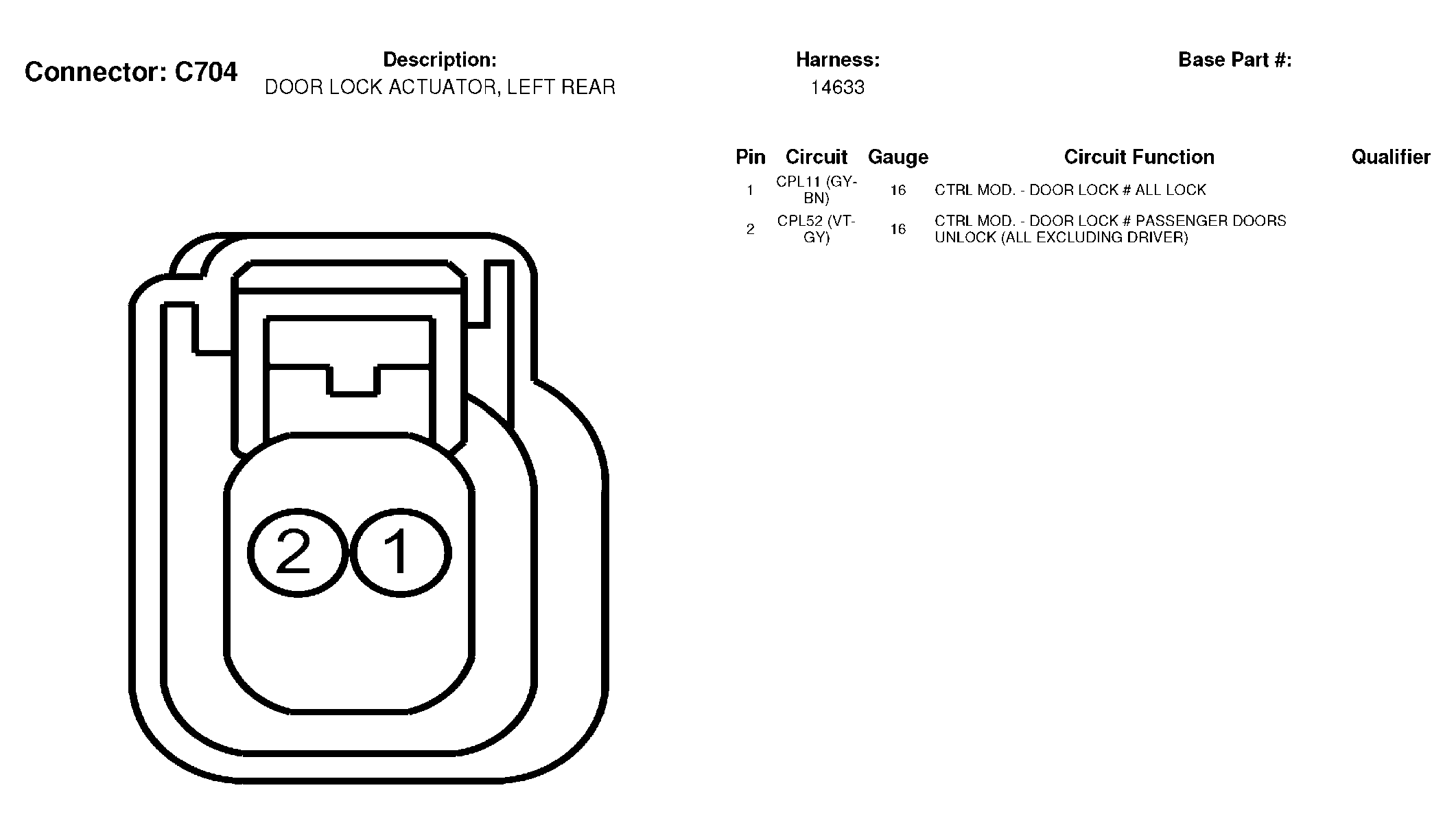

Fig 220: Door Lock Actuator, Left Rear Connector End View (C704)

G04596753

Courtesy of FORD MOTOR CO.

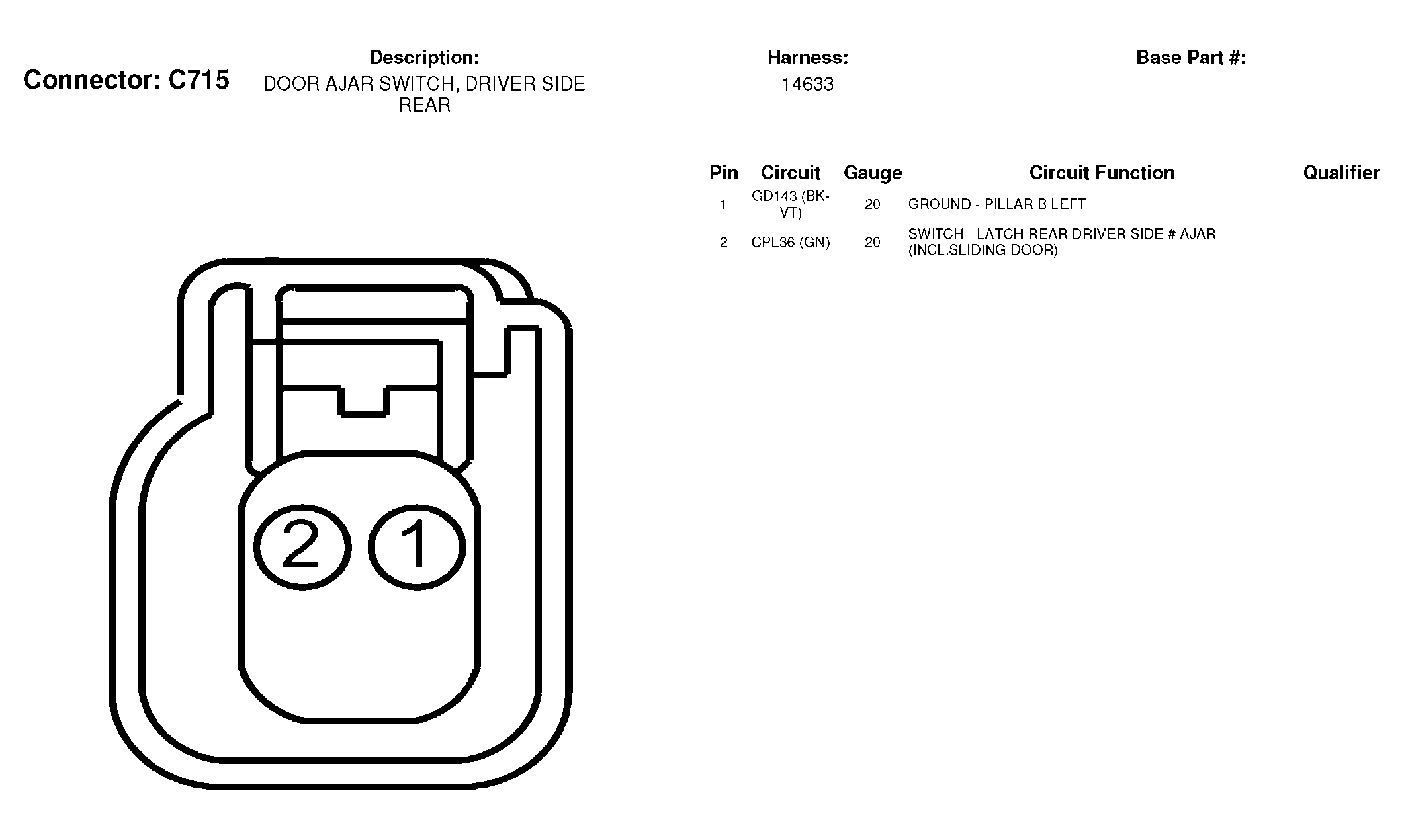

Fig 221: Door Ajar Switch, Driver Side Rear Connector End View (C715)

G04596754

Courtesy of FORD MOTOR CO.

Fig 222: Inline Connector End View (C800)

G04596755

Courtesy of FORD MOTOR CO.

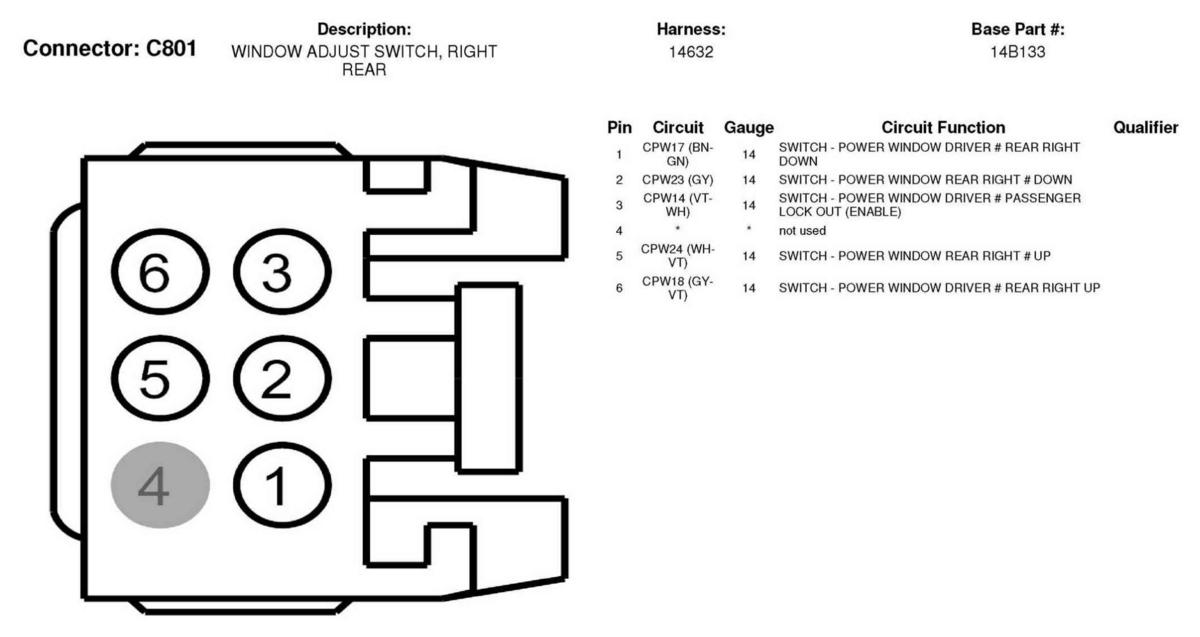

Fig 223: Window Adjust Switch, Right Rear Connector End View (C801)

G04596756

Courtesy of FORD MOTOR CO.

Fig 224: Speaker, Right Rear Connector End View (C802)

G04596757

Courtesy of FORD MOTOR CO.

Fig 225: Power Window Motor, Right Rear Connector End View (C803)

G04596758

Courtesy of FORD MOTOR CO.

Fig 226: Door Lock Actuator, Right Rear Connector End View (C804)

G04596759

Courtesy of FORD MOTOR CO.

Fig 227: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G04596760

Courtesy of FORD MOTOR CO.

Fig 228: Rear Interior Lamp Connector End View (C901)

G04596761

Courtesy of FORD MOTOR CO.

Fig 229: Vanity Mirror Lamp, Right Connector End View (C906)

G04596762

Courtesy of FORD MOTOR CO.

Fig 230: Vanity Mirror Lamp, Left Connector End View (C907)

G04596763

Courtesy of FORD MOTOR CO.

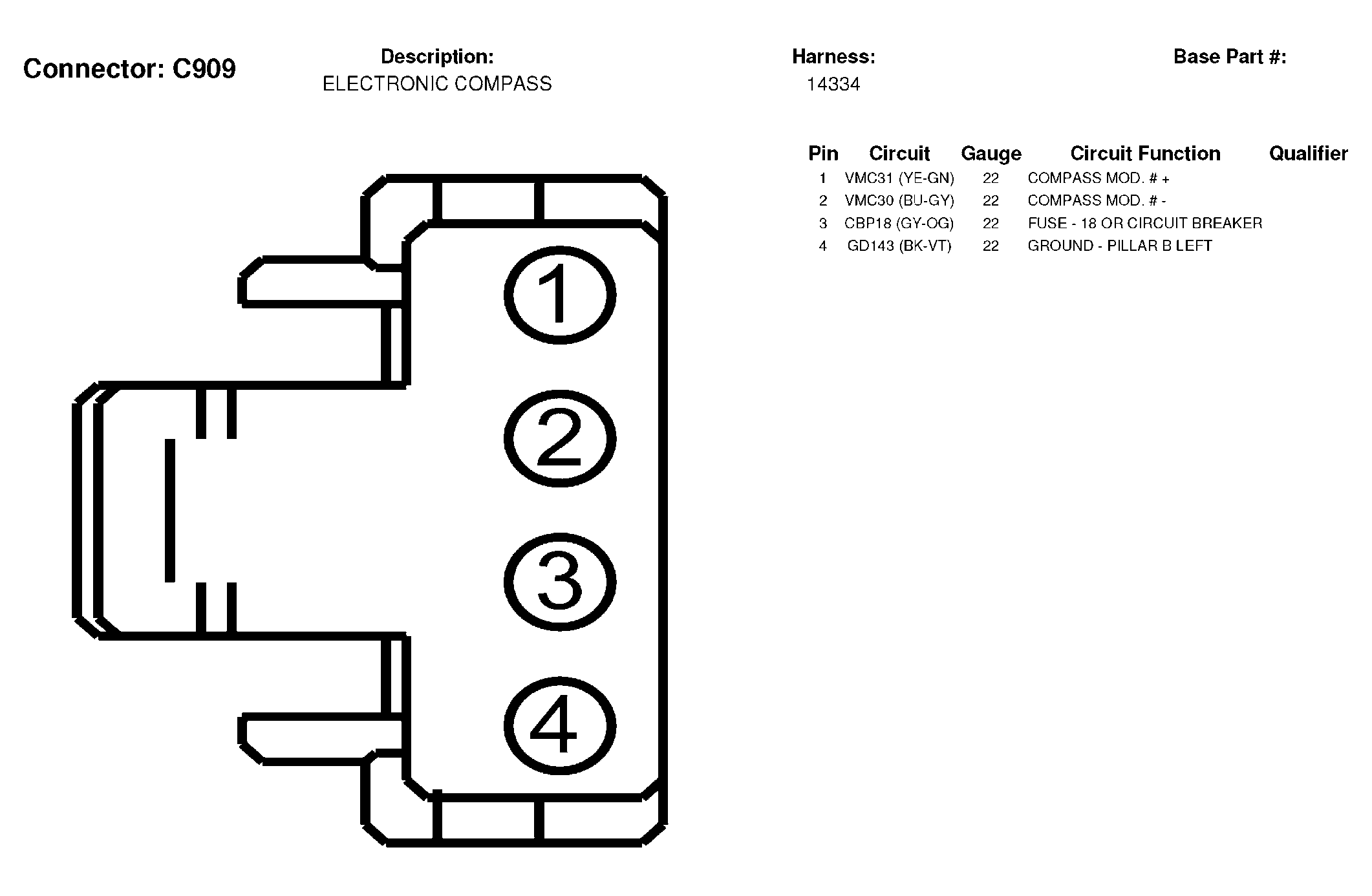

Fig 231: Electronic Compass Connector End View (C909)

G04596764

Courtesy of FORD MOTOR CO.

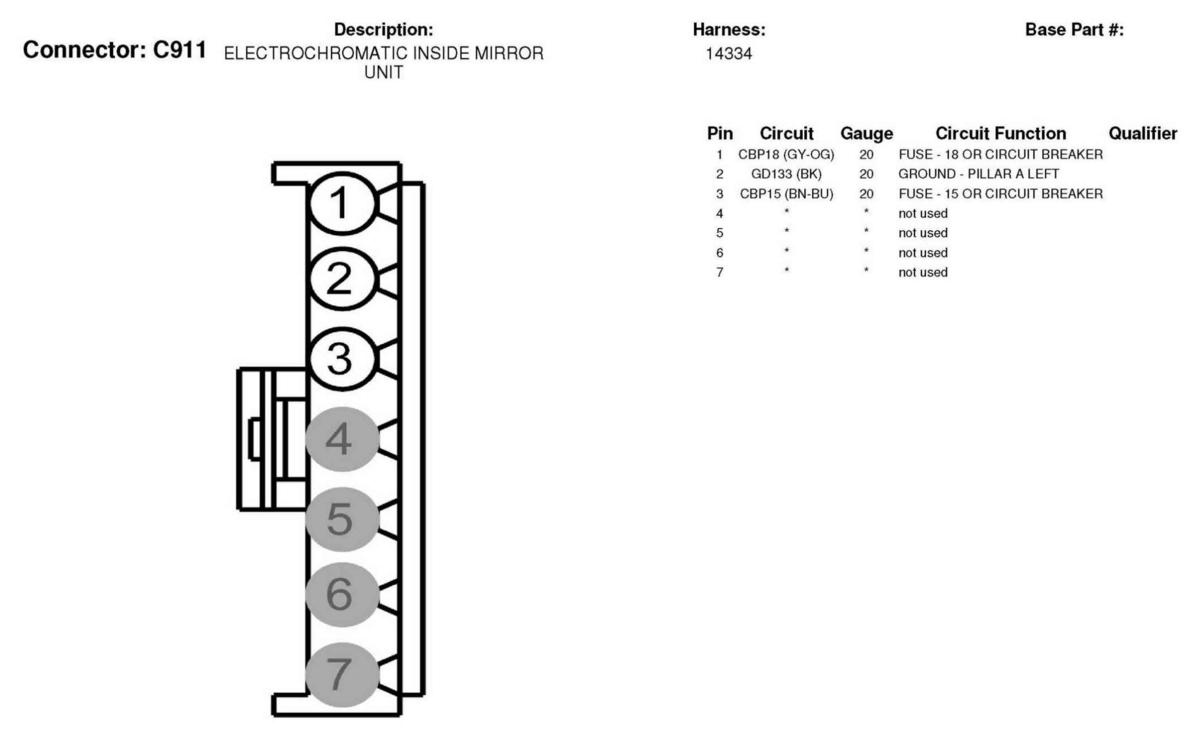

Fig 232: Electrochromatic Inside Mirror Unit Connector End View (C911)

G04596765

Courtesy of FORD MOTOR CO.

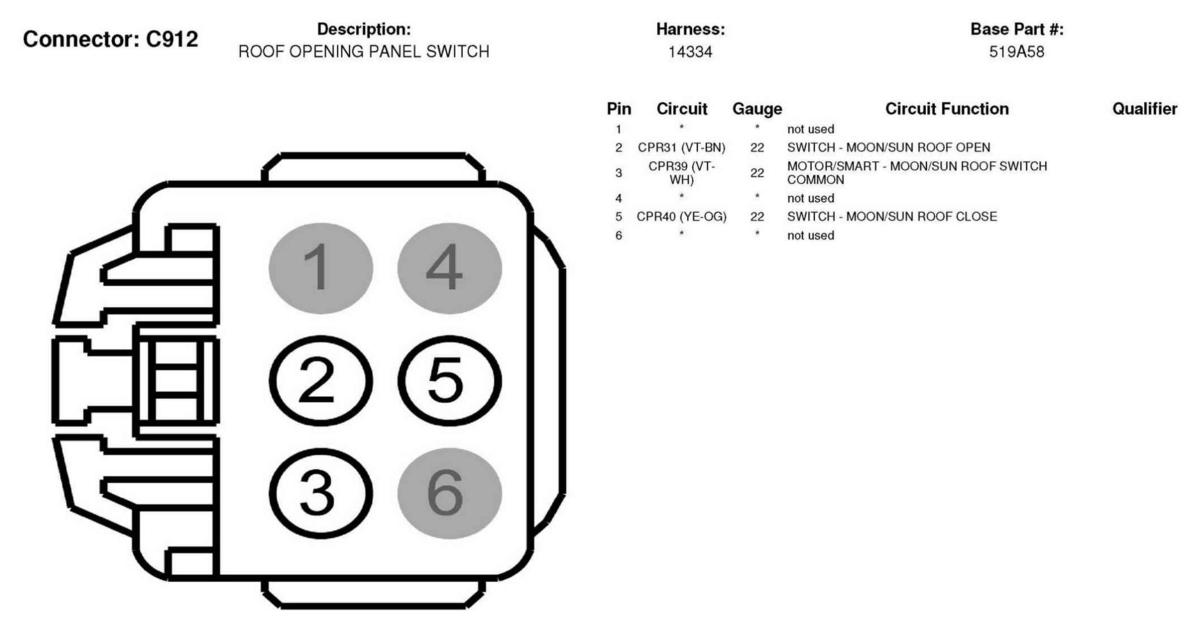

Fig 233: Roof Opening Panel Switch Connector End View (C912)

G04596766

Courtesy of FORD MOTOR CO.

Fig 234: Inline Connector End View (C913)

G04596767

Courtesy of FORD MOTOR CO.

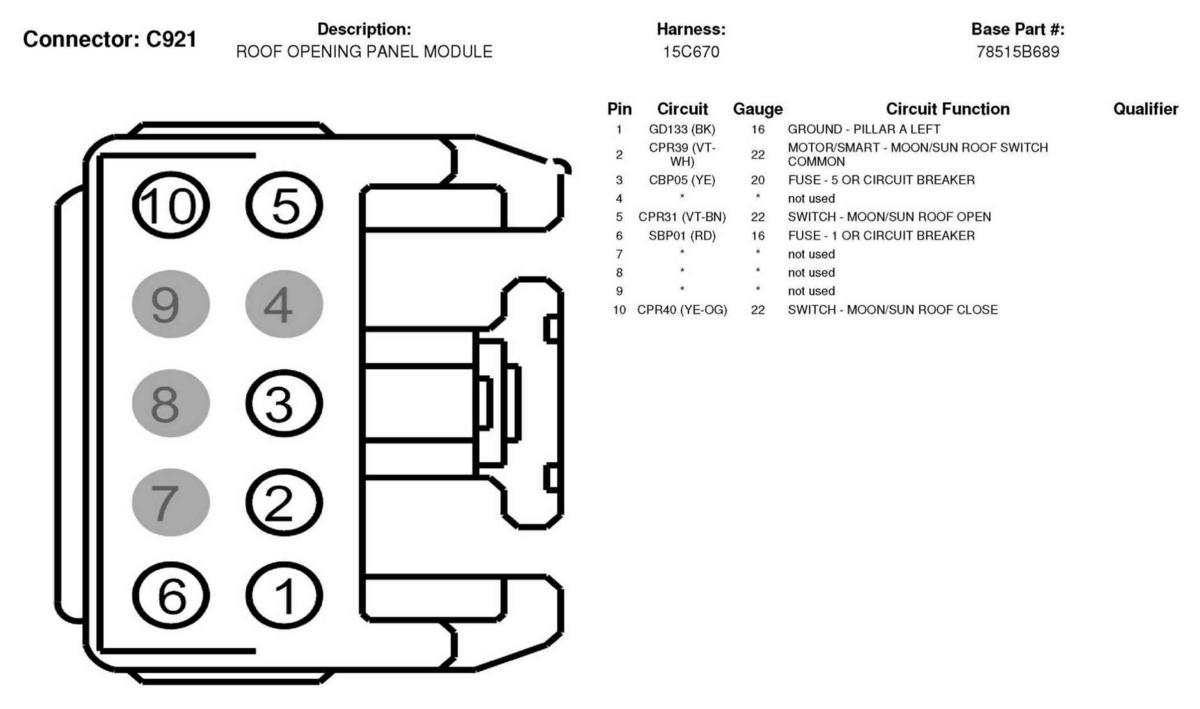

Fig 235: Roof Opening Panel Module Connector End View (C921)

G04596768

Courtesy of FORD MOTOR CO.

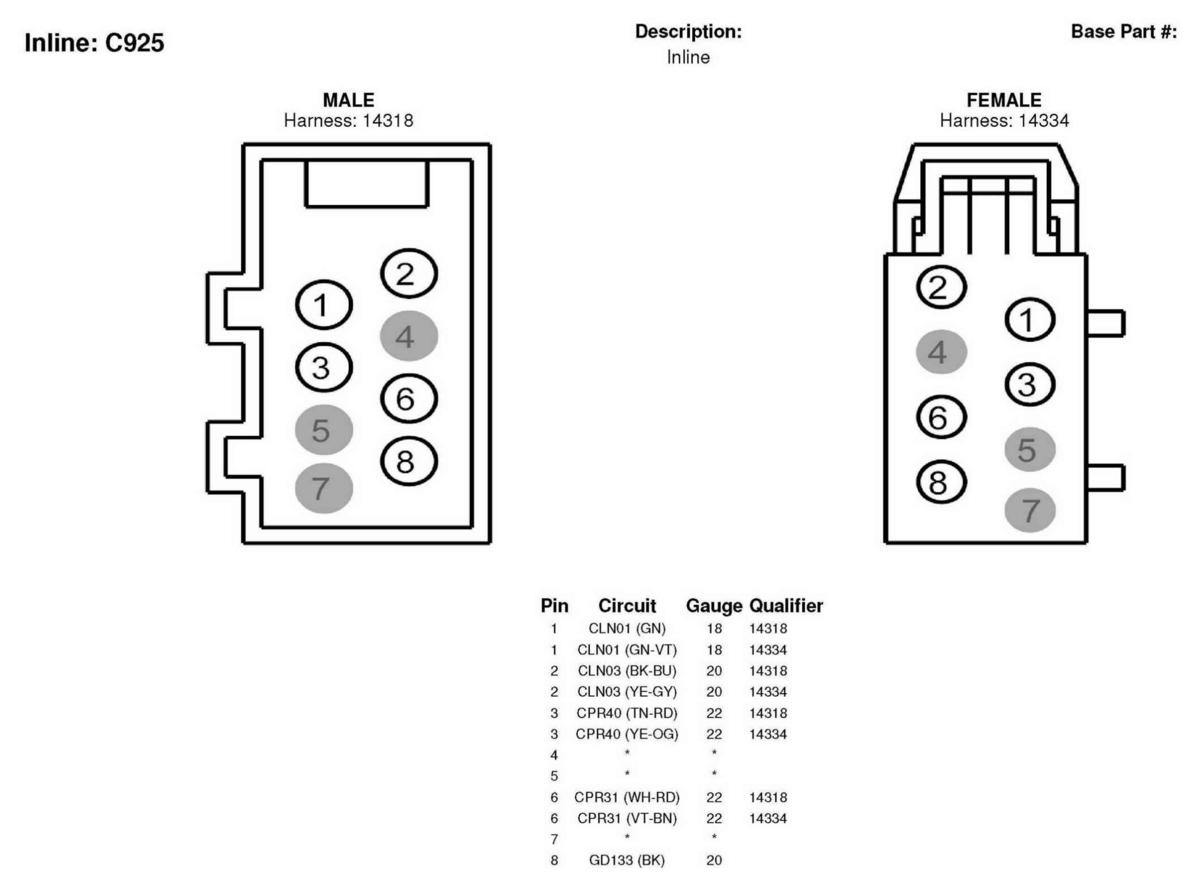

Fig 236: Inline Connector End View (C925)

G04596769

Courtesy of FORD MOTOR CO.

Fig 237: Cargo Lamp Connector End View (C926)

G04596770

Courtesy of FORD MOTOR CO.

Fig 238: Homelink Module Connector End View (C928)

G04596771

Courtesy of FORD MOTOR CO.

Fig 239: Interior/MAP Lamp Assembly, Front Connector End View (C929)

G04596772

Courtesy of FORD MOTOR CO.

Fig 240: DVD Player Connector End View (C949)

G04596773

Courtesy of FORD MOTOR CO.

Fig 241: Function Selector Switch Assembly, Rear Connector End View (C951A)

G04596774

Courtesy of FORD MOTOR CO.

Fig 242: Function Selector Switch Assembly, Rear Connector End View (C951B)

G04596775

Courtesy of FORD MOTOR CO.

Fig 243: Interior Lamp Connector End View (C981)

G04596776

Courtesy of FORD MOTOR CO.

Fig 244: Headlamp, Left Connector End View (C1021)

G04596777

Courtesy of FORD MOTOR CO.

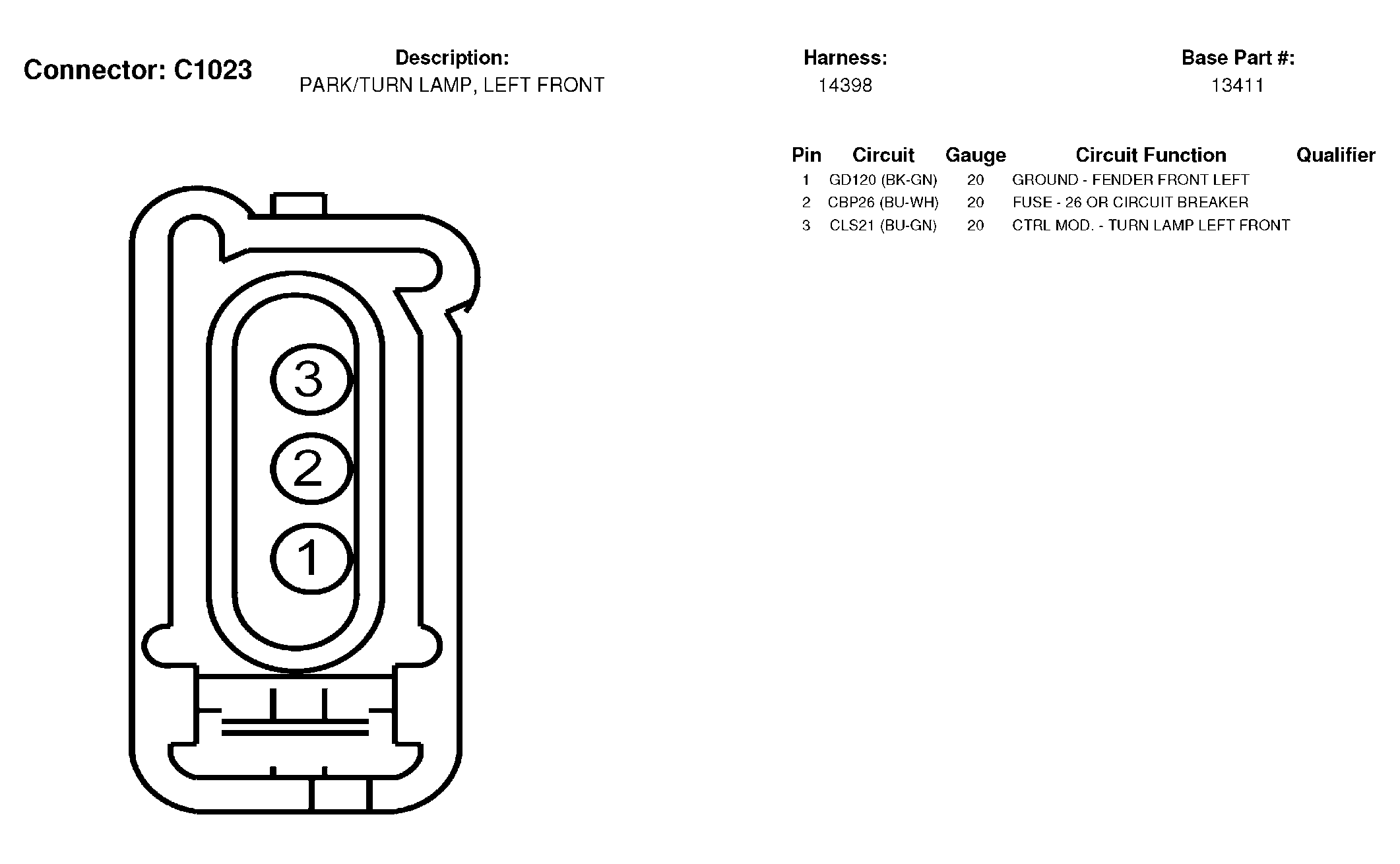

Fig 245: Park/Turn Lamp, Left Front Connector End View (C1023)

G04596778

Courtesy of FORD MOTOR CO.

Fig 246: Battery Junction Box (BJB) Connector End View (C1035A)

G04596779

Courtesy of FORD MOTOR CO.

Fig 247: Battery Junction Box (BJB) Connector End View (C1035B)

G04596780

Courtesy of FORD MOTOR CO.

Fig 248: Headlamp, Right Connector End View (C1041)

G04596781

Courtesy of FORD MOTOR CO.

Fig 249: Park/Turn Lamp, Right Front Connector End View (C1043)

G04596782

Courtesy of FORD MOTOR CO.

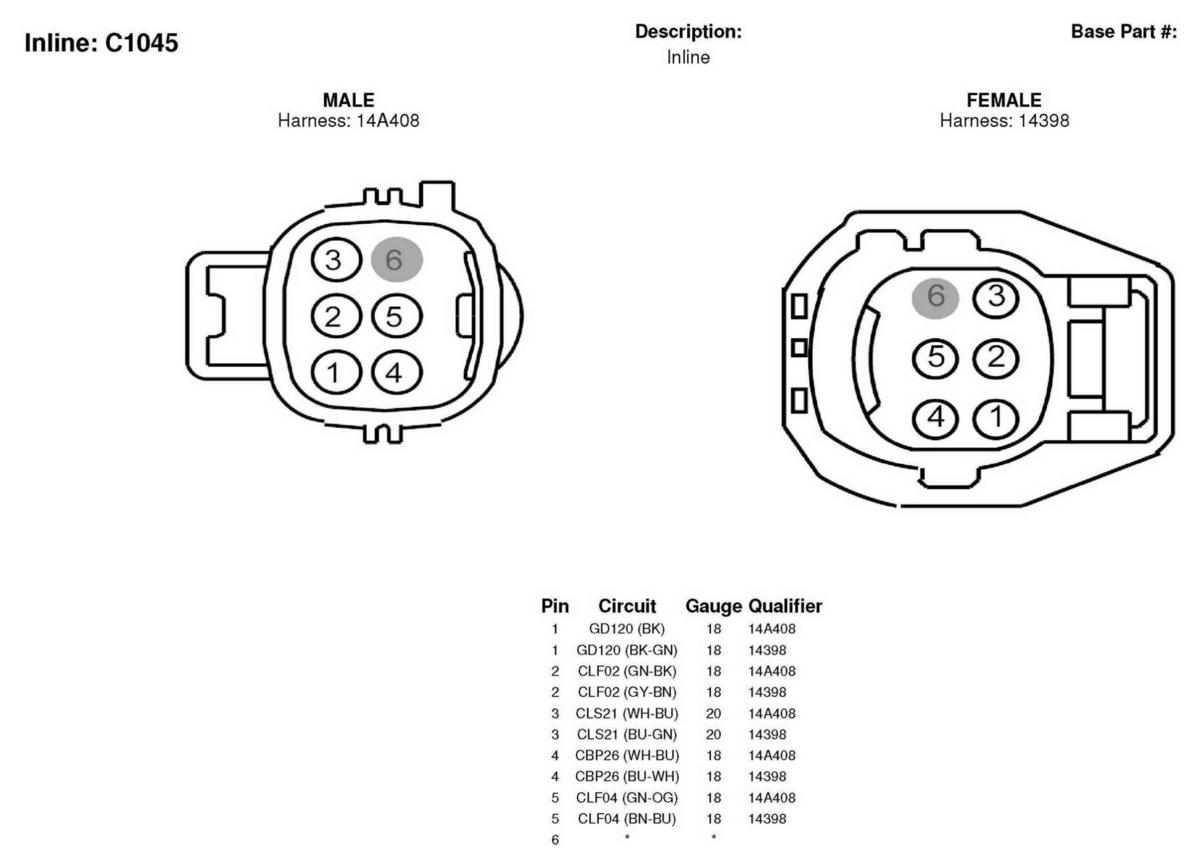

Fig 250: Inline Connector End View (C1045)

G04596783

Courtesy of FORD MOTOR CO.

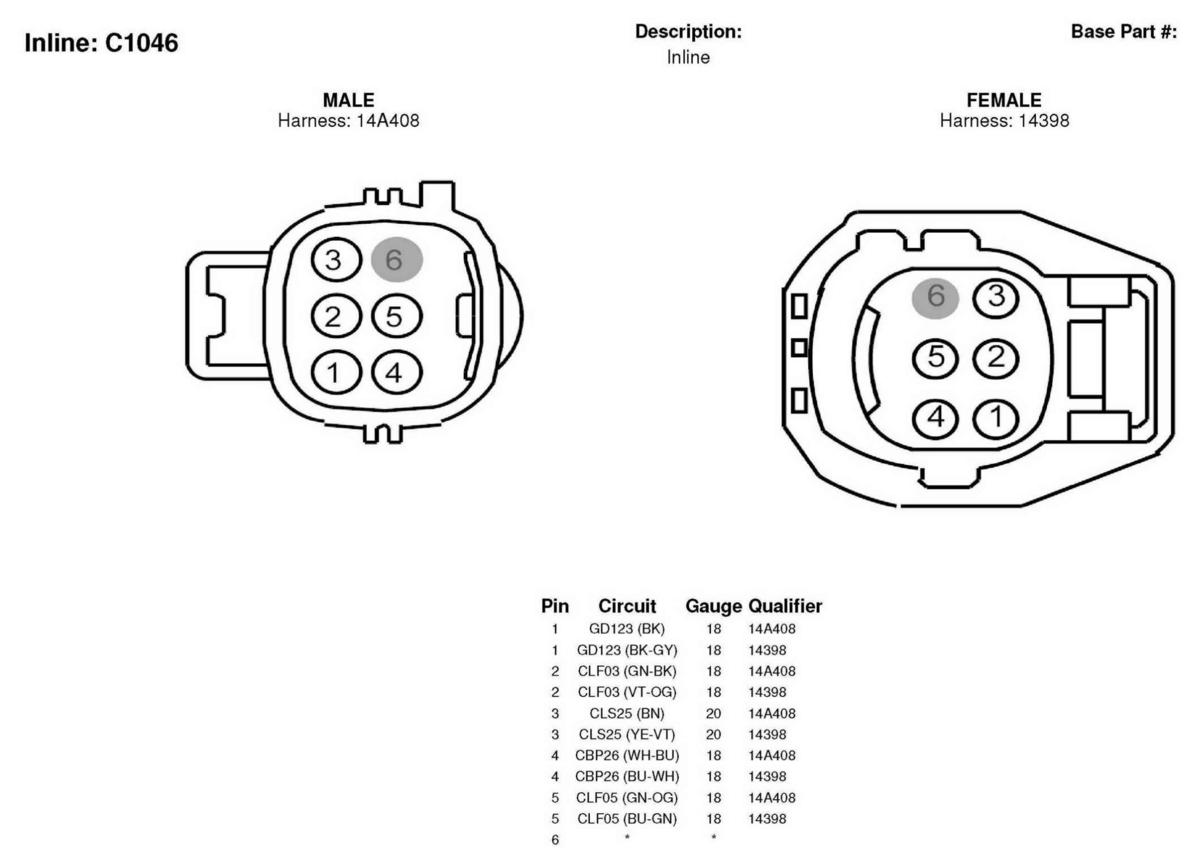

Fig 251: Inline Connector End View (C1046)

G04596784

Courtesy of FORD MOTOR CO.

Fig 252: Engine Coolant Temperature Sensor (ECT) Connector End View (C1064)

G04596785

Courtesy of FORD MOTOR CO.

Fig 253: Ignition Coil Connector End View (C1065)

G04596786

Courtesy of FORD MOTOR CO.

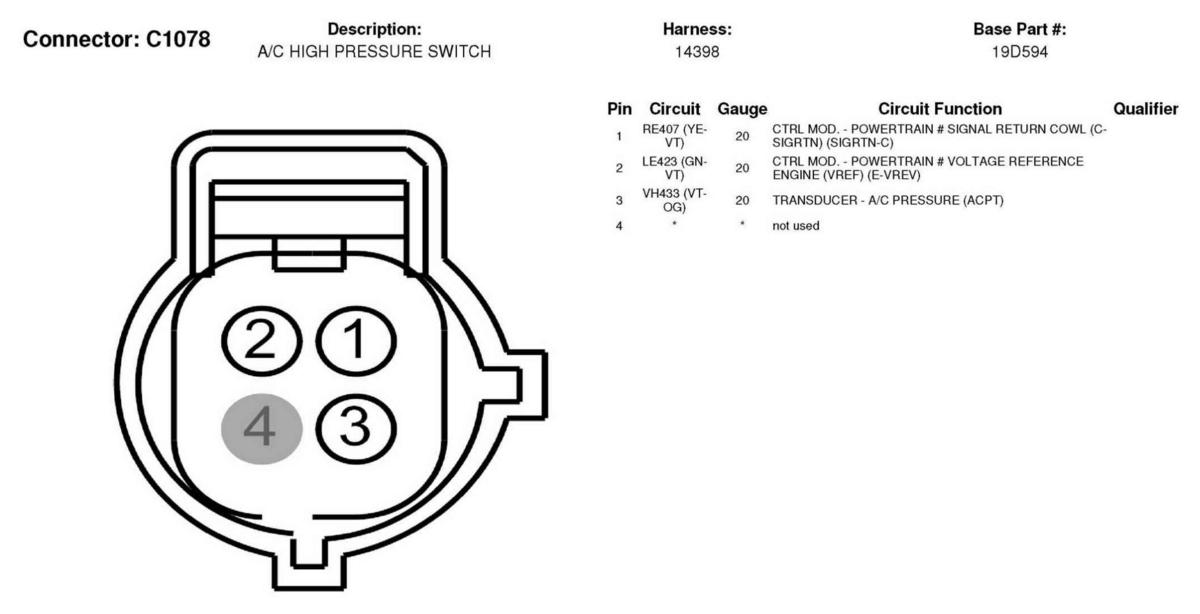

Fig 254: A/C High Pressure Switch Connector End View (C1078)

G04596787

Courtesy of FORD MOTOR CO.

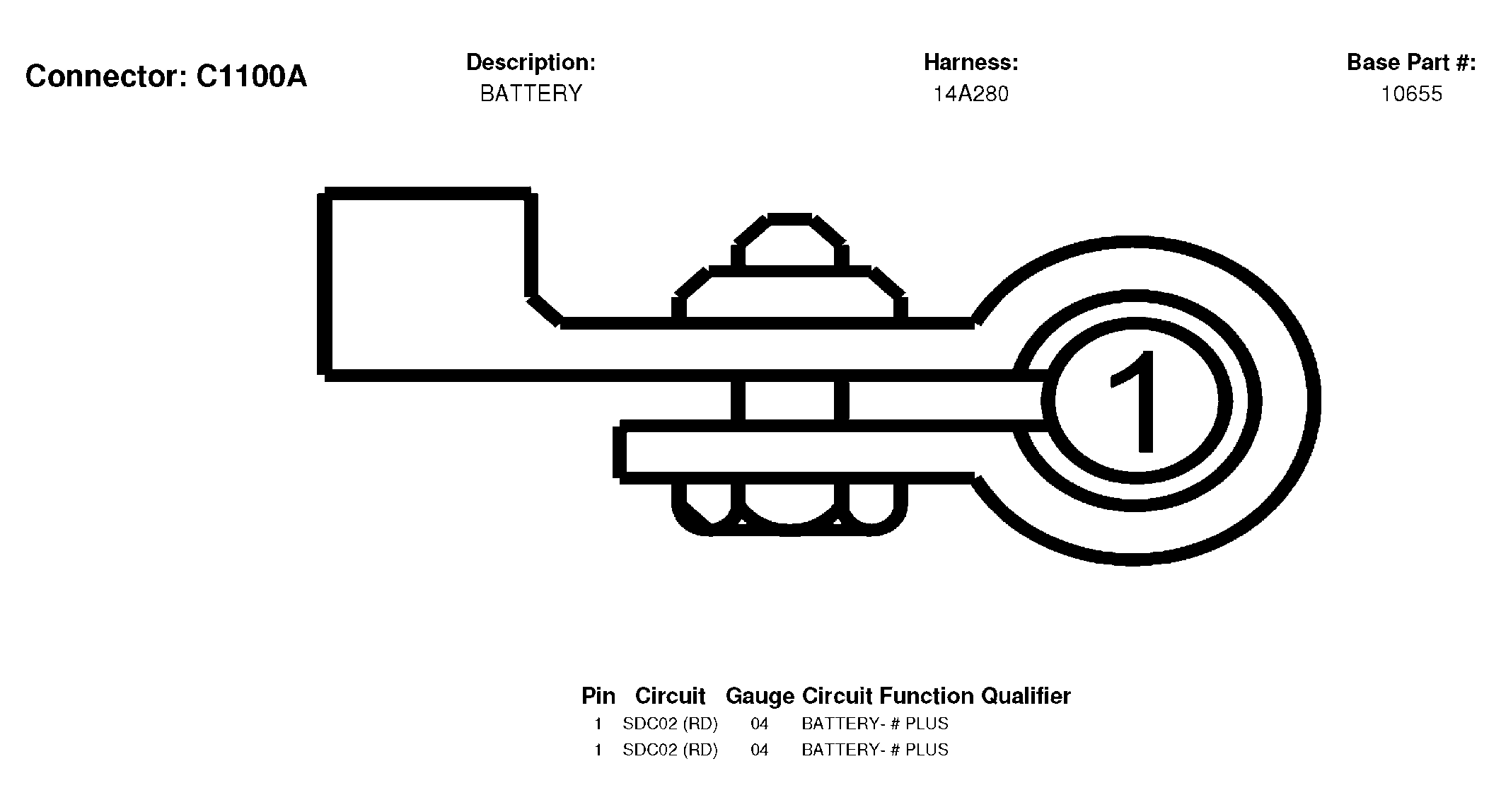

Fig 255: Battery Connector End View (C1100A)

G04596788

Courtesy of FORD MOTOR CO.

Fig 256: Battery Connector End View (C1100B)

G04596789

Courtesy of FORD MOTOR CO.

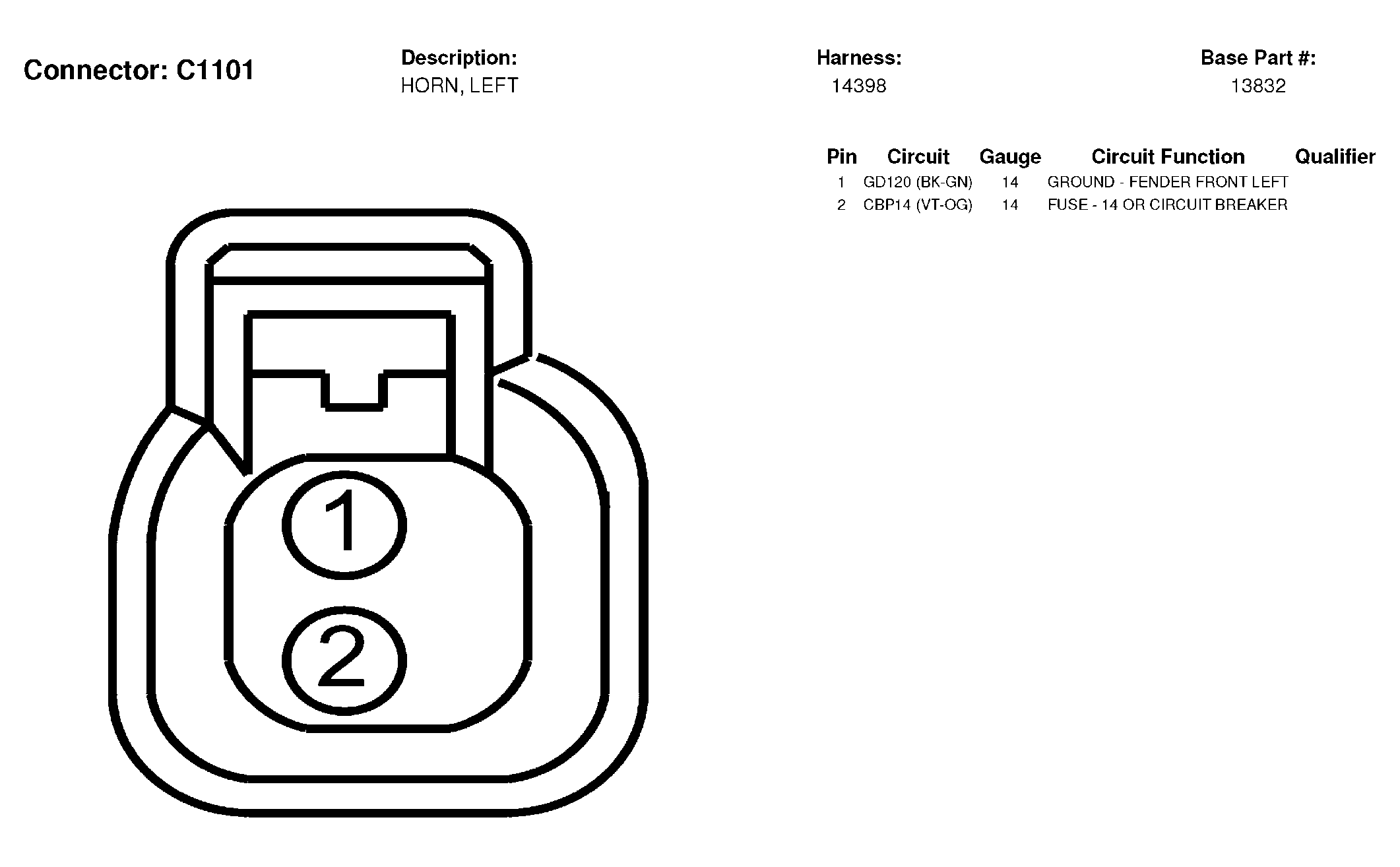

Fig 257: Horn, Left Connector End View (C1101)

G04596790

Courtesy of FORD MOTOR CO.

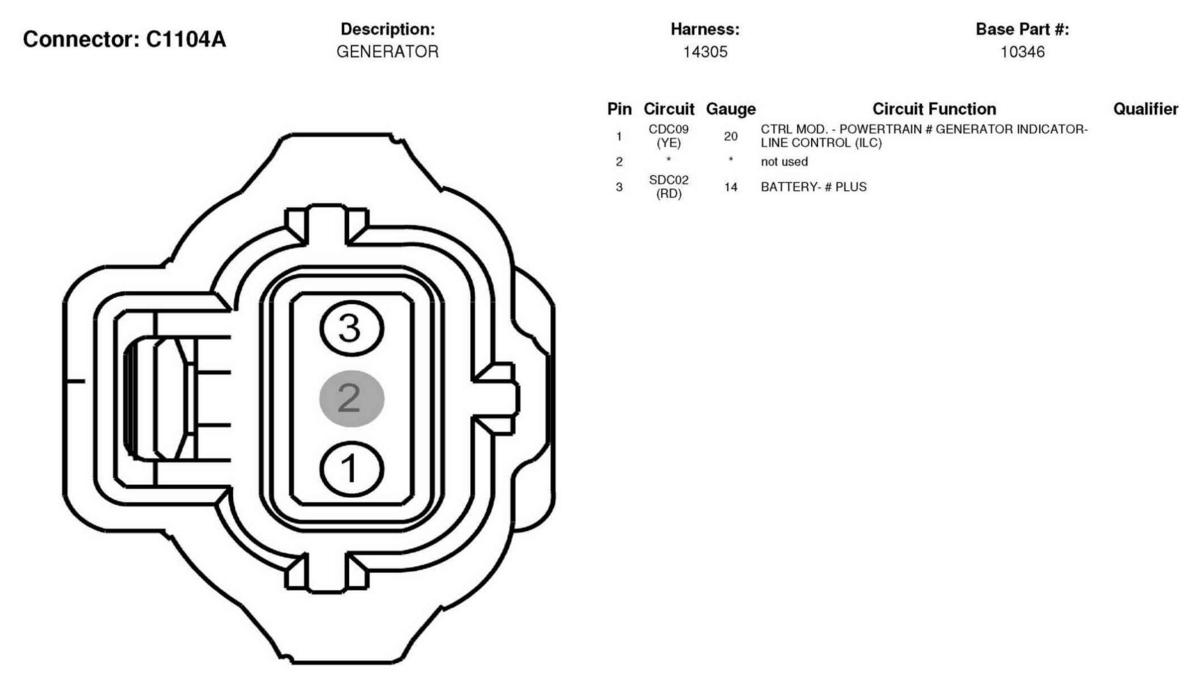

Fig 258: Generator Connector End View (C1104A)

G04596791

Courtesy of FORD MOTOR CO.

Fig 259: Generator Connector End View (C1104B)

G04596792

Courtesy of FORD MOTOR CO.

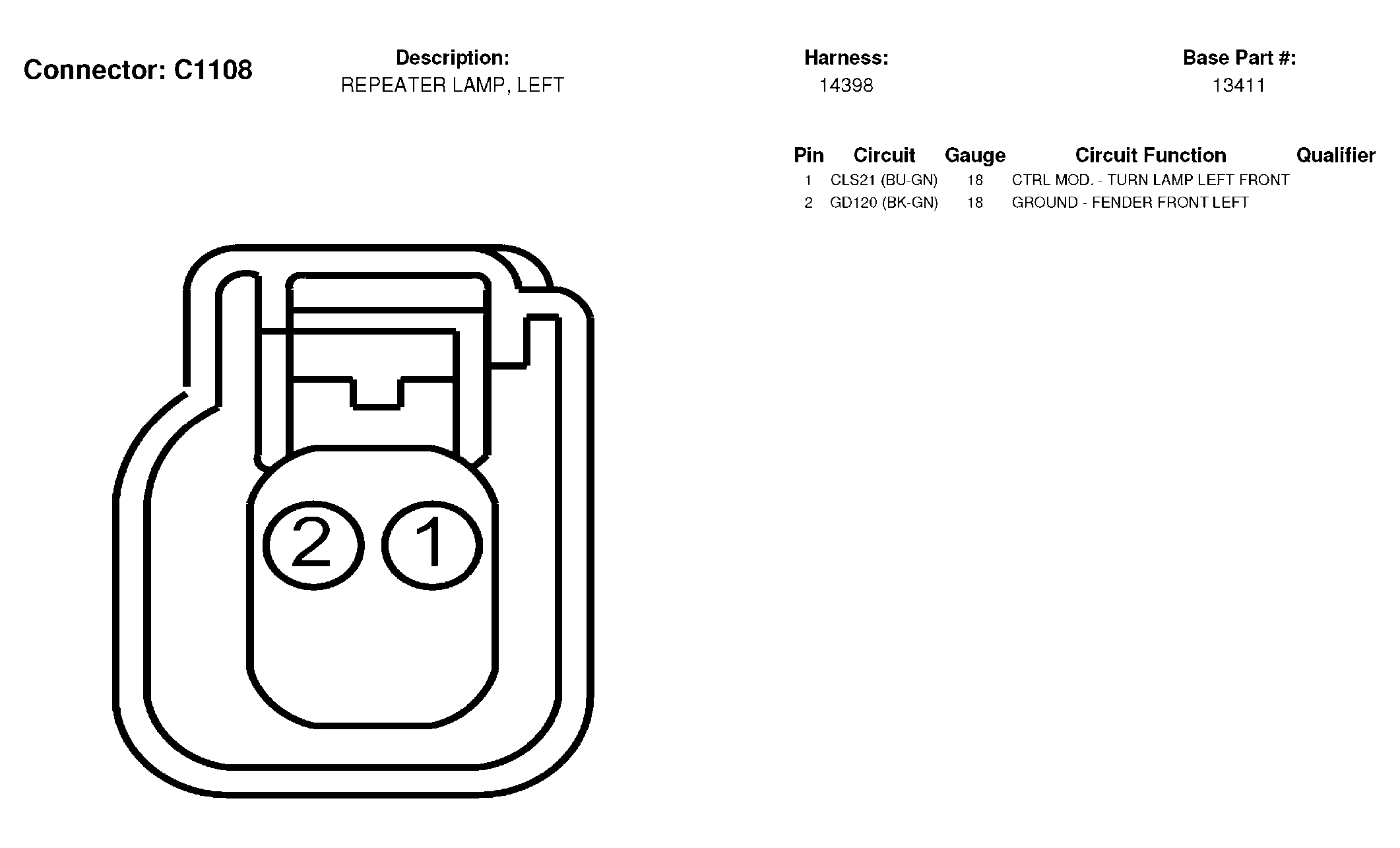

Fig 260: Repeater Lamp, Left Connector End View (C1108)

G04596793

Courtesy of FORD MOTOR CO.

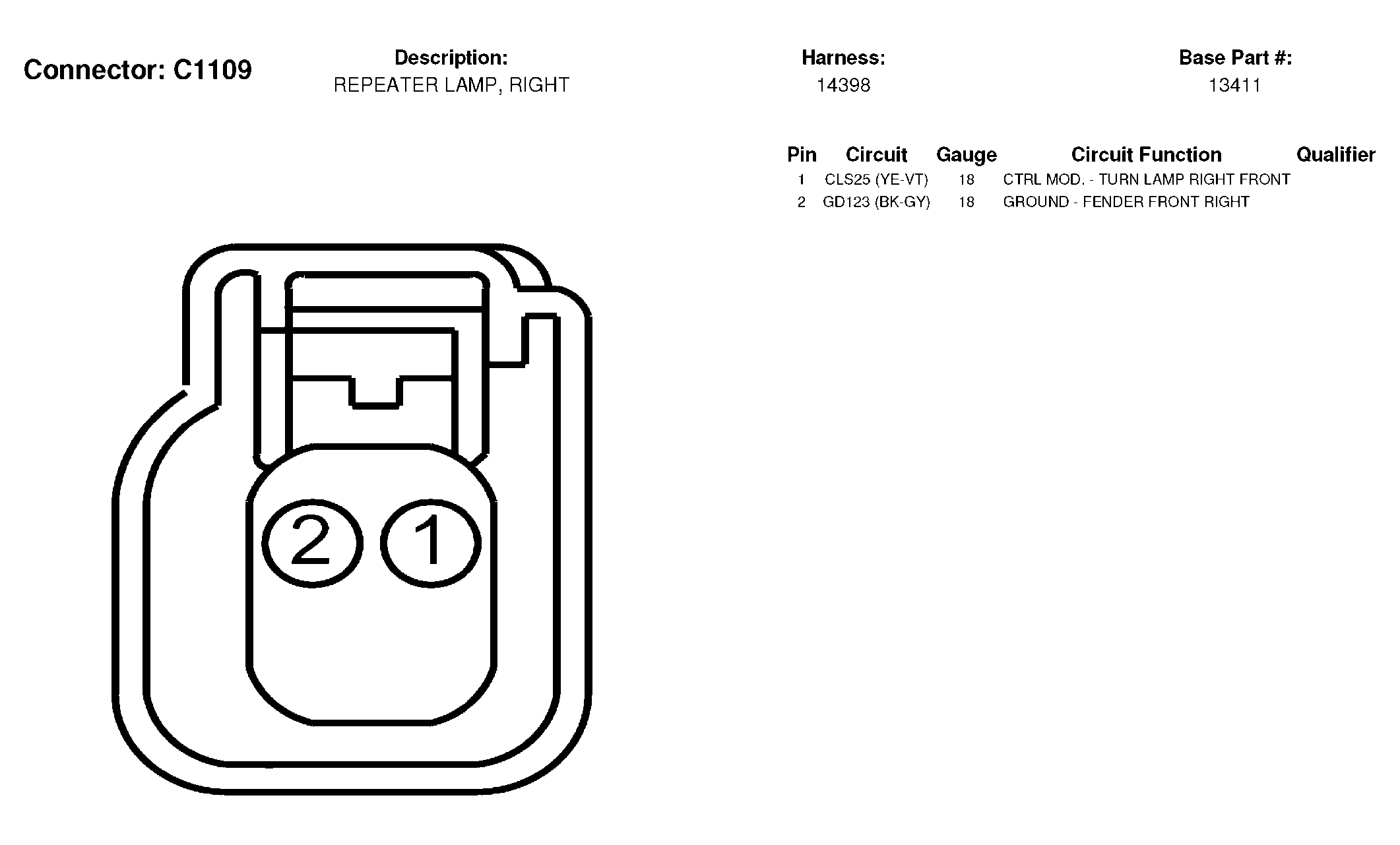

Fig 261: Repeater Lamp, Right Connector End View (C1109)

G04596794

Courtesy of FORD MOTOR CO.

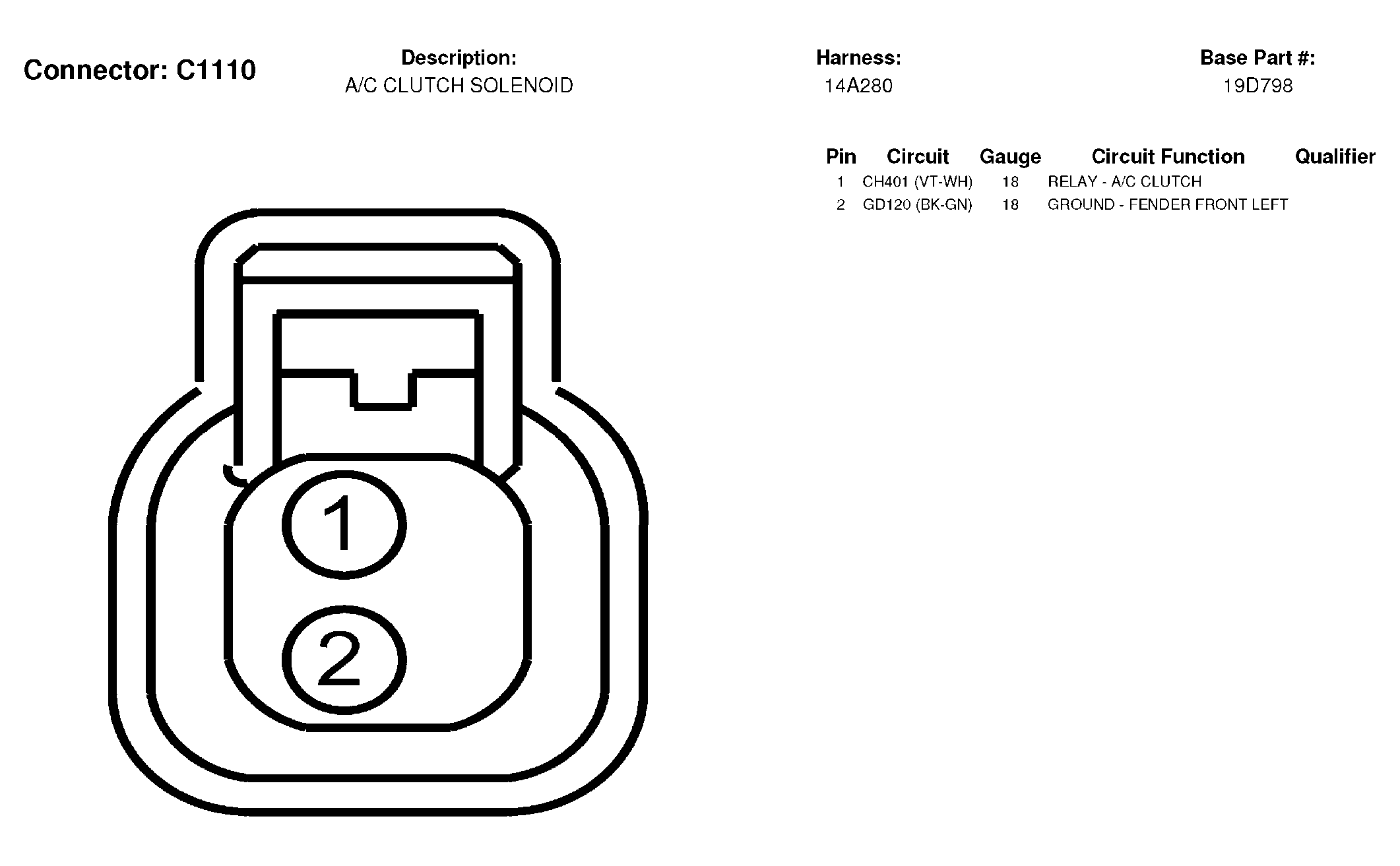

Fig 262: A/C Clutch Solenoid Connector End View (C1110)

G04596795

Courtesy of FORD MOTOR CO.

Fig 263: Park/Turn Lamp, Left Front Connector End View (C1115)

G04596796

Courtesy of FORD MOTOR CO.

Fig 264: Park/Turn Lamp, Right Front Connector End View (C1116)

G04596797

Courtesy of FORD MOTOR CO.

Fig 265: Crankshaft Position Sensor Connector End View (C1120)

G04596798

Courtesy of FORD MOTOR CO.

Fig 266: Side Lamp, Right Front Connector End View (C1126)

G04596799

Courtesy of FORD MOTOR CO.

Fig 267: Side Lamp, Left Front Connector End View (C1127)

G04596800

Courtesy of FORD MOTOR CO.

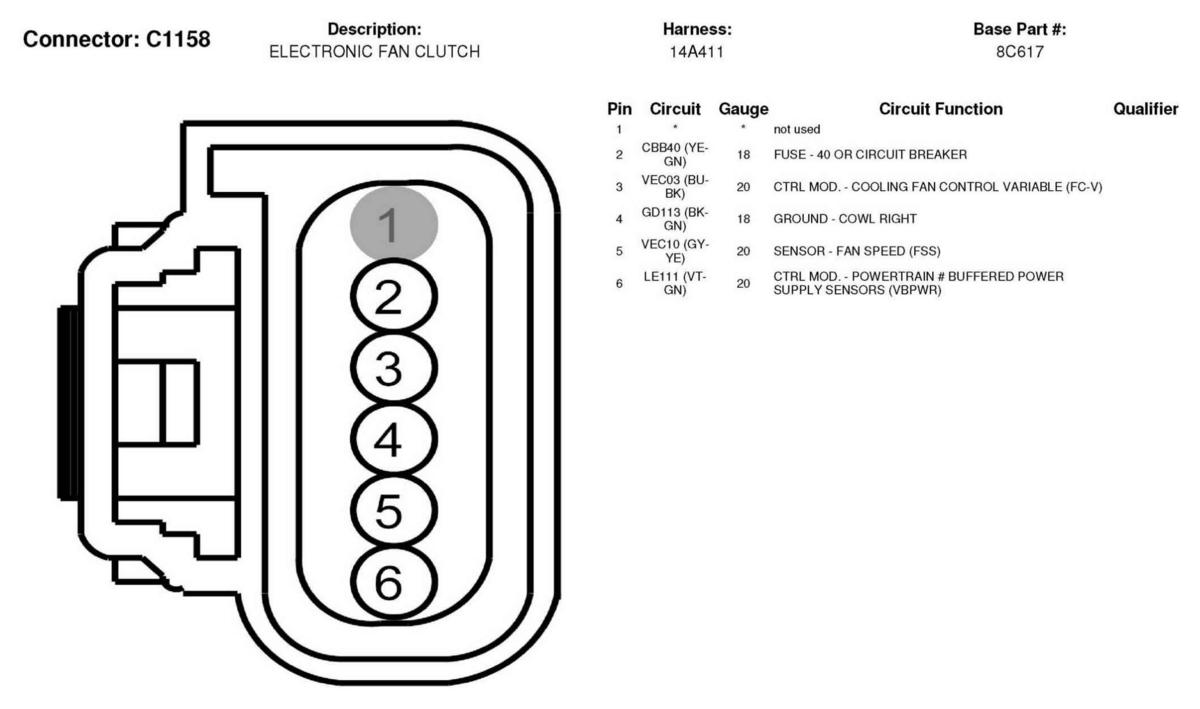

Fig 268: Electronic Fan Clutch Connector End View (C1158)

G04596801

Courtesy of FORD MOTOR CO.

Fig 269: Vapor Management Valve Connector End View (C1195)

G04596802

Courtesy of FORD MOTOR CO.

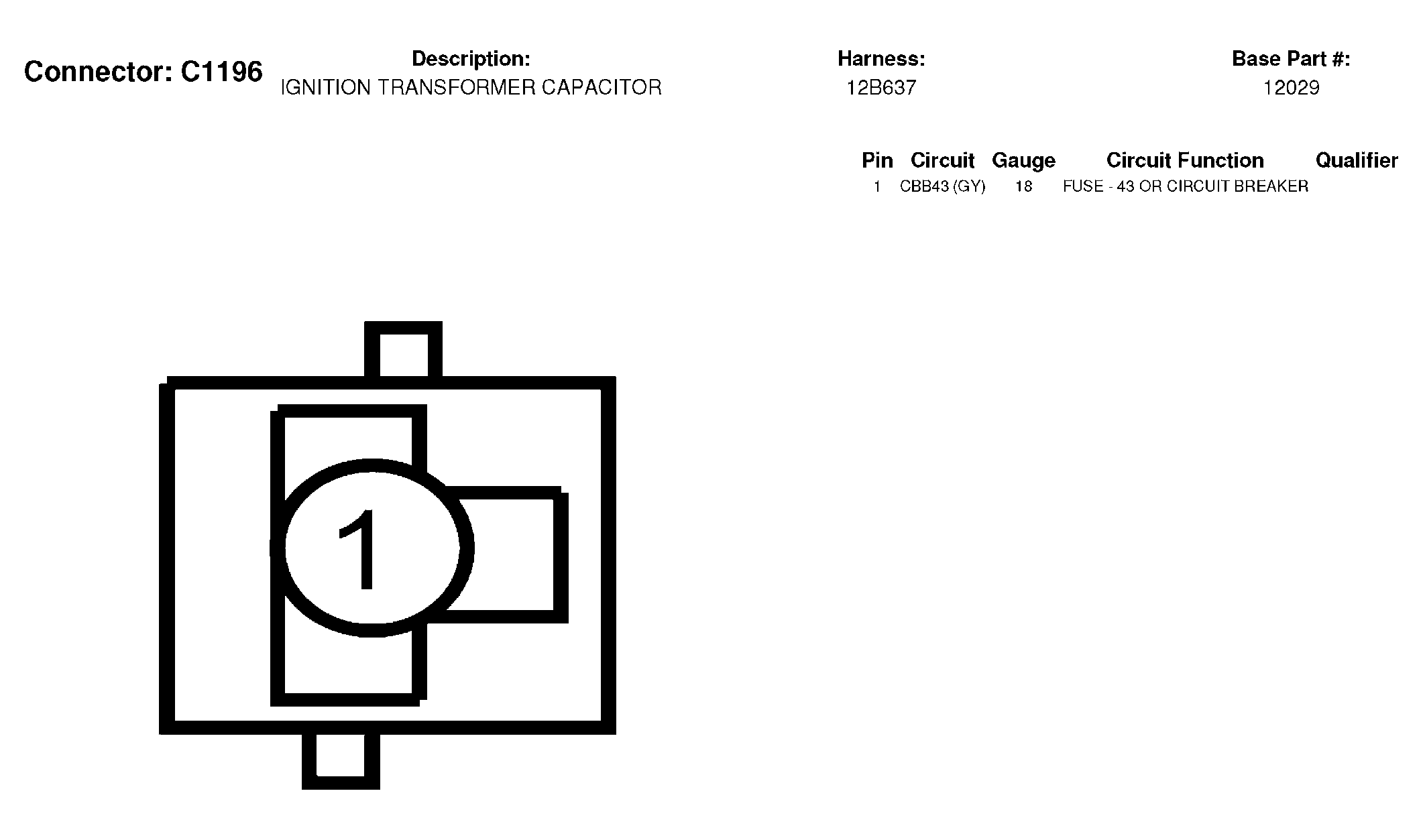

Fig 270: Ignition Transformer Capacitor Connector End View (C1196)

G04596803

Courtesy of FORD MOTOR CO.

Fig 271: Headlamp, Left Connector End View (C1284)

G04596804

Courtesy of FORD MOTOR CO.

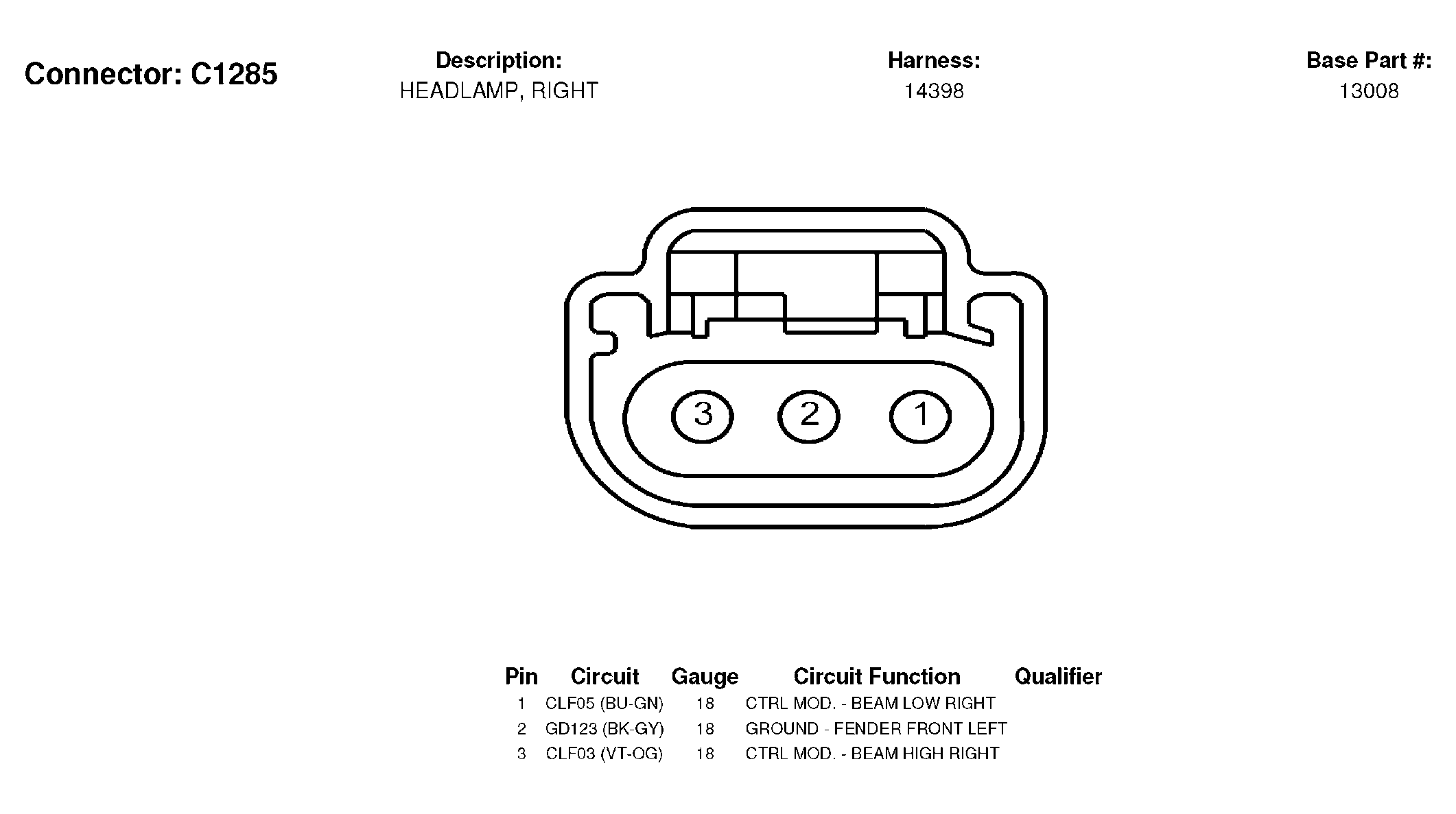

Fig 272: Headlamp, Right Connector End View (C1285)

G04596805

Courtesy of FORD MOTOR CO.

Fig 273: Camshaft Position Sensor 1 Connector End View (C1366)

G04596806

Courtesy of FORD MOTOR CO.

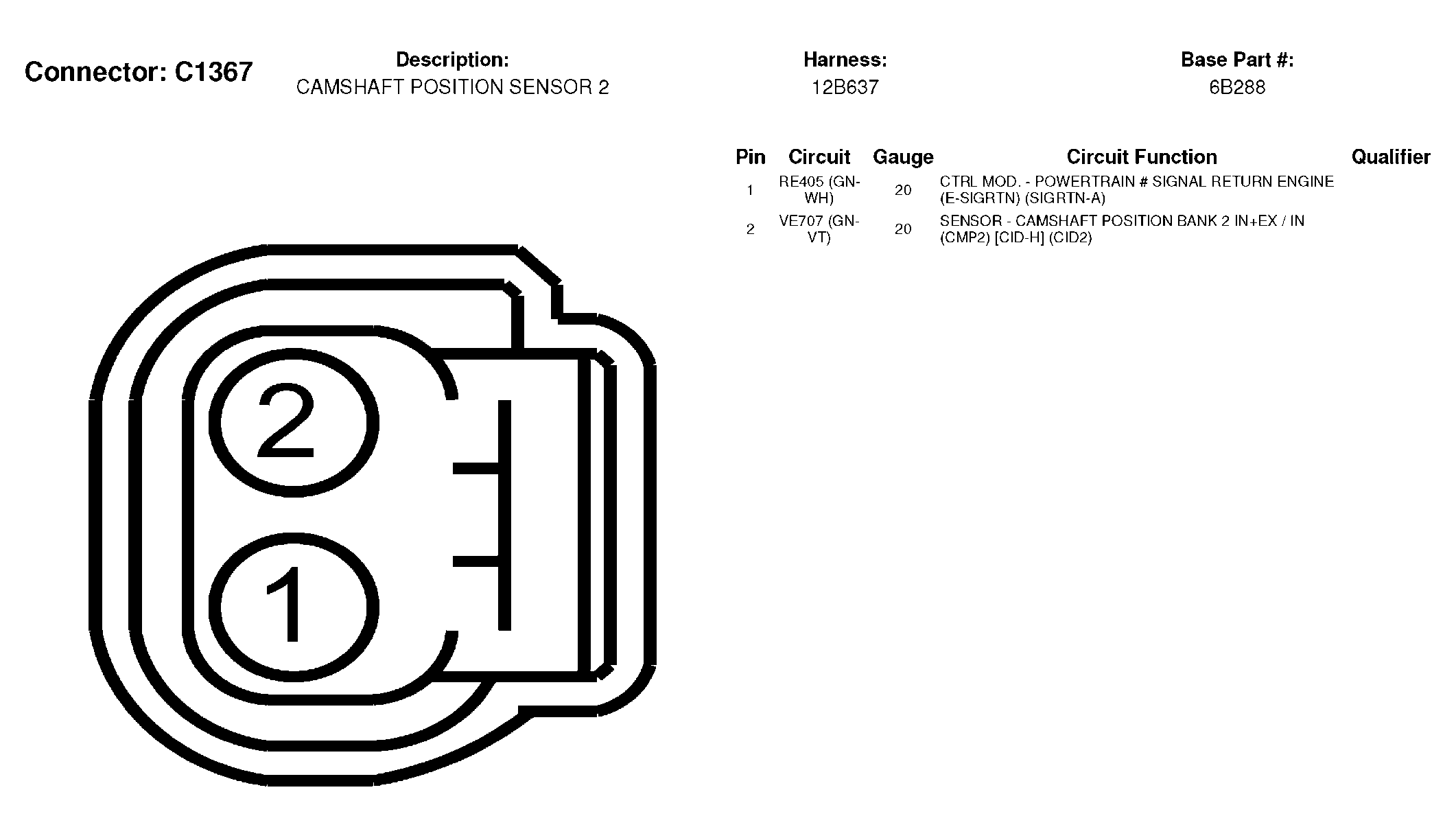

Fig 274: Camshaft Position Sensor 2 Connector End View (C1367)

G04596807

Courtesy of FORD MOTOR CO.

Fig 275: Electronic Throttle Control (ETC) Motor Connector End View (C1368)

G04596808

Courtesy of FORD MOTOR CO.

Fig 276: Two-Way Washer Pump Motor Connector End View (C1397)

G04596809

Courtesy of FORD MOTOR CO.

Fig 277: Charge Motion Control Valve (CMCV) Connector End View (C1442)

G04596810

Courtesy of FORD MOTOR CO.

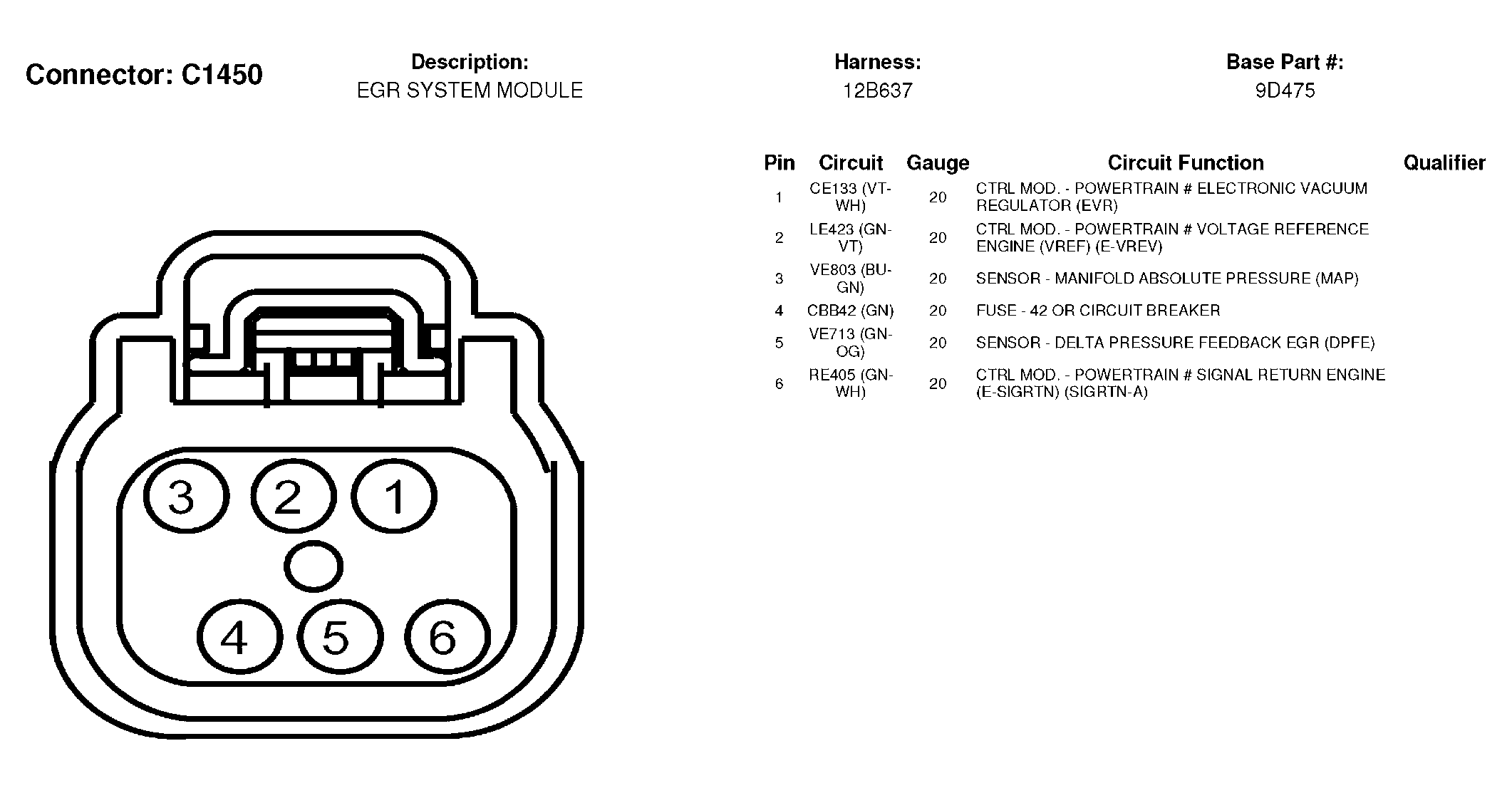

Fig 278: EGR System Module Connector End View (C1450)

G04596811

Courtesy of FORD MOTOR CO.

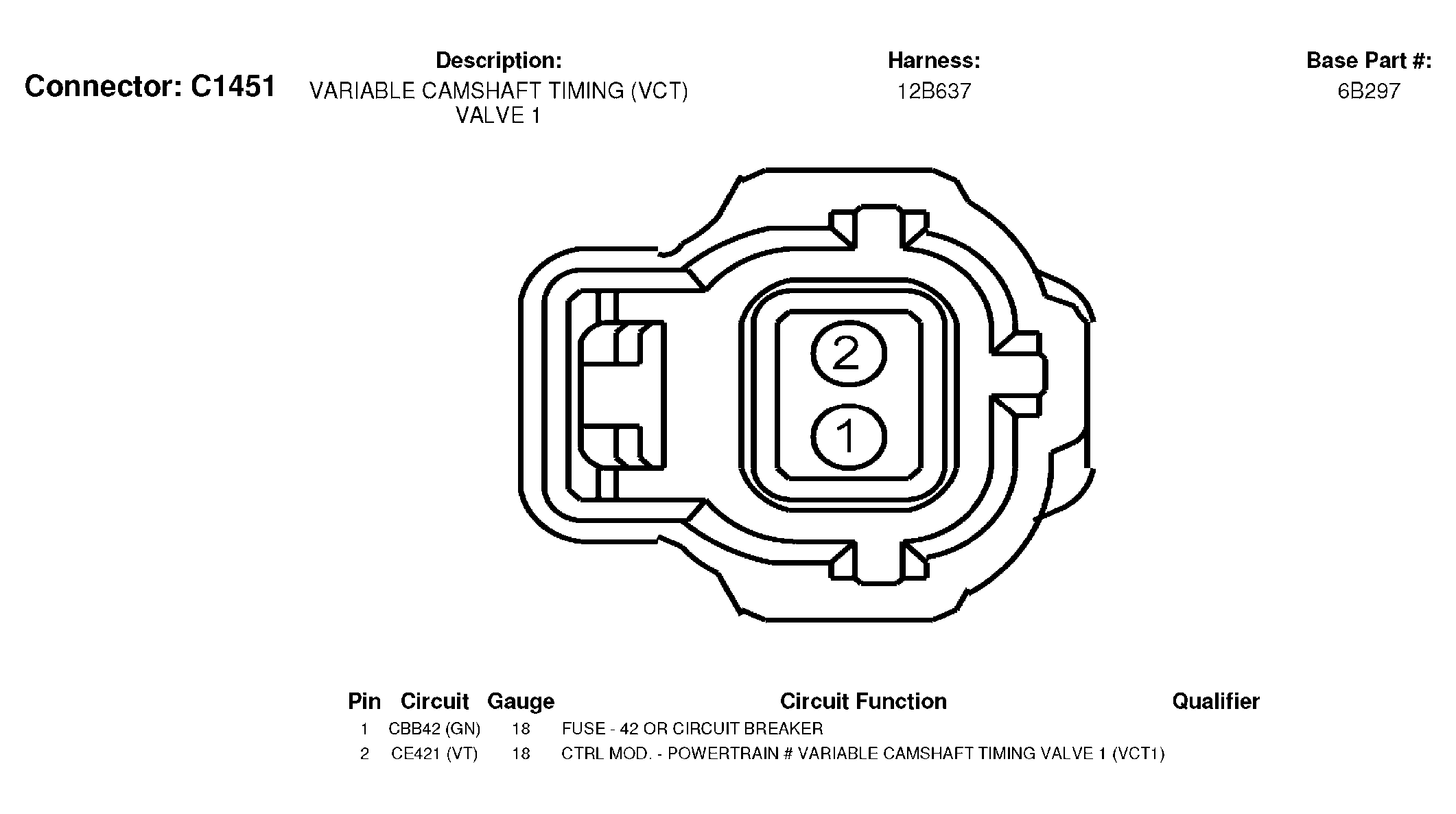

Fig 279: Variable Camshaft Timing (VCT) Valve 1 Connector End View (C1451)

G04596812

Courtesy of FORD MOTOR CO.

Fig 280: Variable Camshaft Timing (VCT) Valve 2 Connector End View (C1452)

G04596813

Courtesy of FORD MOTOR CO.

Fig 281: Forward Crash Sensor, Left Connector End View (C1465)

G04596814

Courtesy of FORD MOTOR CO.

Fig 282: Forward Crash Sensor, Right Connector End View (C1466)

G04596815

Courtesy of FORD MOTOR CO.

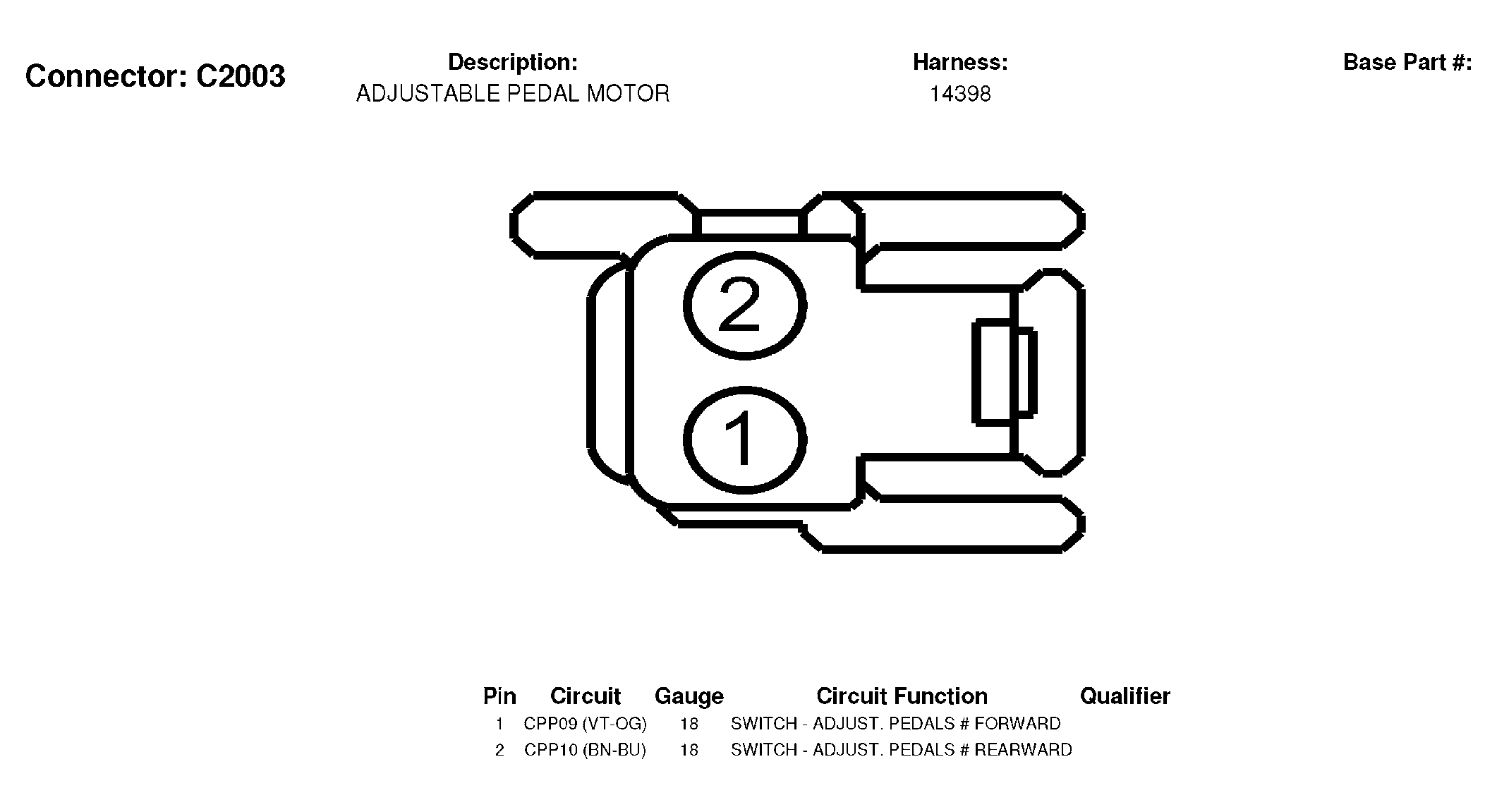

Fig 283: Adjustable Pedal Motor Connector End View (C2003)

G04596816

Courtesy of FORD MOTOR CO.

Fig 284: Front Blower Motor Connector End View (C2004)

G04596817

Courtesy of FORD MOTOR CO.

Fig 285: Passive Anti-Theft Transceiver Connector End View (C2007)

G04596818

Courtesy of FORD MOTOR CO.

Fig 286: Brake Shift Interlock Connector End View (C2008)

G04596819

Courtesy of FORD MOTOR CO.

Fig 287: Park Brake Switch Connector End View (C2015)

G04596820

Courtesy of FORD MOTOR CO.

Fig 288: Blower Motor Relay 2 Connector End View (C2017)

G04596821

Courtesy of FORD MOTOR CO.

Fig 289: Accelerator Pedal Position Sensor Connector End View (C2040)

G04596822

Courtesy of FORD MOTOR CO.

Fig 290: Adjustable Pedal Motor Connector End View (C2089)

G04596823

Courtesy of FORD MOTOR CO.

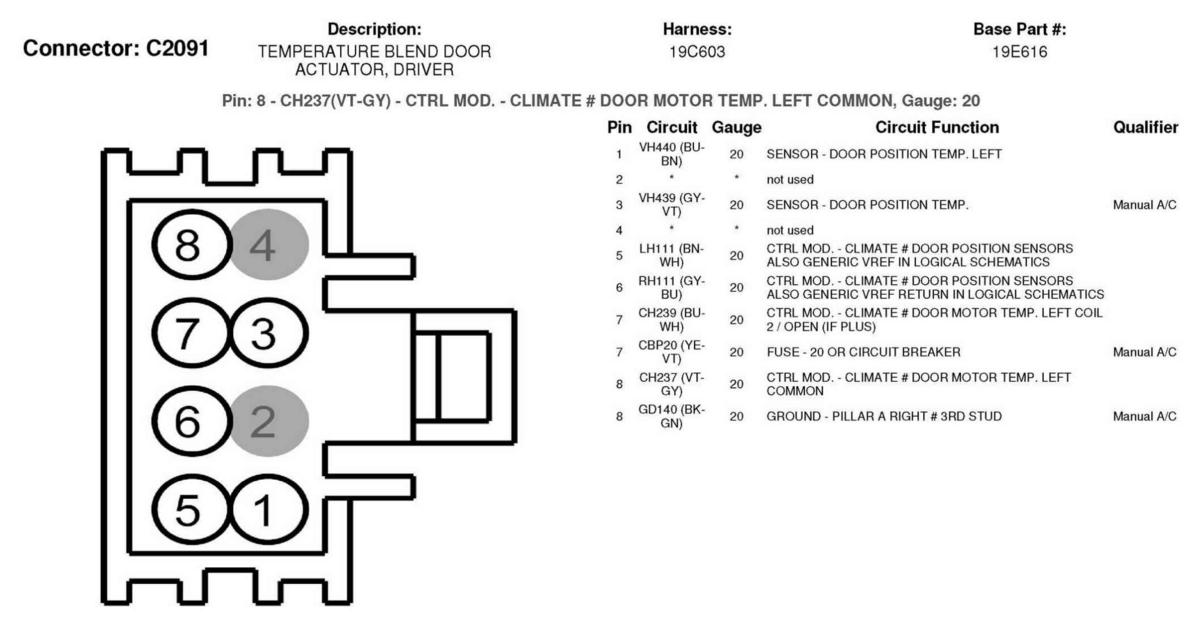

Fig 291: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G04596824

Courtesy of FORD MOTOR CO.

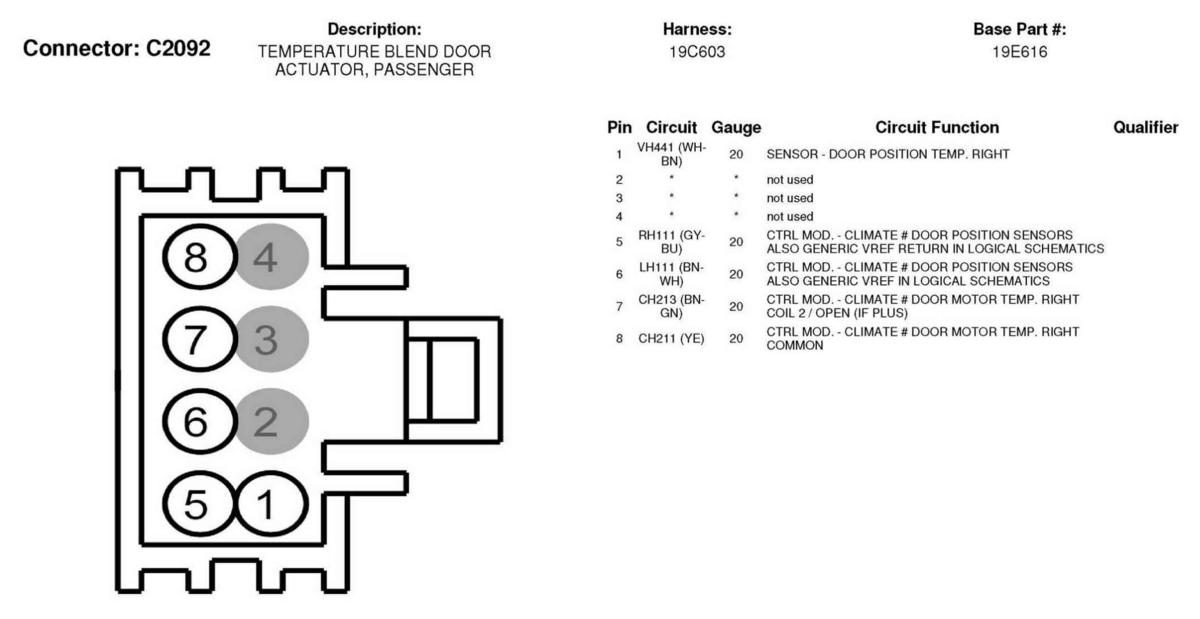

Fig 292: Temperature Blend Door Actuator, Passenger Connector End View (C2092)

G04596825

Courtesy of FORD MOTOR CO.

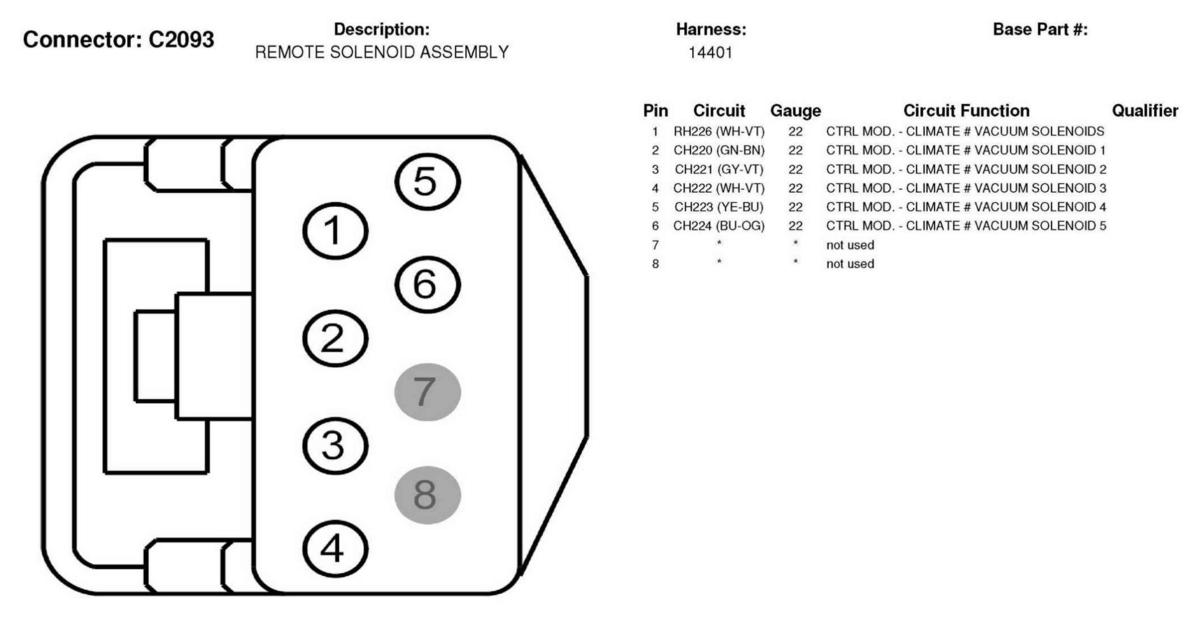

Fig 293: Remote Solenoid Assembly Connector End View (C2093)

G04596826

Courtesy of FORD MOTOR CO.

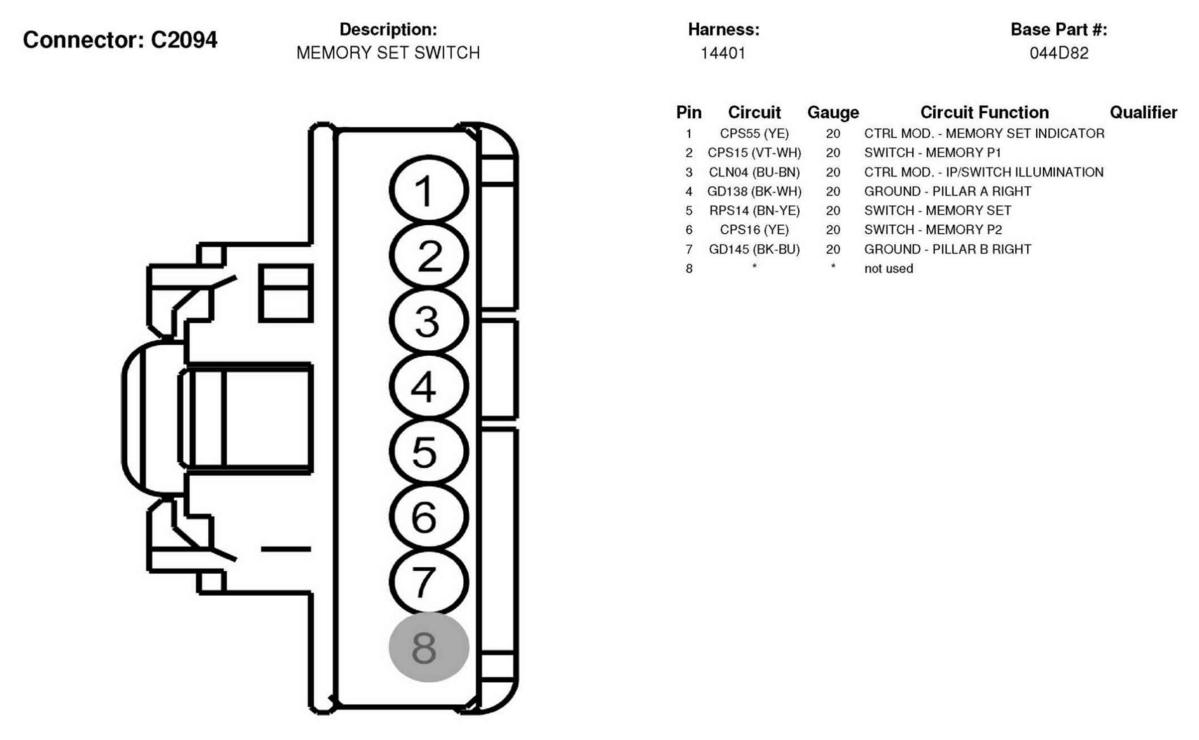

Fig 294: Memory Set Switch Connector End View (C2094)

G04596827

Courtesy of FORD MOTOR CO.

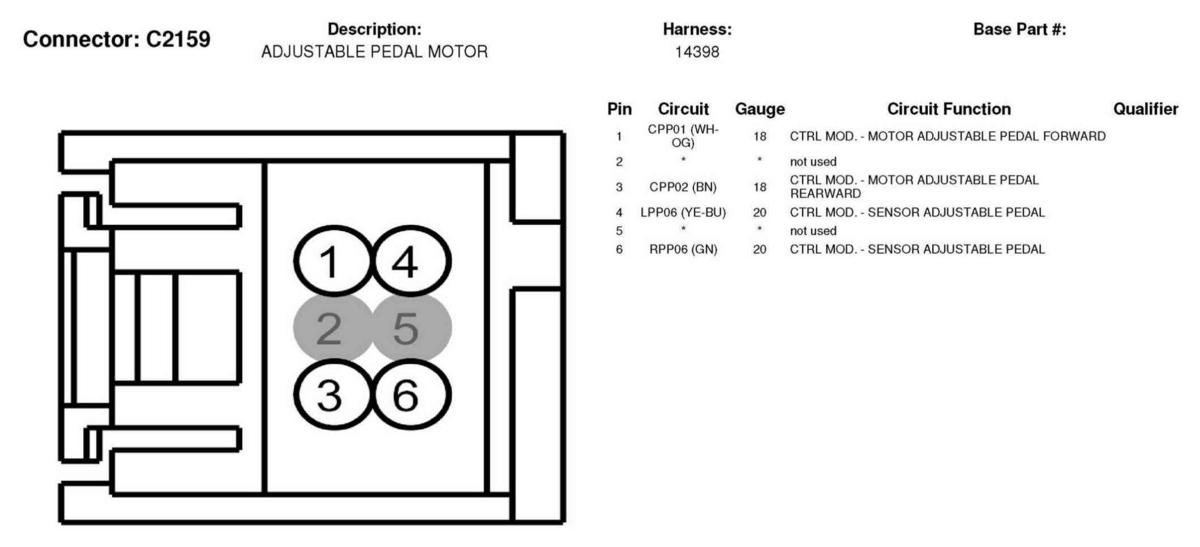

Fig 295: Adjustable Pedal Motor Connector End View (C2159)

G04596828

Courtesy of FORD MOTOR CO.

Fig 296: Audio/Climate Control Switch Connector End View (C2208)

G04596829

Courtesy of FORD MOTOR CO.

Fig 297: Neutral Two Indicator Connector End View (C2260)

G04596830

Courtesy of FORD MOTOR CO.

Fig 298: Smart Junction Box (SJB) Connector End View (C2280A)

G04596831

Courtesy of FORD MOTOR CO.

Fig 299: Smart Junction Box (SJB) Connector End View (C2280B)

G04596832

Courtesy of FORD MOTOR CO.

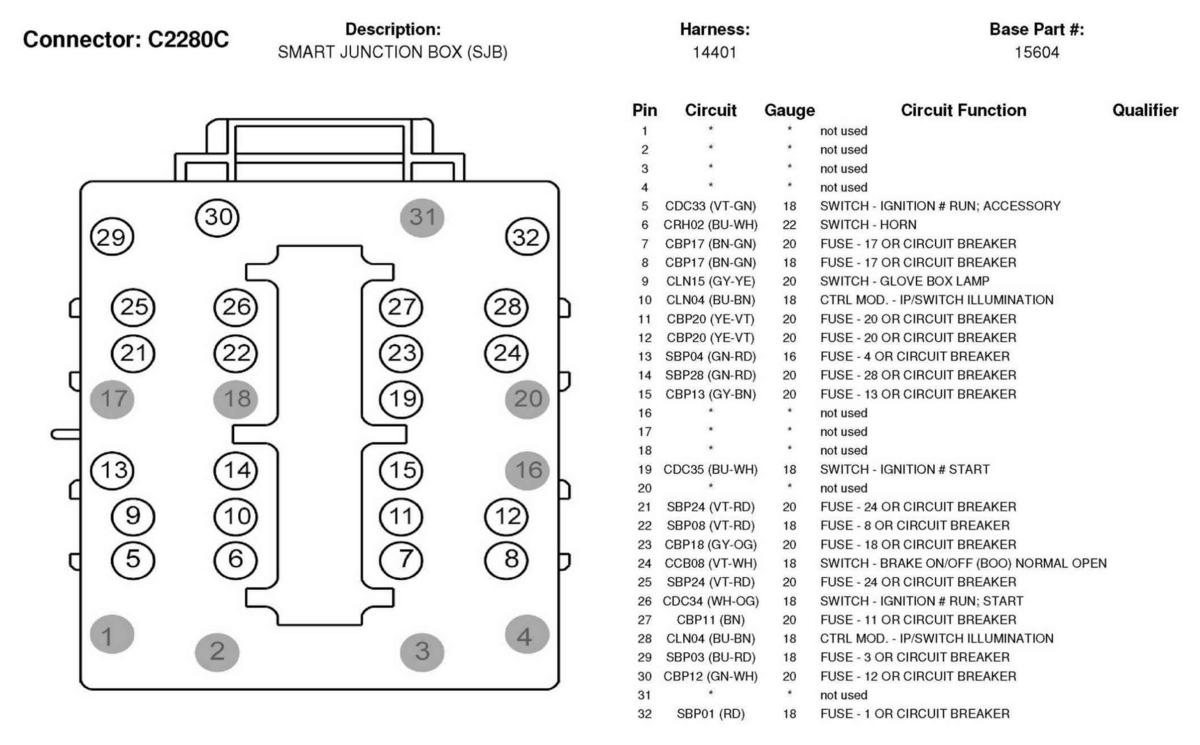

Fig 300: Smart Junction Box (SJB) Connector End View (C2280C)

G04596833

Courtesy of FORD MOTOR CO.

Fig 301: Smart Junction Box (SJB) Connector End View (C2280D)

G04596834

Courtesy of FORD MOTOR CO.

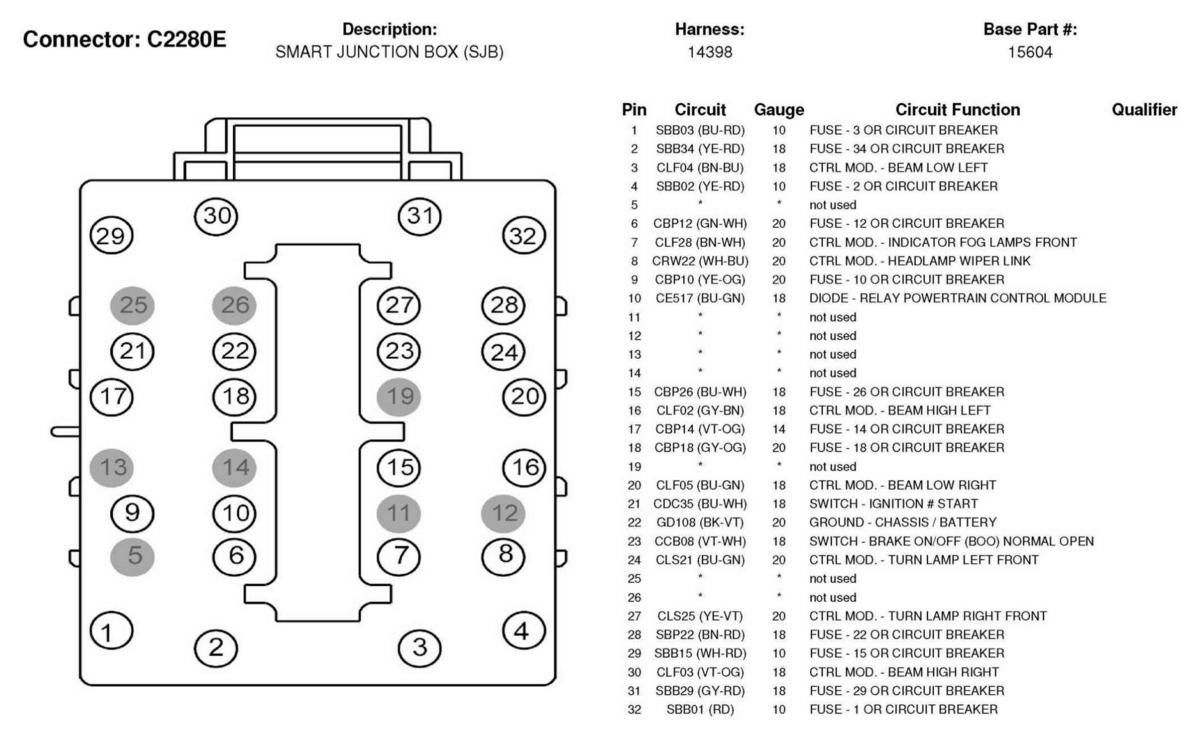

Fig 302: Smart Junction Box (SJB) Connector End View (C2280E)

G04596835

Courtesy of FORD MOTOR CO.

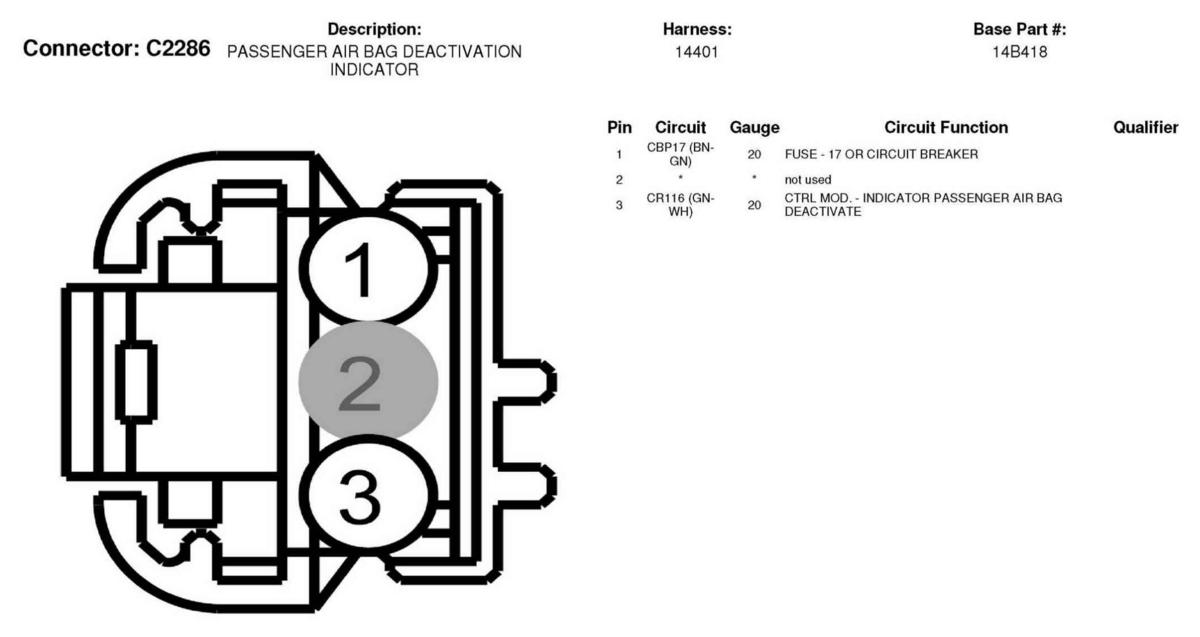

Fig 303: Passenger Air Bag Deactivation Indicator Connector End View (C2286)

G04596836

Courtesy of FORD MOTOR CO.

Fig 304: Illumination Dimmer Switch Connector End View (C2298)

G04596837

Courtesy of FORD MOTOR CO.

Fig 305: Deployable Steering Column Connector End View (C2318)

G04596838

Courtesy of FORD MOTOR CO.

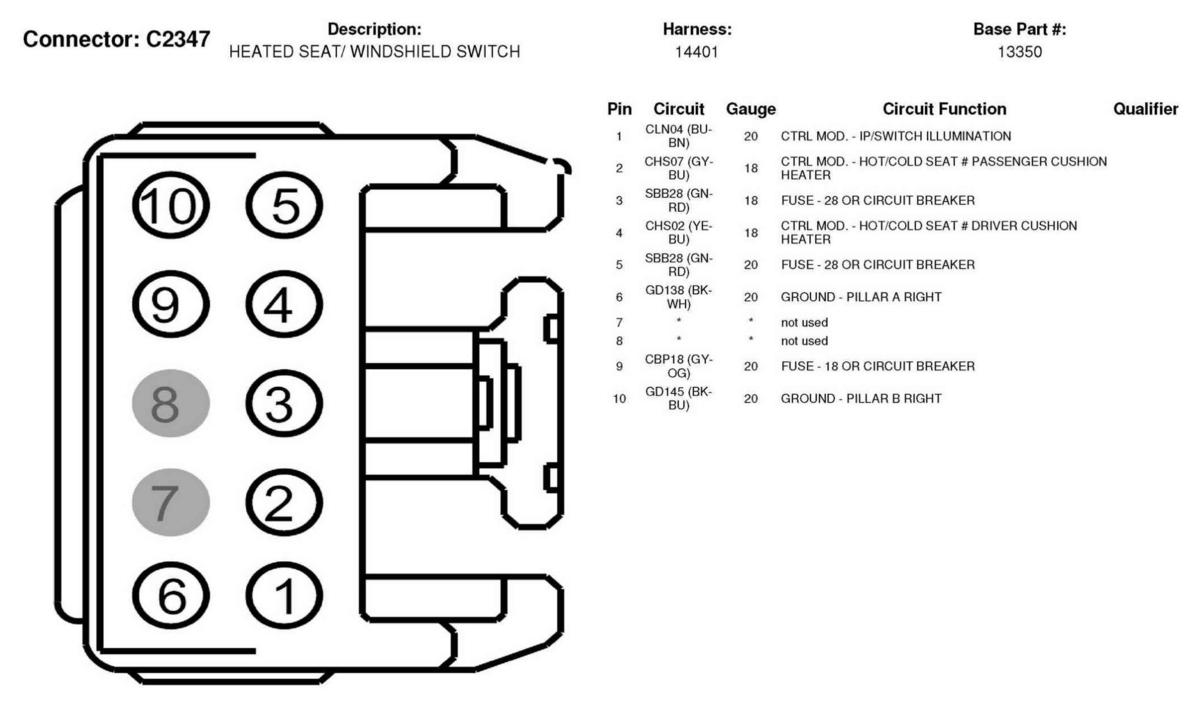

Fig 306: Heated Seat/Windshield Switch Connector End View (C2347)

G04596839

Courtesy of FORD MOTOR CO.

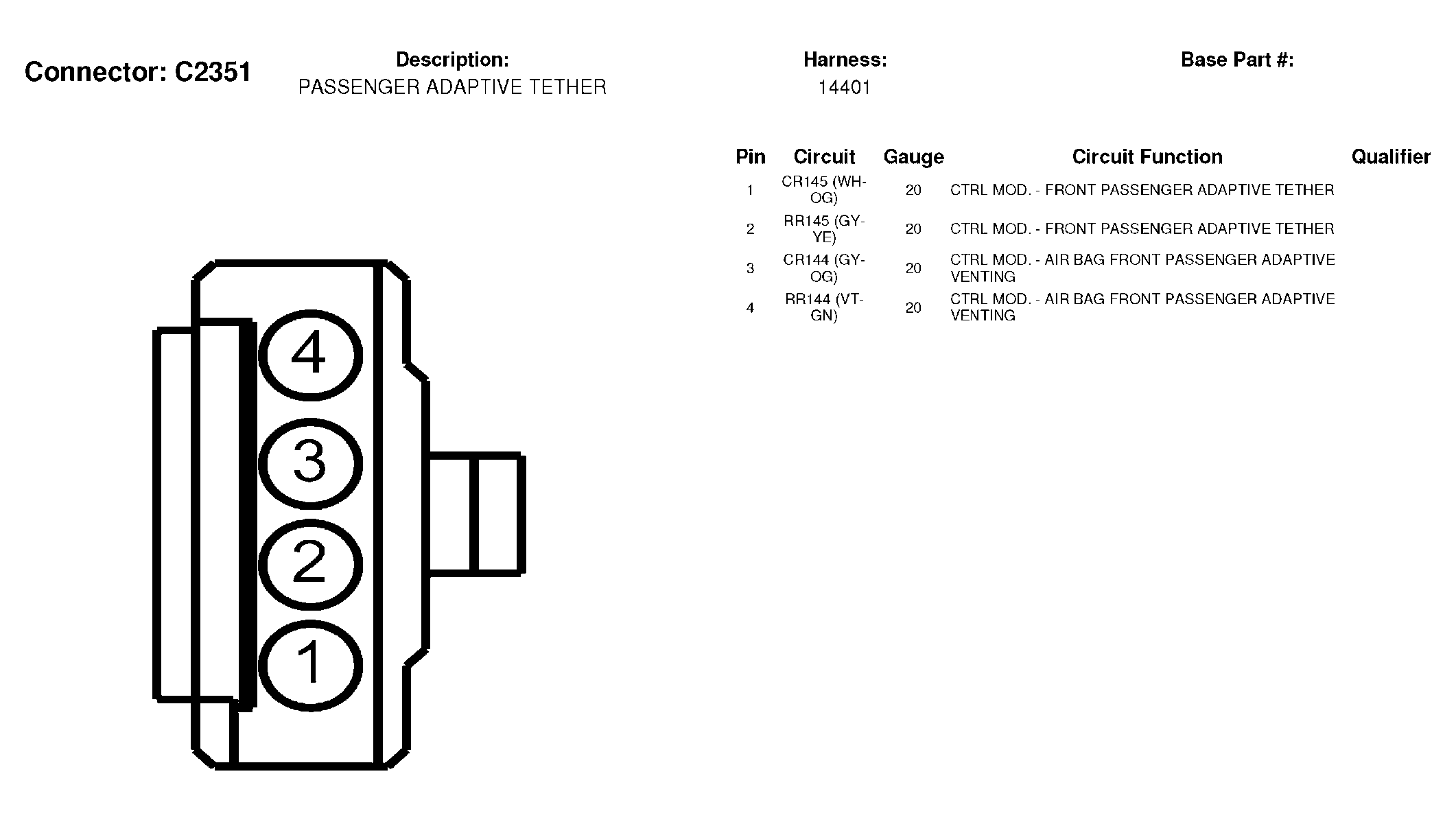

Fig 307: Passenger Adaptive Tether Connector End View (C2351)

G04596840

Courtesy of FORD MOTOR CO.

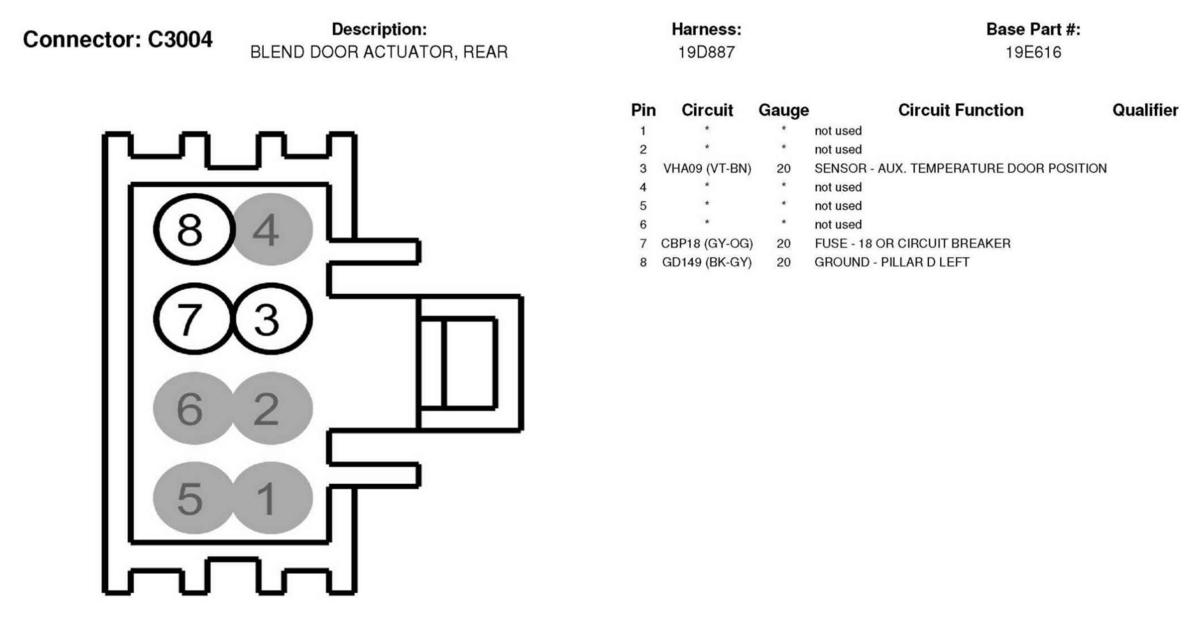

Fig 308: Blend Door Actuator, Rear Connector End View (C3004)

G04596841

Courtesy of FORD MOTOR CO.

Fig 309: Inline Connector End View (C3007)

G04596842

Courtesy of FORD MOTOR CO.

Fig 310: Power Seat Motor Assembly, Right Connector End View (C3015)

G04596843

Courtesy of FORD MOTOR CO.

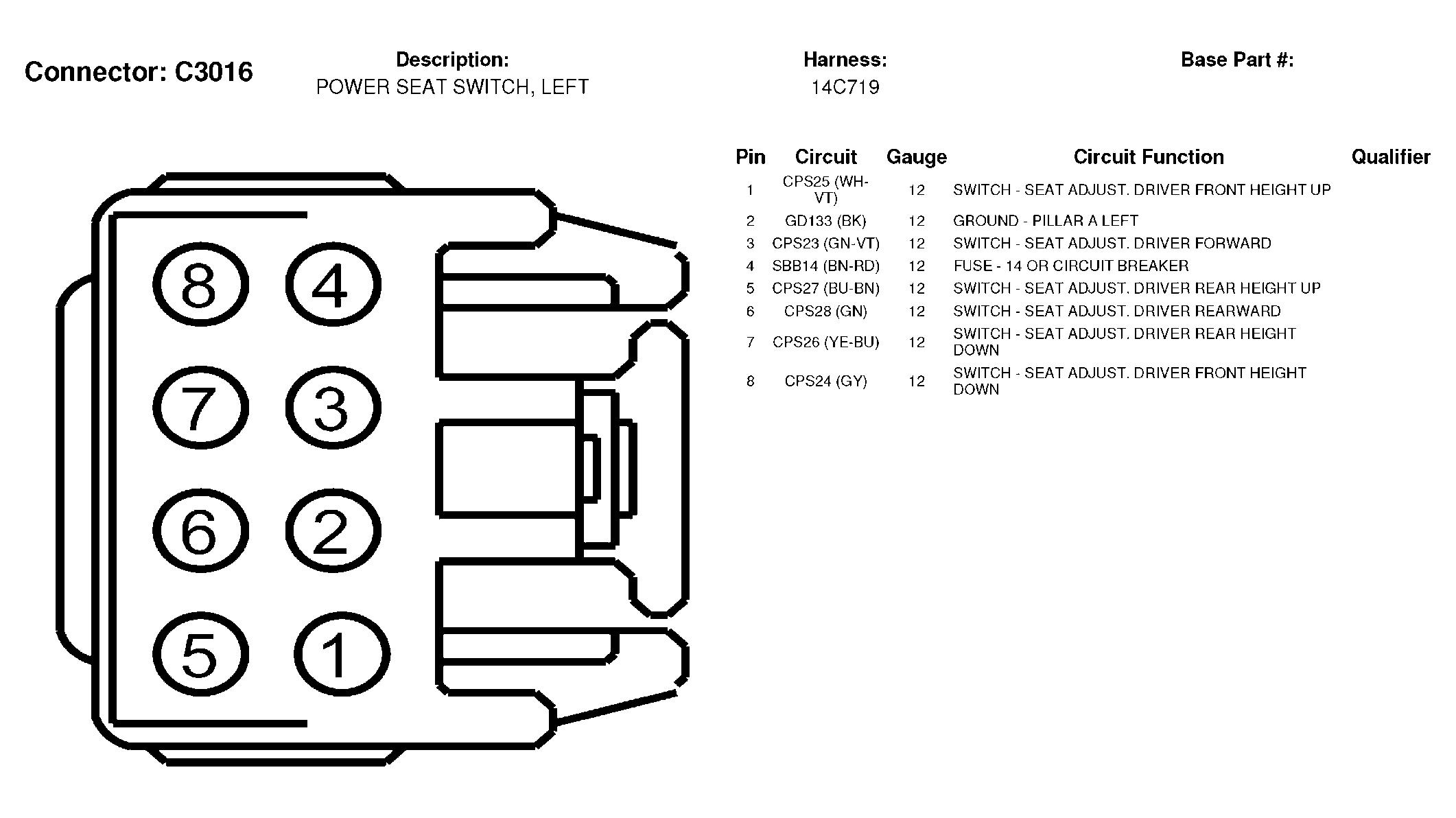

Fig 311: Power Seat Switch, Left Connector End View (C3016)

G04596844

Courtesy of FORD MOTOR CO.

Fig 312: Auxiliary Blower Motor Connector End View (C3021)

G04596845

Courtesy of FORD MOTOR CO.

Fig 313: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)

G04596846

Courtesy of FORD MOTOR CO.

Fig 314: Auxiliary A/C Relay Connector End View (C3023)

G04596847

Courtesy of FORD MOTOR CO.

Fig 315: Mode Door Actuator, Rear Connector End View (C3044)

G04596848

Courtesy of FORD MOTOR CO.

Fig 316: Inline Connector End View (C3047)

G04596849

Courtesy of FORD MOTOR CO.

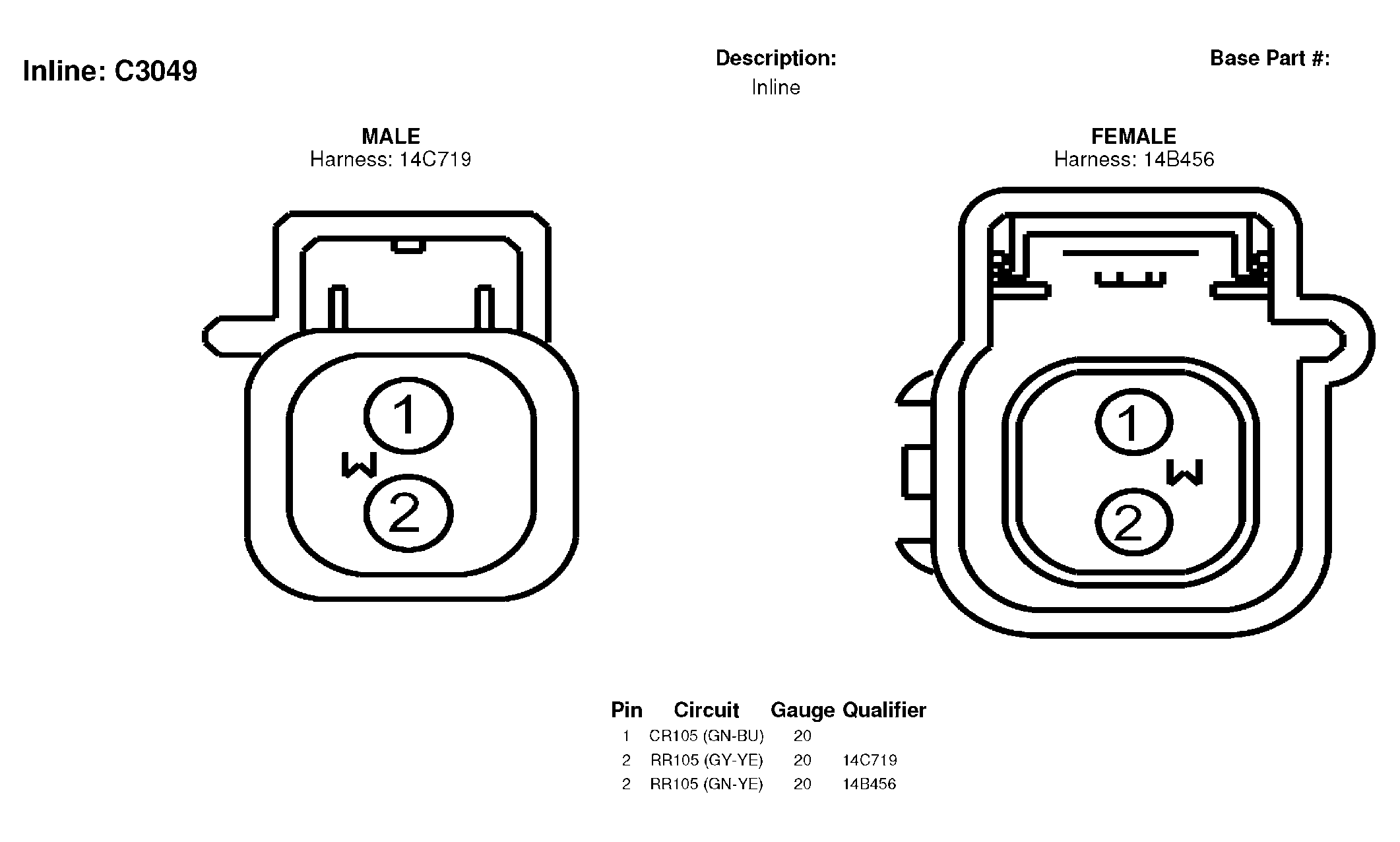

Fig 317: Inline Connector End View (C3049)

G04596850

Courtesy of FORD MOTOR CO.

Fig 318: Inline Connector End View (C3050)

G04596851

Courtesy of FORD MOTOR CO.

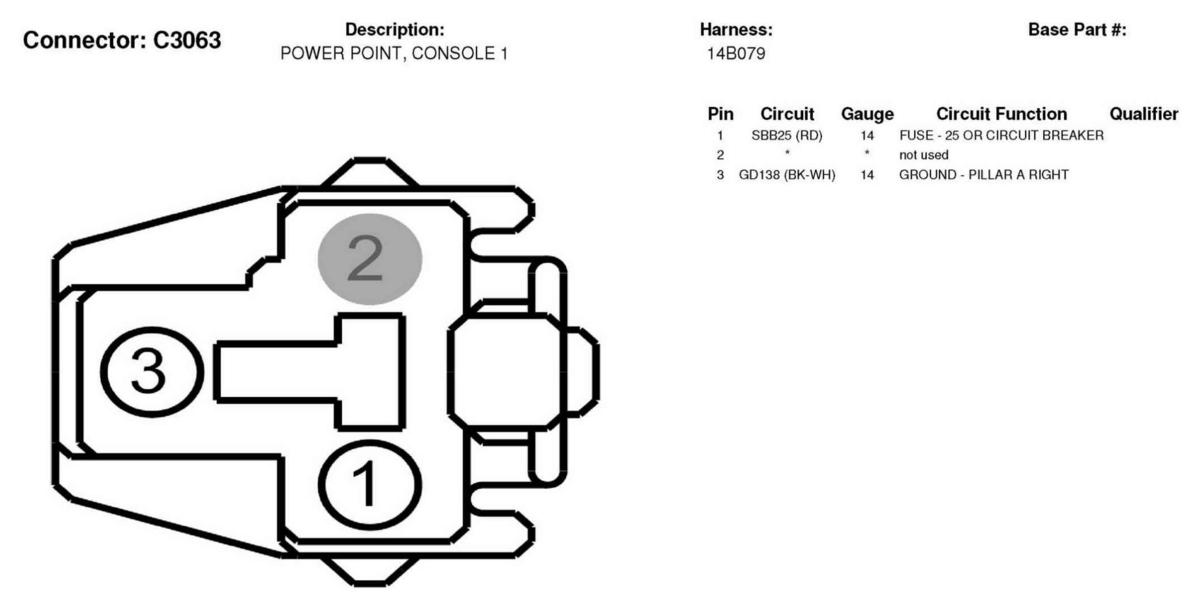

Fig 319: Power Point, Console 1 Connector End View (C3063)

G04596852

Courtesy of FORD MOTOR CO.

Fig 320: Power Point, Console 2 Connector End View (C3064)

G04596853

Courtesy of FORD MOTOR CO.

Fig 321: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G04596854

Courtesy of FORD MOTOR CO.

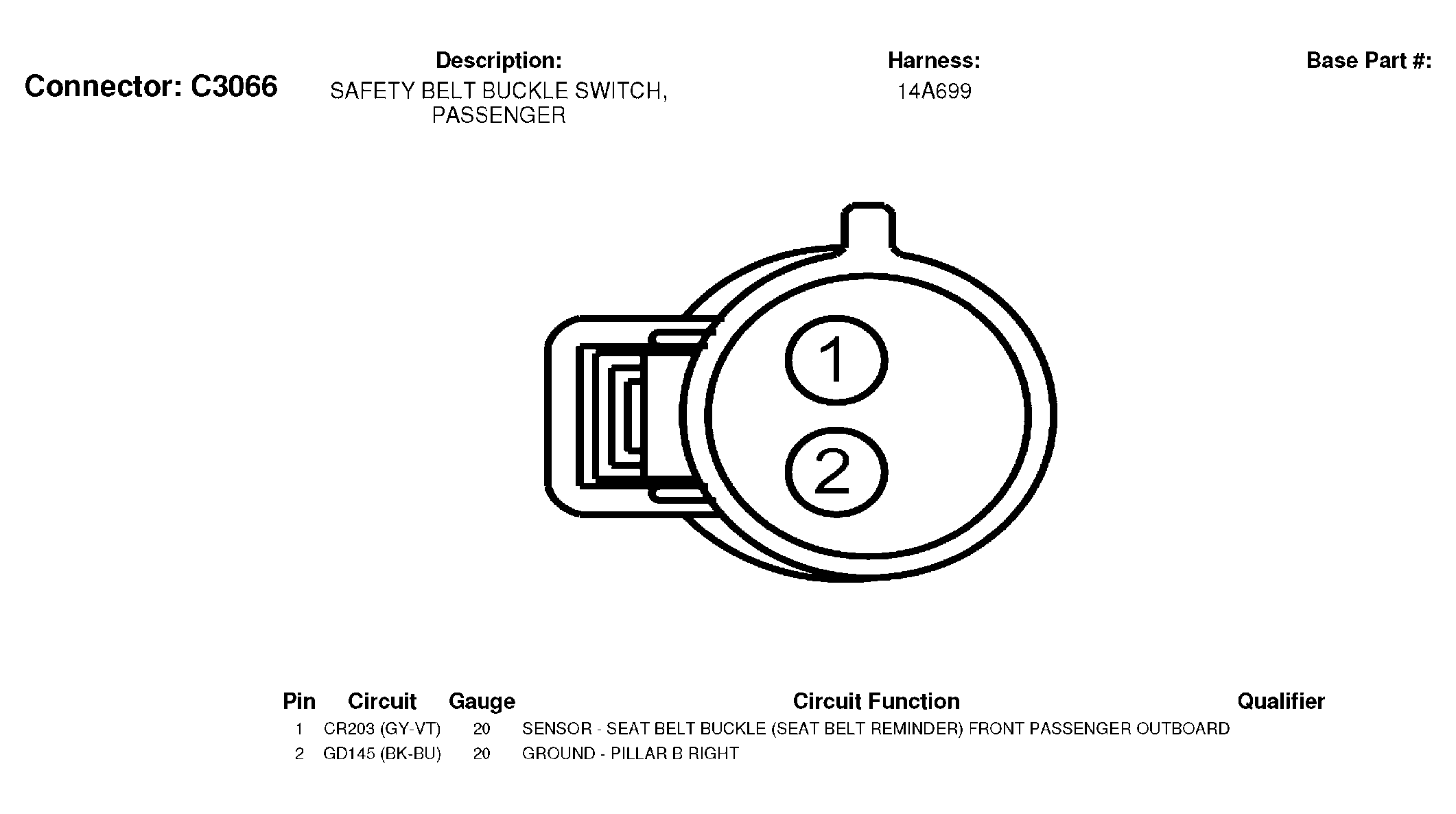

Fig 322: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G04596855

Courtesy of FORD MOTOR CO.

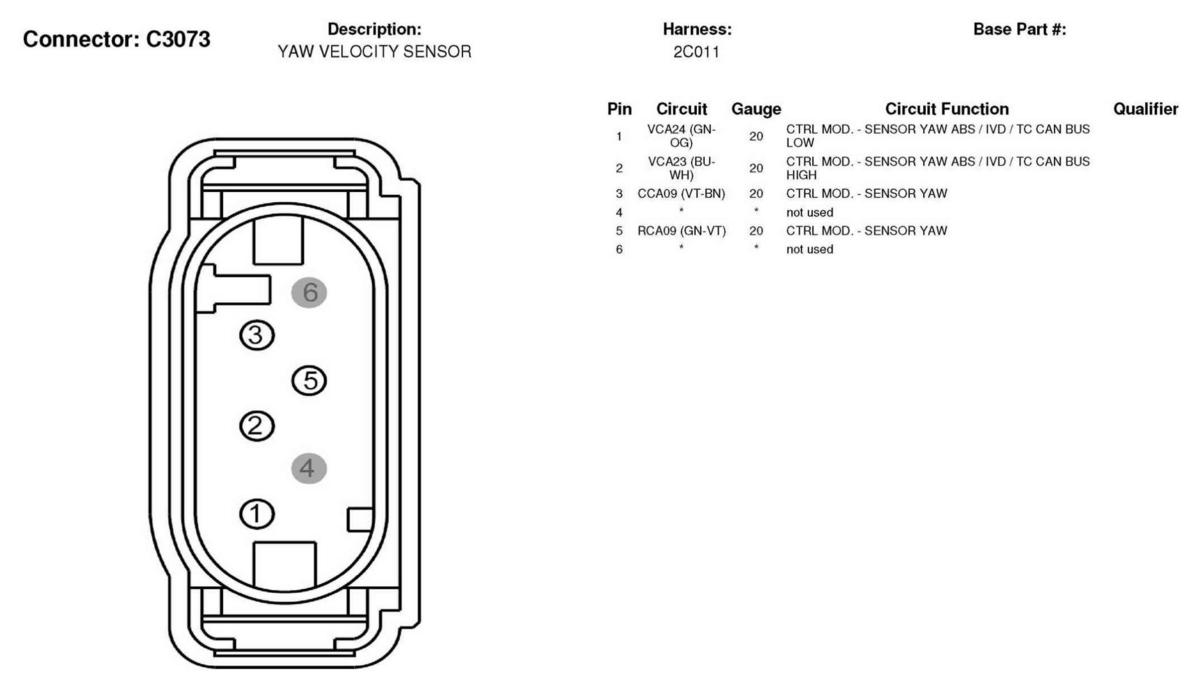

Fig 323: Yaw Velocity Sensor Connector End View (C3073)

G04596856

Courtesy of FORD MOTOR CO.

Fig 324: Transfer Case Assembly Connector End View (C3146)

G04596857

Courtesy of FORD MOTOR CO.

Fig 325: Occupant Classification Sensor (OCS) Module Connector End View (C3159)

G04596858

Courtesy of FORD MOTOR CO.

Fig 326: Running Board Motor, Left Connector End View (C3185)

G04596859

Courtesy of FORD MOTOR CO.

Fig 327: Running Board Motor, Right Connector End View (C3186)

G04596860

Courtesy of FORD MOTOR CO.

Fig 328: Driver Seat Recliner Motor Connector End View (C3187)

G04596861

Courtesy of FORD MOTOR CO.

Fig 329: Safety Belt Buckle Pretensioner, Driver Connector End View (C3201)

G04596862

Courtesy of FORD MOTOR CO.

Fig 330: Safety Belt Buckle Pretensioner, Passenger Connector End View (C3202)

G04596863

Courtesy of FORD MOTOR CO.

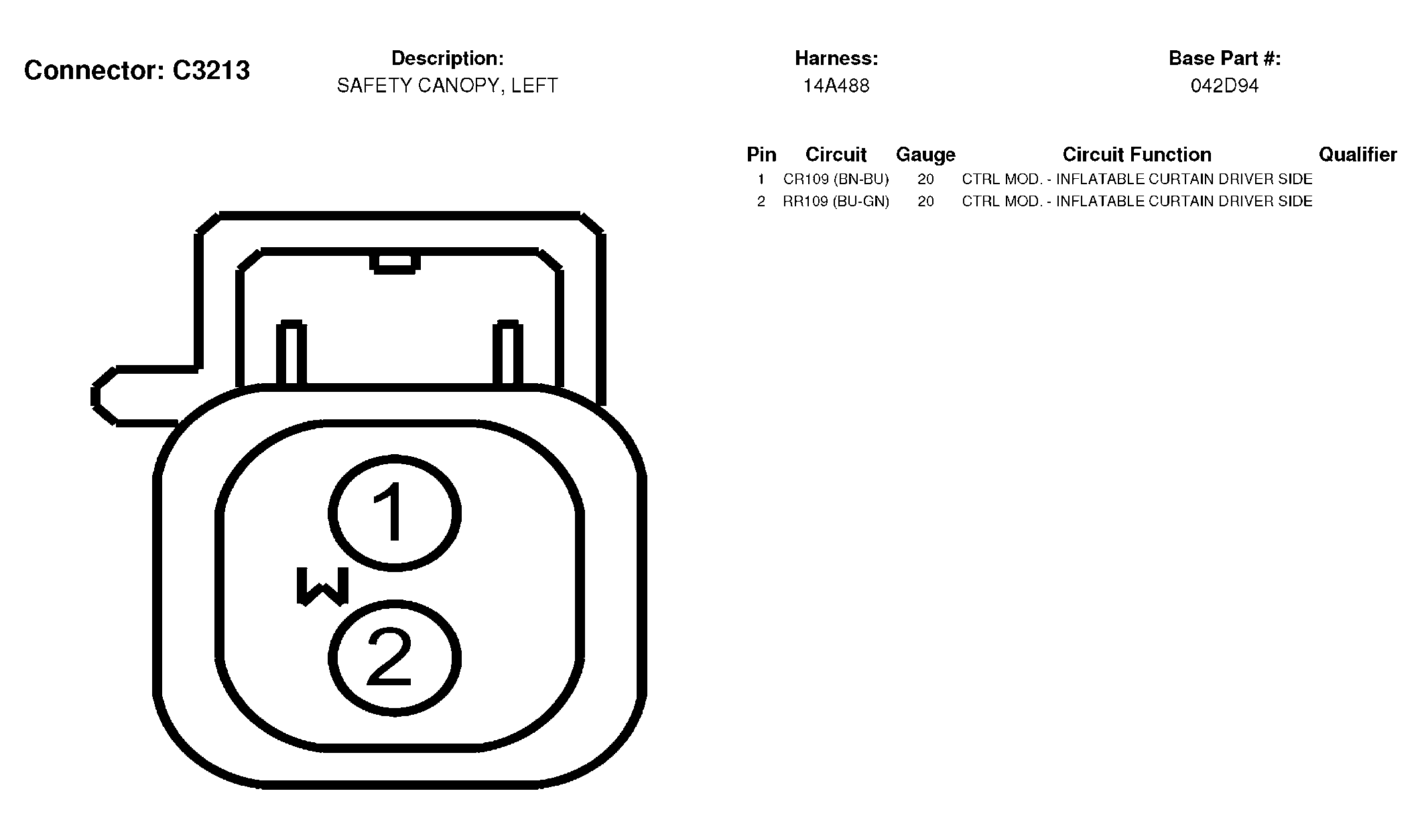

Fig 331: Safety Canopy, Left Connector End View (C3213)

G04596864

Courtesy of FORD MOTOR CO.

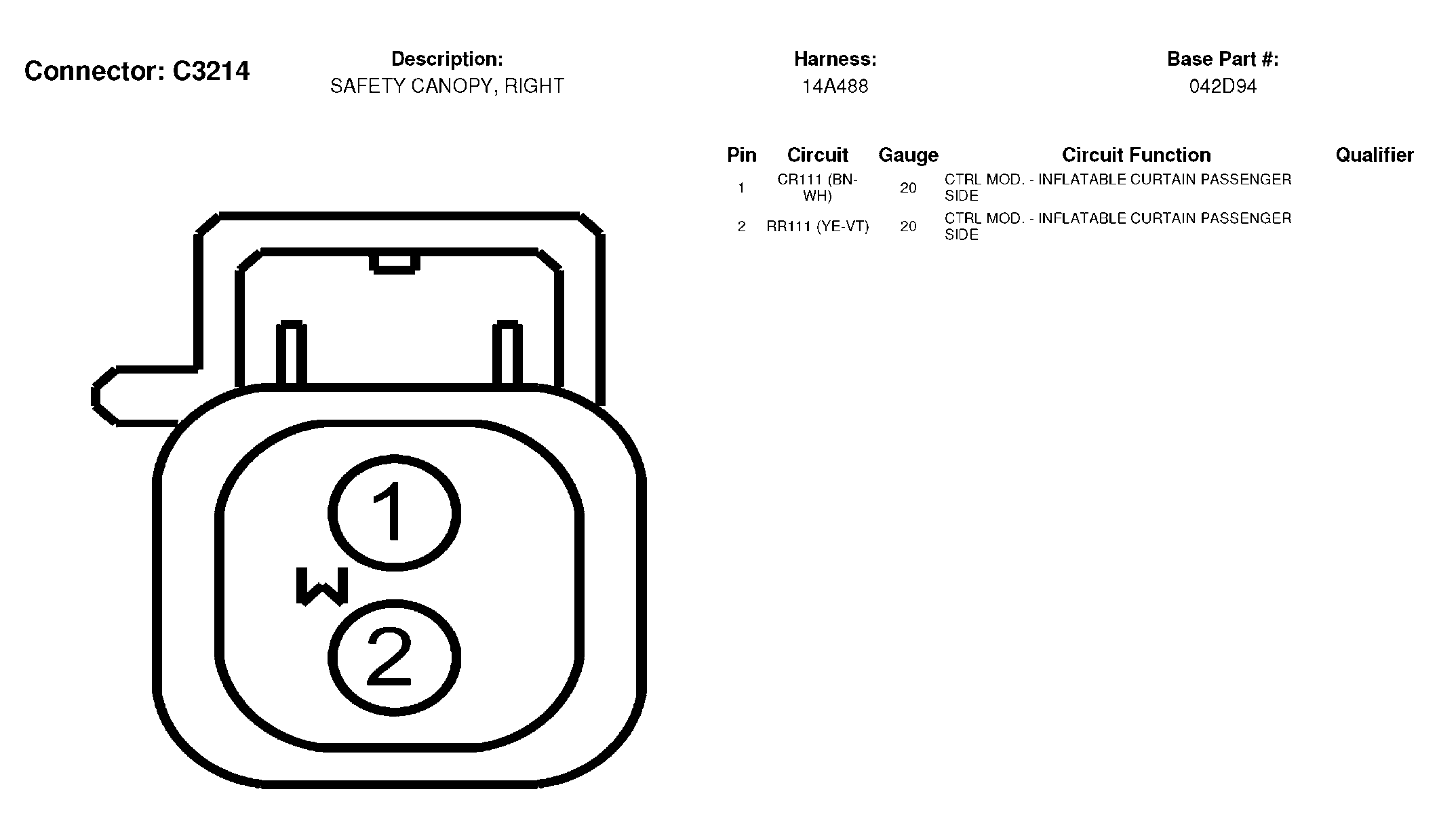

Fig 332: Safety Canopy, Right Connector End View (C3214)

G04596865

Courtesy of FORD MOTOR CO.

Fig 333: Side Impact Sensor, Left Rear Connector End View (C3248)

G04596866

Courtesy of FORD MOTOR CO.

Fig 334: Side Impact Sensor, Right Rear Connector End View (C3249)

G04596867

Courtesy of FORD MOTOR CO.

Fig 335: Satellite Road Receiver Connector End View (C3290)

G04596868

Courtesy of FORD MOTOR CO.

Fig 336: Seat Pressure Sensor, Left Connector End View (C3291)

G04596869

Courtesy of FORD MOTOR CO.

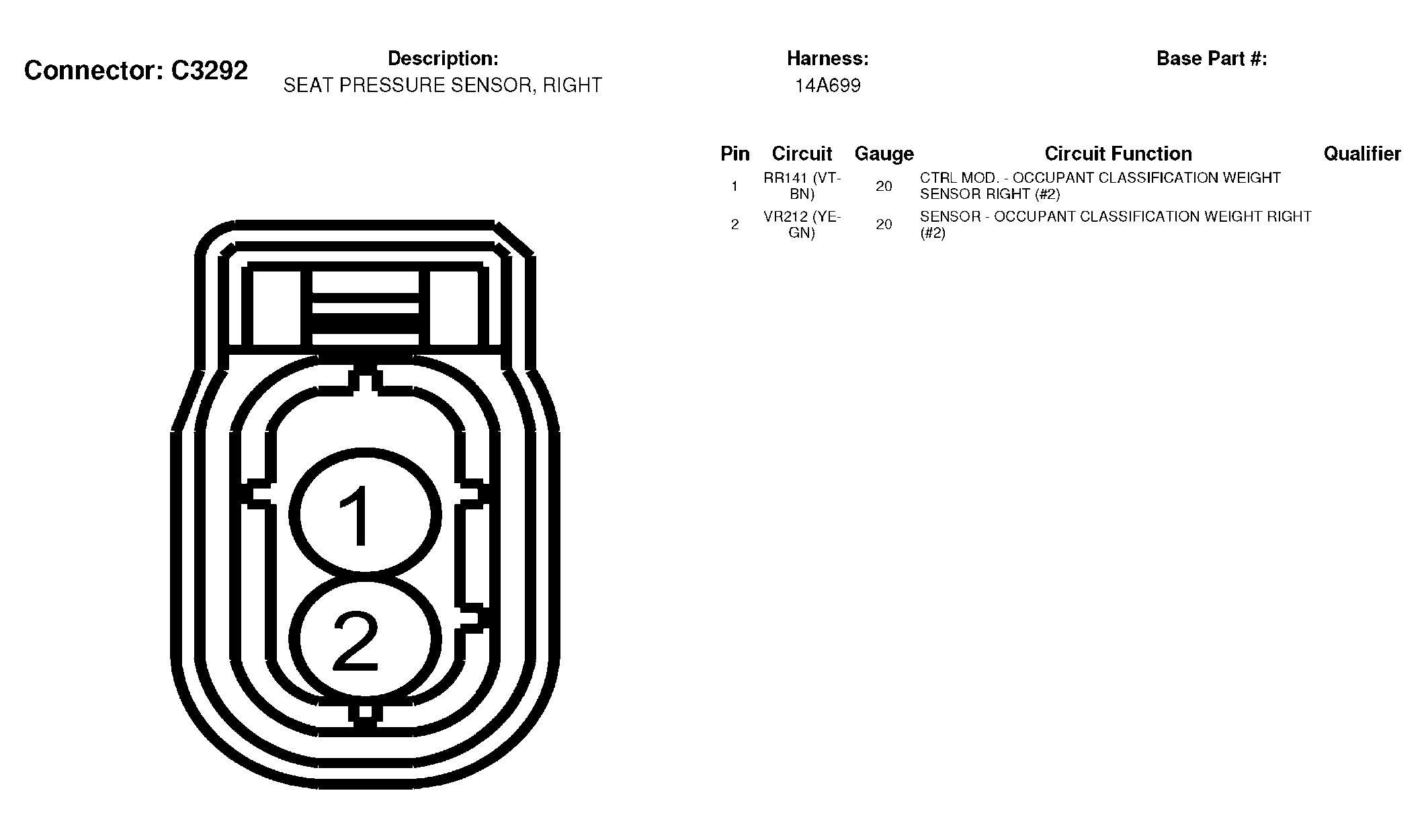

Fig 337: Seat Pressure Sensor, Right Connector End View (C3292)

G04596870

Courtesy of FORD MOTOR CO.

Fig 338: Inline Connector End View (C4000)

G04596871

Courtesy of FORD MOTOR CO.

Fig 339: Parking Aid Sensor, Outer Left Connector End View (C4009)

G04596872

Courtesy of FORD MOTOR CO.

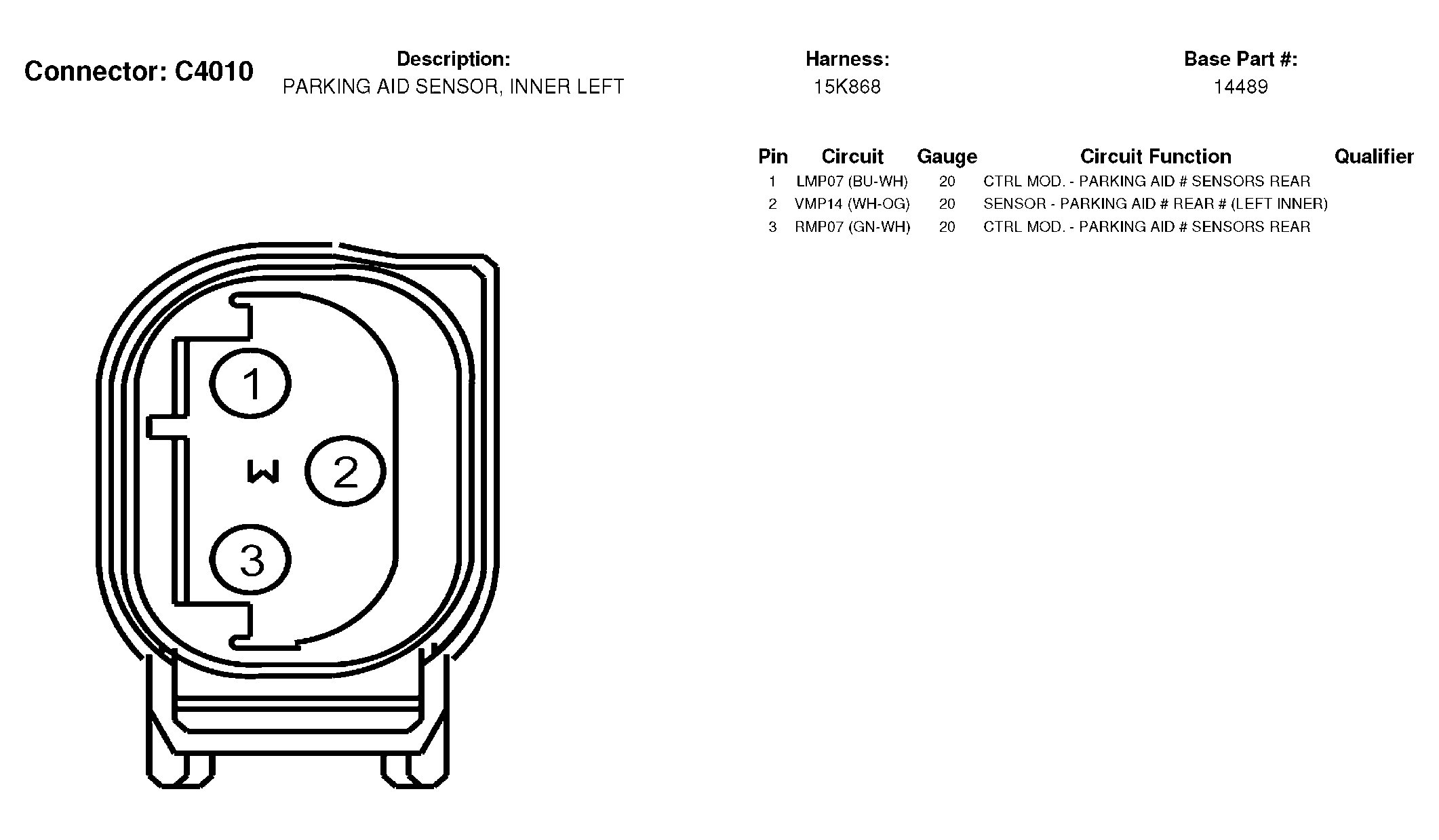

Fig 340: Parking Aid Sensor, Inner Left Connector End View (C4010)

G04596873

Courtesy of FORD MOTOR CO.

Fig 341: Parking Aid Sensor, Outer Right Connector End View (C4011)

G04596874

Courtesy of FORD MOTOR CO.

Fig 342: Parking Aid Sensor, Inner Right Connector End View (C4012)

G04596875

Courtesy of FORD MOTOR CO.

Fig 343: Parking Aid Module (PAM) Connector End View (C4014)

G04596876

Courtesy of FORD MOTOR CO.

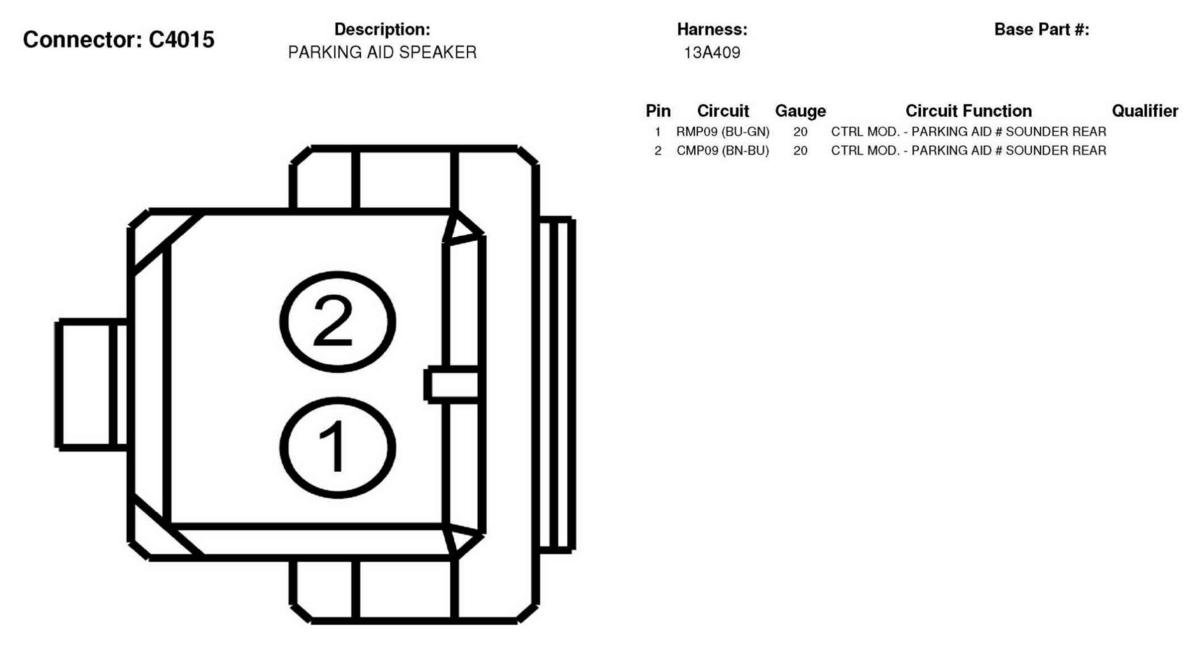

Fig 344: Parking Aid Speaker Connector End View (C4015)

G04596877

Courtesy of FORD MOTOR CO.

Fig 345: Park/Stop/ Turn Lamp, Right Rear Connector End View (C4032)

G04596878

Courtesy of FORD MOTOR CO.

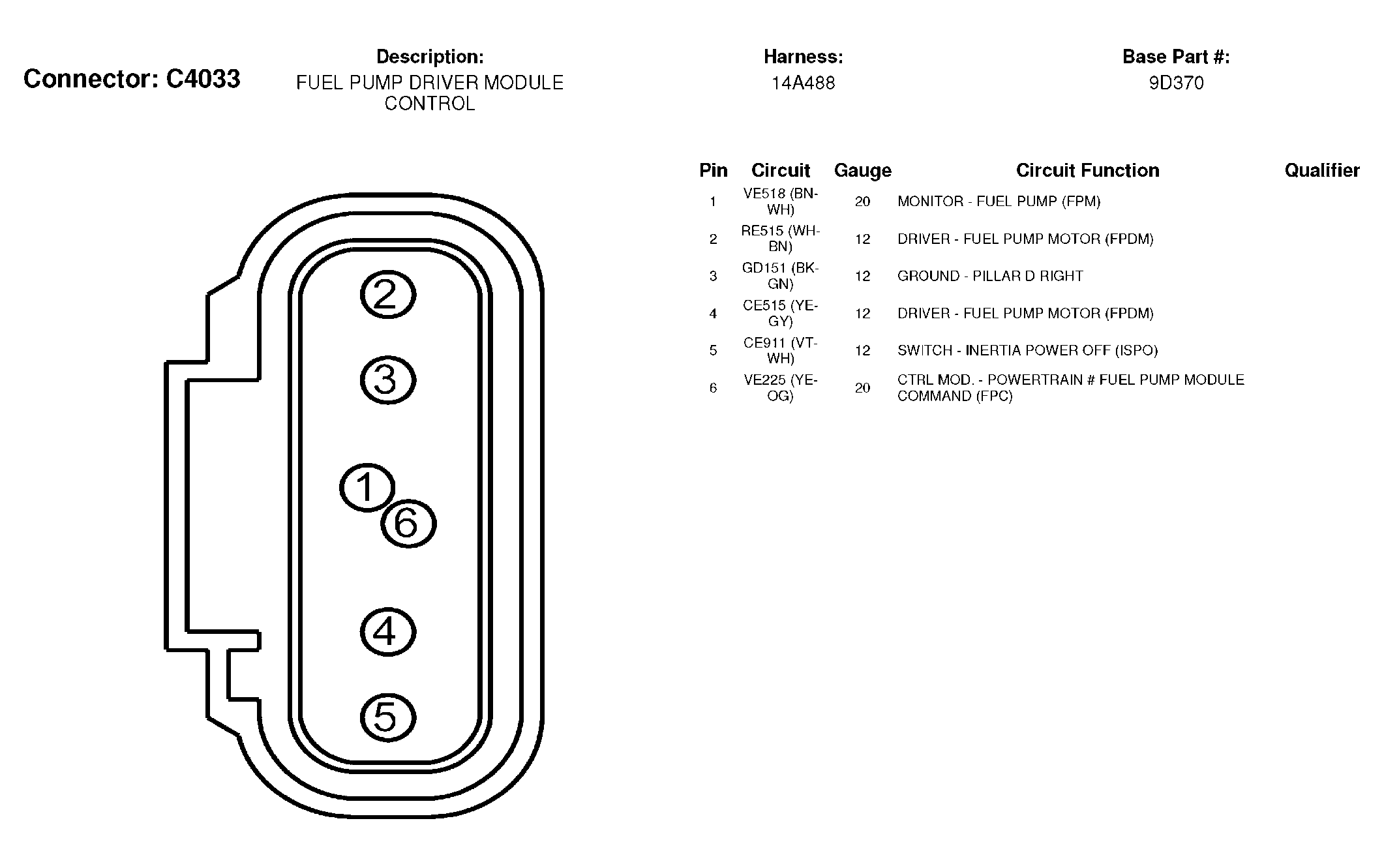

Fig 346: Fuel Pump Driver Module Control Connector End View (C4033)

G04596879

Courtesy of FORD MOTOR CO.

Fig 347: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G04596880

Courtesy of FORD MOTOR CO.

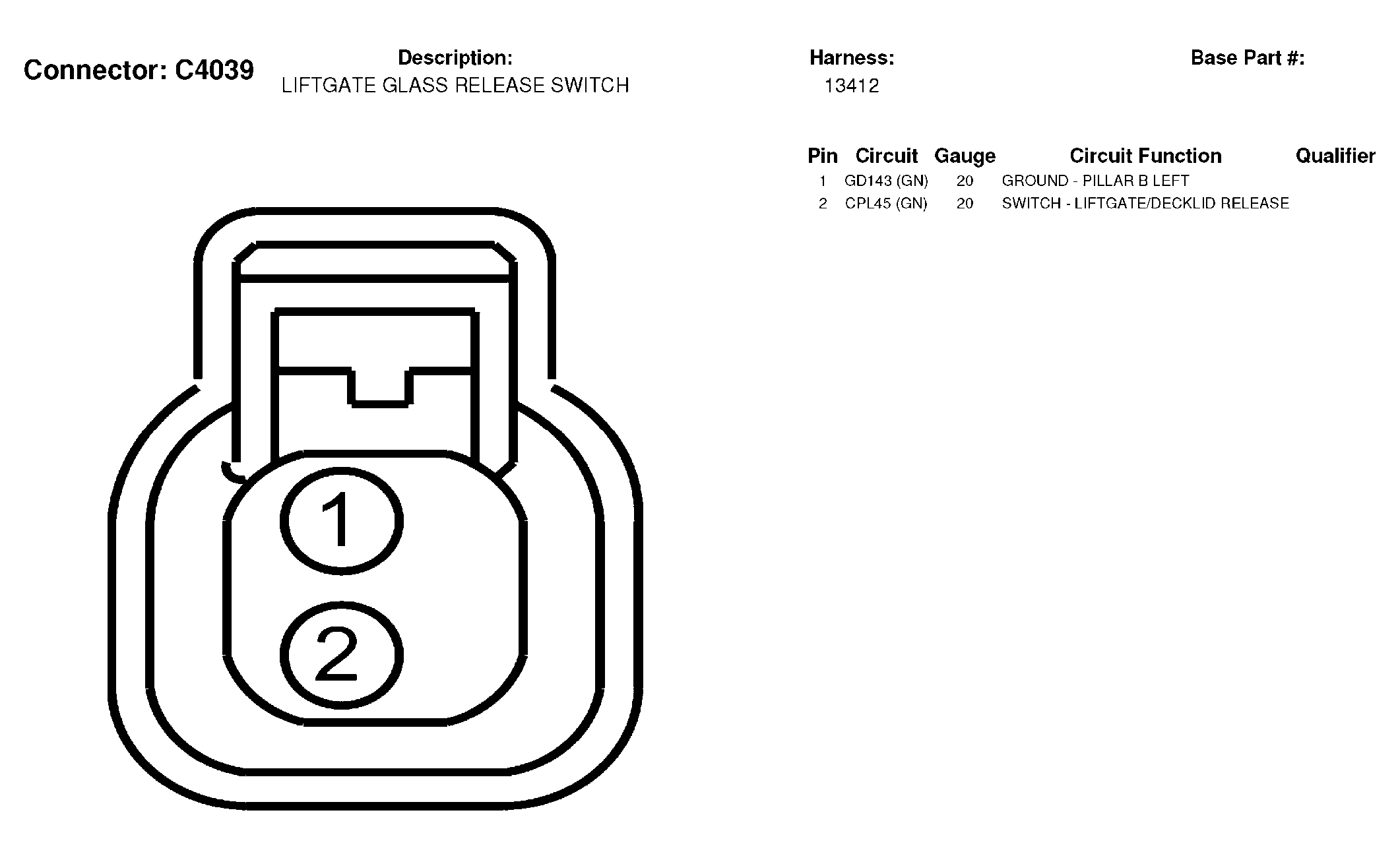

Fig 348: Liftgate Glass Release Switch Connector End View (C4039)

G04596881

Courtesy of FORD MOTOR CO.

Fig 349: Liftgate Glass Actuator Connector End View (C4040)

G04596882

Courtesy of FORD MOTOR CO.

Fig 350: Third Row Folding Seat Switch, Left Connector End View (C4179)

G04596883

Courtesy of FORD MOTOR CO.

Fig 351: Third Row Folding Seat Switch, Right Connector End View (C4180)

G04596884

Courtesy of FORD MOTOR CO.

Fig 352: Third Row Folding Seat Motor, Left Connector End View (C4181)

G04596885

Courtesy of FORD MOTOR CO.

Fig 353: Third Row Folding Seat Motor, Right Connector End View (C4182)

G04596886

Courtesy of FORD MOTOR CO.

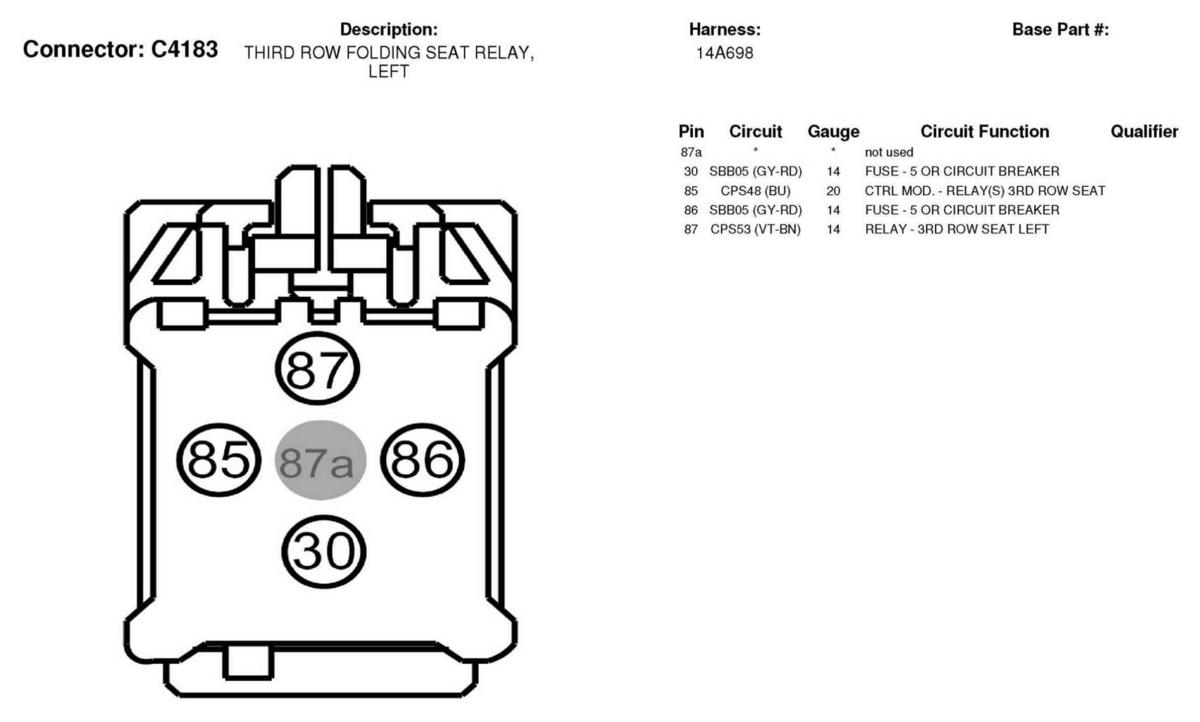

Fig 354: Third Row Folding Seat Relay, Left Connector End View (C4183)

G04596887

Courtesy of FORD MOTOR CO.

Fig 355: Third Row Folding Seat Relay, Right Connector End View (C4184)

G04596888

Courtesy of FORD MOTOR CO.

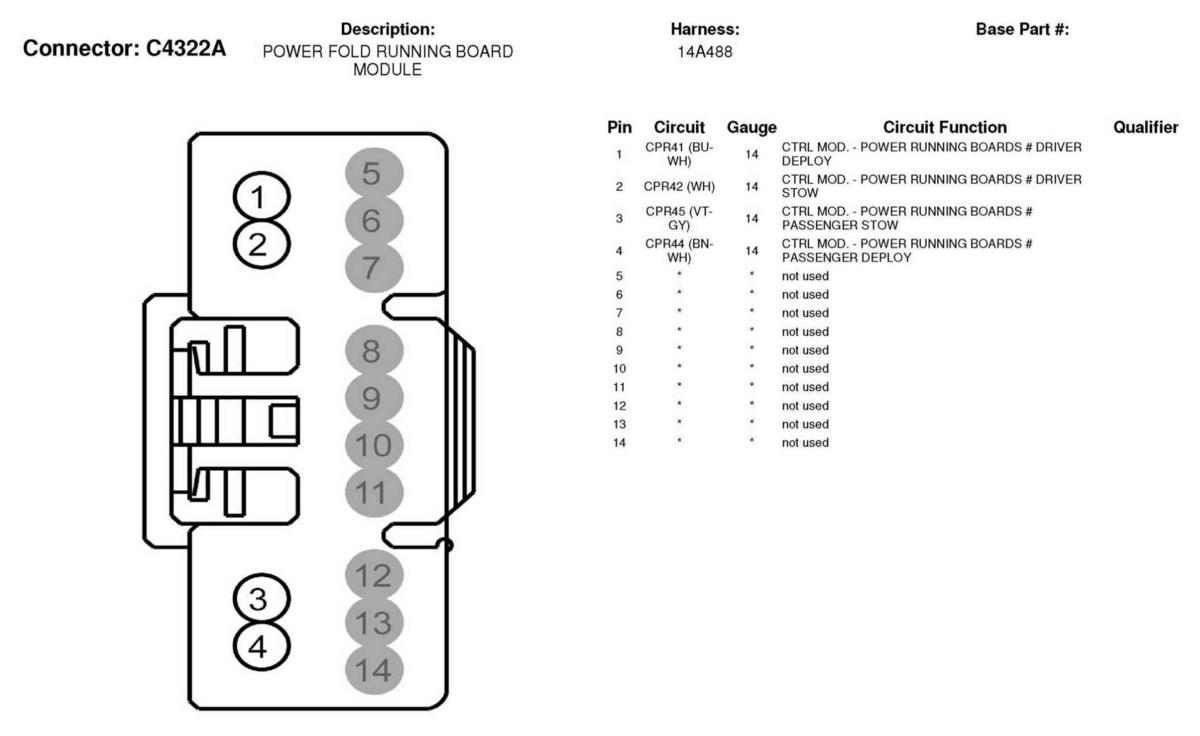

Fig 356: Power Fold Running Board Module Connector End View (C4322A)

G04596889

Courtesy of FORD MOTOR CO.

Fig 357: Power Fold Running Board Module Connector End View (C4322B)

G04596890

Courtesy of FORD MOTOR CO.

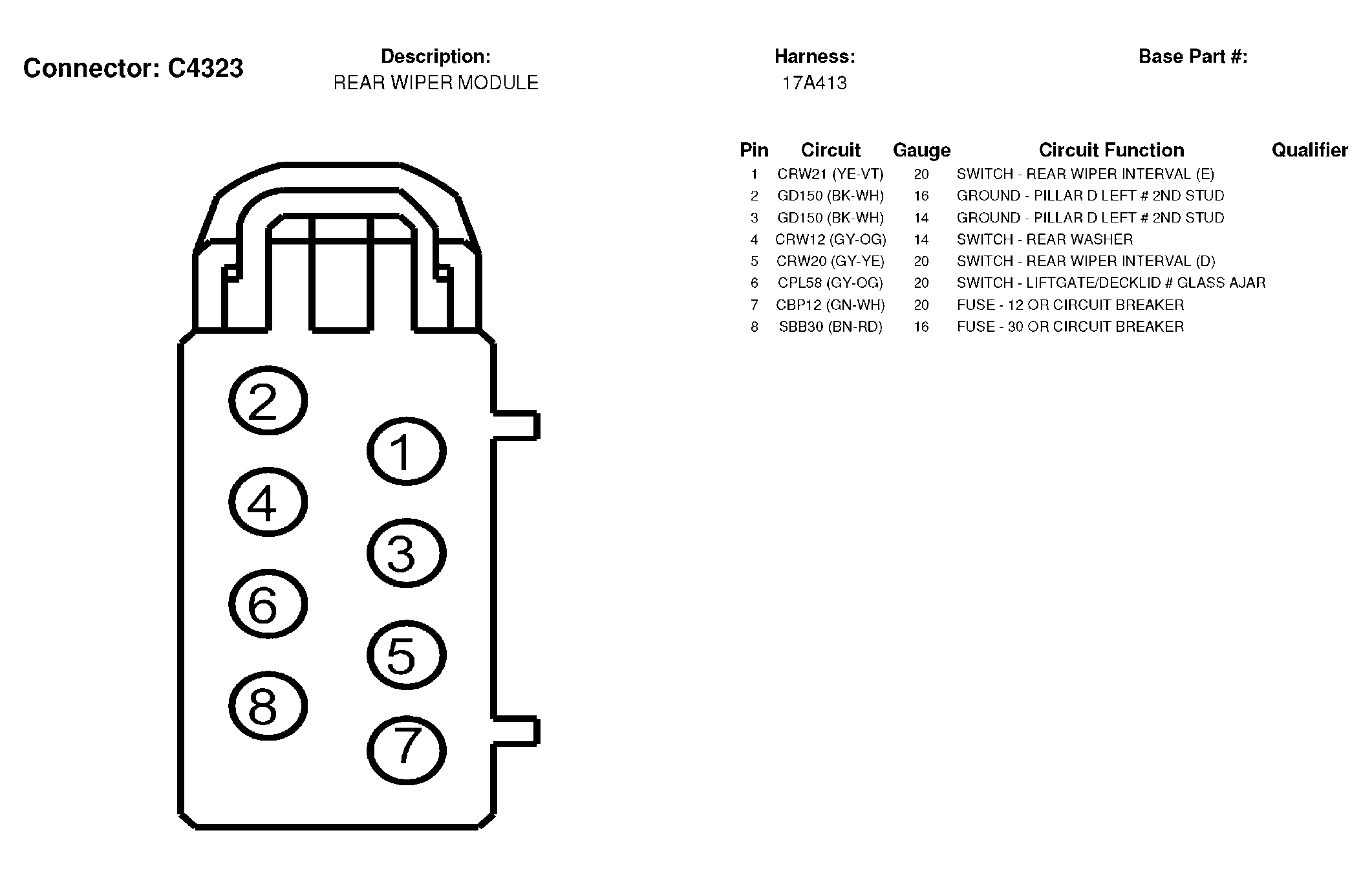

Fig 358: Rear Wiper Module Connector End View (C4323)

G04596891

Courtesy of FORD MOTOR CO.

Fig 359: Roof Opening Panel Switch Connector End View (C9001)

G04596892

Courtesy of FORD MOTOR CO.

Fig 360: Homelink Module Connector End View (C9037)

G04596893

Courtesy of FORD MOTOR CO.
