Steering Gear: Notes

SPECIAL TOOLS REFERENCE

G04637818Courtesy of FORD MOTOR CO.
 C-Frame and Screw
211-023 (T74P-3044-A1)

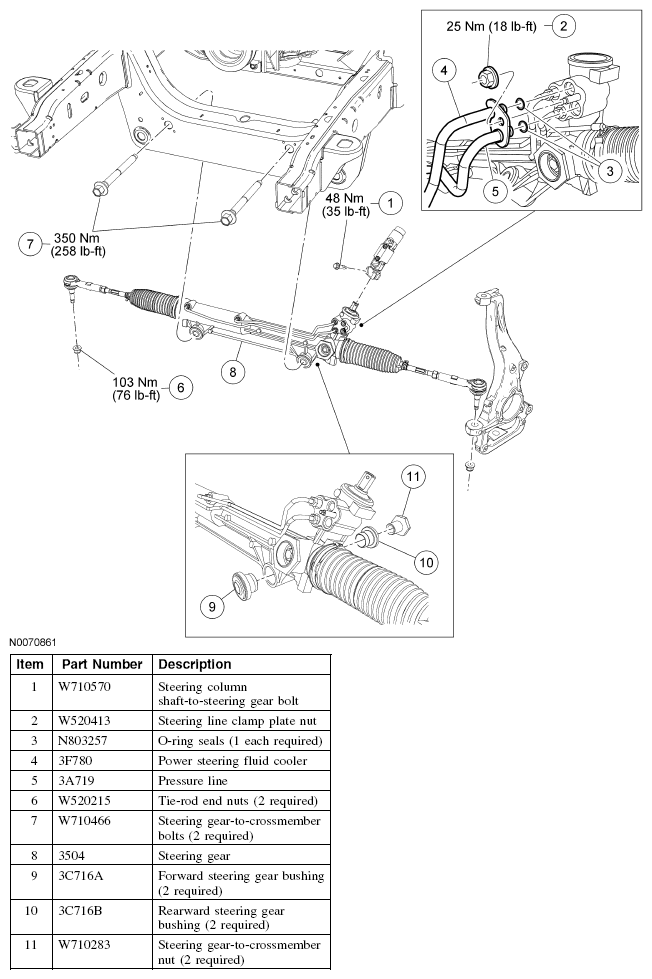

Fig 1: Steering Gear Replacement Components With Torque Specifications
G04637819Courtesy of FORD MOTOR CO.
