Toe Adjustment - Front

  1. Using alignment equipment and the manufacturer's instructions, measure the front toe.
  2. Start the engine and center the steering wheel.
  3. Turn the engine OFF and, using a suitable holding device, lock the steering wheel in the straight ahead position.
    4. NOTE: Do not allow the steering gear bellows to twist when the front wheel inner tie rod is rotated.

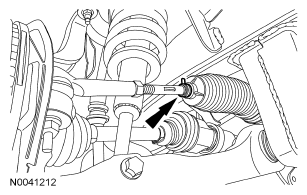

    Fig 1: Locating Clamp
    G04637031
  4. Remove the clamps.
  5. Loosen the tie-rod jam nuts.

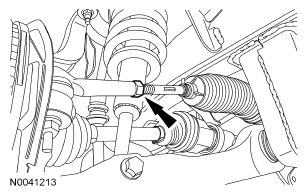

    Fig 2: Locating Tie-Rod Jam Nut
    G04637032
  6. Rotate the front wheel inner tie rods until the toe setting is within specification.

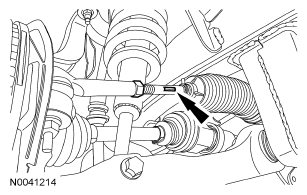

    Fig 3: Locating Toe Setting Specification
    G04637033
    7. CAUTION: Make sure to hold the tie-rod end stationary while tightening the nut or damage to the steering gear bellows can occur.
    NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.
  7. Tighten the tie-rod jam nuts to 70 Nm (52 lb-ft).
  8. Install the clamps.
  9. Recheck the toe settings and adjust if necessary.
