Seat Backrest - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

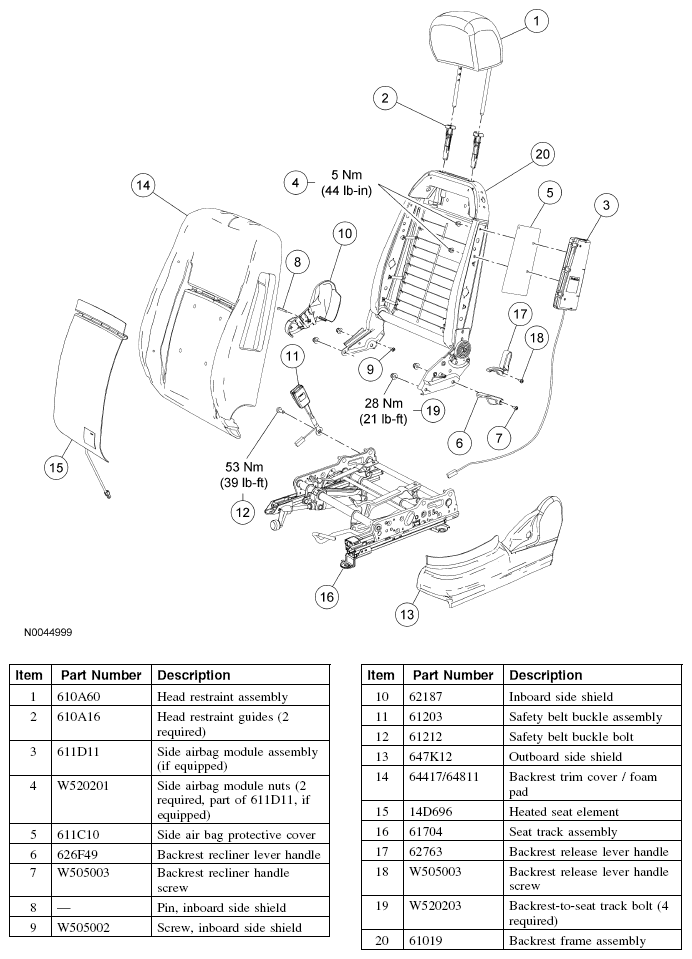

Fig 1: Exploded View Of Seat Backrest - Front With Torque Specification
G04654370Courtesy of FORD MOTOR CO.
