Exterior Mirrors - Exploded View

NOTE: The LH side is shown, the RH side is similar.

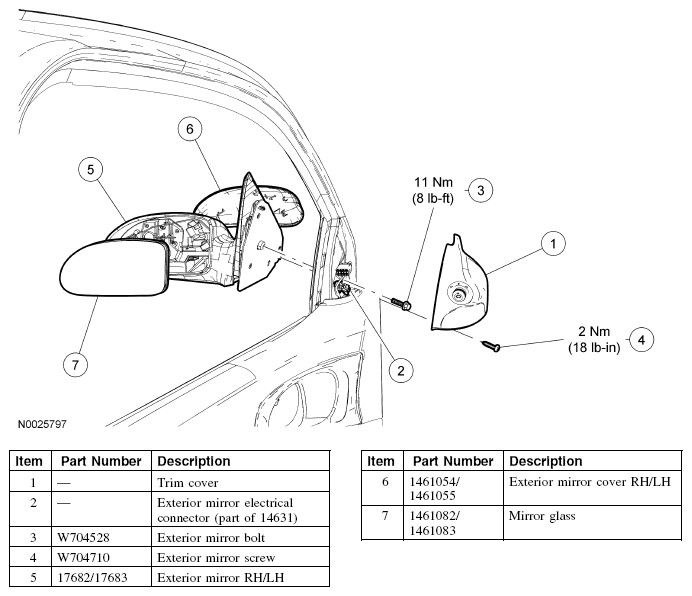

Fig 1: Exploded View Of Exterior Mirrors (with Torque Specifications)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
