Seat Cushion - Front: Notes

SPECIAL TOOLS DESCRIPTION

Courtesy of FORD MOTOR CO.

Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

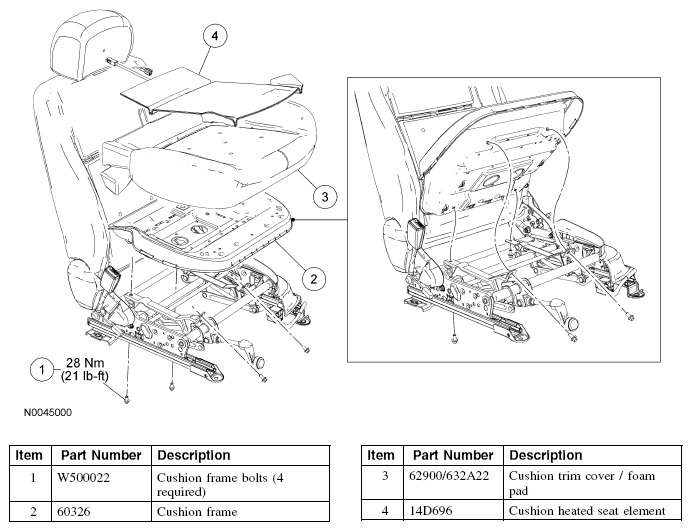

Fig 1: Exploded View Of Seat Cushion - Front, Driver With Torque Specification

Courtesy of FORD MOTOR CO.

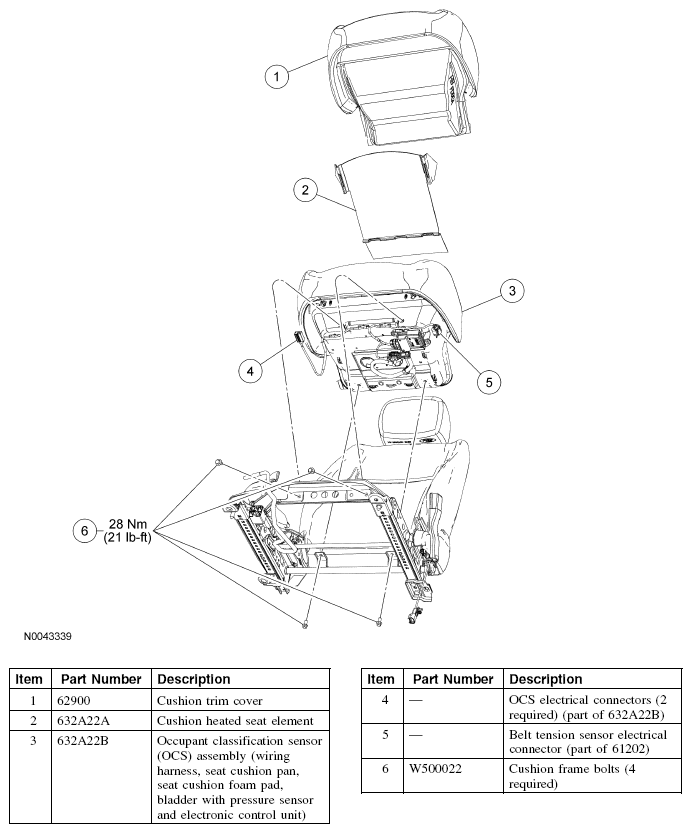

Fig 2: Exploded View Of Seat Cushion - Front, Passenger With Torque Specification

Courtesy of FORD MOTOR CO.
