Seat - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

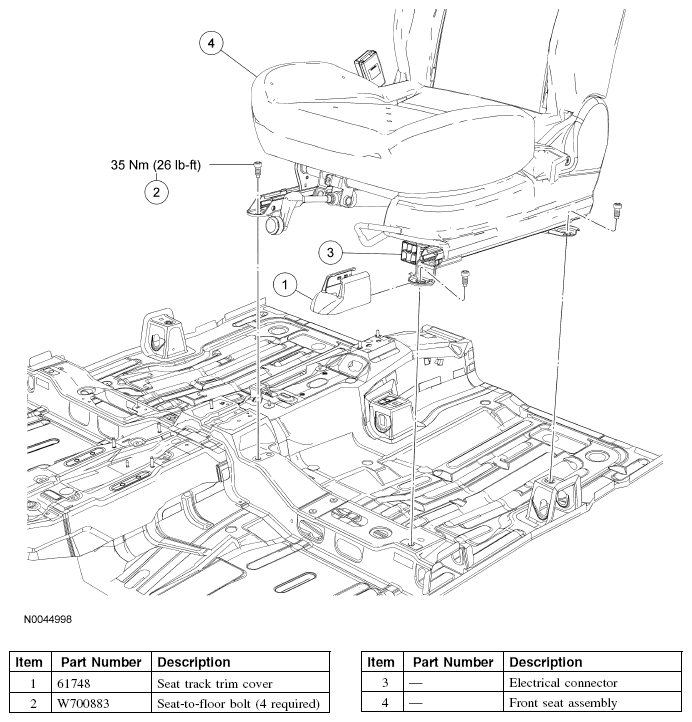

Fig 1: Seat Replacement Components -- Front With Torque Specification
G04654348Courtesy of FORD MOTOR CO.
