Windshield Glass: Notes

SPECIAL TOOL(S)

G04654491Courtesy of FORD MOTOR CO.
Interior Auto Glass Cut-Out Knife Kit 164-R2450 or equivalent
G04654492Courtesy of FORD MOTOR CO.
Pneumatic Knife with Offset Blade 107-R1511 or equivalent
G04654493Courtesy of FORD MOTOR CO.
The Pumper 164-R2459 or equivalent
MATERIALS

Item Specification
DOW AUTOMOTIVE 2-HOUR CURE
Dow Urethane Adhesive Betaseal® Express -
Dow Urethane One Step Glass Primer Betaprime® 5500/5500A/5500SA
SIKA 2-HOUR CURE
Sika Urethane Adhesive Sika Tack ASAP -
Sika Urethane Metal and Glass Primer Sika 206 G+P -
Ultra-Clear Spray Glass Cleaner ZC-23 ESR-M14P5-A

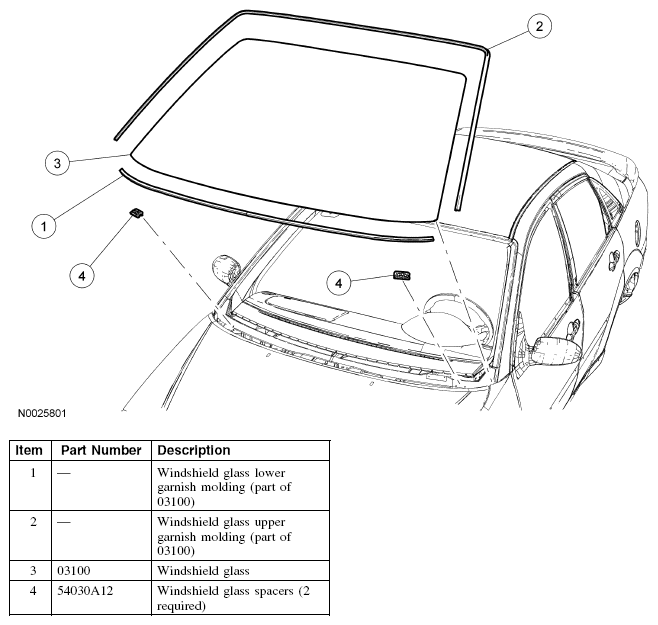

Fig 1: Identifying Windshield Glass Components
G04654494Courtesy of FORD MOTOR CO.
