Intake Manifold: Notes

MATERIALS

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

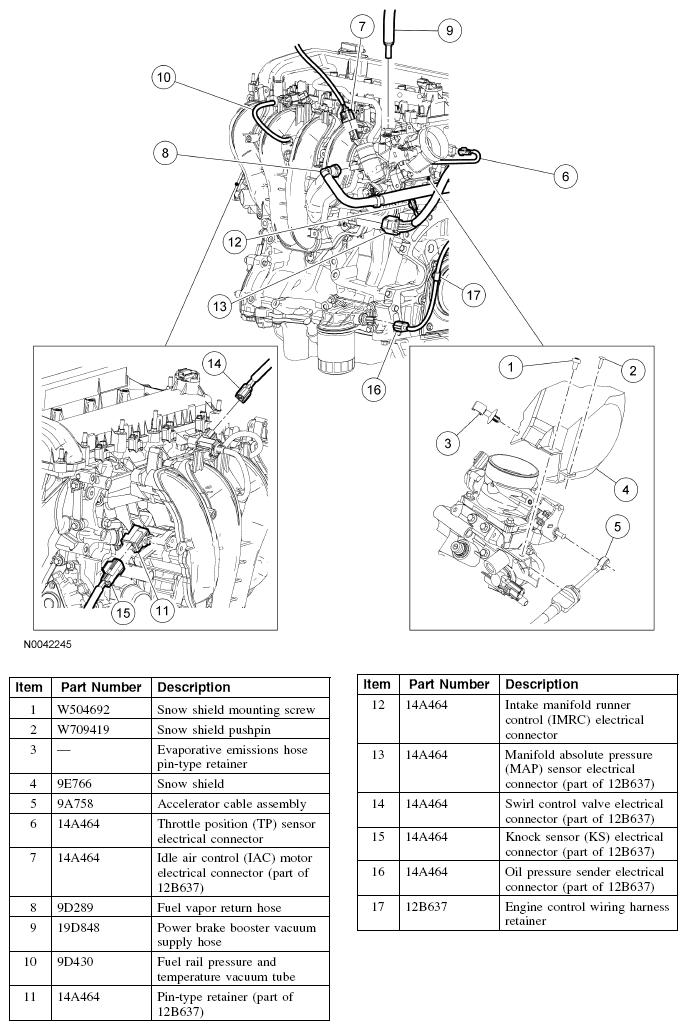

Fig 1: Identifying Intake Manifold Components (Items 1-17)

Courtesy of FORD MOTOR CO.

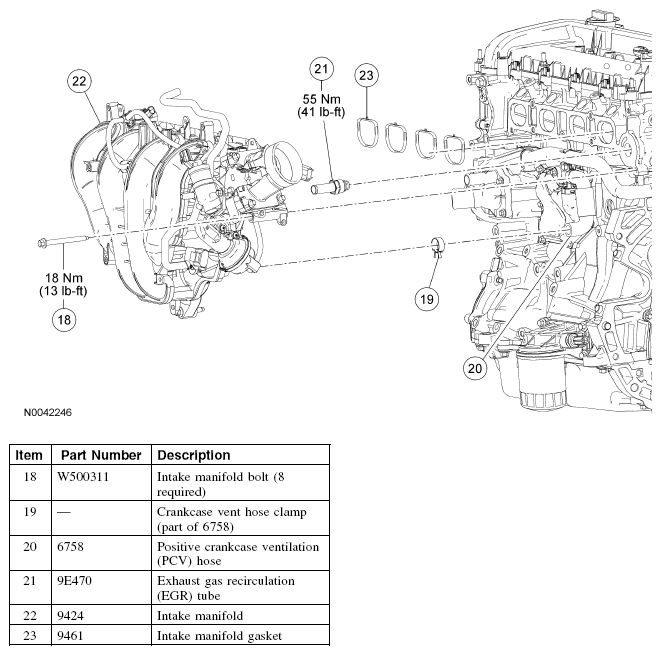

Fig 2: Intake Manifold Replacement Components With Torque Specifications (Items 18--23)

Courtesy of FORD MOTOR CO.
