Safety Belt Retractor and Pretensioner: Notes

NOTE: 4-door, 5-door and wagon shown, 3-door similar.

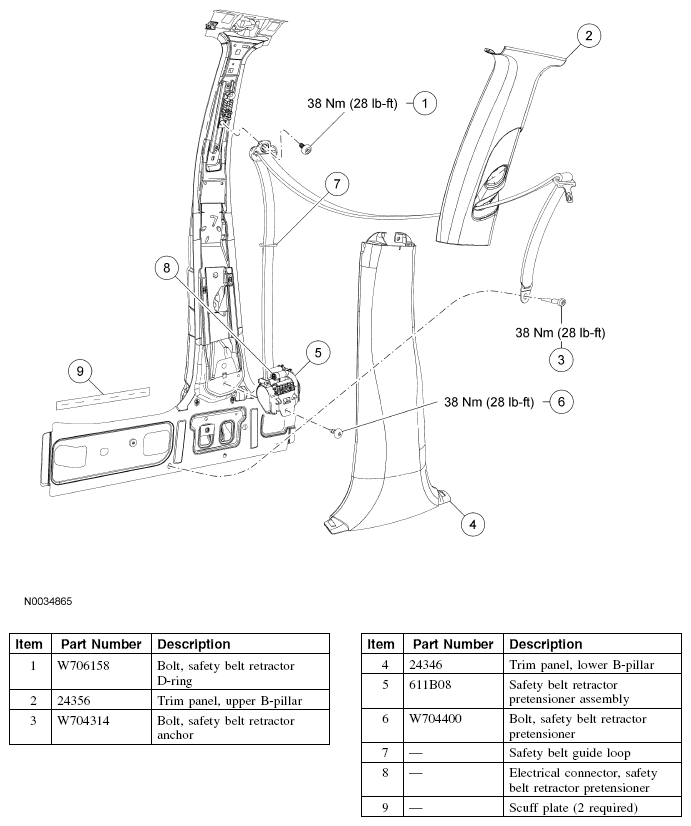

Fig 1: Safety Belt Retractor And Pretensioner Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
