Strut and Spring Assembly: Notes

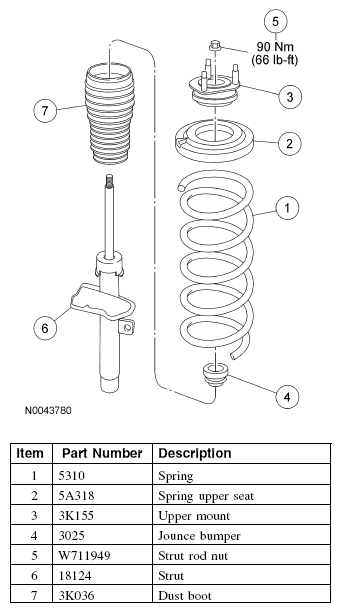

Fig 1: Strut And Spring Assembly Replacement Components With Torque Specifications
G04651468Courtesy of FORD MOTOR CO.
