Manual Transaxle: Notes

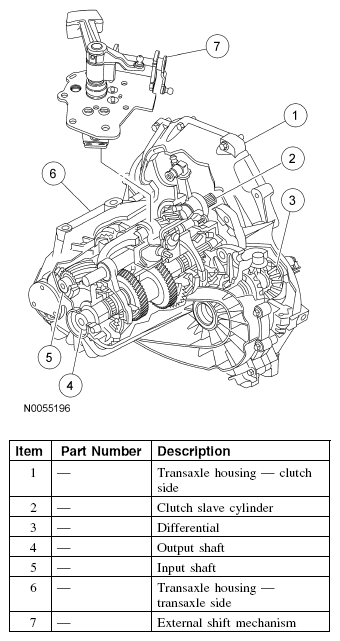

Fig 1: Identifying MTX Transaxle Components

Courtesy of FORD MOTOR CO.

The MTX-75 is a 5-speed synchronized unit. The MTX-75 has the following features:

Two-part aluminum housing
The input shaft has 2 tapered roller bearings. Input shaft end play is controlled by a selective shim located under the bearing cup
The output shaft has 2 tapered roller bearings. Output shaft end play is controlled by a selective shim located under the bearing cup
The differential has 2 tapered roller bearings. Differential end play is controlled by a selective shim located under the bearing cup
All gears are bevel cut
All gears, including reverse, turn on needle bearings
Synchronized in all gears
First and 2nd gear are dual synchronized
Single piece brass shift forks

The input shaft, output shaft and the differential assembly are assembled under preload. If the transmission is disassembled, a preload measurement must be taken.

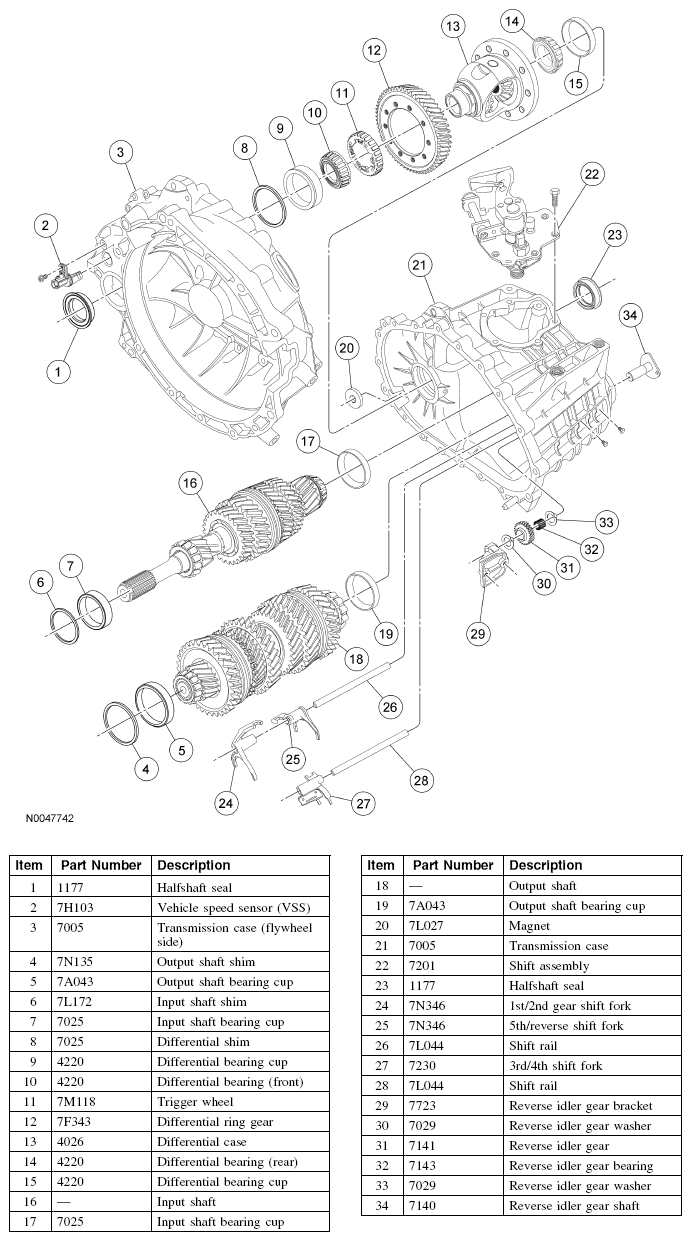

Fig 2: Exploded View Of Transmission

Courtesy of FORD MOTOR CO.

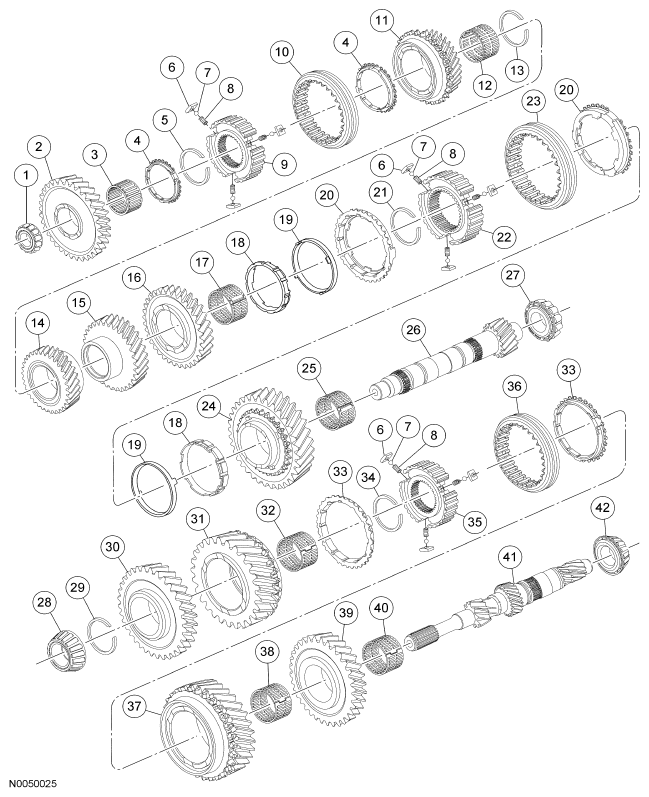

Fig 3: Exploded View Of Input And Output Shafts

Courtesy of FORD MOTOR CO.

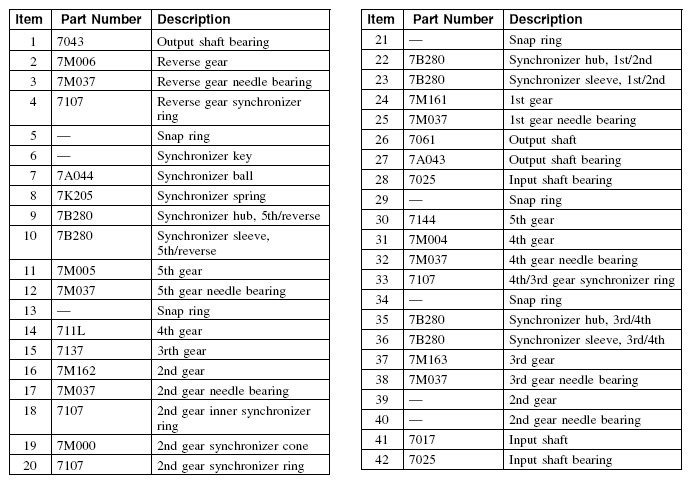

Fig 4: Input And Output Shafts Part Description Chart

Courtesy of FORD MOTOR CO.
