Selector Mechanism

SPECIAL TOOL(S)

MATERIAL

Item	Specification
Gasket Maker TA-16	WSK-M2G348-A5

Remove the battery. For additional information, refer to BATTERY MOUNTING AND CABLES .
Remove the bolts and the battery tray.
- To install, tighten to 12 Nm 9 (lb-ft).

  Fig 1: Locating Battery Tray Bolts
  Courtesy of FORD MOTOR CO.
Remove the intake air hose.
1. Disconnect the crankcase ventilation hose.
2. Loosen the clamps.
  - To install, tighten to 4 Nm (35 lb-in).
3. Remove the intake air hose.

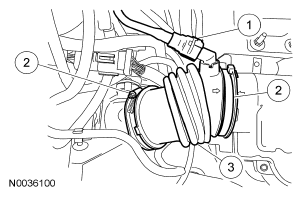

  Fig 2: Identifying Crankcase Ventilation Hose And Clamps
  Courtesy of FORD MOTOR CO.
Remove the bolts and the resonator.
- To install, tighten to 11 Nm (8 lb-ft).

  Fig 3: Identifying Resonator Bolts
  Courtesy of FORD MOTOR CO.
Install the special tools.

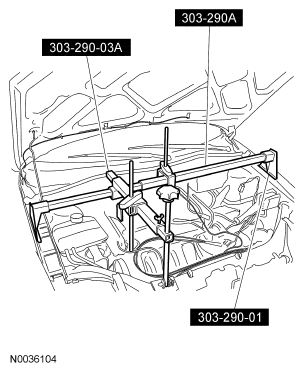

Fig 4: Identifying Special Tools
Courtesy of FORD MOTOR CO.
Remove the nuts and the rear engine mount.
- To install, tighten the center nut to 133 Nm (98 lb-ft).
- Tighten the outer nuts to 48 Nm (35 lb-ft).

  Fig 5: Locating Rear Engine Mount Nut
  Courtesy of FORD MOTOR CO.
Remove the 3 bolts and the rear engine mount bracket.
- To install, tighten to 80 Nm (59 lb-ft).

  Fig 6: Locating Rear Engine Mount Bracket Bolts
  Courtesy of FORD MOTOR CO.
Disconnect the reverse lamp switch electrical connector.

Fig 7: Locating Reverse Lamp Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Pressing the locking tab, disconnect the gearshift cables from the transaxle.
- Disconnect the shift cable and the selector cable from the shift mechanism.

NOTE: Make sure the transaxle is in the NEUTRAL position.

Position the transaxle in the NEUTRAL position. Remove the 6 bolts and the gearshift mechanism.
- To install, tighten the bolts in a star pattern to 23 Nm (17 lb-ft).

  Fig 8: Locating Gearshift Mechanism Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Apply a bead of gasket maker to the seating surface.
- Adjust the gearshift cables. For additional information, refer to MANUAL TRANSAXLE-TRANSMISSION AND CLUTCH - GENERAL INFORMATION .
