Main light switch (11654): Schematic

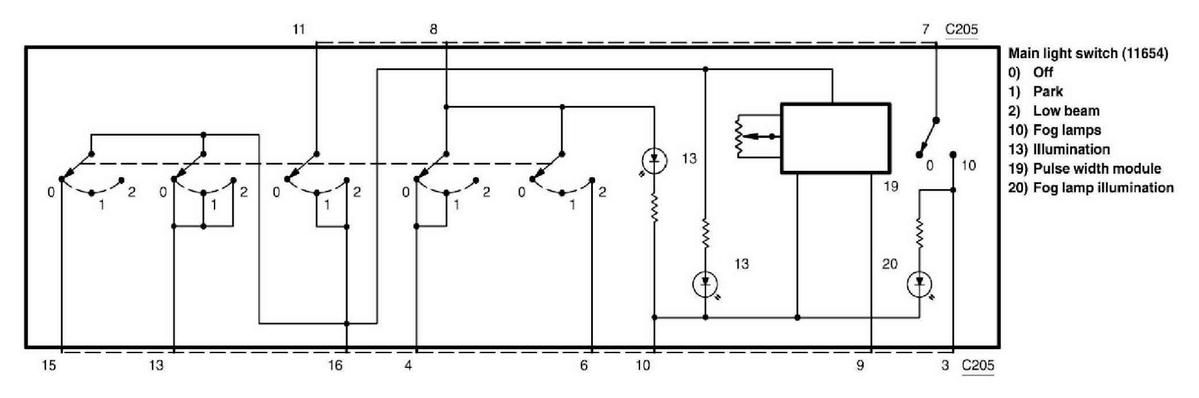

Fig 1: Main Light Switch (11654) - Schematic Diagram
G04597095Courtesy of FORD MOTOR CO.
