Ignition switch (11572): Schematic

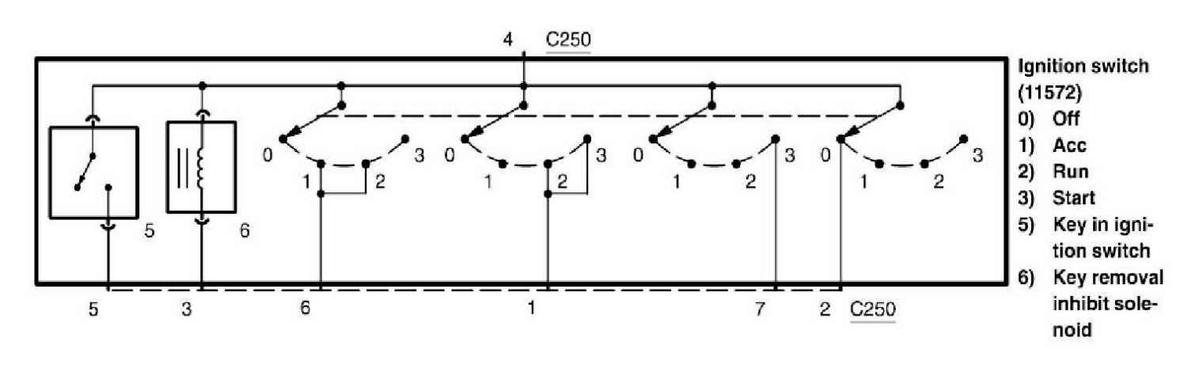

Fig 1: Ignition Switch (11572) - Schematic Diagram
G04597093Courtesy of FORD MOTOR CO.
