Clutch Controls: Notes

WARNING: This page is about a different variant/trim than selected.

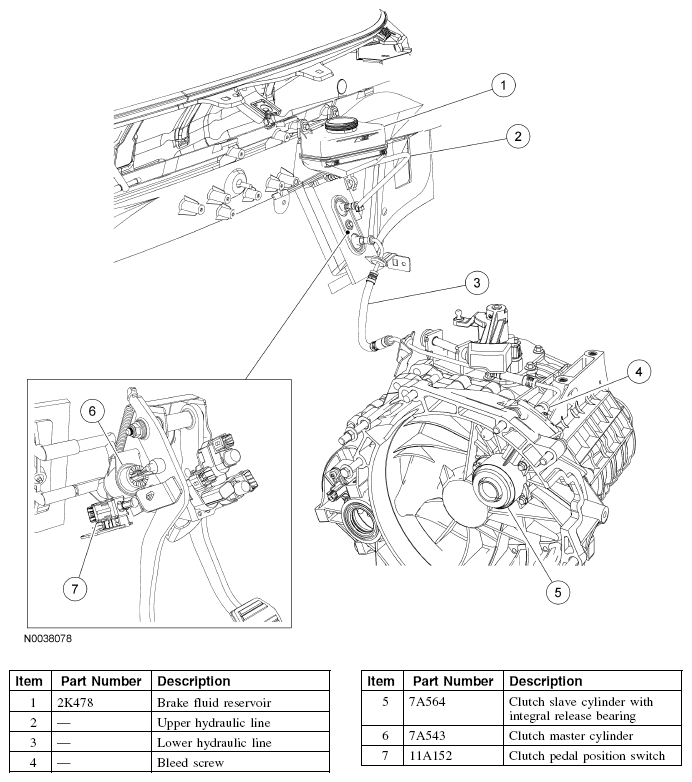

Fig 1: Identifying Clutch Mechanism Components
G04653280Courtesy of FORD MOTOR CO.
