Automatic Transmission External Controls System
›
Description And Operation
›
External Controls
›
Notes
External Controls: Notes

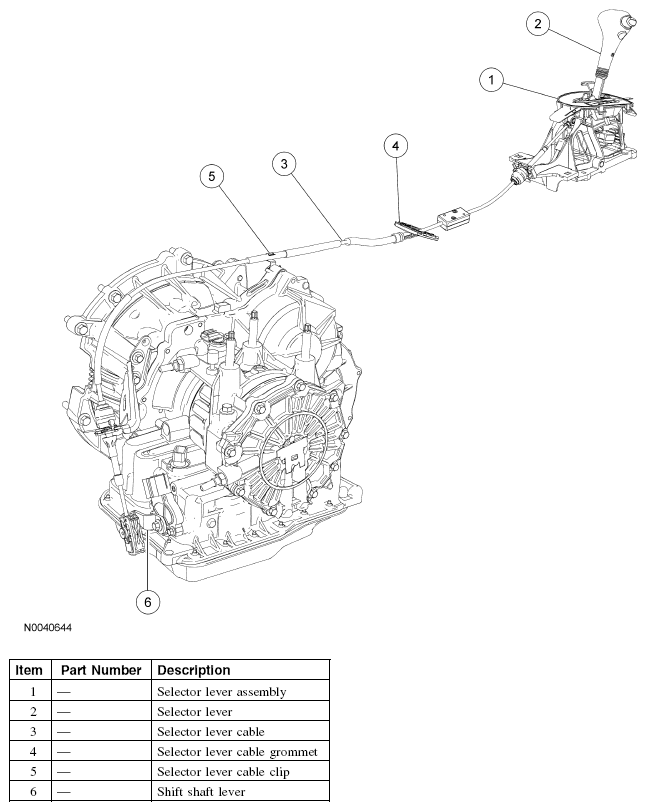

Fig 1: Identifying External Controls Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
