Main Components and Functions: Notes

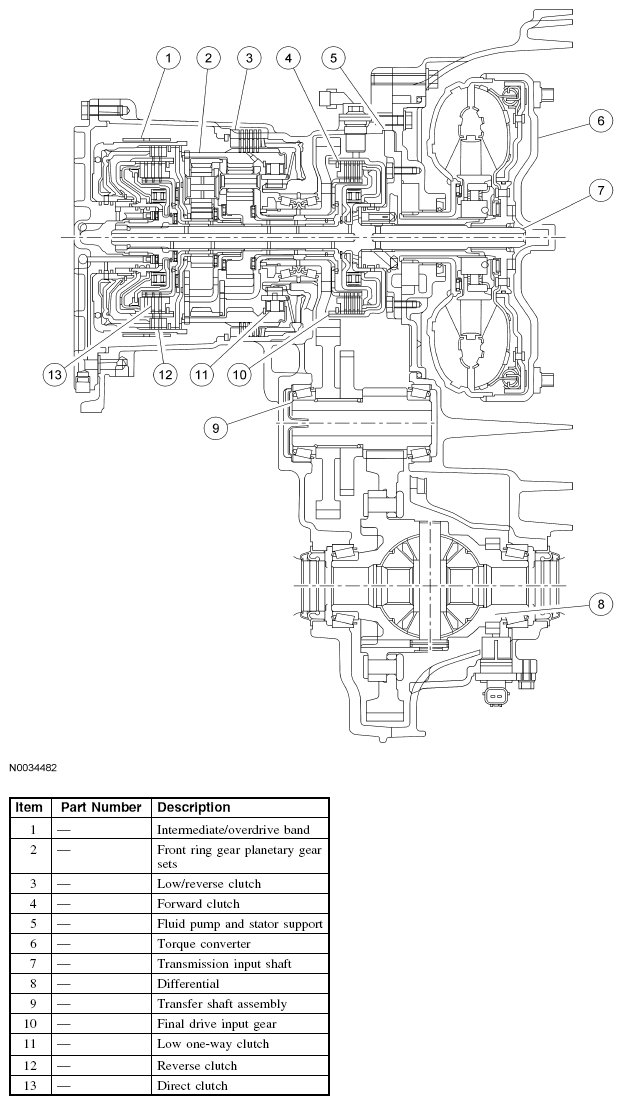

Fig 1: Sectional View - Main Components And Functions
G04652627Courtesy of FORD MOTOR CO.
