Direct Clutch: Notes

SPECIAL TOOL(S)

G04652925Courtesy of FORD MOTOR CO.
Compressor, Spring Washer
307-209
G04652926Courtesy of FORD MOTOR CO.
Dial Indicator Gauge With Holding Fixture
100-002 (TOOL-4201-C)
MATERIALS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) MERCON® V

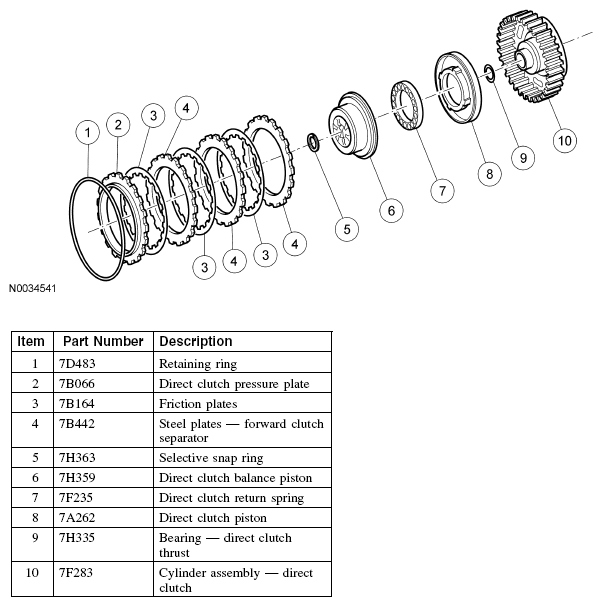

Fig 1: Identifying Direct Clutch Components
G04652927Courtesy of FORD MOTOR CO.
