Output Shaft Speed (OSS) Sensor: Notes

MATERIALS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

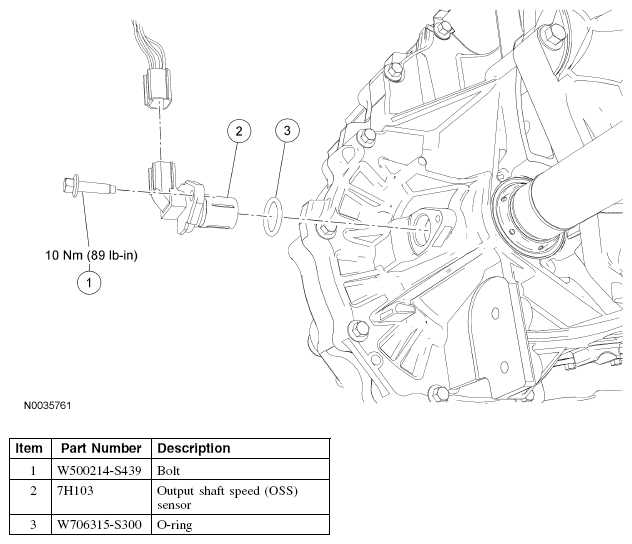

Fig 1: Output Shaft Speed (OSS) Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
