Transmission Fluid Pan: Installation

NOTE: Do not use more than the specified amount of sealer on the pan or internal transaxle damage could occur.

Apply a bead 1.5 mm (0.06 in) thick of sealer to the transmission fluid pan.

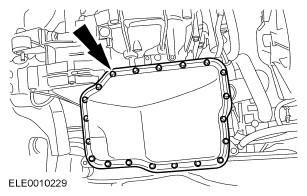

Fig 1: Identifying Area Applying Sealer To Transmission Fluid Pan
Courtesy of FORD MOTOR CO.
Install the transaxle fluid pan.
- Tighten to 10 Nm (89 lb-in).

  Fig 2: Locating Transaxle Fluid Pan Bolts
  Courtesy of FORD MOTOR CO.
Lower the vehicle.
Fill the transaxle with clean automatic transmission fluid.
