Turbine Shaft Speed (TSS) Sensor: Notes

MATERIALS

Item	Specification
Thread Sealant with PTFE TA-24	WSK-M2G350-A2

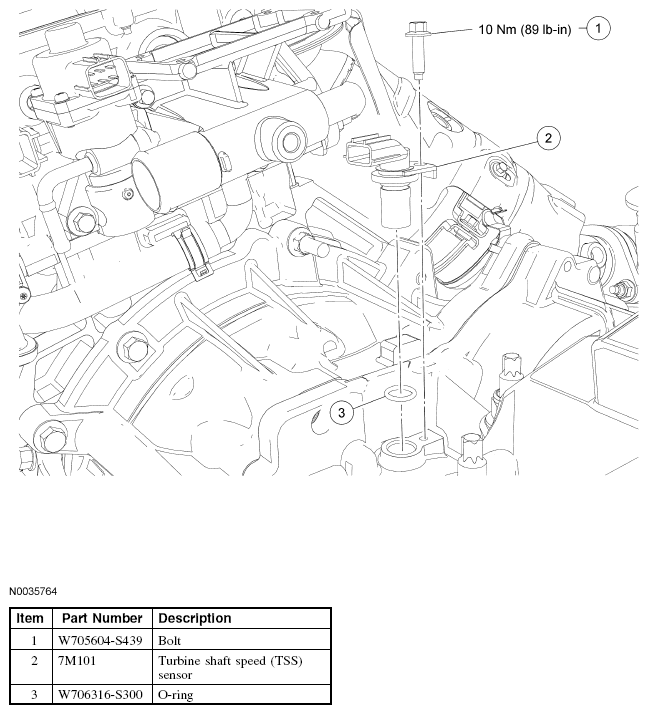

Fig 1: Turbine Shaft Speed (TSS) Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
