Seat Backrest - Second Row, Bench: Notes

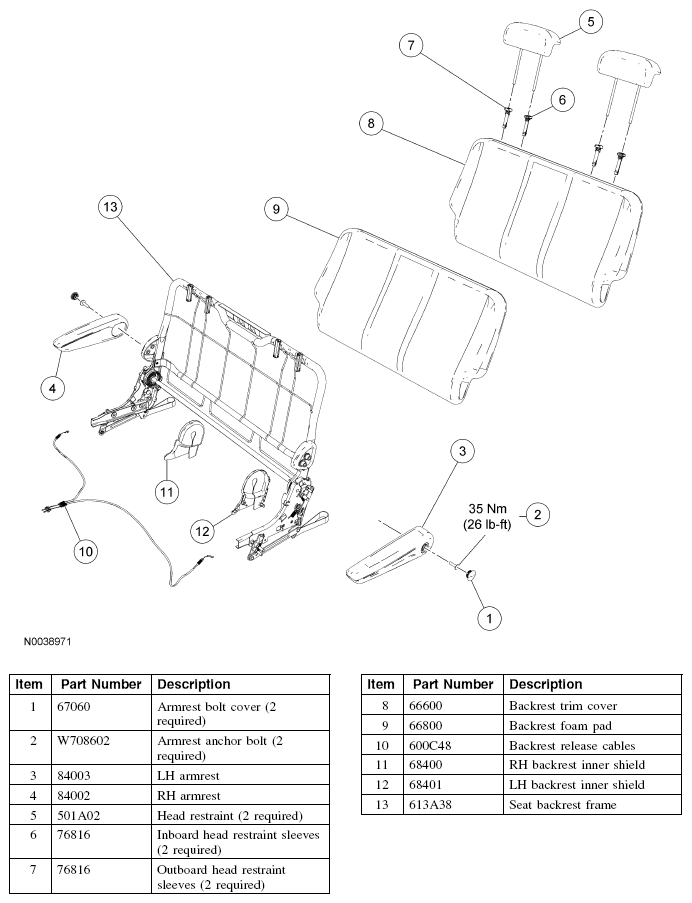

Fig 1: Exploded View Of Seat Backrest - Second Row, Bench With Torque Specification
G04663375Courtesy of FORD MOTOR CO.
