Bypass Tube: Notes

MATERIALS

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1

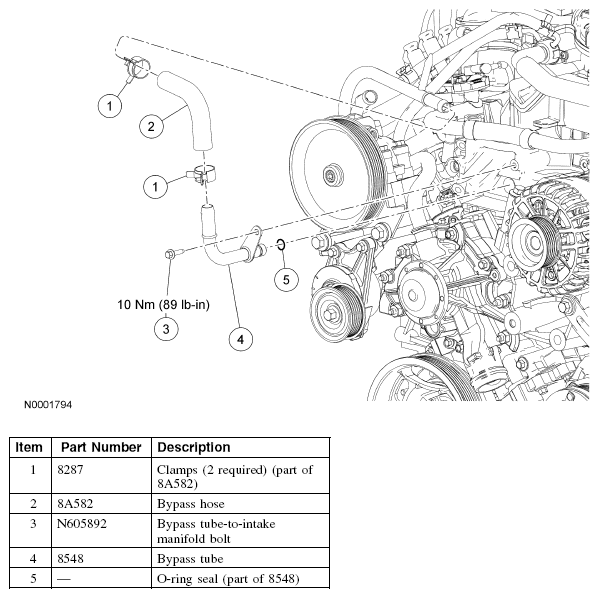

Fig 1: Bypass Tube Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
