Cylinder Head: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Compressor, Valve Spring
303-163 (T81P-6513-A)

MATERIALS

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

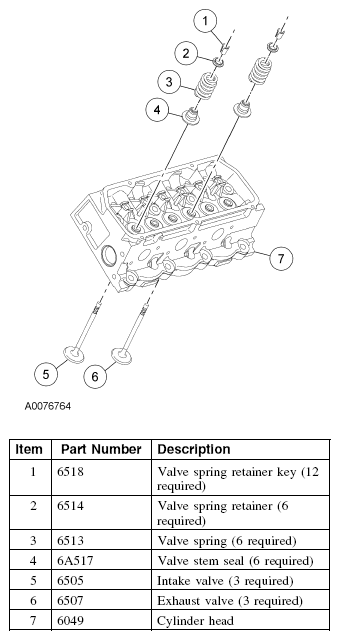

Fig 1: Identifying Cylinder Head Components

Courtesy of FORD MOTOR CO.
