Engine Mounts - Exploded View

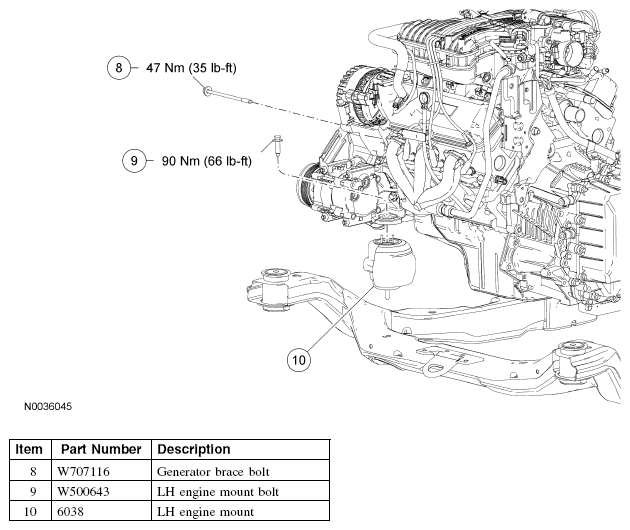

Fig 1: Exploded View Of Engine Mounts (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Engine Mounts (2 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
