Upper Intake Manifold: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Remover, Spark Plug Wire
303-106 (T74P-6666-A)

MATERIALS

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

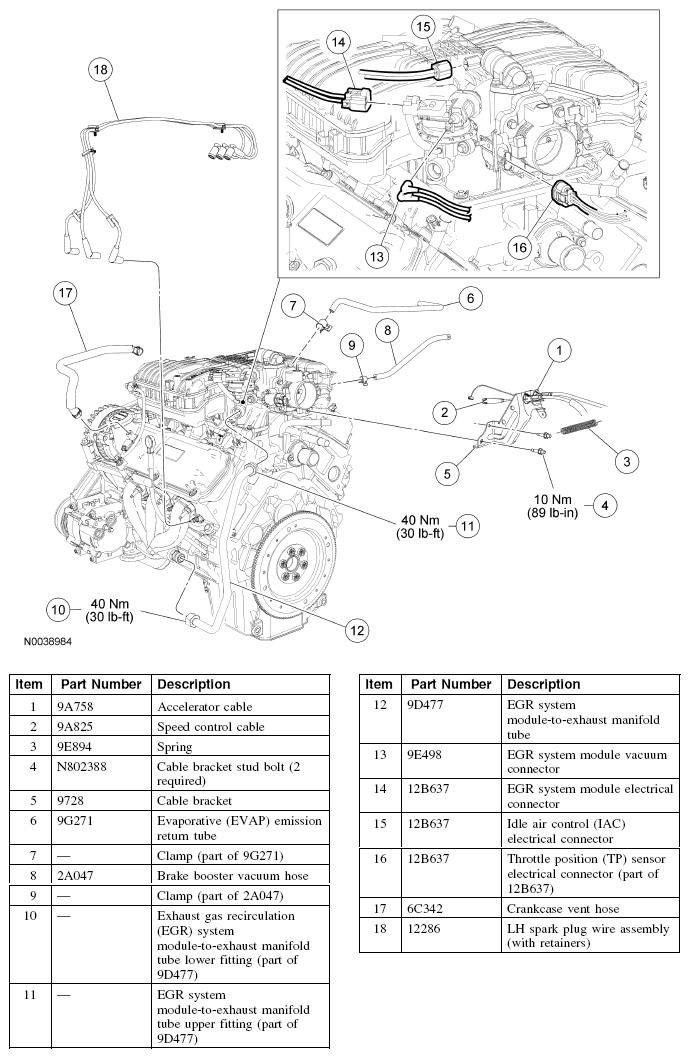

Fig 1: Upper Intake Manifold Replacement Components (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

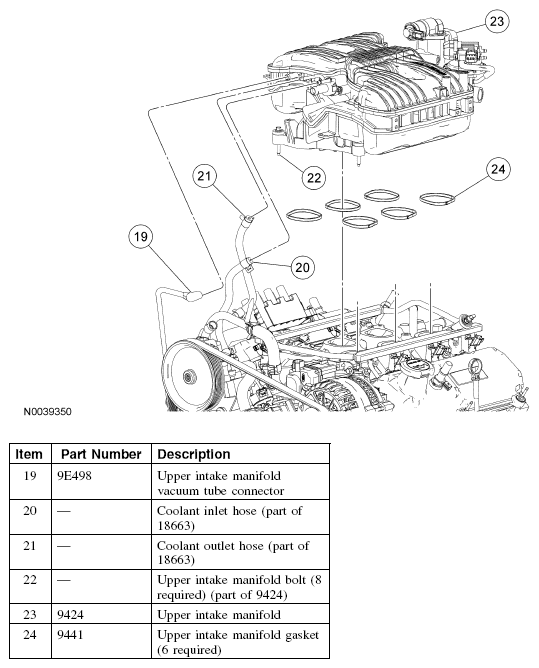

Fig 2: Identifying Upper Intake Manifold Components (2 Of 2)

Courtesy of FORD MOTOR CO.
