Valve Train Components - Exploded View

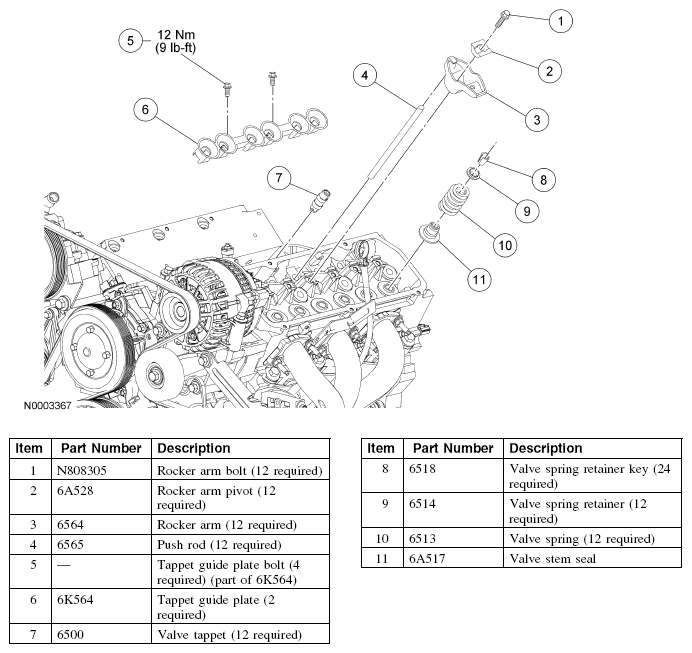

Fig 1: Exploded View Of Valve Train Components With Torque Specification

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
