Powertrain Control Module (PCM): Notes

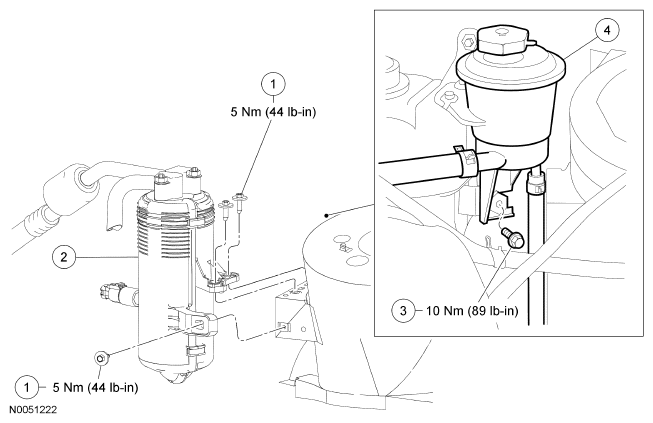

Fig 1: Powertrain Control Module (PCM) Replacement Components (1 Of 2) With Torque Specification's

Courtesy of FORD MOTOR CO.

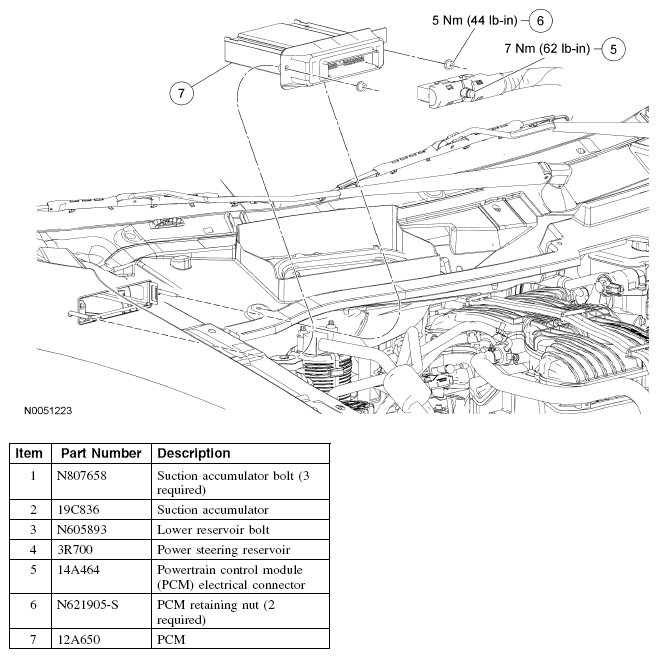

Fig 2: Powertrain Control Module (PCM) Replacement Components (2 Of 2) With Torque Specification's

Courtesy of FORD MOTOR CO.
