Compressor Manifold and Tube Assembly: Notes

MATERIALS

Item	Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D	WSH-M1C231-B

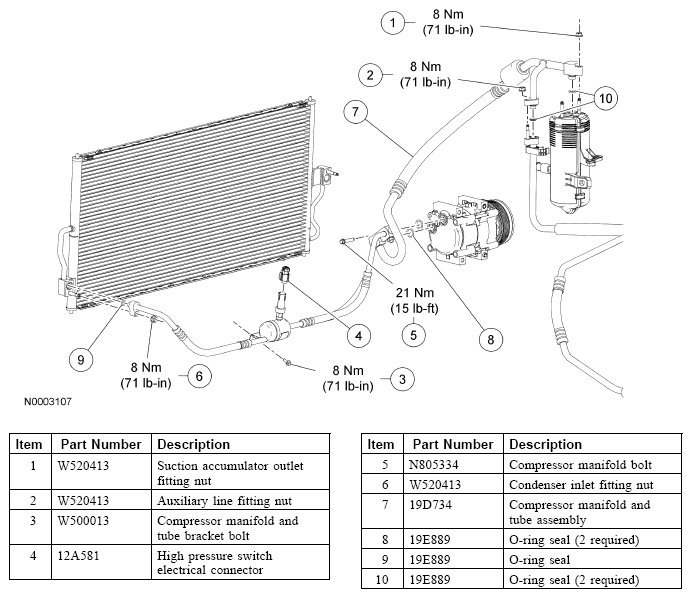

Fig 1: Compressor Manifold And Tube Assembly With Torque Specification

Courtesy of FORD MOTOR CO.
