Safety Canopy Module: Notes

NOTE: Driver side shown, passenger similar.

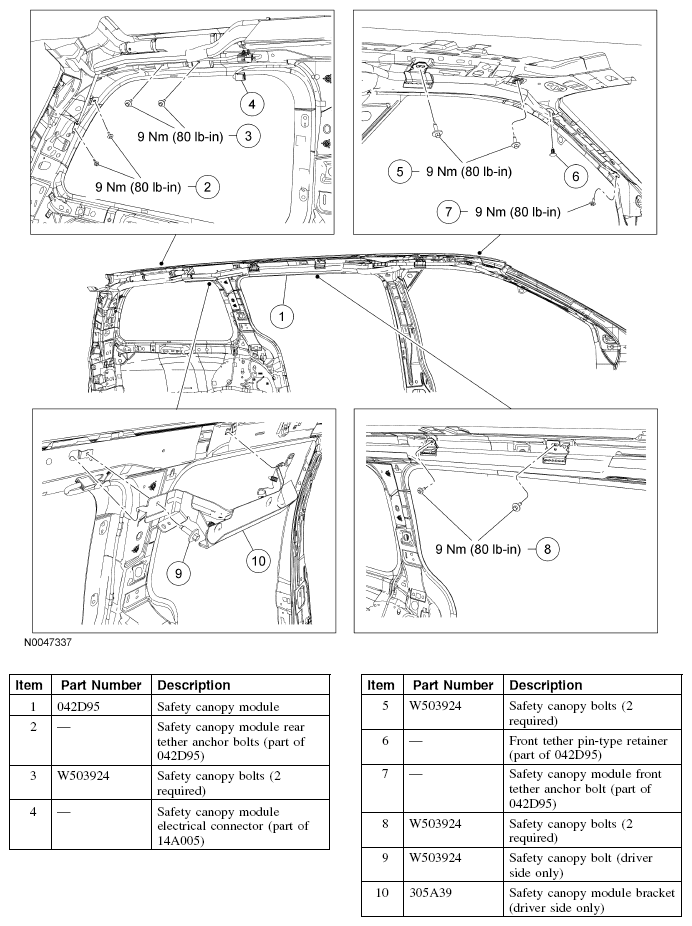

Fig 1: Safety Canopy Module Replacement Components With Torque Specifications
G04663947Courtesy of FORD MOTOR CO.
