Seat Position Sensor: Notes

NOTE: Manual seat track position sensor shown, power seat track position sensor similar.

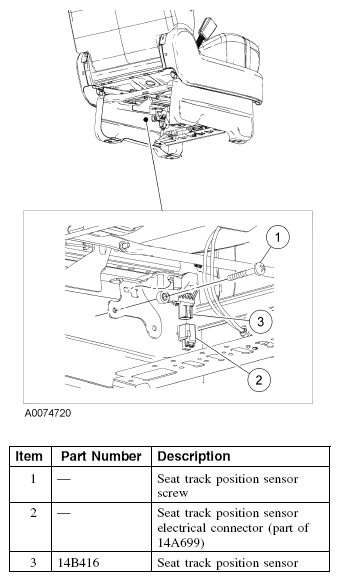

Fig 1: Identifying Seat Position Sensor Components
G04663953Courtesy of FORD MOTOR CO.
