Side Air Bag Module: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

NOTE: Low-back seat shown, hi-back seat similar.

NOTE: Driver seat shown, passenger similar.

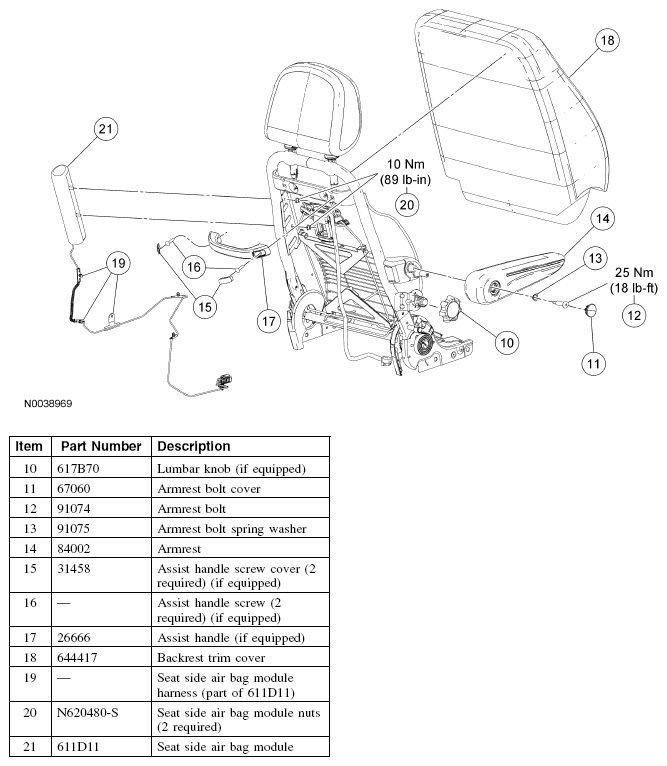

Fig 1: Side Air Bag Module Replacement Components (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

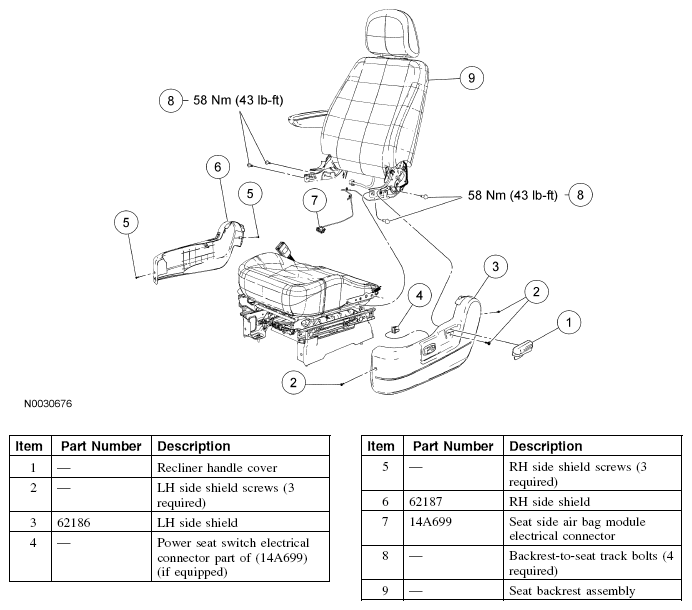

Fig 2: Side Air Bag Module Replacement Components (2 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.
