Safety Belt Buckle - Third Row: Notes

SPECIAL TOOL(S)

G04663636Courtesy of FORD MOTOR CO.
 Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)

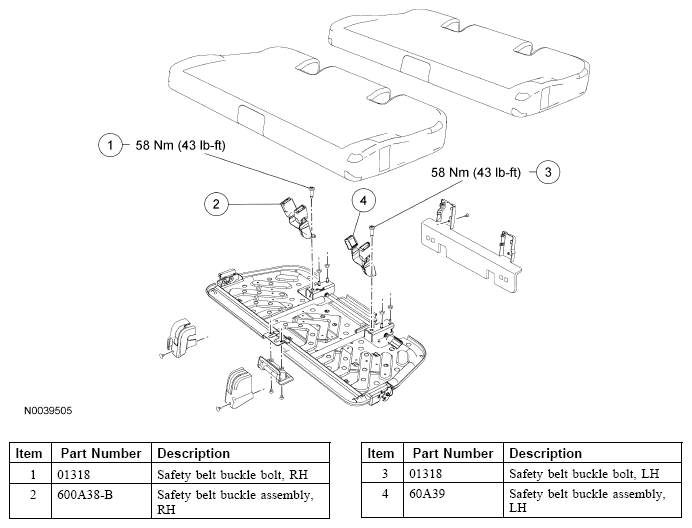

Fig 1: Safety Belt Buckle Replacement Components -- Third Row With Torque Specification's
G04663637Courtesy of FORD MOTOR CO.
