Safety Belt Retractor - Second Row, Bench Seat: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Torx Bit, Safety Belt Bolt 501-010 (T77L-2100-A)

NOTE: RH side shown, LH side similar.

NOTE: Vehicle may be equipped with an auxiliary climate control unit.

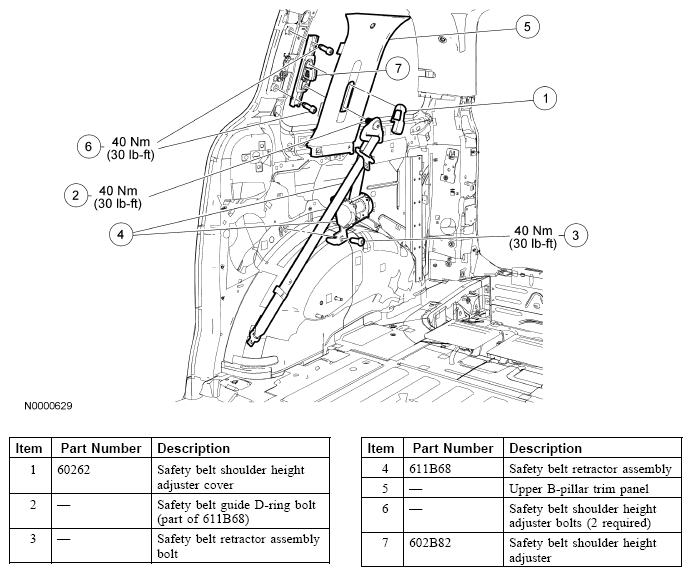

Fig 1: Safety Belt Retractor Replacement Components -- Second Row, Bench Seat With Torque Specification's

Courtesy of FORD MOTOR CO.
