Power Steering Pump: Notes
SPECIAL TOOL CHART
| Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX | MERCON® |
NOTE:

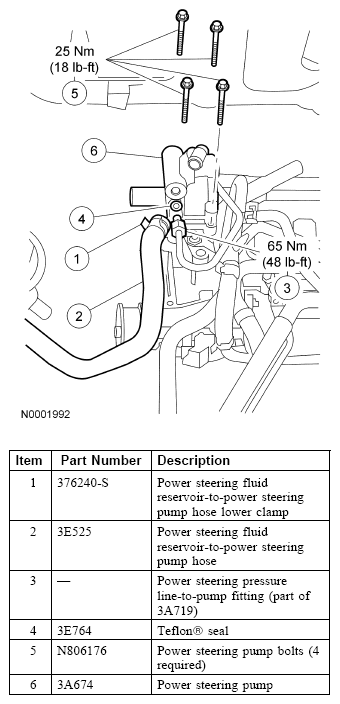

The power steering pump pulley has been removed for clarity. See Fig 1.
