Steering Gear: Notes

SPECIAL TOOL CHART

G04660161
 Installer, Constant Velocity Joint Boot Clamp
205-343 (T95T-3514-A)
MATERIAL SPECIFICATION

Item Specification
Steering Gear Grease C3AZ-19578-A ESW-M1C87-A

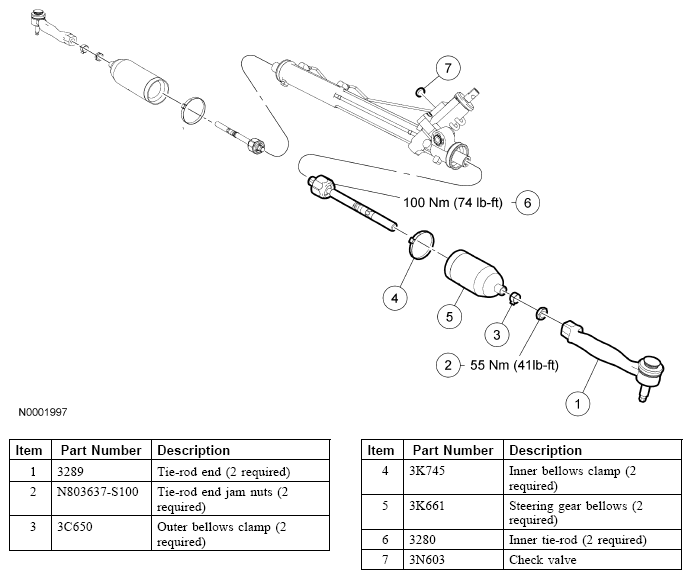

Fig 1: Exploded View Of Steering Gear
G04660162Courtesy of FORD MOTOR CO.
