Transmission Fluid Cooler Tubes: Notes

SPECIAL TOOL(S) SPECIFICATIONS

Disconnect Tool, Transmission Cooler Line 307-441

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

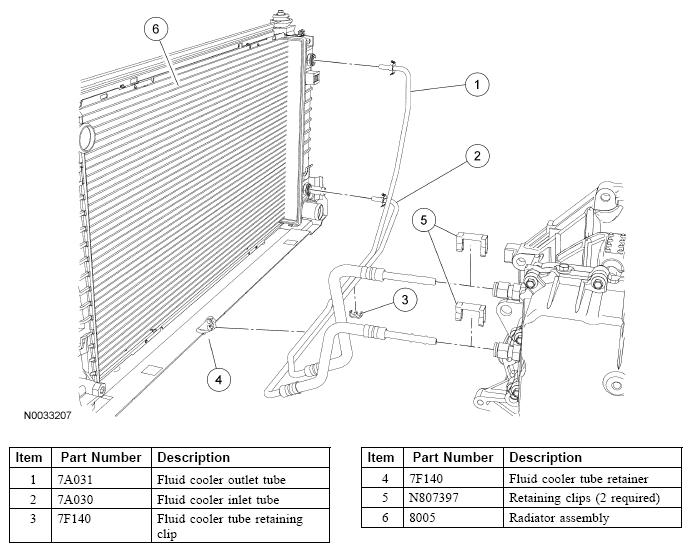

Fig 1: Identifying Transmission Fluid Cooler Tubes (Vehicles Without Trailer Towing Package)

Courtesy of FORD MOTOR CO.

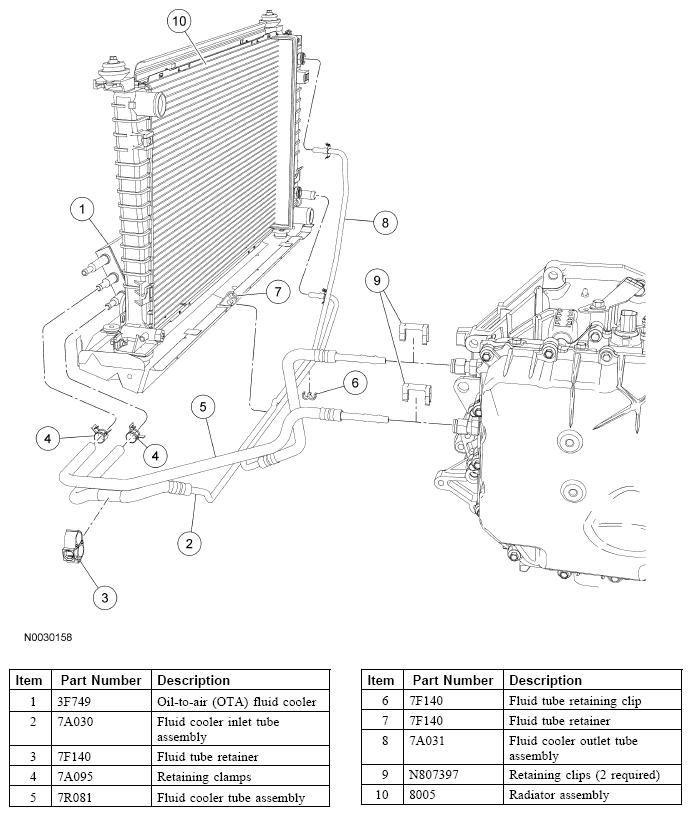

Fig 2: Identifying Transmission Fluid Cooler Tubes (Vehicles With Trailer Towing Package)

Courtesy of FORD MOTOR CO.
