Hydraulic System: Accumulators

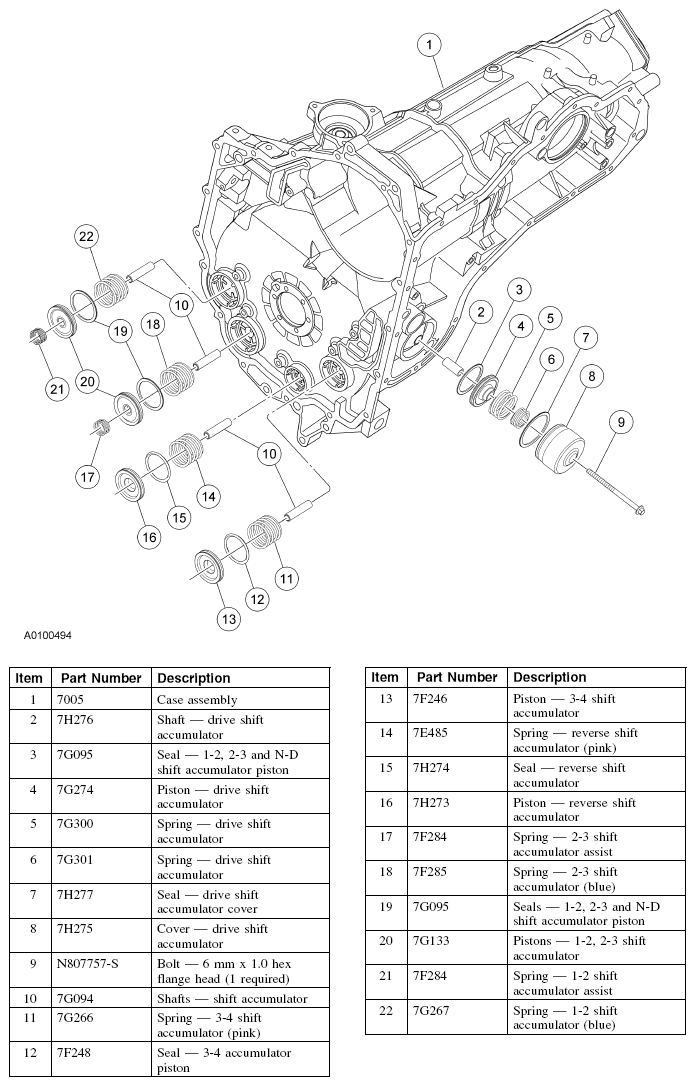

The hydraulic system has accumulators in circuits for 5 apply components. Each accumulator has a piston (with seal and spring) positioned on a hollow shaft.
The low-intermediate (N-D) accumulator is located in the bottom of the transaxle case.
The chain cover and side of the transaxle case contain 4 accumulators:
- Reverse (N-R)
- Intermediate (1-2)
- Direct (2-3)
- Overdrive (3-4)
