Automatic Transmission
›
Description And Operation
›
Main Components and Functions
Main Components and Functions

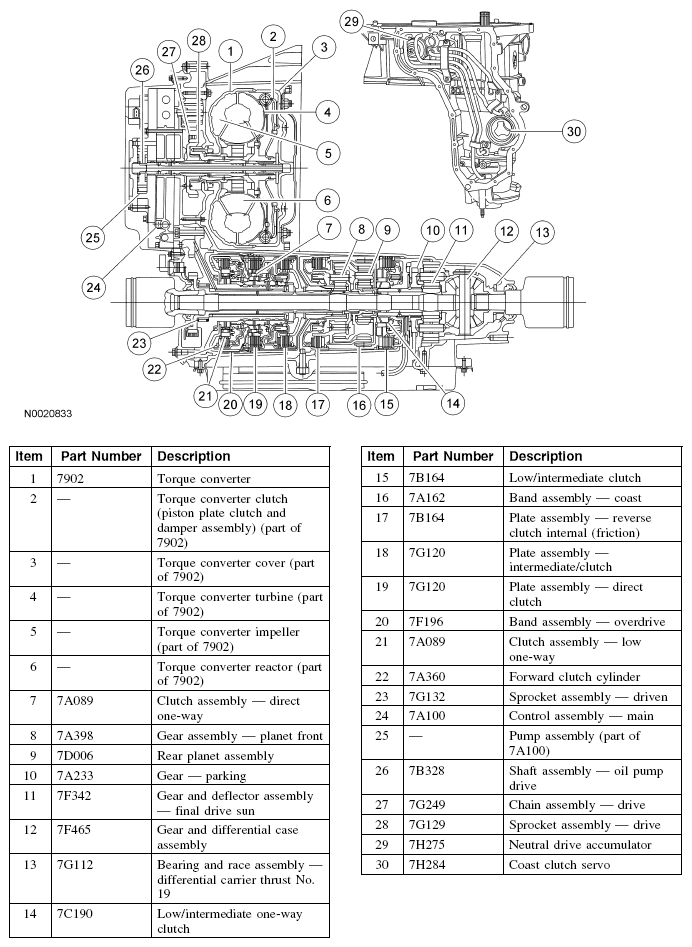

Fig 1: Identifying Automatic Transmission - Sectional View
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
