Transaxle Connector Layouts

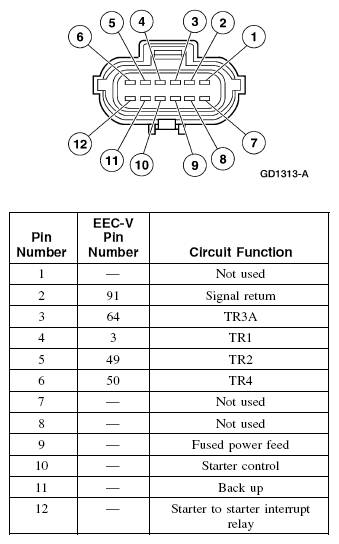

Fig 1: Identifying Transaxle Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

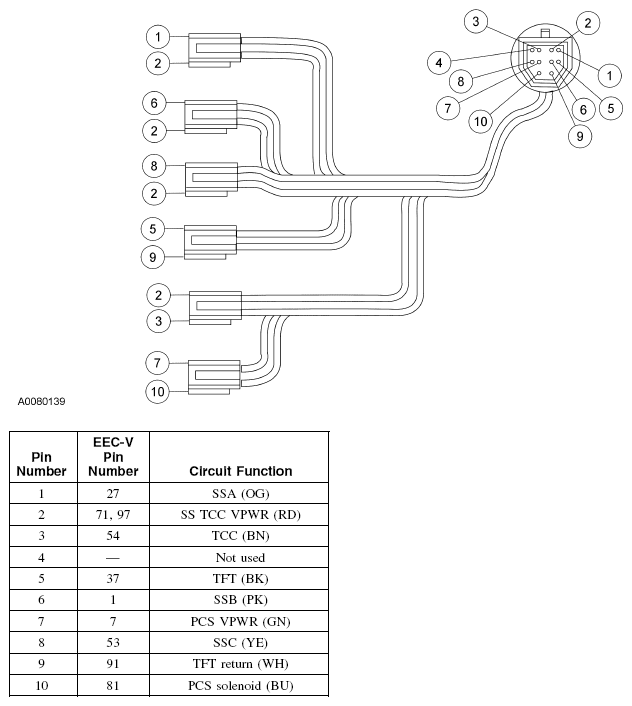

Fig 2: Transaxle Internal Harness Diagram

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Digital Transmission Range (TR) Sensor Connector Terminal

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Turbine Shaft Speed (TSS) Sensor

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Output Shaft Speed (OSS) Sensor Connector

Courtesy of FORD MOTOR CO.
