Drive Sprocket/Turbine Shaft: Notes

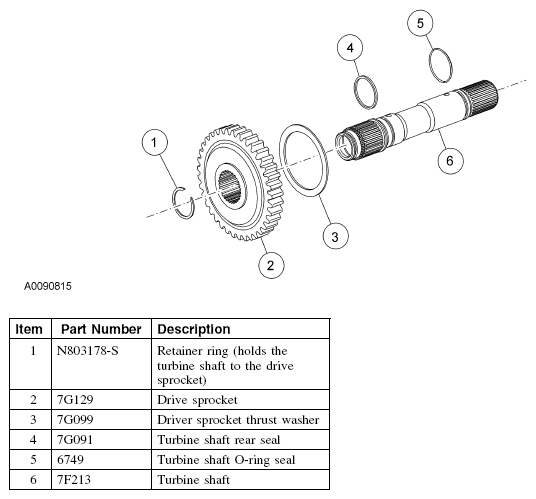

Fig 1: Identifying Drive Sprocket/Turbine Shaft Components
G04661390Courtesy of FORD MOTOR CO.
