Forward Clutch Cylinder: Notes

SPECIAL TOOL(S)

G04661407Courtesy of FORD MOTOR CO.
 Feeler Gauge Set
303-D027 (D81L-4201-A) or equivalent
G04661408Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04661409Courtesy of FORD MOTOR CO.
 Protector, Piston Seal
307-175 (T86P-70548-A)

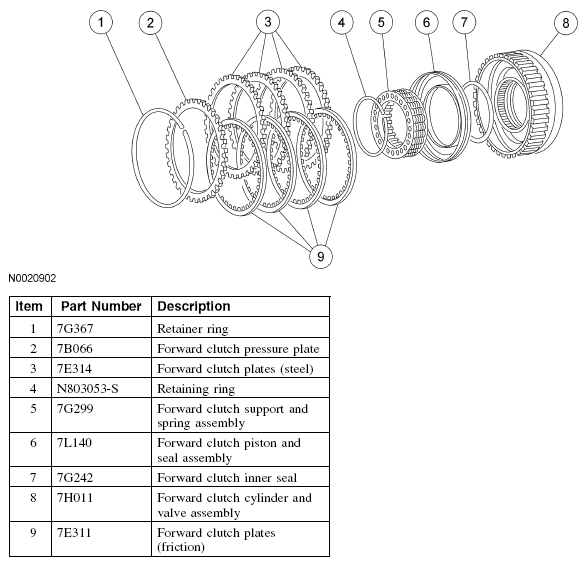

Fig 1: Identifying Forward Clutch Cylinder Components
G04661410Courtesy of FORD MOTOR CO.
