Intermediate Clutch Cylinder: Notes

SPECIAL TOOL(S)

G04661444Courtesy of FORD MOTOR CO.
 Dial Indicator Gauge with Holding Fixture
100-D002 (D78P-4201-B)
G04661445Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04661446Courtesy of FORD MOTOR CO.
 Protector, Piston Seal
307-319 (T94P-77001-LH)

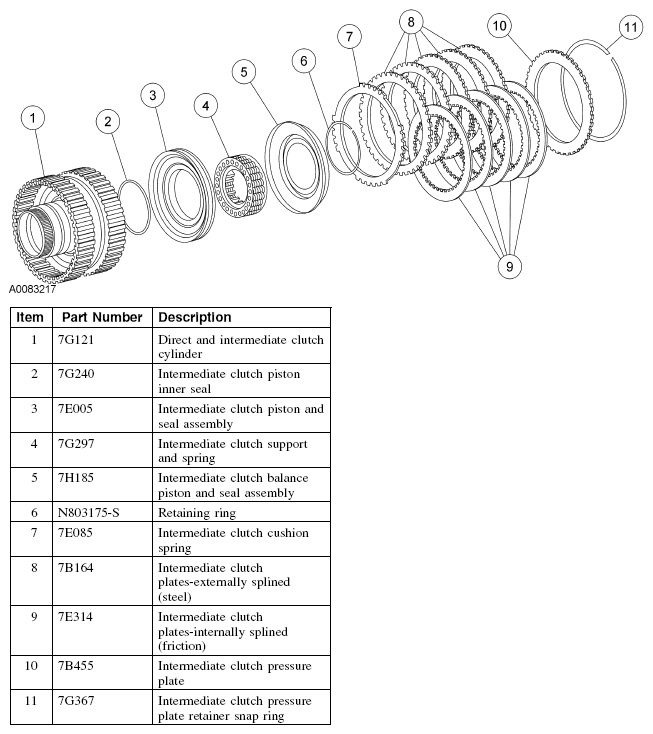

Fig 1: Identifying Intermediate Clutch Cylinder Components
G04661447Courtesy of FORD MOTOR CO.
